Pressalit Care SELECT R4951 Manuale utente

SELECT wash basin lifter – Operation and maintenance manual en

SELECT vaskeløfter – Brugs- og vedligeholdelsesvejledning dk

SELECT Waschtisch-Lifter – Gebrauchs- und Pegeanleitung de

SELECT support de lavabo – Manuel d’utilisation et d’entretien fr

SELECT muurframe voor wastafel – Gebruiks- en onderhoudshandleiding nl

SELECT upphängning till tvättställ – Bruks- och underhållsanvisning sv

SELECT oppheng til servant – Bruks- og vedlikeholdsveiledning no

SELECT soporte de lavabo - Instrucciones de uso y mantenimiento es

R4950 - R4951

R4960 - R4961

en The guarantee covers faults or defects in material or manufacture within a period of 3 years. Pro-

ducts are subject to minor technical modifications and design deviations. E. & O.E.

dk Garantien dækker i 3 år fra fakturadato for materiale- og fabrikationsfejl. Der tages forbehold for

trykfejl, tekniske ændringer og modelafvigelser.

de Die Garantie gilt für drei Jahre ab Rechnungsdatum für Material- und Herstellungsfehler. Druck-

fehler, technische Änderungen und Modellabweichungen vorbehalten.

fr La garantie couvre les vices de fabrication et de matériaux pour une durée de 3 ans à partir de la

date de facturation. Sous réserve de modifications techniques et d’erreurs d’impression.

nl De garantie is tot 3 jaar na factuurdatum geldig voor materiaal- en fabricagefouten.Onder voorbe-

houd van drukfouten, technische wijzigingen en modelafwijkingen.

sv Garantin gäller i 3 år från fakturadatum för material- och fabrikationsfel. Med reservation för tryck-

fel, tekniska ändringar och modellavvikelser.

no Garantien gjelder i 3 år fra fakturadato for material- og fabrikasjonsfeil. Med forbehold for trykkfeil,

tekniske endringer og modellforskjeller.

es La garantía cubre fallos de material o fabricación durante los tres años posteriores a partir de la

fecha de factura. Mantenemos reservas en caso de problemas de presión, modificaciones técnicas

y variaciones de modelo.

English ................................................................. 3

Dansk ................................................................. 18

Deutsch ............................................................... 33

Français ............................................................... 48

Nederlands ............................................................ 63

Svenska................................................................ 78

Norsk.................................................................. 93

Español............................................................... 108

Content

Symbols used in this manual............................................4

General safety .........................................................5

Product label..........................................................6

Intended use ..........................................................8

Intended operator profile ............................................8

Operating environment..............................................8

Assembly and installation ..............................................9

Versions .............................................................10

Optional installation covers .........................................10

Optional wash basins...............................................11

Operating instructions ................................................12

To remove limescale................................................13

Maintenance.........................................................14

Service inspection .................................................14

Technical data........................................................15

Trouble-shooting .....................................................16

Technical data........................................................16

Disposal and recycling ................................................17

Original instructions

Symbols used in this manual

The following symbols are used in this manual as well as the associated

documentation supplied with the product.

!WARNING WARNING indicates a

potentially hazardous situation

which, if not avoided, could

result in death or serious injury.

!CAUTION CAUTION indicates a

potentially hazardous situation

which, if not avoided, may

result in minor or moderate

injury. It may also be used to

alert against unsafe practices.

IMPORTANT IMPORTANT indicates

important information about

handling and use of the

product.

NOTICE NOTICE is used to address

practices not related to personal

safety.

Pinching of hands. Take care to avoid injury to hands

when in the vicinity of closing mechanical parts.

LabelidentGmbHArt.-No.: W08-05

Electricity or potentially dangerous voltage.

!CAUTION

• Please comply with these instructions to avoid the product becoming

damaged or destroyed.

• Do not perform repairs, disassembly, or assembly operations,

extensions, re-adjustments or modifications to this product. These

must be carried out by Pressalit or by persons authorized by Pressalit

only.

• Never allow children to operate this product unless under supervision.

The product is not intended for play.

• Never use the product if it is defective or damaged. Do not use a

defective product before it has been repaired.

General safety

!WARNING

• Read and understand the manual completely before use. Keep the

manual close to the unit.

• Comply with this manual to avoid accidents involving serious personal

injury.

• Never use or handle this product in other ways than are specified in

this manual, as this can put your safety at risk and cause damage to the

product.

• Make sure that everyone who is to install or use the product and its

systems has the necessary information and access to this manual.

NOTICE

• The information in this manual is based on correct fitting of the

product in accordance with our Assembly instruction.

• Pressalit cannot be held liable if the product is used in any way which

differs from that described in the guide.

• We reserve the right to amend this manual without prior notice.

This product is CE-marked in accordance with the

European Medical Device Directive 93/42/EEC, including

amendments incorporated in Directive 2007/47/EEC.

It also complies with all relevant requirements in the

Council Directive 2006/42/EC (of 17 May 2006) on

machinery and with Council Directive 2011/65/EC (of 8

June 2011) on RoHS. A declaration of conformity can be

found at www.pressalitcare.com.

Consult the manual for use for important cautionary

information such as warnings and precautions.

Consult manual for use.

Type B applied part. Part of the product in normal use

necessarily comes into physical contact with the patient

to perform its function. The product complies with

requirements of IEC 60601-1 to provide protection against

electric shock.

min

Duty cycle. The motor on height-adjustable products

can be used for a maximum of 2 minutes of continuous

operation, followed by 18 minutes pause.

Product label

Pressalit Care • Pressalitvej 1 • DK - 8680 Ry • T: +45 8788 8777

E-mail: [email protected] • Web: www.pressalit.com

min

DD-MM-YYYY

XXXV

RZZZZYYYXXX(X)

XX-XXHz

XXX kg XXX kg XXX kg

IPXX

XXW

This product does not contain any of the hazardous

substances mentioned in the Council Directive 2011/65/

EC on RoHS.

Do not dispose as unsorted municipal waste. The product

should be collected separately and returned to the

designated recycling service.

Name and address of manufacturer

XXX kg XXX kg XXX kg Maximum user weight

Safe working load

Product weight

DD MM YYYY Production date

RZZZZYYYXXX Article number

IPXX IP class

XXXV Mains voltage

XX-XXHz Frequency

XXW Maximum power consumption

Intended use

This product is intended for optimum ergonomics at a wash basin, for both

seated and standing users with disabilities.

Intended operator proﬁle

The product can be used by all - adults, children, young and old.

Operating environment

For indoor use in a wet environment, such as a bathroom or wash room.

The product is intended to be used at room temperature, in a stand-alone

environment, in private homes, nursing homes and hospitals under normal

working conditions.

!CAUTION

Never place objects underneath the wash basin.

The product label 1is placed on

the front cover.

Assembly and installation

For assembly and installation, please refer to the assembly instruction

supplied with the product.

XXX · Page 1/14

+45 87 888 777

+45 87 888 669

pressalit@pressalit.com

www.pressalitcare.com

Telephone:

Telefax:

E-mail:

Web:

Pressalit Care

Pressalitvej 1

DK 8680 Ry

Danmark

R4950 - R4951 - R4960

R4961

Monteringsvejledning

Montageanleitung

AssemblyInstruction

Notice de montage

Montage-voorschrift

Monteringsanvisning

Monteringsveiledning

Subject to alteration without further notice · Ret til ændringer forbeholdes · Recht auf Änderungen sind vorbehalten

Nous nous réservons le droit d’apportertoutes modiﬁcations pour l’amélioration de nous produits sans préavis · Wijzigingen voorbehouden

Rätten till ändringar förbehålles · Vi forbeholder oss rett til endringer · Salvo variaciones

Instrucciones de montaje

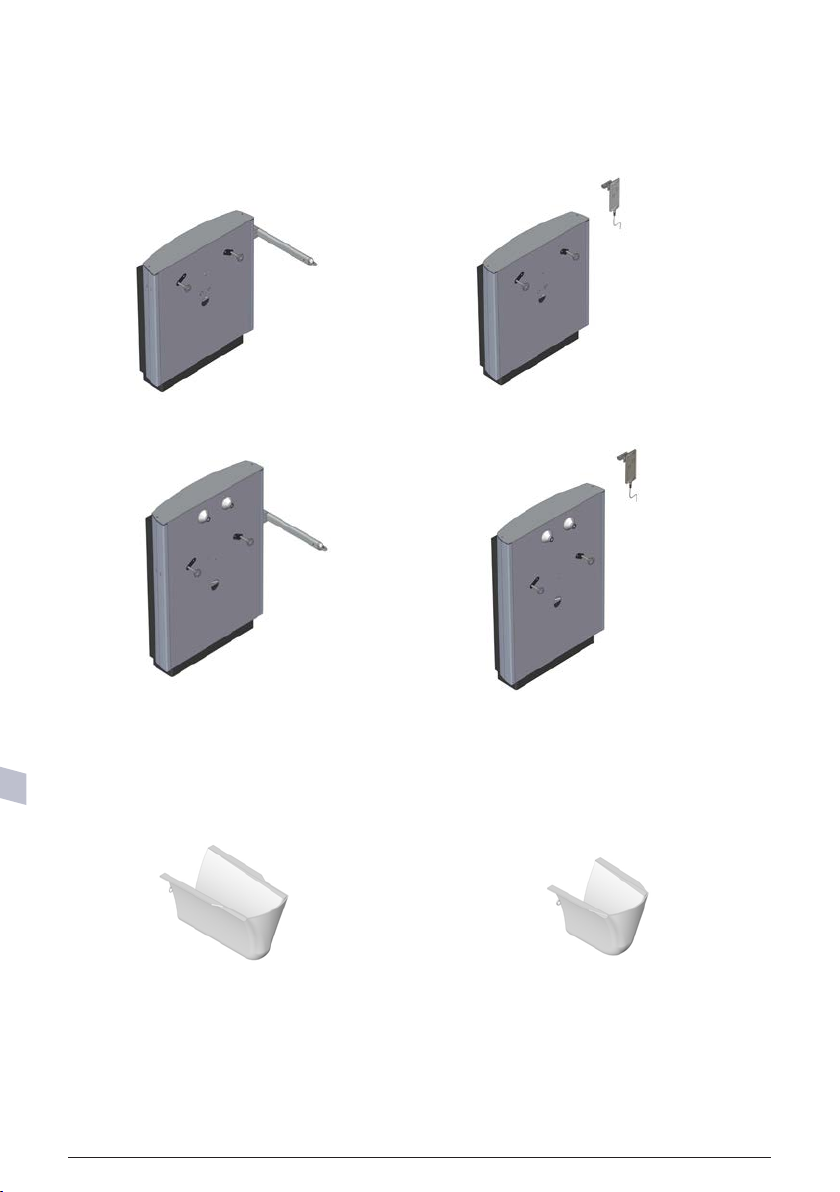

Versions

The wash basin lifter comes in four versions.

R4950 R4951

R4960 R4961

Optional installation covers

R2056

Fits wash basins R205x

R2057

Fits wash basins R202x
