Prestige Venus W36 Manuale utente

Venus W36 LED Moving

Wash

USER MANUAL

36*10W RGBW QUAD-COLOR

4 IN 1 LED

Venus W36 LED Moving Wash – User Manual

TABLE OF CONTENTS

1. Summary 3!

Product Introduction 3"

Content List 3"

2. Safety Information 3!

Safety notes 3"

Safety instructionS 4"

3. Product diagram 4!

4. Features 5!

5. DMX Control 6!

14CH 6"

10CH: 7"

6. Display Operation Instructions 8!

7. Menu InstructionS 9!

8. XLR cable connecting 10!

XRL cable 10"

9. Wiring Diagram 11!

10. Trouble Shooting 12!

11. Technical Specifications 13!

Venus W36 LED Moving Wash – User Manual

1. SUMMARY

Thank you for purchasing our Venus W36 LED Moving Wash. Please read these

instructions carefully before operating the system to avoid any possible damage or

misuse.

PRODUCT INTRODUCTION

The Venus W36 LED Moving Wash has a light source that uses 36 high powered 4-

in-110W LED lights, each made up of R, G, B, and W LEDs which can be

independently dimmed and altered. This fixture has a long life span, low power

consumption, good colour mixing effects and high brightness. The built-in programs

include dimming, strobe, gradual change, fading etc. settings. It is recommended that

an international standard DMX 512 signal is used for best results.

CONTENT LIST

oLED moving head light (x1)

oBracket (x1)

oDMX signal cable (x1)

oPower in cable (x1)

oThe usermanual (x1)

oWarranty Card (x1)

2. SAFETY INFORMATION

SAFETY NOTES

Seek advice from a professional prior to authoring any repairs

Always ensure the system is disconnected from the power source before assembling,

deconstructing and moving

Avoid direct eye exposure when in use

Venus W36 LED Moving Wash – User Manual

SAFETY INSTRUCTIONS

Ensure the power supply voltage corresponds with the required voltage for the lights,

and is within the range of the requested technical restrictions.

Before installing,check the lights’fasteners and mechanical structuresare in good

condition and there is no apparent damage.

This light is designed for indoor and outdoor use, however the working

temperature must be kept below 50 degrees.

The fixtures can be mounted in any position,provided there is adequate room for

ventilation. Make sure there are no inflammable and explosive items within 0.5 meters

of the fixture.

The yellow/green cables are for earthling safety. These should not flicker when fixture

is in use.

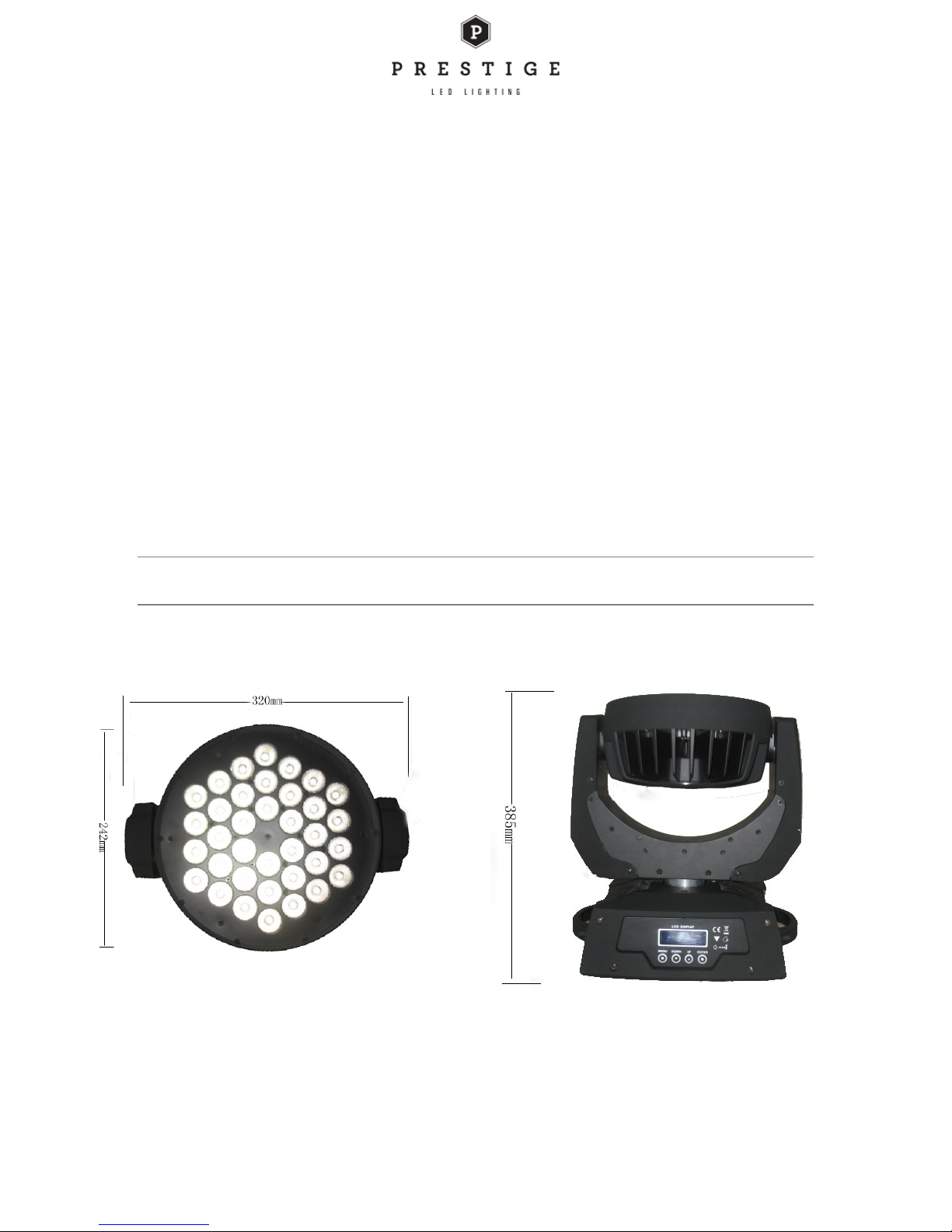

3.PRODUCT DIAGRAM

Venus W36 LED Moving Wash – User Manual

4. FEATURES

oUseshigh quality LED lighting sources which have a low power consumption,

high brightness, stable performance and long life span.

oEach colored LED has 256 dimming settings. The RGB can make over 16.7

million colors. The color mixing is enhanced with White LEDs

oLinear dimming 0%-100% -Strobe, gradual change, jumping change

oDMX512 Controller，4 button set DMX ID address with LCD display

oMaster slave/interconnected multi-machine control

oLens degree: 25º, 45º options

oUses a switching power supply to protect the LED and enhance the

performance

oPan 540 degrees, Tilt 270 degrees, reset

oDMX channels optional

Venus W36 LED Moving Wash – User Manual

5. DMX CONTROL

14CH

Channel

DMX Value

Function

1CH

0—255

General dimming

2CH

0—255

Red dimming

3CH

0—255

Green dimming

4CH

0—255

Blue dimming

5CH

0—255

White

6CH

0—10

11—255

Strobe off

Strobe speed

7CH

0—20

21—30

31—40

41—50

51—60

61—70

71—80

81—90

91—100

101—110

111—120

121—130

131—140

141—150

151—160

161—170

171—180

181—190

191—200

201—210

211—220

221—255

Invalid

AUTO 1

AUTO 2

AUTO 3

AUTO 4

AUTO 5

AUTO 6

AUTO 7

AUTO 8

AUTO 9

AUTO 10

CUSTOM 1

CUSTOM 2

CUSTOM 3

CUSTOM 4

CUSTOM 5

CUSTOM 6

CUSTOM 7

CUSTOM 8

CUSTOM 9

CUSTOM 10

keep

CH8

0—255

Automatic speed（fast-slow

）

CH9

0-255

Pan 0--450°

CH10

0-255

Tilt 0--270°

Venus W36 LED Moving Wash – User Manual

CH11

0-255

Pan fine 0—2.1 degrees

CH12

0-255

Tilt fine 0—1.0 degree

CH13

0-255

X/Y speed（fast-slow）

CH14

0-254

255-255

invalid

reset

10CH:

Channel

DMX Value

Function

1CH

0—255

General dimming

2CH

0—255

Red dimming

3CH

0—255

Green dimming

4CH

0—255

Blue dimming

5CH

0—255

White

6CH

0—10

11—255

Strobe off

Strobe speed

CH7

0-255

Pan 0--450°

CH8

0-255

Tilt 0--270°

CH9

0-255

X/Y speed（fast-slow）

CH10

0-254

255-255

invalid

reset

Venus W36 LED Moving Wash – User Manual

6. DISPLAY OPERATION INSTRUCTIONS

Back：

1: DMX512 DMX-IN XLR socket

2: DMX512 DMX-OUT XLR socket

3: AC POWER-IN socket（AC100-240V，50-60Hz）

4: FUSE：5A

5: Power switch (ON/OFF)

Front:

MENU: Access the menu or return to the

previous menu option

ENTER: Select the current menu option

UP: Increase menu selection

DOWN: Decrease menu selection

Venus W36 LED Moving Wash – User Manual

7. MENU INSTRUCTIONS

1：Press the menu or enter button

2：Press the up and down buttons to choose to desired functions

(Address)

(Address=)

A001-A512

(x Reverse)

(option)

(Y Reverse)

NO/YES

(XY Exchange)

(Language)



English

(lightness)

1-32

(Display)

constant open

(poorlight)

dim

off

LOGO

NO/YES

[menu]

ch1

0--255

(man Control)

ch12

(Sound)

(program run)

(Test operation)

(Auto)

(Resume default)

(enter)

(Fixture reset)

(enter)

10"

Venus W36 LED Moving Wash – User Manual

8. XLR CABLE CONNECTING

XRL CABLE

The standard connection of the XRL should have one end connecting to the male

plug, and the other connecting to the female.

As below: pin 1 -ground, pin 2 -negative signal, pin 3 -positive signal

Note: In order to avoid failures and interference with signal transmission, connect a

resistance 120（1/4W）at the end of the DMX connection as shown below:

The conversion between 3 pin and 5 pin XLR.

If the output cable of the DMX512 controller is a 5PIN, a5PIN to 3PIN cable is

necessary.
