Prestigio PDSIK2CA Manuale utente
SHELF LED DISPLAY
Contents
2016/12/01
Chapter 2: Preface.............................................................................................................................................02
Chapter 1: Brief introduction for Shelf LED Display......................................................................................02
2.1 Parameters for Shelf Displays...................................................................................................................................................................................02
2.2 Screen and body and spare parts...........................................................................................................................................................................03
2.3 Spare Parts.......................................................................................................................................................................................................................03
Chapter 3::Usage of Shelf LED Display...........................................................................................................04
4.1 Steps for using Shelf Led Display................................................................................................................................................................................07
4.2 Daily maintenance............................................................................................................................................................................................................07
Chapter 4: Notice and warning.......................................................................................................................07
Chapter 5::Safety measures and safety tips..................................................................................................08
After-sales Service and maintenance Card
4.3 Troubleshooting................................................................................................................................................................................................................08
EN - 2
2016/12/01
EN
Prestigio Shelf LED display
Specification PDSIK2CA PDSIK2CB
Pixel Pitch 1.875mm 1.875mm
Pixel Density 284 444 dots/m2 284 444 dots/m2
LED Configuration COB 3 IN 1 COB 3 IN 1
Wire golden wire golden wire
Size 300×60x18.8mm 600×60ч18.8mm
Resolution ratio 160×32 320×32
Chasis material aluminum aluminum
Weight 0.35kg 0.68kg
Brightness 600nit 600nit
Gray scale 16bit 16bit
Color 281 trillion 281 trillion
Contrast Ratio 3000:01:00 3000:01:00
Refresh rate <=1920 Hz <=1920 Hz
Max. consumption 10W 20W
Ave consumption 4W8W
Driving IC MIB MIB
Viewing angle 160° /160° 160° /160°
Working voltage DC 5V DC 5V
Operating temp/Hum -10～40 Co,10%-90% -10～40 Co,10%-90%
Input voltage AC 100V～240V AC 100V～240V
Life time 100 000 hours 100 000 hours

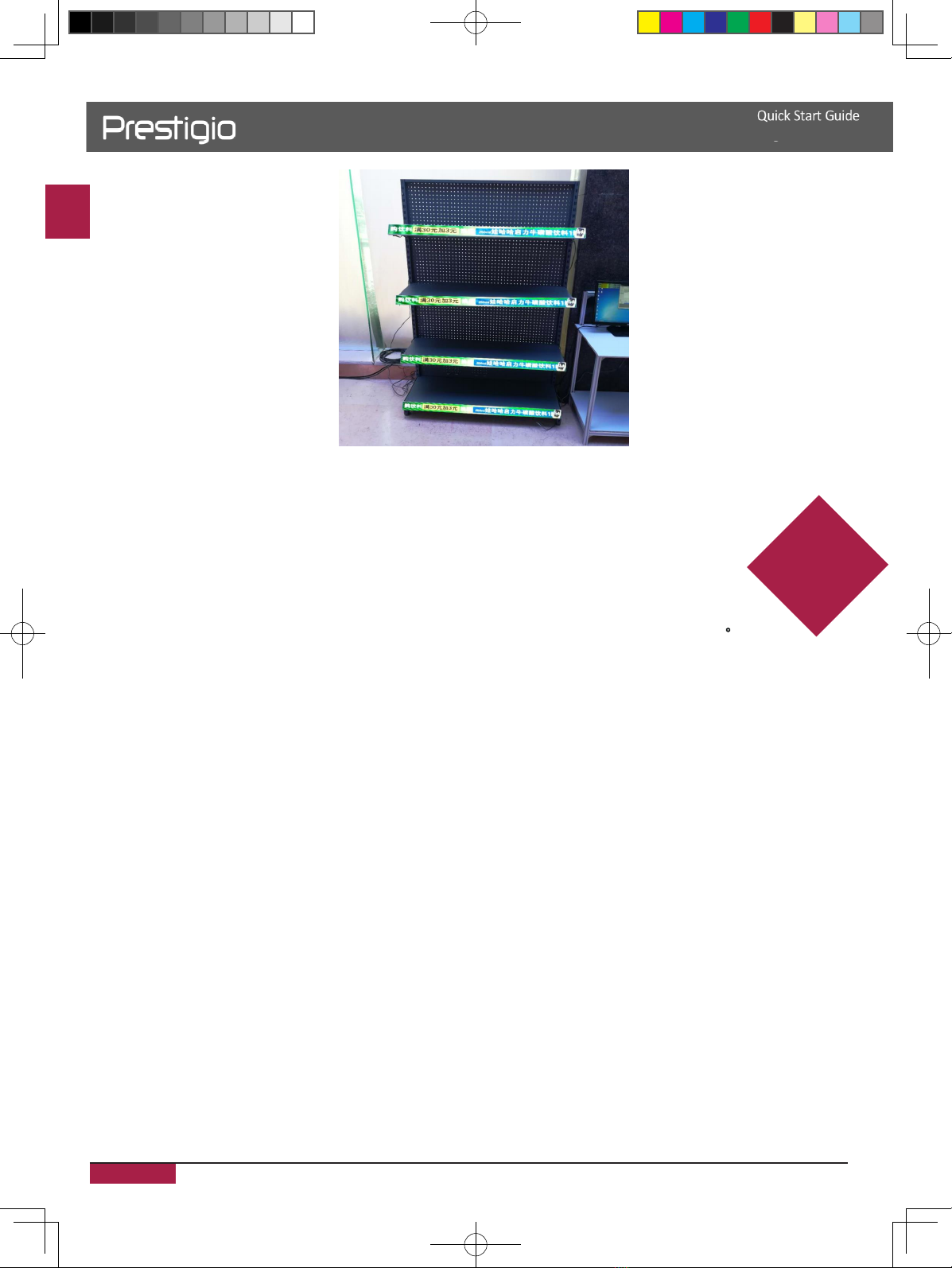

Shelf Led Display mainly applies to goods shelf at supermarkets
2.1. Parameters for Shelf Displays
1.Brief introduction for Shelf LED Display
PS：parameter only for reference, some is adjustable, the real project shall govern.
2
Dear customers:
Greeting! Thanks for choosing Prestigio's product. To secure your security when you operate our product and make no
unexpected damage made to anyone or your property, please follow the safety instruction showed as below. Any faulty operation
for not following the safety instruction may cause accident.
2.Preface
EN - 3
2.2 Screen body and Spare parts
2016/12/01
EN
Prestigio Shelf LED display
2.2.1 unit size for PDSIK2CA 300mm
2.3 Spare parts
Quantity depend on projects.
Power supply: 200W;
Signal cable: 1pcs, connect two units.
Power cable: 1pcs, connect two units.
Connector:1pcs, fix two units, got 2 screws to fix on unit.
Clip: 2pcs, for installation, got 4 screws to fix on unit.
Magnet: 2pcs for installation, got 2 screws to fix on unit.
Side cover: 2pcs for installation, got 4 screws to fix on unit.
300mm
60mm
2.2.2 unit size for PDSIK2CB 600mm
600mm
60mm
EN - 4
EN
2016/12/01
Prestigio Shelf LED display
connector clip
connection diagram
power cable
3. Usage of Shelf LED Display
3.1 Open the carton, please check the goods with product list. If any part of Shelf LED Display is missed,
please contact us.

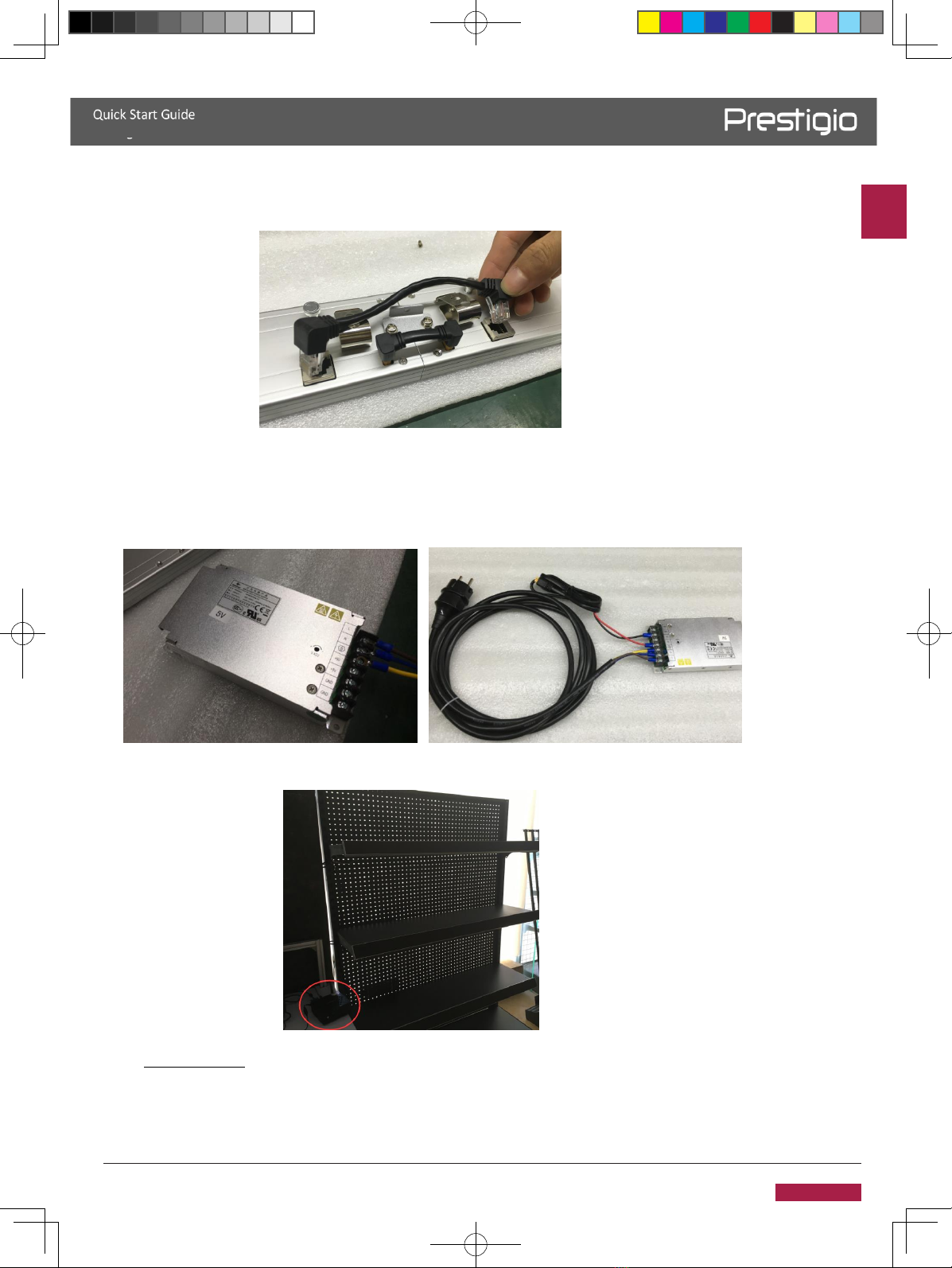

3.1.1 assembly and connection A. Using screw to fix clip at the back.
EN - 4
3
signal cable
EN - 5
EN
2016/12/01
B. Twist the magnet into the unit.
C. Using connector to fix two units together with screws.
D. Fix the side cover at both side with screws.
E. Insert the power cable between units.
Prestigio Shelf LED display
EN - 6
EN
2016/12/01
Prestigio Shelf LED display
F. Insert the signal cable between units.
G. Power supply got two ports, one connect with power cable to the socket, another connect with unit.
H. Connect the units with computer via network cable.*
I. Turn on the power and computer.；
J. Operate software on computer.
* ! PC Gigabit LAN port connection is mandatory.
EN - 7
EN
2016/12/01
Prestigio Shelf LED display
4.Notice and warning
4.1 Steps of using Shelf LED Display
1. Turn on the computer first, then turn on the power for the units. Flicker is normal,
it means the power on.
2. Turn off the power fist, then turn off the computer.
4.2 Daily maintenance
1. Keep a stable power supply, good connection on ground touch.
2. Try not to use under bad weather (for instance strong thunder and lightning weather etc)
3. Keep water or conductive metal like iron powder away from the screen body. LED screen shall put at the non-dust
environment, as dust will do harm to the display effect. And large dust can lead to damage to circuit boards,
4. In case of water flow into screen, please cut the power immediately and contact maintenance staff, until the screen video
board is dry.
4
5. Try to leave the screen off at least four hours one day. Turn on the screen at least one time every month, and at least two
hours lighting.
6. LED screen shall be inspected regularly on its normal running, and the wires connection, if not working shall do
changing in time, and repair or change the wire in time if any broken, in case of greater loss.
7. Do not display long time full screen of yellow, red or green. That is to avoid heavy currency, or overheat to the wires,
which may cause damage to the LED lamps, and influence the lifetime of the screen. Do not disassembly or assembly the screen
body unless it’s necessary.
8. The non-professional is forbidden to touch the wires inside the screen body, to avoid electricity shock or damage to
wires. For any problem please contact the professional to do inspection.
EN - 8
EN
2016/12/01
Prestigio Shelf LED display
5. Safety measures and safety tips
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, do not attempt to open the shell
or attempt to repair, if the device or any parts are defective, please go to a
Prestigio maintenance centre for repair.
Prohibitions
•Have the unit installed, removed and disposed of only by qualified service personnel.
Do not convert product. Without the guidance of professional LED screen technician, no one can covert the product or
may cause conflagration or electric shock, which shall do damage to property or people.
•During the operation, please make sure the AC voltage is between 110v-240V,or it may cause conflagration or electric
shock.
•Please avoid the follow faulty operation which shall cause conflagration or electric shock: Bending cable, Staying too
close to the place with high heat, binding or holding heavy things.
•Please do not insert Iron wire or bolt to the power socket or may cause electric shock.
•Do not use abrase power cable or it may cause electric shock.
5
Treat problems according to the information given in your dealer for service. The problems are not always caused by
malfunctions. Check the Electrostand again before having it serviced.
4.3 Troubleshooting
As the Prestigio products are constantly updated and improved, your device's
software and hardware may have a slightly different appearance or modified
functionality than presented in this User manual.
