SAFETY GUIDELINES

NOTE: This owner’s manual is compiled from the latest specifications and product information avail-

able at the time of publication. We reserve the right to make changes as they become necessary. Any

changes to our products may cause slight variations between the illustrations and explanations in this

manual and the product you have purchased. The latest/current version of this manual is available on

our website.

Thisproductismanufacturedby:

PrideMobility Products Corporation

182SusquehannaAvenue

Exeter, PA18643-2694

USA

Pride Provider:_____________________________________________________________________

Address:__________________________________________________________________________

PhoneNumber:__________________________

Purchase Date:__________________________ Serial Number:______________________________

WARNING! An authorised Pride Provider or qualified technician must perform the initial

setup of this scooter and must perform all of the procedures in this manual.

Thesymbolsbelowareusedthroughoutthisowner'smanual andonthescootertoidentifywarningsandimportant

information.It isveryimportant foryoutoreadthemandunderstand themcompletely.

WARNING! Indicates a potentially hazardous condition/situation. Failure to follow

designated procedures can cause either personal injury, component damage, or

malfunction. On the product, this icon is represented as a black symbol on a yellow triangle

with a black border.

MANDATORY! These actions should be performed as specified. Failure to perform

mandatory actions can cause personal injury and/or equipment damage. On the product,

this icon is represented as a white symbol on a blue dot with a white border.

PROHIBITED! These actions are prohibited. These actions should not be performed at any

time or in any circumstances. Performing a prohibited action can cause personal injury

and/or equipment damage. On the product, this icon is represented as a black symbol with

a red circle and a red slash.

Pleasefilloutthefollowinginformationforquickreference:

088 609 661

Pathrider www.pridemobility.com

CONTENTS

I. INTRODUCTION......................................................................................................................... 4

II. SAFETY......................................................................................................................................... 5

III. YOUR SCOOTER...................................................................................................................... 19

IV. BATTERIES AND CHARGING ............................................................................................ 24

V. OPERATION............................................................................................................................... 30

VI. COMFORT ADJUSTMENTS................................................................................................ 32

VII. DISASSEMBLY AND ASSEMBLY ..................................................................................... 34

VIII.BASIC TROUBLESHOOTING ............................................................................................. 36

IX. CARE AND MAINTENANCE................................................................................................ 38

X. WARRANTY................................................................................................................................41

APPENDIX I - SPECIFICATIONS .............................................................................................. 42

4www.pridemobility.com Pathrider

I. INTRODUCTION

SAFETY

Welcome toPrideMobility Products Corporation (Pride). The product youhavepurchased combines state-of

the-artcomponentswith safety,comfort,andstylinginmind.Weareconfidentthedesignfeatureswillprovideyou

withtheconveniences you expectduringyourdailyactivities. Understanding howto safelyoperateandcare for

thisproductshould bring youyearsoftroublefree operation andservice.

Readandfollowallinstructions,warnings,and notesinthis manualandallotheraccompanying literaturebefore

attemptingtooperate this product for thefirsttime.Inaddition, your safety depends uponyou,aswellas your

provider,carer,or healthcareprofessionalinusing goodjudgement.

Ifthere is anyinformationinthis manual whichyoudonot understand, orifyourequire additional assistancefor

setupor operation, pleasecontactyourauthorised PrideProvider.Failuretofollowtheinstructions,warnings,

andnotesinthismanualandthoselocatedonyourPrideproductcanresultinpersonalinjuryorproduct

damageandwillvoidPride’sproductwarranty.

PURCHASER’S AGREEMENT

Byacceptingdeliveryofthisproduct,youpromisethatyouwillnotchange,alter,ormodifythisproductorremove

orrenderinoperableorunsafeanyguards,shields,orothersafetyfeaturesofthisproduct;fail,refuse,orneglectto

installanyretrofit kits from time totimeprovidedbyPrideto enhance or preserve thesafeuseofthisproduct.

SHIPPING AND DELIVERY

Beforeusingyour scooter,makesureyourdeliveryiscomplete as some components may beindividuallypack-

aged.Ifyoudonotreceiveacompletedelivery,pleasecontactyourauthorisedPrideProviderimmediately.Where

damagehasoccurredduring transport, either to the packaging or content,pleasecontactthedeliverycompany

responsible.

INFORMATION EXCHANGE

We want tohearyourquestions, comments, andsuggestionsaboutthis manual.We would alsoliketohear about

the safety and reliability of your new scooter, and about the service you received from your authorised Pride

Provider. Please notifyusofanychange of address,sowecan keep youapprisedofimportant information about

safety,newproducts,andnewoptionsthat canincreaseyour abilitytouse andenjoyyour scooter.Pleasefeelfree

tocontact us at the addressbelow:

PrideMobility ProductsAustraliaPty.Ltd.

21HealeyRoad

Dandenong,3175

Victoria,Australia

NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact

us and we will be glad to send you a new one immediately.

Pathrider www.pridemobility.com

II. SAFETY

PRODUCT SAFETY SYMBOLS

Thesymbolsbelow are used onthescootertoidentifywarnings, mandatory actions, andprohibitedactions.Itis

veryimportant for youtoreadand understand themcompletely.

Pinch/Crush points created during assembly.

Corrosive chemicals contained in battery.

EMI-RFI- This product has been tested and passed at an immunity level of 20 V/m.

Do not lift the mobility vehicle while seated in it.

Explosive conditions exist!

Read and follow the information in the owner’s manual.

6www.pridemobility.com Pathrider

Do not remove anti-tip wheels.

Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while

operating.

II. SAFETY

Maximum seating weight.

Place unit on level ground and stand to one side when changing from drive mode

to freewheel mode or freewheel mode to drive mode.

Locked and in drive mode.

Unlocked and in freewheel mode.

Wear safety goggles.

Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive

conditions.

Do not place the scooter in freewheel mode on a decline or incline.

Pathrider www.pridemobility.com

II. SAFETY

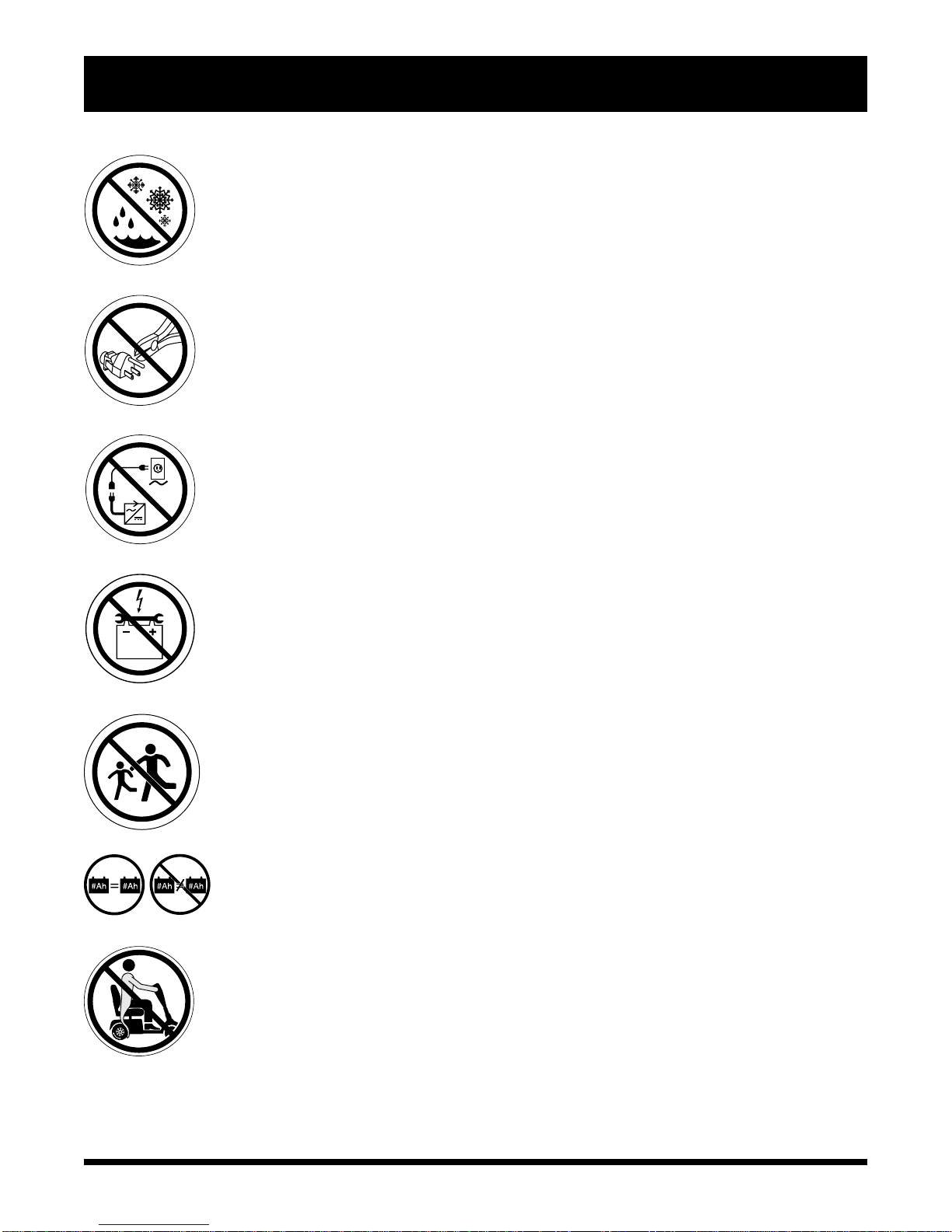

Avoid exposure to rain, snow, ice, salt, or standing water whenever possible.

Maintain and store in a clean and dry condition.

Removal of grounding prong can create electrical hazard. If necessary, properly

install an approved 3-pronged adapter to an electrical outlet having 2-pronged plug

access.

Do not connect an extension lead to the AC/DC converter or the battery charger.

Contact with tools can cause electrical shock.

Do not allow unsupervised children to play near the scooter while the batteries are

charging.

Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and

new batteries. Always replace both batteries at the same time.

Keep your hands away from the tyres when driving. Be aware that loose fitting

clothing can become caught in drive tyres.

8www.pridemobility.com Pathrider

II. SAFETY

Battery charger for indoor use only.

Disposal and recycling - Contact your authorised Pride Provider for information on

proper disposal and recycling of your Pride product and its packaging.

Contains Lead.

Pathrider www.pridemobility.com

II. SAFETY

GENERAL

MANDATORY! Do not operate your new scooter for the first time without completely reading

and understanding this owner’s manual.

Your scooter is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an

extensive variety of products to best fit the individual needs of the scooter user. Please be aware that the final

selection and purchasing decision regarding the type of scooter to be used is the responsibility of the scooter

user,whoiscapableofmakingsuchadecision,andhis/herhealthcareprofessional(i.e.,medicaldoctor,physi-

caltherapist, etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly fitted the

scooterto theuserand hasassistedthe prescribinghealthcareprofessional and/ortheauthorised PrideProviderin

theinstructionprocessforthe use of the product.

There are certain situations, including some medical conditions, where the scooter user will need to practice

operatingthe scooterinthepresenceofatrainedattendant.Atrainedattendantcanbe definedasafamilymember

orcareprofessionalspeciallytrainedin assistingascooteruserinvariousdailylivingactivities.

Asyou begin usingyourscooterduring dailyactivities,youwill probably encountersituationsinwhich youwill

needsomepractice. Simply take your timeandyouwill soon be in full andconfidentcontrolas you maneuver

throughdoorways,onand off lifts, up and down ramps, and overmoderateterrain.

Below are some precautions, tips, and other safety considerations that will help you become accustomed to

operatingthe scooter safely.

MODIFICATIONS

Pridehas designed and engineered yourscooterto provide maximum mobility andutility. However,under no

circumstancesshouldyou modify,add,remove,ordisableany feature, part, orfunctionofyourscooter.

WARNING! Do not modify your scooter in any way not authorised by Pride. Do not use

accessories if they have not been tested or approved for Pride products.

REMOVABLE PARTS

WARNING! Do not attempt to lift or move your scooter by any of its removable parts,

including the armrests, seat, or shroud.

PRE-RIDE SAFETY CHECK

Gettoknowthe feelofyourscooteranditscapabilities.Priderecommendsthatyouperform asafetycheckbefore

eachusetomakesureyourscooteroperatessmoothlyand safely.

10 www.pridemobility.com Pathrider

II. SAFETY

Performthefollowinginspectionspriorto using yourscooter:

!Checkforproper tyre inflation. Maintain but do not exceedthepsi/bar/kPaairpressure rating indicated on

eachtyre ifequippedwith pneumatictyres.

!Checkallelectricalconnections.Make sure they are tight and not corroded.

!Checkallharnessconnections.Makesuretheyaresecuredproperly.

!Check the brakes.

!Checkbatterycharge.

Ifyoudiscovera problem, contact your authorised PrideProviderforassistance.

TYRE INFLATION

If your scooter is equipped with pneumatic tyres, you should check or have the air pressure checked at least

onceaweek.Properinflationpressureswillprolongthelifeofyourtyresandhelpensurethesmoothoperation

of your scooter.

WARNING! It is critically important that the psi/bar/kPa air pressure rating indicated on

the tyre be maintained in pneumatic tyres at all times. Do not underinflate or overinflate

your tyres. Low pressure may result in loss of control, and overinflated tyres may burst.

Failure to maintain the psi/bar/kPa air pressure rating indicated on the pneumatic tyres

at all times may result in tyre and/or wheel failure.

WARNING! Inflate your scooter tyres from a regulated air source with an available pressure

gauge. Inflating your tyres from an unregulated air source could overinflate them, resulting

in a burst tyre.

WEIGHT LIMITATIONS

Yourscooterisratedforamaximumweight capacity.Refertothespecificationstablefor information.

MANDATORY! Stay within the specified weight capacity for your scooter. Exceeding the

weight capacity voids your warranty. Pride will not be held responsible for injuries and/or

property damage resulting from failure to observe weight limitations.

WARNING! Do not carry passengers on your scooter. Carrying passengers on your scooter

may affect the centre of gravity, resulting in a tip or a fall.

INCLINE INFORMATION

Moreand more buildings have rampswithspecified degrees of inclination, designedforeasyand safe access.

Somerampsmay have turning switchbacks(180-degreeturns)thatrequireyou to have goodcorneringskillson

yourscooter.

!Proceedwithextremecautionasyouapproach the downgrade of a ramp or other incline.

!Takewide swings with your scooteraroundany tight corners. If you dothat,the scooter’srearwheelswill

followawidearc,not cut the corner short, and not bump intoorgethunguponanyrailingcorners.

!Whendrivingdownaramp,keepthescooter’s speed adjustment set to the slowest speed setting to ensure a

safelycontrolleddescent.

!Avoid sudden stops andstarts.

NOTE: If the tyres on your scooter list the psi rating only, use the following conversion formulas to

find the bar or kPa rating: bar = psi x 0.06895; kPa = psi x 6.89476.

Altri manuali per Path rider

Indice

Altri manuali Pride Mobility Scooter

Pride Mobility

Pride Mobility PMV5000 Manuale utente

Pride Mobility

Pride Mobility Path rider Manuale utente

Pride Mobility

Pride Mobility Go-Go Elite Traveller SC40LR Manuale utente

Pride Mobility

Pride Mobility Maxima Scooter SC940 Manuale utente

Pride Mobility

Pride Mobility VICTORY SERIES Manuale utente

Pride Mobility

Pride Mobility VICTORY SERIES Manuale utente

Pride Mobility

Pride Mobility TRAVEL SCOOTER Series Manuale utente

Pride Mobility

Pride Mobility Sonic Manuale utente

Pride Mobility

Pride Mobility Quantum Jazzy 1420 Manuale utente

Pride Mobility

Pride Mobility Sundancer SC2000PS Manuale utente

Pride Mobility

Pride Mobility Go-Go Elite traveller Manuale utente

Pride Mobility

Pride Mobility Travel Pro Manuale utente

Pride Mobility

Pride Mobility CELEBRITY DELUXE Manuale utente

Pride Mobility

Pride Mobility COLT PURSUIT Manuale utente

Pride Mobility

Pride Mobility CELEBRITY X Manuale utente

Pride Mobility

Pride Mobility COLT XL8 Manuale utente

Pride Mobility

Pride Mobility Celebrity X Sport Manuale utente

Pride Mobility

Pride Mobility Colt Manuale utente

Pride Mobility

Pride Mobility Jazzy 600 ES Manuale utente

Pride Mobility

Pride Mobility iRIDE S25 Manuale utente

Pride Mobility

Pride Mobility Legend 3-Wheel Scooter Manuale utente

Pride Mobility

Pride Mobility LEGEND CLASSIC XL-8 Manuale utente

Pride Mobility

Pride Mobility Apex Spirit Manuale utente

Pride Mobility

Pride Mobility CELEBRITY XL Manuale utente

Manuali Scooter popolari di altre marche

TEKTRO

TEKTRO CHEETAH Manuale utente

Douglas

Douglas Vespa Sprint Guida all'installazione

PLAYTIVE

PLAYTIVE AS-2448 Manuale utente

Ebinger

Ebinger DONKEY XL Manuale utente

Flyer

Flyer Mountain Guida utente

BackCountry eBikes

BackCountry eBikes Storm Manuale utente

equipmed

equipmed FreeRoam II Manuale utente

Yoto

Yoto Lion Manuale utente

WESTHILL BIKES

WESTHILL BIKES LINK Manuale utente

BAnff

BAnff eProdigy series Manuale utente

Winther

Winther 475 Manuale utente

Jetson

Jetson JBZL17 Manuale utente

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuale utente

Carrera

Carrera impel Manuale utente

Afikim

Afikim Superlight SL-3 Manuale utente

CareCo

CareCo ZOOM Manuale utente

Douglas

Douglas Vespa G.S. Manuale utente

Gazelle

Gazelle with BOSCH System Manuale utente
