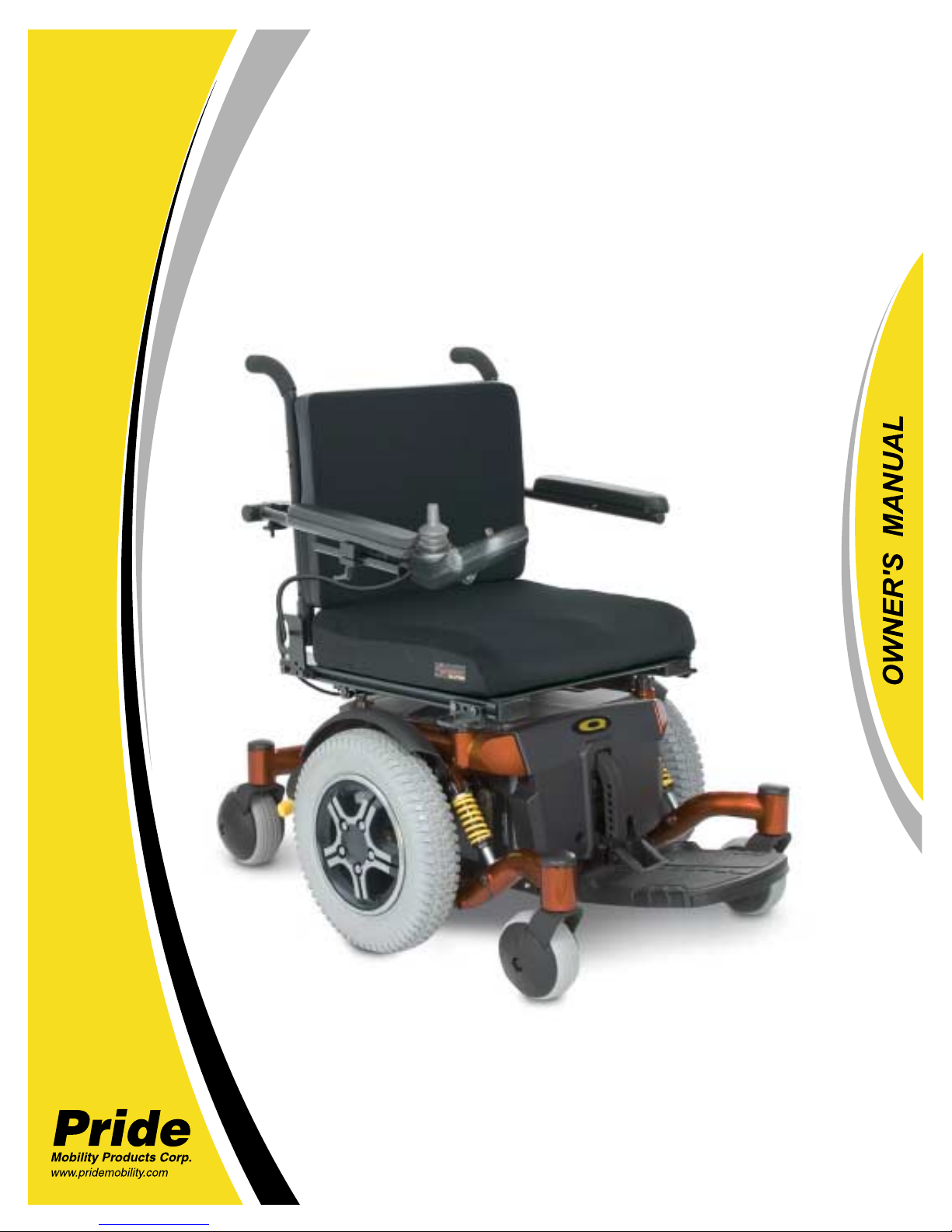

Pride Mobility Quantum 6000Z 3S Manuale utente

QUANTUM

Including Models: Quantum 6000Z 3S, Quantum 6000Z 3SP, Quantum 6000Z 3MP,

Quantum 6000Z 4S, Quantum 6000Z 4SP, and Quantum 6000Z 4MP

6000Z SERIES

1-800-800-8586 (US) 1-888-570-1113 (Canada)

INNOVATIVE REHAB SOLUTIONS

SAFETY GUIDELINES

PrideMobilityProductsCorp.

INFMANU3447/RevA/May2007

QuantumRehabSpecialist:_____________________________________________________________________

Address:________________________________________________________________________________

Phone Number:___________________________________________________________________________

PurchaseDate:____________________________________________________________________________

NOTE: This owner’s manual is compiled from the latest specifications and product information available

at the time of publication. We reserve the right to make changes as they become necessary. Any changes to

our products may cause slight variations between the illustrations and explanations in this manual and the

product you have purchased. The latest/current version of this manual is available on our website.

Thesymbolsbelowareusedthroughoutthisowner'smanualandonthe power chair to identify warningsandimportant

information.Itisvery importantforyou toreadthem andunderstandthemcompletely.

WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated

procedures can cause either personal injury, component damage, or malfunction. On the product,

this icon is represented as a black symbol on a yellow triangle with a black border.

MANDATORY! These actions should be performed as specified. Failure to perform mandatory

actions can cause personal injury and/or equipment damage. On the product, this icon is

represented as a white symbol on a blue dot with a white border.

PROHIBITED! These actions are prohibited. These actions should not be performed at any time or

in any circumstances. Performing a prohibited action can cause personal injury and/or equipment

damage. On the product, this icon is represented as a black symbol with a red circle and red

slash.

Quick Reference Information

088 609 661

WARNING! A Quantum Rehab specialist or a qualified technician must perform the initial setup

of this power chair and must perform all of the procedures in this manual.

Quantum 6000Z Series www.quantumrehab.com 3

I. INTRODUCTION.................................................................................................................................4

II. SAFETY.................................................................................................................................................6

III. YOUR POWER CHAIR....................................................................................................................18

IV. ASSEMBLY.........................................................................................................................................24

V. COMFORT ADJUSTMENTS........................................................................................................27

VI. BATTERIES AND CHARGING ....................................................................................................33

VII. CARE AND MAINTENANCE ........................................................................................................36

VIII.WARRANTY........................................................................................................................................42

CONTENTS

4 www.quantumrehab.com Quantum 6000Z Series

I. INTRODUCTION

SAFETY

WELCOMEtoQuantumRehab,adivisionofPrideMobilityProductsCorporation(Pride).The power chair you have

purchasedcombines state-of-the-art components with safety,comfort,andstylinginmind.Weareconfidentthatthese

designfeatureswillprovideyouwiththeconveniencesyouexpect duringyour dailyactivities.Onceyouunderstandhow

to safelyoperateandcare for your power chair,it should give you yearsoftroublefree operation and service.

Readandfollowallinstructions,warnings,andnotesinthismanual beforeattempting tooperateyourpowerchairforthe

first time. Inaddition, your safetydependsupon you, as well as yourprovider,caretaker,orhealthcare professional in

usinggoodjudgement.

Ifthereisanyinformationin this manual which you do not understand, or if yourequireadditionalassistanceforsetup

oroperation, please contact your Quantum Rehab Specialist. Failure tofollowthe instructionsinthis manual and

those located on your powerchair can lead to personal injury and/or damage to the powerchair, including

voidingthewarranty.

PURCHASER’S AGREEMENT

Byacceptingdelivery of this product, you promisethatyou will not change, alter,ormodify this product or remove or

renderinoperableor unsafeanyguards,shields,orothersafetyfeaturesofthisproduct;fail,refuse, orneglecttoinstallany

retrofitkits from time to time provided by Pride to enhance or preserve the safe useofthisproduct.

SHIPPING AND DELIVERY

Beforeusing yourpowerchair,makesureyourdelivery iscompleteas somecomponentsmaybe individuallypackaged.

Ifyoudo notreceiveacompletedelivery,pleasecontactyourQuantumRehabSpecialistimmediately.Wheredamagehas

occurredduring transport, eithertothepackaging or content, pleasecontactthedelivery company responsible.

INFORMATION EXCHANGE

Wewanttohearyourquestions,comments,andsuggestionsaboutthismanual.Wewouldalsoliketohear aboutthesafety

andreliability ofyournew powerchair,andabout the serviceyoureceived fromyourQuantum Rehab Specialist.

Please notify us of any change of address, so we can keep you apprised of important information about safety, new

products,and new options that can increase your abilitytouseandenjoyyourpower chair.Pleasefeelfreetocontact us

attheaddressbelow:

USA: Canada:

PrideMobilityProductsCorporation PrideMobilityProductsCompany

Attn.:Customer CareDepartment 380Vansickle Road Unit 350

182SusquehannaAvenue St.Catharines,Ontario L2R 6P7

Exeter, PA18643-2694 1-888-570-1113

customercare@pridemobility.com

800-424-8205

NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact us and

we will be glad to send you a new one immediately.

Quantum 6000Z Series www.quantumrehab.com 5

I. INTRODUCTION

PRIDE OWNERS CLUB

As an owner of a Pride product, you are encouraged to enroll in the Pride Owners Club. Complete and return your

enclosedproduct registrationcardor visitPride’s websiteat www.pridemobility.com.

Fromour homepage,select“Owners Club”toentera page dedicatedtocurrent and potentialPrideproduct owners.You

willgainaccessto interviews,stories,recreation ideas,dailyliving tips,productand fundinginformation,and interactive

messageboards. Thesemessageboards inviteyoutocommunicate withotherPride customers aswellas Priderepresen-

tativeswho are availabletoassist you withanyquestionsor concerns youmayhave.

6 www.quantumrehab.com Quantum 6000Z Series

Read and follow the information in the owner’s manual.

Do not allow unsupervised children to play near the power chair while the batteries are

charging.

Maximum seating weight.

Keep your hands away from the tires when driving. Be aware that loose fitting clothing

can become caught in drive tires.

Use correct tie-down points for controller harness to prevent the harness from getting

caught in the drive tires or pinched in the seat frame.

Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. Maintain

and store in a clean and dry condition.

PRODUCT SAFETY SYMBOLS

Thesymbolsbeloware usedon thepowerchairtoidentify warnings,mandatoryactions,andprohibited actions.Itisvery

importantfor youtoread and understandthemcompletely.

II. SAFETY

Quantum 6000Z Series www.quantumrehab.com 7

II. SAFETY

Do not lift the mobility vehicle while seated in it.

Do not connect an extension cord to the AC/DC converter or the battery charger.

Removal of grounding prong can create electrical hazard. If necessary, properly

install an approved 3-pronged adapter to an electrical outlet having 2-pronged

plug access.

Wear safety goggles.

Corrosive chemicals contained in battery.

8 www.quantumrehab.com Quantum 6000Z Series

II. SAFETY

EMI-RFI - This product has been tested and passed at an immunity level of 20 V/m.

Explosive conditions exist!

Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive

conditions.

Keep tools and other metal objects away from battery terminals.

Battery Set Configuration:

+ = Positive (Red) Terminal Post

- = Negative (Black) Terminal Post

Connect Red wire to Red Positive (+) Terminal Post

Connect Black wire to Black Negative (–) Terminal Post

Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and

new batteries. Always replace both batteries at the same time.

Quantum 6000Z Series www.quantumrehab.com 9

Battery charger for indoor use only.

Disposal and recycling - Contact your Quantum Rehab Specialist for information on proper

disposal and recycling of your Pride product and its packaging.

Disposal and recycling - Contact your Quantum Rehab Specialist for information on proper

disposal and recycling of your Pride product and its packaging.

Locked and in drive mode.

Unlocked and in freewheel mode.

Do not place power chair in freewheel mode on a decline.

Do not place power chair in freewheel mode on an incline.

Contains lead.

II. SAFETY

10 www.quantumrehab.com Quantum 6000Z Series

II. SAFETY

GENERAL GUIDELINES

MANDATORY! Do not operate your new power chair for the first time without completely reading

and understanding this owner’s manual.

Your powerchairisastate-of-the-art life-enhancementdevicedesignedtoincrease mobility.Prideprovidesan extensive

varietyof products to best fit the individual needs of the power chair user.Please be aware that the final selectionand

purchasing decision regarding the type of power chair to be used is the responsibility of the power chair user, who is

capableof makingsucha decision, andhis/herhealthcare professional (i.e.,medicaldoctor,physical therapist,etc.).

Thecontents ofthismanual are basedonthe expectationthatamobility deviceexperthasproperly fittedthepower chair

totheuserandhasassistedtheprescribing healthcareprofessional and/ortheQuantumRehabSpecialistintheinstruction

processfor the use of the product.

Therearecertainsituations,includingsomemedicalconditions, wherethepowerchairuserwillneedtopracticeoperating

the power chair in the presence of a trained attendant.Atrained attendant can be defined as a family member or care

professionalspeciallytrainedinassistingapowerchairuserinvariousdailylivingactivities.

Asyoubeginusingyourpowerchairduringdailyactivities, youwillprobablyencountersituationsinwhichyouwill need

somepractice.Simplytakeyourtimeandyouwillsoonbeinfullandconfidentcontrolasyoumaneuverthroughdoorways,

onandoffofelevators, up and down ramps, and over moderate terrain.

Belowaresome precautions,tips,andothersafetyconsiderationsthatwillhelp youbecomeaccustomedtooperatingyour

powerchairsafely.

Modifications

Pridehasdesignedandengineeredyourpowerchairtoprovidemaximummobilityandutility.Awiderangeofaccessories

isavailable from your Quantum Rehab Specialist to furthercustomizeyourpowerchairtobetter suit your needs and/or

preferences.However,undernocircumstances should youmodify,add, remove, ordisableany feature, part, orfunction

ofyour power chair.

WARNING! Do not modify your power chair in any way not authorized by Pride. Do not use

accessories if they have not been tested or approved for Pride products.

Pre-Ride Safety Check

Gettoknowthefeelofyourpowerchairanditscapabilities.Priderecommendsthatyouperformasafetycheckbefore

eachuse to make sure your power chair operates smoothly and safely.

Performthe following inspections prior to using your power chair:

!Checkforpropertireinflation.Maintainbutdonotexceed35psi(2.4bar)ineachtireifequippedwithpneumatictires.

!Checkall electrical connections. Make sure they are tight andnotcorroded.

!Checkallcontrollerconnections to the power base. Make sure they aresecuredproperly.

!Checkthe brakes. See VII. “Careand Maintenance.”

!Checkbattery charge. See VI. “Batteries andCharging.”

NOTE: If you discover a problem, contact your Quantum Rehab Specialist for assistance.
