Princeton LCD15 Manuale utente
15" Flat Panel Display
REFERENCE GUIDE
1
Precautions
•Read all of these instructions and save them for later use.
•Follow all warnings and instructions on the product.
•Product
-Do not cover or block the vent holes in the case.
-Do not insert sharp objects or spill liquid into the LCD monitor
through cabinet slots. They may cause accident fire, electric shock or
failure.
-Disconnect the power plug from the AC outlet if you will not use it
for an indefinite period of time.
-Do not attempt to service this product yourself, as opening or
removing covers may expose you to dangerous voltage points or
other risks.
-Do not touch the screen directly with your fingers. You may damage
the screen, and oil from your skin is difficult to move.
-Do not apply pressure to the screen. The LCD is very delicate.
•Power
-Use the type of power indicated on the marking label.
•Plugs
-Do not remove any of the prongs of the monitor's three-pronged
power plug.
-Disconnect the power plug from the AC outlet under following
conditions:
uIf you will not use it for an indefinite period time.
uWhen the power cord or plug is damaged or frayed.
uIf the product does not operate normally when the operating
instructions are followed. Adjust only those controls that are
2
covered by the operating instructions. Improper adjustment
of other controls may result in damage and will often require
extensive work by a qualified technician to restore the
product to normal operation.
uIf the product has been dropped or the cabinet has been
damaged.
uIf the product exhibits a distinct change in performance,
indicating a need for service.
•Power and extension cords
-Do not allow anything to rest on the power cord.
-Do not locate this product where persons will walk on the cord.
-Use the proper power cord with correct attachment plug type. If the
power source is 120 V AC, use a power cord that has UL and C-UL
approvals. If the power source is a 240 V AC supply, use the tandem
(T blade) type attachment plug with ground conductor power cord
that meets the respective European country's safety regulations, such
as VDE for Germany.
-Do not overload wall outlets or power cords. Ensure that the total of
all units plugged into the wall outlet does not exceed 10 amperes.
-Ensure that the total ampere ratings on all units plugged into the
extension cord is not above the cord's rating.
-If the power supply cord, which came with your monitor, is to be
connected to the PC instead of the wall outlet, this equipment is to be
used with UL/TÜV approved computers with receptacle rated
100~240V AC, 50/60Hz, 1.0A (minimum).
•Environment
-Place the monitor on a flat and leveled surface.
-Place the monitor in a well-ventilated place.
-Keep the monitor away from:
overly hot, cold or humid places, places directly under sunlight, dusty
surroundings, equipment that generate strong magnetic fields.
3
Federal Communication Commission
Radio Frequency
International Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more the following measures:
•Reorient / Relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Notice:
The use of non-shielded interface with this equipment is prohibited.
If necessary, the user should consult the dealer or an experienced radio /
television technician for additional suggestions. The user may find the
following booklet prepared by the Federal Communications Commission
4
helpful. This booklet is available from the U.S. Government Printing
Office Washington DC, 20402, Stock No. 004-000-00345-4.
The manufacture is not responsible for any radio or TV interference
caused by unauthorized modification of this equipment. It is the
responsibility of the user to correct such interference.
Caution: To meet FCC limits for a Class B computing device, a
shielded signal cable should be used.
Canadian Department Of
Communications Compliance
Statement
This equipment does not exceed Class B limits per radio noise emissions
for a digital apparatus, set out in the Radio Interference Regulation of the
Canadian Department of Communications. Operation in a residential area
may cause unacceptable interference to radio and TV reception requiring
the owner or operator to take whatever steps necessary to correct the
interference.
5
Product Description
Congratulations on your purchasing this flat panel monitor of new
generation. Your LCD monitor incorporates high quality display into a
small light weighted module. It has power-saving capabilities and emits
no X-ray radiation. You will certainly benefit from this monitor in lots of
ways; to name some of them, comfort, safety, health, and environmental
protection.
This LCD monitor incorporates 15” color active matrix thin-film-
transistor (TFT) liquid crystal display to provide superior display
performance. A maximum resolution of XGA 1024x768 is ideal for
displaying complex graphics and high definition images. Other
outstanding designs that enhance this LCD monitor’s performance are
Plug & Play compatibility, audio system and OSD (On Screen Display)
controls.
Package Contents
Included with your LCD monitor are following items:
•15” TFT liquid crystal display monitor
•D-sub 15 pin signal cable
•AC power cable
•Audio cable
•This user’s manual
6
Product Features
lHigh contrast color TFT LCD display support resolution up to XGA
1024x768. Compatible with IBMVGA, VESA, and Macintosh
standards.
lImbedded audio system provides sound performance.
lPower management system conforms to VESADPMSstandard.
lEmbedded universal power system.
lSupport DDC1/2B for Plug & Play compatibility.
lAdvanced OSD control for picture quality adjustment.
lDetachable stand for wall-mounting application.
lEquipped with TCO selection.
Cleaning
lGently wipe the screen with a clean camel hair lens brush, or a soft,
clean, lint-free cloth. This removes dust and other particles that can
scratch the screen.
lDo not apply pressure to the screen surface when wiping it clean.
lDo not pour or spray any liquid directly onto the screen or case of
the LCD monitor. Chemical cleaners have been reported to damage
the screen or case of the LCD monitor.
7
Taking a Look
Front View
1. Power Switch Pressing this button turns the display system power
on or off.
2. Power LED This LED indicates different status when this unit
operates in different modes.
3. Menu/Select Pressing this button pops up the OSD menus on
the screen, and used to select (“Up” direction) the OSD control
options on the screen.
4. Menu/Select Pressing this button pops up the OSD menus on
the screen, and used to select (“Down” direction) the OSD control
options on the screen.
5. ++ This button is used to adjust the increasing value of the selected
OSD control option.
6. −− This button is used to adjust the decreasing value of the selected
OSD control option.
8
Rear View
1. Power Connector This is for connecting the power cable.
2. Signal Connector This can be connected with the D-sub 15 pin
signal connector.
3. Audio In This can be connected to the audio-out connector of the
computer.
9
WARNING When you disconnect the cord/cables,
be sure to hold the connector instead of the wire part.

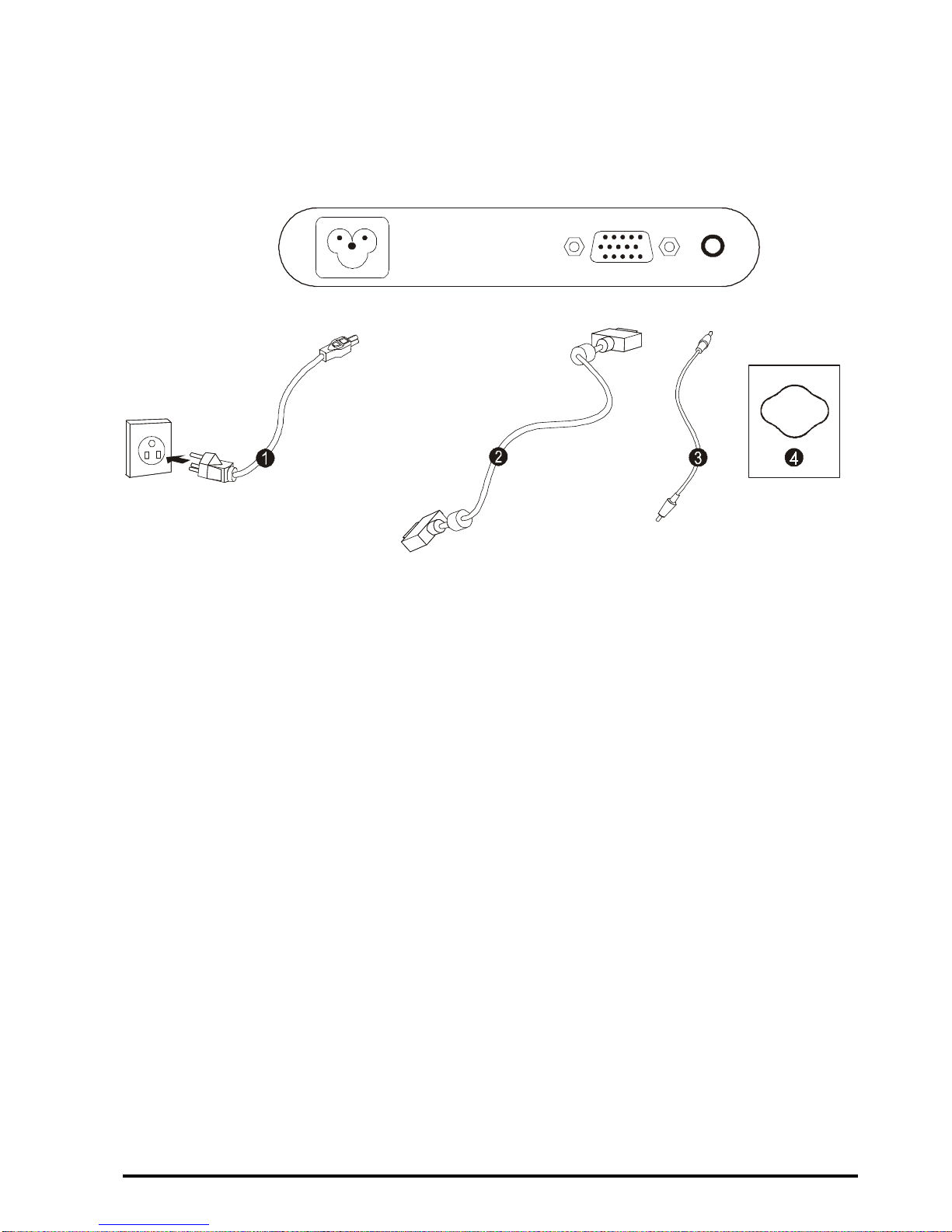

1. Connect one end of the power cord to the monitor and the other end
to the AC outlet. (Œ)
2. Connect one end of the signal cable to the rear side of computer and
the other to the LCD monitor. Tighten by turning clockwise the two
thumb screws to ensure proper grounding. (•)
3. Connect either end of the audio cable to the Audio In connector on
the monitor and the other end to the audio-out connector of your
computer (Ž)
4. Pressing the power button on front panel turns the display system
power on. (•)
