Printronix T5000e series Manuale utente
Quick Setup Guide
The T5000
eseries of Label Printers
™
This Quick Setup Guide contains a CD-ROM with
the following materials:
• The User’s Manual
• Programmer’s Reference Manuals
• Useful utility programs
The CD-ROM is located in a plastic pocket in the back cover.
Do not discard this guide. If you move or pack the printer in the future,
you will need to follow the instructions in this guide.
For technical assistance, contact your
Distributor/VAR/Reseller for service.
For further assistance, contact the Printronix Customer Support Center.
The Customer Support Center offers technical support with:
• Installation
• Configuration and Setup
• Operation and Supplies Loading
• Specifications of Proper Print Media and Ribbons
• Answers to Post-Sales Service Support Questions
Printronix Customer Support Center contact information:
Americas (714) 368-2686
Europe, Middle East, and Africa (31) 24 6489 410
Asia Pacific (65) 6548 4114
Web site: http://www.printronix.com/public/servicessupport/default.aspx
Genuine Printronix Supplies:
Americas (800) 733-1900
Europe, Middle East, and Africa (33) 1 46 25 1900
Asia Pacific (65) 6548 4116 or (65) 6548 4182
Web site: http://www.printronix.com/public/supplies/default.aspx
Or visit the Printronix web site at www.printronix.com
Lithium Battery Warning
The controller board contains a lithium battery sealed inside the real-time clock chip.
Do not disassemble the chip to replace the battery. Do not dispose of the chip by
incineration. Failure to comply may cause the battery to explode. Contact your local
waste agency for the correct disposal procedure.
Printronix makes no representations or warranties of any kind regarding this
material, including, but not limited to, implied warranties of merchantability and
fitness for a particular purpose. Printronix shall not be held responsible for errors
contained herein or any omissions from this material or for any damages, whether
direct, indirect, incidental or consequential, in connection with the furnishing,
distribution, performance or use of this material. The information in this manual is
subject to change without notice.
This document contains proprietary information protected by copyright. No part of
this document may be reproduced, copied, translated or incorporated in any other
material in any form or by any means, whether manual, graphic, electronic,
mechanical or otherwise, without the prior written consent of Printronix.
COPYRIGHT © 2002, 2005, PRINTRONIX, INC. All rights reserved.
Trademark Acknowledgements
Printronix and PGL are registered trademarks of Printronix, Inc.
T5000e is a trademark of Printronix, Inc.
5
Unpacking And Installing The Printer ....................................7
Unpacking The Printer ....................................................7
Removing The Internal Packing Material ........................8
Installation .......................................................................9
Controls And Indicators .........................................................9
Power Switch ..................................................................9
Control Panel ................................................................10
Loading Media And Ribbon .................................................14
Loading Roll Media .......................................................15
Loading Ribbon .............................................................20
Printing Adjustments............................................................23
Printhead Pressure Adjustment ....................................23
Printhead Pressure Block Adjustments.........................23
Positioning The Media Sensors ....................................24
Running Auto Calibrate .......................................................24
Configuring The Printer .......................................................26
QUICK SETUP Menu ..........................................................27
QUICK SETUP Menu Items ..........................................28
Saving The Configuration ....................................................36
Selecting The Power-Up Configuration ...............................36
Loading A Saved Configuration ...........................................36
Run A Barcode Demo Test..................................................37
For More Information ...........................................................37
Table of Contents
Table of Contents
6
7
Unpacking And Installing The Printer
Unpacking The Printer
The printer is shipped in a carton and protective bag. Keep all
packing material in case shipping is required.
CAUTION
Avoid touching the electrical connectors to prevent
electrostatic discharge damage while setting up the printer.
The discharge of accumulated electrostatic energy can
damage or destroy the printhead or electronic components
used in this device.
CAUTION
Do not place the printer on its backside during unpacking or
handling, because damage to the printer interface connector
may occur.
Unpacking And Installing The Printer
8
Removing The Internal Packing Material
Remove the tape strips and foam pads from the printer as indicated
below. (The top lid of the shipping carton also displays these
instructions.)
NOTE: Save the foam pads for repacking the printer.
t53unpk1
June 27, 2001
Tape Strip (2)
Foam Pad (2)
Foam Pad
t53unpk2
June 27, 2001
Foam
Unlock
a
b
c
Installation
9
Installation
1. Place the printer on a flat level surface that allows easy access
to all sides of the printer.
CAUTION
Never operate the printer on its side or upside down.
2. Make sure the printer power switch is in the Off (O) position.
WARNING
Failure to properly ground the printer may result in electric
shock to the operator.
In compliance with international safety standards, this printer
has been equipped with a three-pronged power cord. Do not
use adapter plugs or remove the grounding prong from the
cable plug. If an extension cord is required, ensure that a
three-wire cable with a properly grounded plug is used.
3. Attach the AC power cord to the AC power receptacle in the
back of the printer.
CAUTION
Verify the required voltage on the printer’s model number label
on the back of the printer.
4. Attach the AC power cord to a grounded (three prong) electrical
outlet of the proper voltage.
Controls And Indicators
Power Switch
The power switch is located on the bottom back panel of the printer.
To apply power, place the switch in the | (On) position. When you
first power on the printer, a series of initialization messages
appears on the Liquid Crystal Display (LCD) on the control panel.
To remove power, place the power switch in the O (Off) position.
Controls And Indicators
10

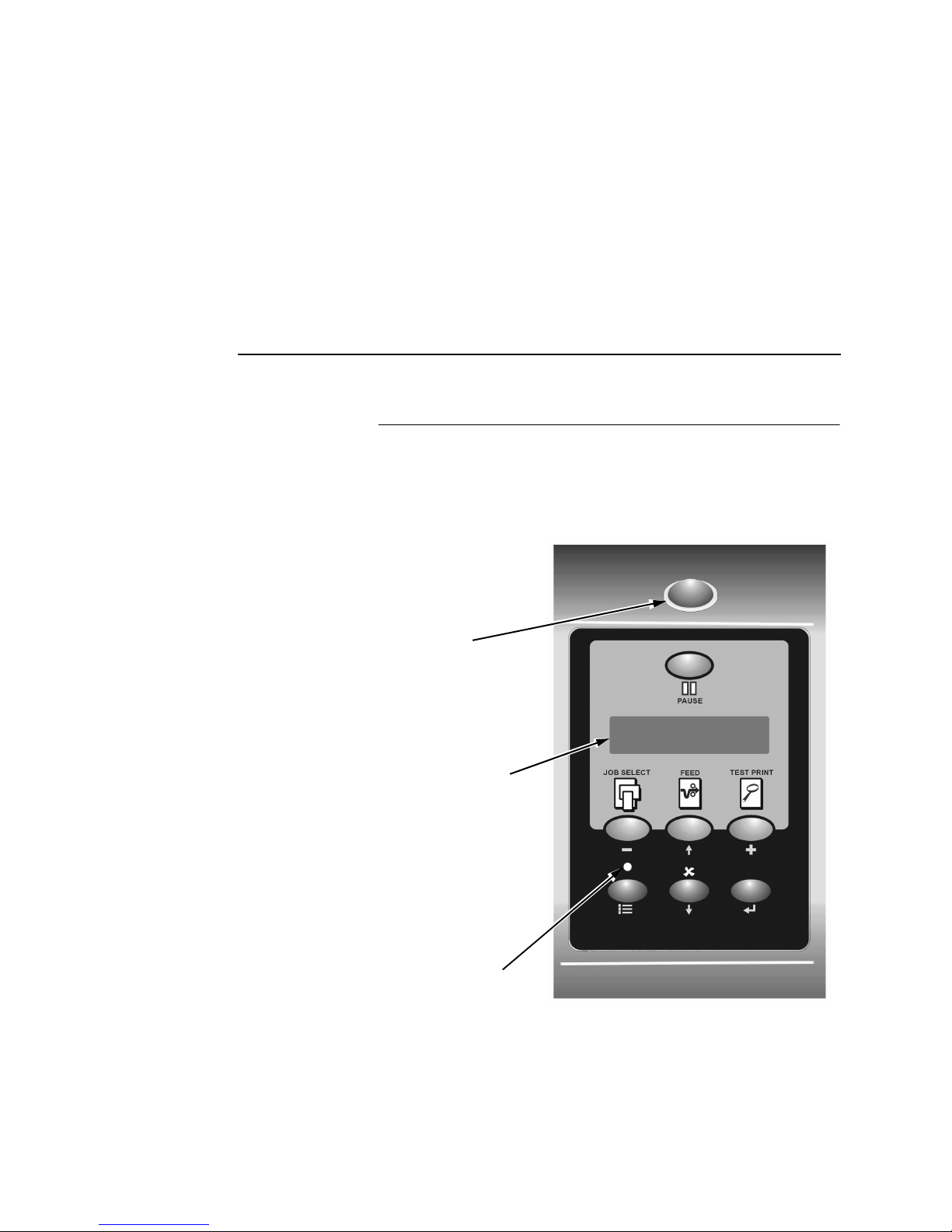

Control Panel
The control panel is located on the front of the printer and includes
an LCD, indicators, and control keys (buttons). These are
described in the following tables.
OFFLINE
Liquid Crystal
Display (LCD)
Online Status
Indicator
Job In Process
Indicator
