Assembly instructions
DIY-M-KIT 100W
®
Page 2
2x
egraf Graphit
Thermal conductive pad
2x
Cree CXB 3500 CD 3500K
3 Step (N0HCD35G)
2x
IDEAL LED Array Holder
50-2303CR
2x
IDEAL Reector Adapter
50-2300AN
2x
Ledil Angelina Reector
90°
F13838_ANGELINA-XW
4x
pro-emit DIY-M-KIT
holder
1x
pro-emit DIY-M-KIT
connection angel
1x
pro-emit DIY-M-KIT
heatsink
(450x138x50.5mm)
1x
Driver
MeanWell HLG 120H
C1400A
8x
M3 Allen key screw
4x
M4 Allen key screw
4x
M4 nut
2x
M6 washer
4x
M4 washer
2x
Wago clamp
1x
150cm
LED connection cable
blue
1x
100 cm
LED connection cable
black
1x
100cm
LED connection cable
red
1x
3m power cable
with plug
6x
M6 Allen key screw
A
G
F
E
D
C
B
I
H
1
8
7
5
4
3
2
10
9
11
6

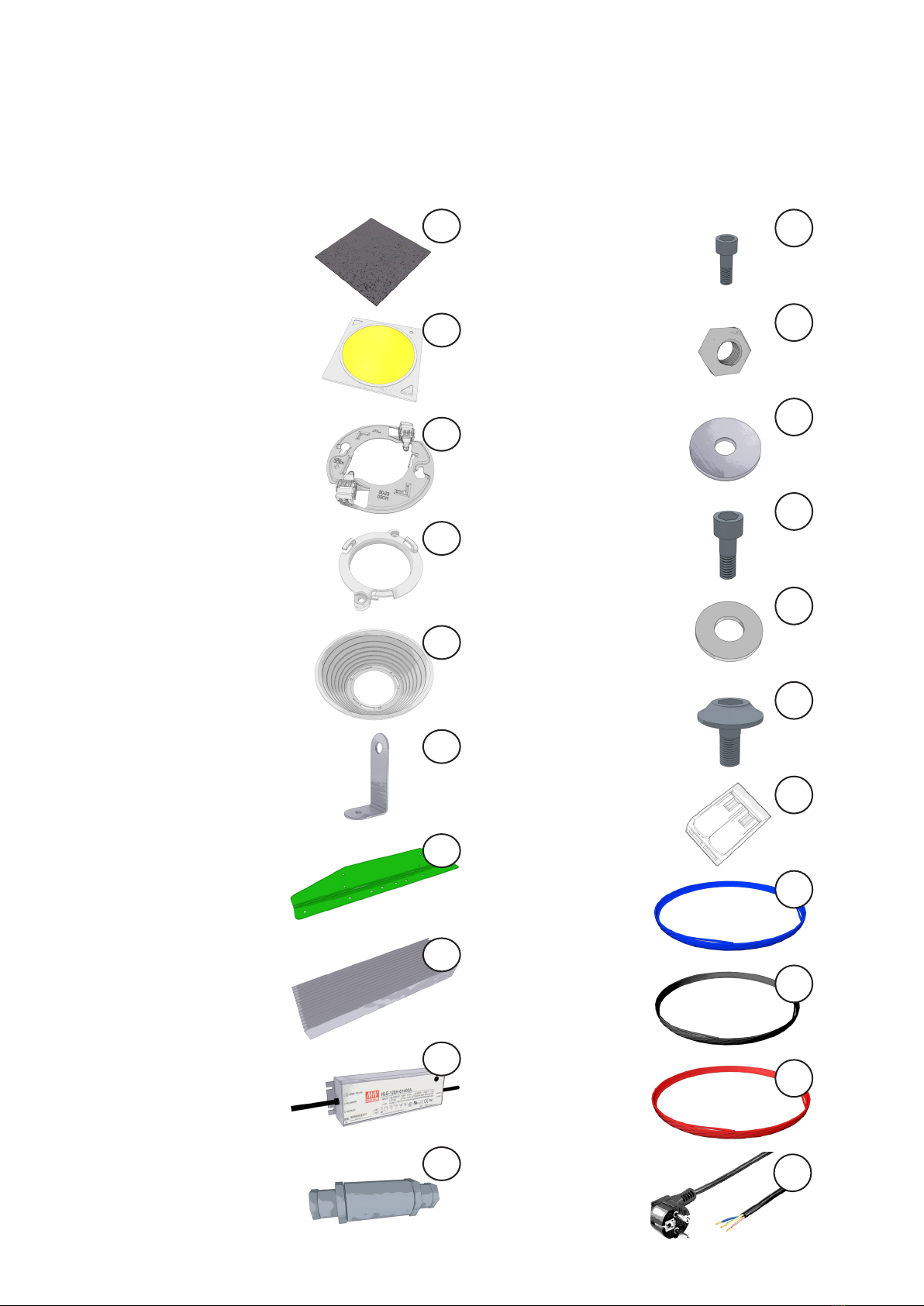

Parts list
DIY-M-Kit 100W
1x
Parlat cable sleeve
K
Page 3

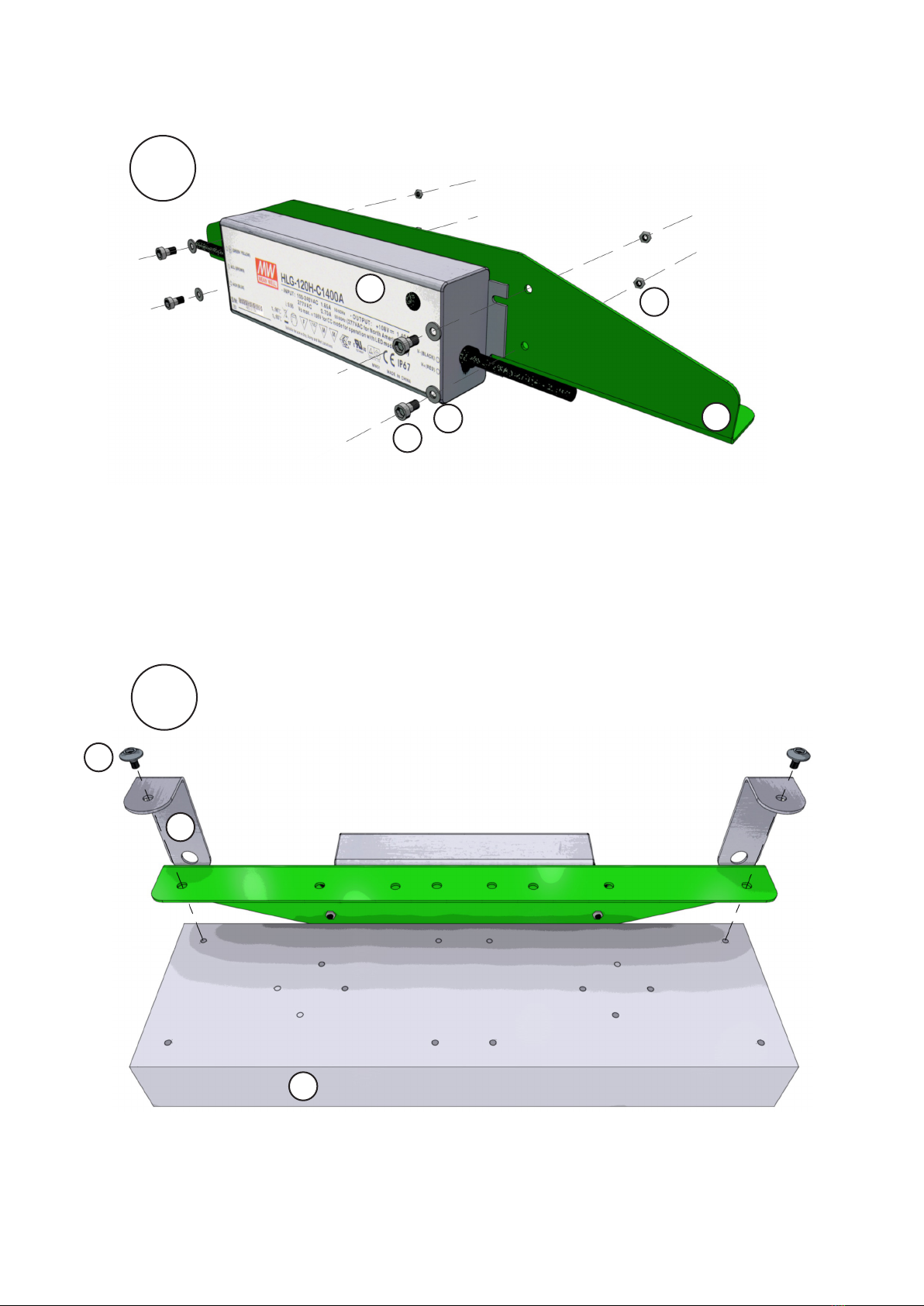

Assemble the MeanWell HLG 120H (I) driver to the connection angle bracket(G) with M4 Allen
key screw (4), M4 washer(3) and M4 nut (2).
1
2
Screw the connection angle bracket and holder (F) to the heatsink (H) by use of M6 Allen key
(6).
43
2
G
I
F
6
H
Page 4
3

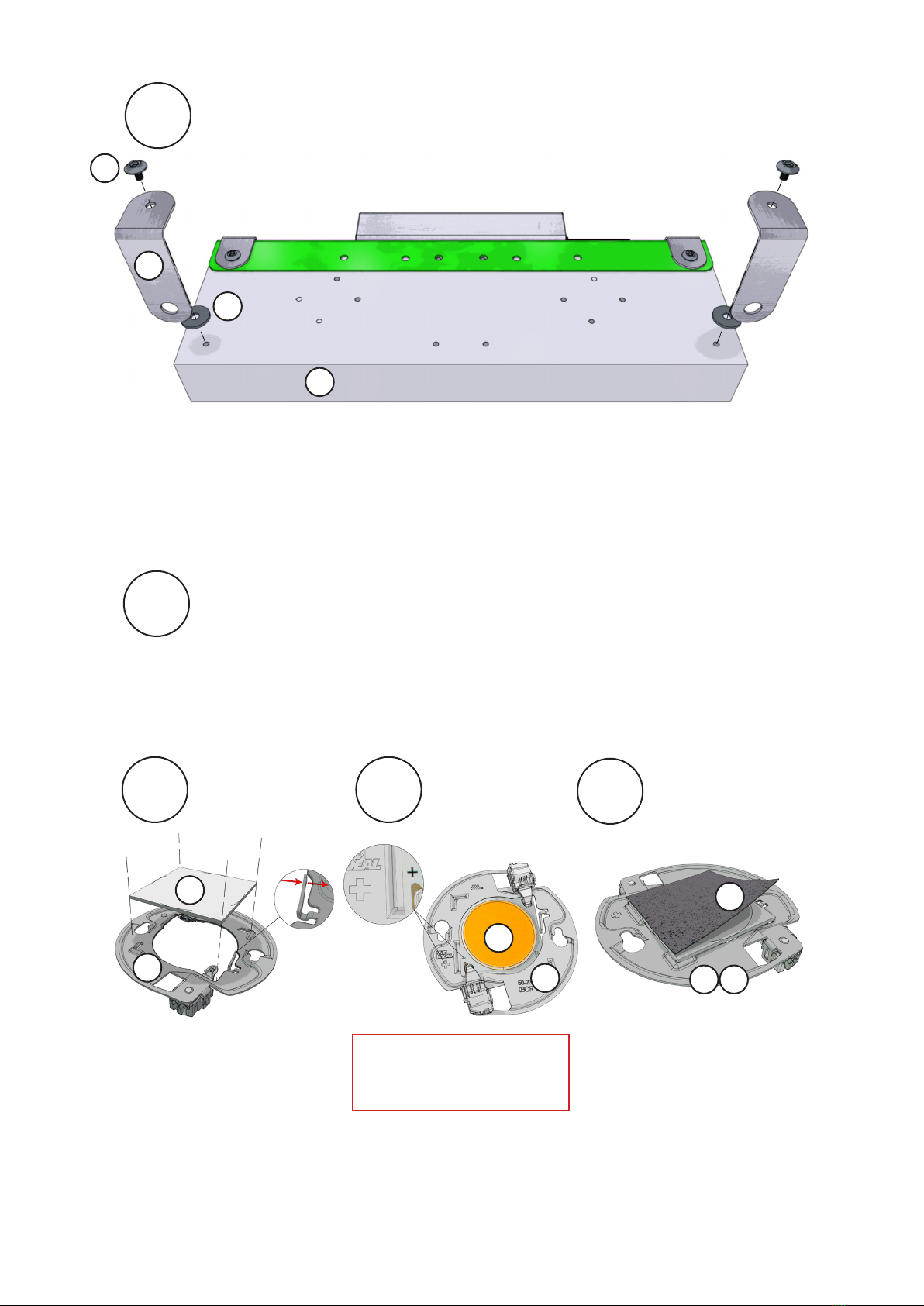

Screw the holder (F) to the heatsink (H) using M6 Allen screws (6) and M6 washer(5).
4.1 4.2 4.3
While insert of Cree CXB 3590
(B) into the IDEAL LED Array
Holder (C), slightly push back
holders pin back to insert and
clamp the Cree CXB 3590.
Carefully remove thermal con-
ductive pad (A) from paper and
stick the adhesive side on the
backside of clamped Cree CXB
3590 (B + C).
The thermal pad must be in line
with the Cree CXB 3590 on all
sides.
Attention: + pole on the IDEAL
LED Array Holder (C) and + pole
on the Cree CXB 3590 (B) must
match!
4
Insert the Cree CXB 3590 (B) in the IDEAL LED Array Holder (C) and carefully stick the thermal
conductive pad (A).
F
6
H
5
B
C
A
B C
C
B
Caution: If the pad sticks, it cannot be removed without damage!
Page 5
5

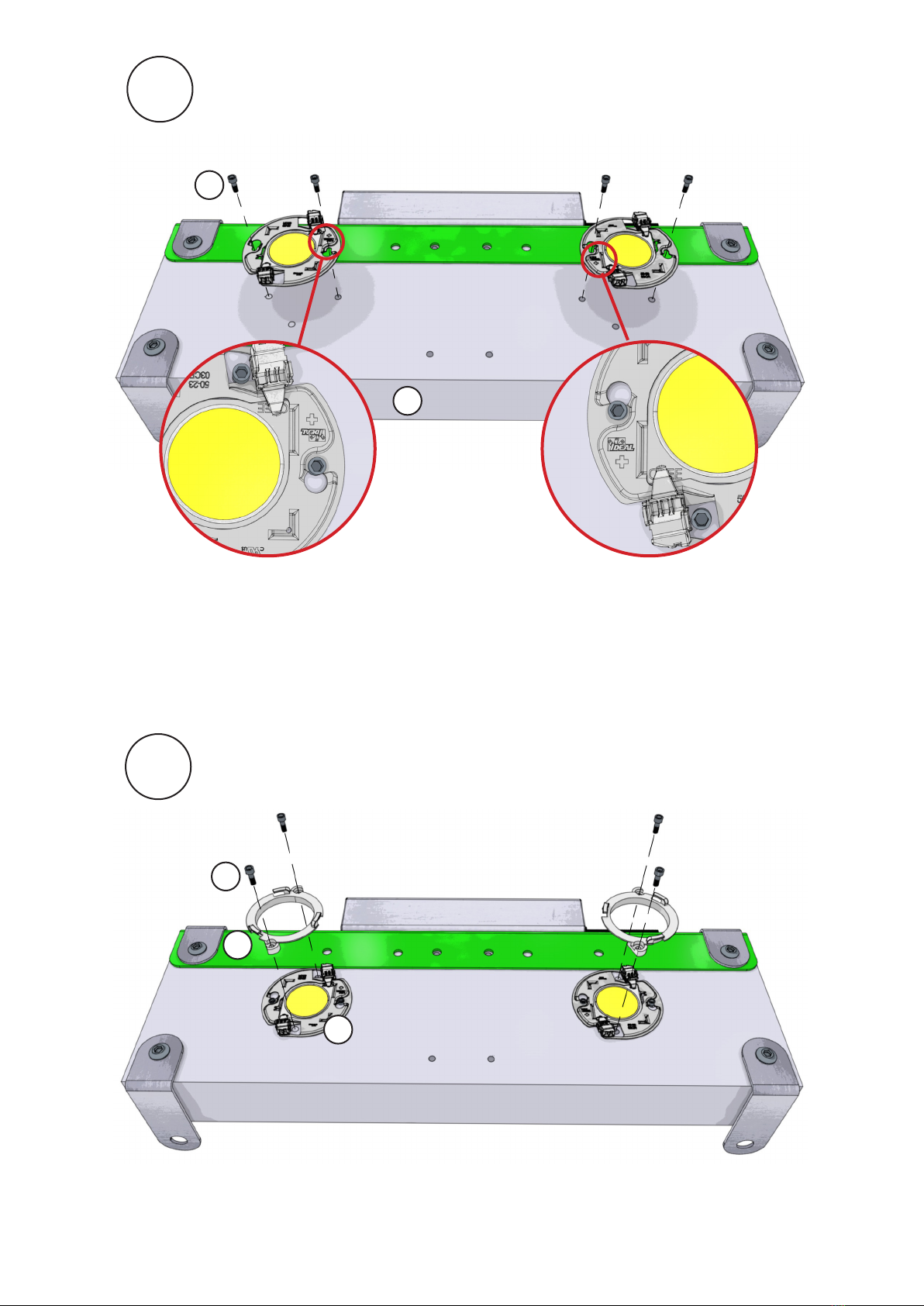

Fix the IDEAL LED Array Holder with Cree CXB 3590 (A + B + C) to the heatsink (H) with Allen
key Screws (1). Please position the + pole of IDEAL LED Array Holder as shown in the picture.
6
Assemble IDEAL Reector adapter (D) to IDEAL LED Array Holder (C) by using M3 Allen key
screws (1).
H
1
1
D
C
(Caution: do not use overstress the screws - risk of breakage!)
(Caution: do not use overstress the screws - risk of breakage!)
Page 6

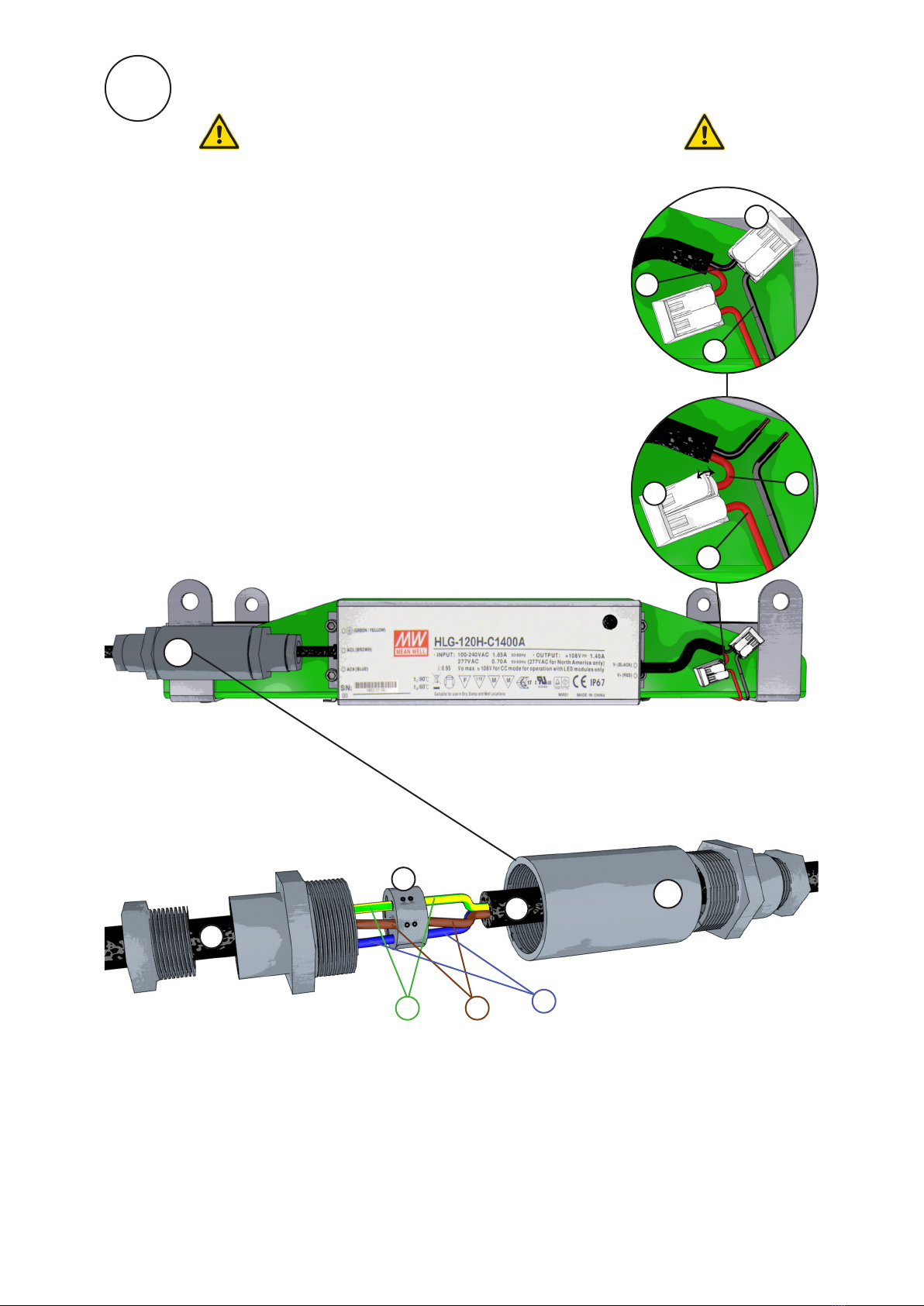

Open another Wago terminal (7) lever and connect
the red LED connection cable (10) to the red (b) LED
driver cable.
Open a Wago terminal (7) lever and connect the
black LED connection cable (9) and the black (a) LED
driver cable.
7
10
b
a
9
Caution: The power plug must be not plugged in during
assembly!
Danger: Risk of electric shock!
The electric connection must be done by a qualied electric expert
7
7
11
Open the cable sleeve (K) and insert the stripped power cable (11) and the stripped driver cable (c)
as shown in the picture.
The thin rubber cord must be pierced and the cable passed through. The hole for the cable must
not become too big, as the rubber will seal on the cable. Connect the three wires of the two cables
with the correct/same color through the bridge (g) and tighten them with the screws. Screw the
cable sleeve back together and ensure that the cables are securely anchored.
K
cK
def
g
Page 7
8

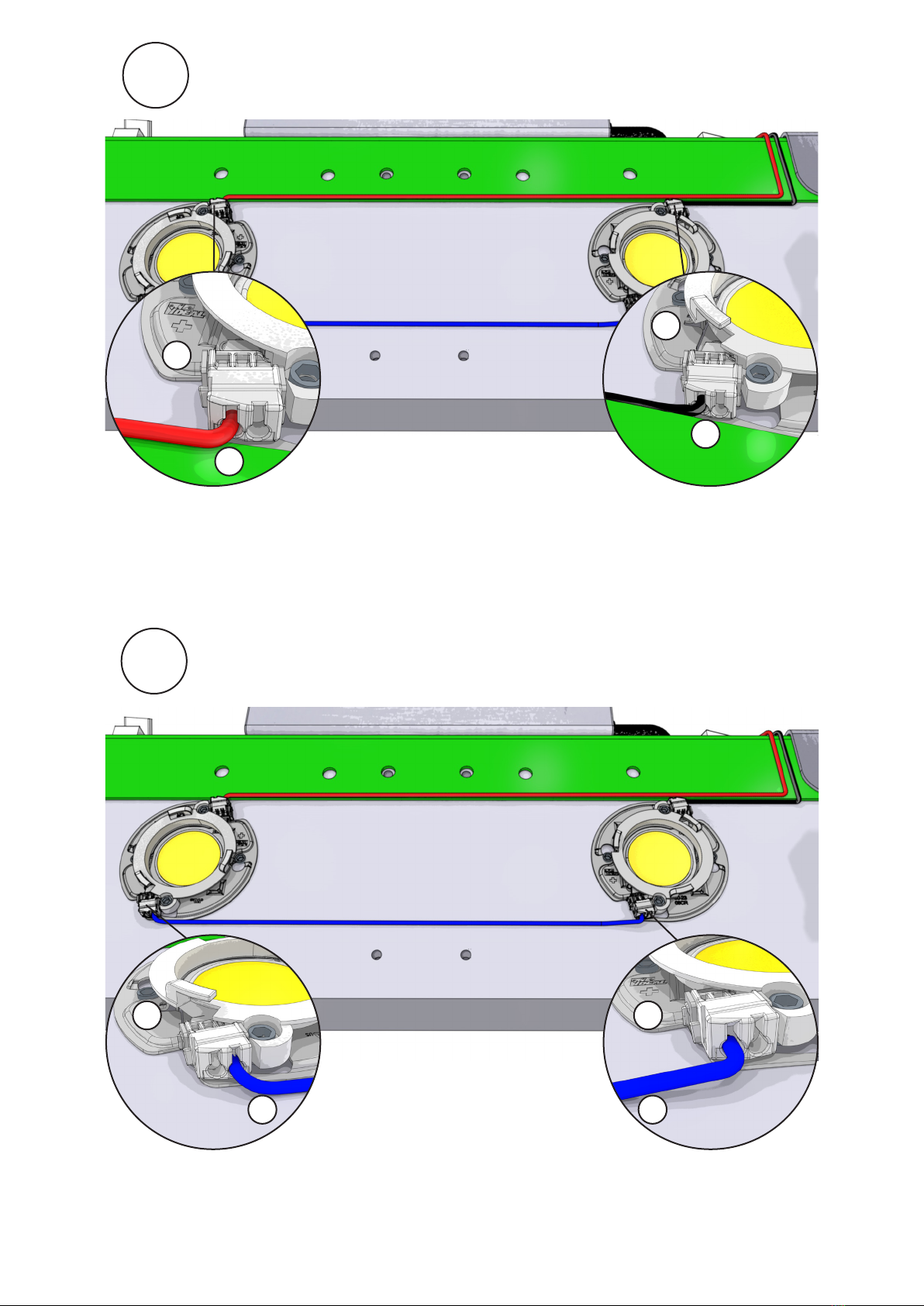

Insert LED connection cable
black (9) in the - pole of the
IDEAL LED array holder (C).
Insert LED connection cable
red (10) in the + pole of the
IDEAL LED array holder (C).
9
Insert LED connection cable
blue (8) in the + pole of the
IDEAL LED array holder (C).
Insert LED connection cable
blue (8) in the - pole of the
IDEAL LED array holder (C).
Cut the red and black cable (9 + 10) to the correct length and strip
6-8mm at both ends.
Cut the blue LED connection cable (8) to the correct length and strip
6-8mm at both ends.
9
10
8 8
C
C
C C
Page 8
10

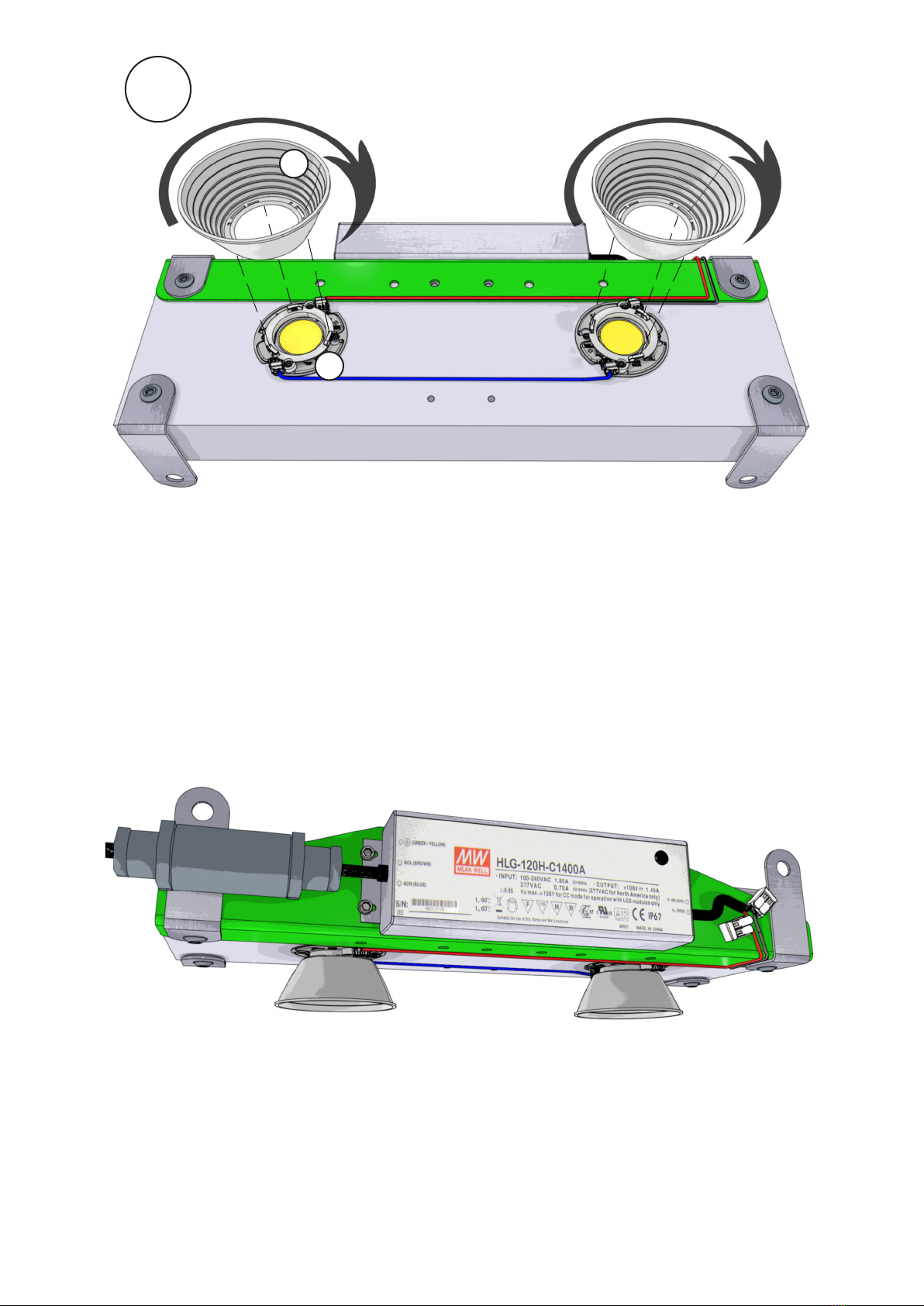

Plug the Ledil Angelina reector (E) to the IDEAL Reector Adapters (D) and lock them by slight
twisting.
Your DIY-M-Kit 100W is now ready for use!
E
D
