Pro-Form PFEL07909.1 Manuale utente

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. eep this manual

for future reference.

Serial Number Decal

(on underside of frame)

Model No. PFEL07909.1

Serial No.

Write the serial number in the

space above for reference.

USERʼS MANUAL

www.proform.com

QUESTIONS?

If you have questions, or if parts are

damaged or missing, DO NOT

CONTACT THE STORE; please

contact Customer Care.

IMPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer Care.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.proformservice.com

TABLE OF CONTENTS

WARNINGDECALPLACEMENT ..............................................................2

IMPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................4

ASSEMBLY ...............................................................................5

HOWTOUSETHEELLIPTICAL .............................................................13

MAINTENANCEANDTROUBLESHOOTING ...................................................20

EXERCISEGUIDELINES ...................................................................22

PARTLIST ..............................................................................23

EXPLODEDDRAWING ....................................................................25

ORDERINGREPLACEMENTPARTS ..................................................BackCover

LIMITEDWARRANTY ..............................................................BackCover

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the

warning decal(s). If a decal is missing or

illegible, see the front cover of this

manual and request a free replacement

decal. Apply the decal in the location

shown. Note: The decal(s) may not be

shown at actual size.

PROFORM is a registered trademark of ICON IP, Inc.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical before using your elliptical. ICON

assumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or

persons with pre-existing health problems.

2. Use the elliptical only as described in this

manual.

3. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

4. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,

rental, or institutional setting.

5. eep the elliptical indoors, away from

moisture and dust. Do not put the elliptical in

a garage or covered patio, or near water.

6. Place the elliptical on a level surface, with at

least 3 ft. (0.9 m) of clearance in the front

and rear of the elliptical and 2 ft. (0.6 m) on

each side. To protect the floor or carpet from

damage, place a mat under the elliptical.

7. Inspect and properly tighten all parts

regularly. Replace any worn parts

immediately.

8. eep children under age 12 and pets away

from the elliptical at all times.

9. The elliptical should not be used by persons

weighing more than 325 lbs. (147 kg).

10. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

11. Hold the handlebars or the upper body arms

when mounting, dismounting, or using the

elliptical.

12. The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in

determining heart rate trends in general.

13. The elliptical does not have a freewheel; the

pedals will continue to move until the

flywheel stops. Reduce your pedaling speed

in a controlled way.

14. eep your back straight while using the

elliptical; do not arch your back.

15. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM®

790 E elliptical. The 790 E elliptical provides an

impressive selection of features designed to make

your workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Pulse Sensor

Upper Body Arm

Pedal

Roller

Console

Water Bottle Holder*

Ramp

Handle

Handlebar

*Water bottle is not included

Wheel

Power Cord

ASSEMBLY

To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing

materials. Do not dispose of the packing materials until assembly is completed.

In addition to the included tool(s), assembly requires a Phillips screwdriver , two adjustable

wrenches , and a rubber mallet .

See the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following

the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if

it has been preassembled. To avoid damaging parts, do not use power tools for assembly.

M8 x 38mm

Bolt (96)–4

M8 Locknut

(102)–4

Wave Washer

(95)–2 M8 x 25mm

Washer (98)–6

M4 x 16mm

Screw (104)–10

M8 x 19mm Patch

Screw (82)–15

M8 Split

Washer (83)–11

M8 x 80mm Patch

Screw (84)–2 M10 x 20mm Patch

Screw (66)–2

M8 x 56mm Patch

Screw (94)–2

M10 x 25mm

Washer (36)–2

M6 Split Washer

(111)–12

#10 x 12.7mm

Screw (59)–12

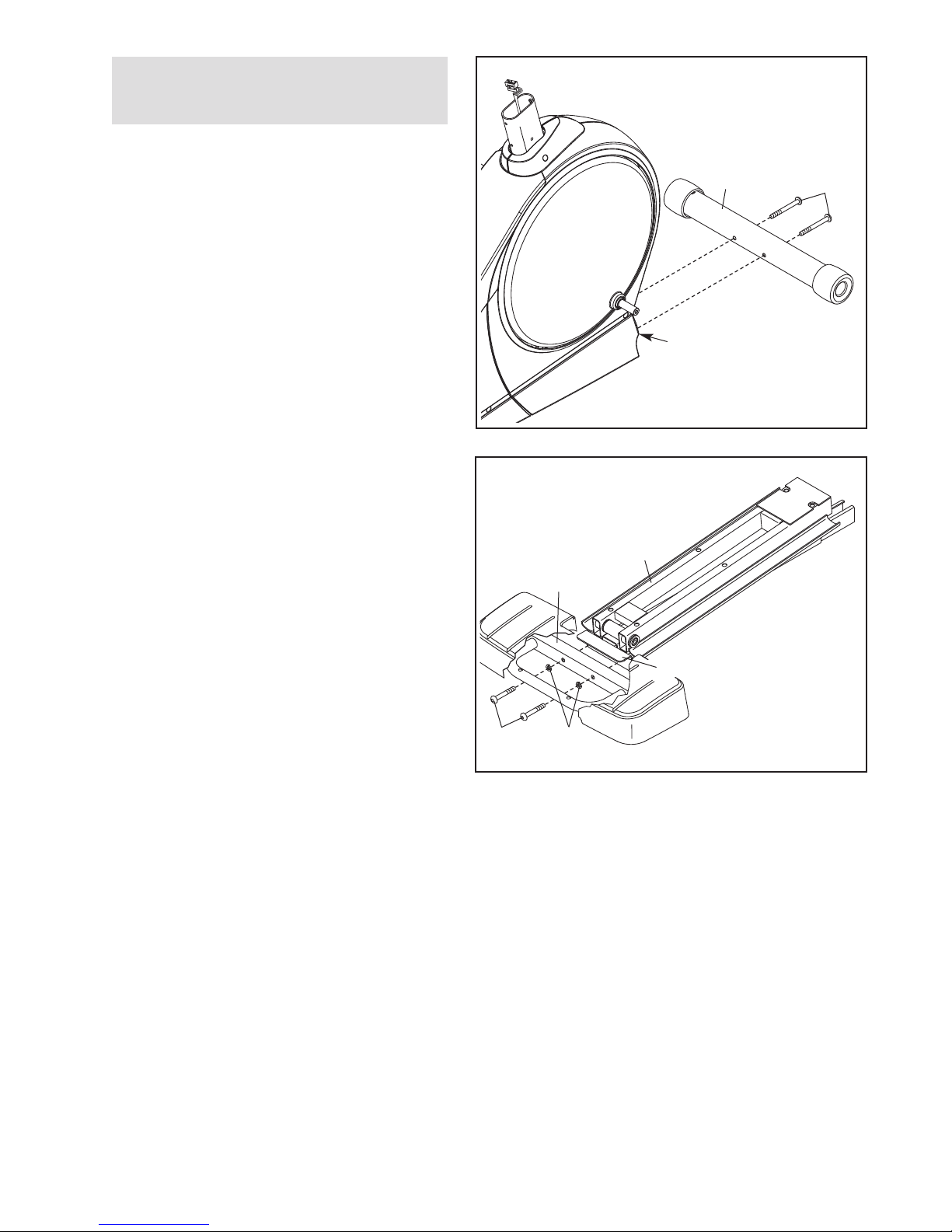

Attach the Front Stabilizer (6) to the Front

Frame (1) with two M8 x 80mm Patch Screws

(84).

2. Orient the Rear Stabilizer (62) and the Rear

Frame (2) as shown.

Tip: If the Ramp Cover (see step 15) is

attached to the Ramp (3), remove the Ramp

Cover.

Attach the Rear Stabilizer (62) to the Rear

Frame (2) with two M8 x 56mm Patch Screws

(94) and two M8 Split Washers (83).

To make assembly easier, read the

information on page 5 before you begin.

3. Insert the Rear Frame (2) into the Front Frame

(1); make sure that the Ramp (3) is on the

Lift Roller (12).

Attach the Rear Frame (2) with five M8 x 19mm

Patch Screws (82) and five M8 Split Washers

(83).

4. Have a second person orient the Upright (4) as

shown and hold it near the Front Frame (1).

Locate the wire tie in the Upright (4). Tie the

lower end of the wire tie to the Upper Wire

Harness (110). Next, pull the upper end of the

wire tie until the Upper Wire Harness is routed

completely through the Upright. Then, untie and

discard the wire tie.

Tip: To prevent the Upper Wire Harness (110)

from falling into the Upright (4), secure the

Upper Wire Harness with a rubber band or

tape.

Tip: Avoid pinching the Upper Wire Harness

(110). Slide the Upright (4) onto the Front

Frame (1). Attach the Upright with four M8 x

19mm Patch Screws (82) and four M8 Split

Washers (83); do not tighten the Patch

Screws yet.

Wire

Tie

Wire

Tie

Avoid pinching

the Upper Wire

Harness (110)

110

5. Apply a generous amount of grease to the Pivot

Axle (35) and to two Wave Washers (95).

Insert the Pivot Axle (35) through the Upright (4)

and then center it.

Slide a Wave Washer (95) onto each end of the

Pivot Axle (35).

Grease

Grease 4

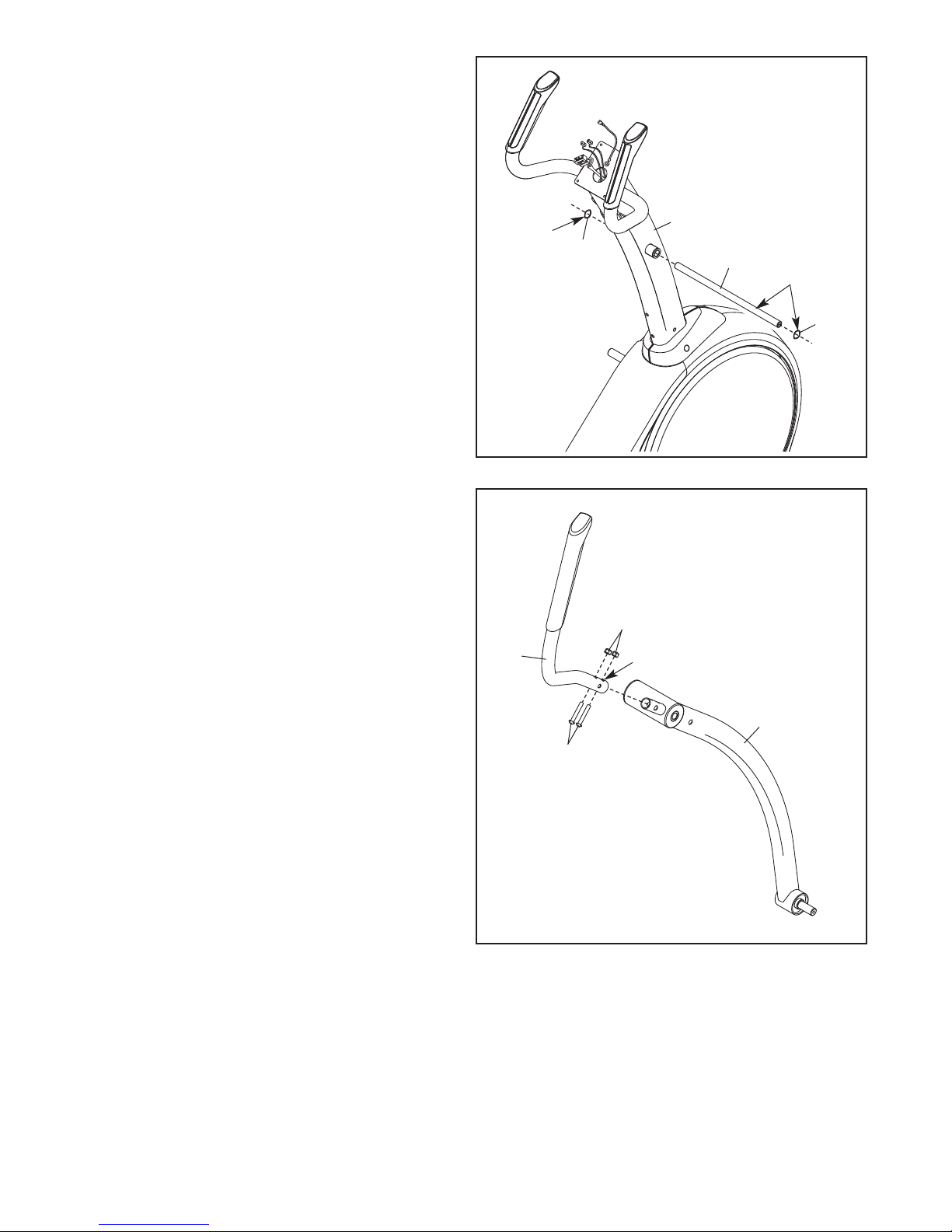

6. Identify the Right Upper Body Arm (61) and the

Right Upper Body Leg (60), which are marked

with “Right” stickers, and orient them as shown.

Make sure that the hexagonal holes are in

the position shown.

Slide the Right Upper Body Arm (61) onto the

Right Upper Body Leg (60). Attach the Right

Upper Body Arm with two M8 x 38mm Bolts

(96) and two M8 Locknuts (102). Make sure

that the Locknuts are in the hexagonal

holes.

Repeat this step for the Left Upper Body

Arm (not shown) and the Left Upper Body

Leg (not shown).

102

Hexagonal Holes

8. Attach an Outer Cover (67) to the Inner Cover

(68) on the Right Upper Body Leg (60) with two

M4 x 16mm Screws (104).

Repeat this step on the other side of the

elliptical.

104

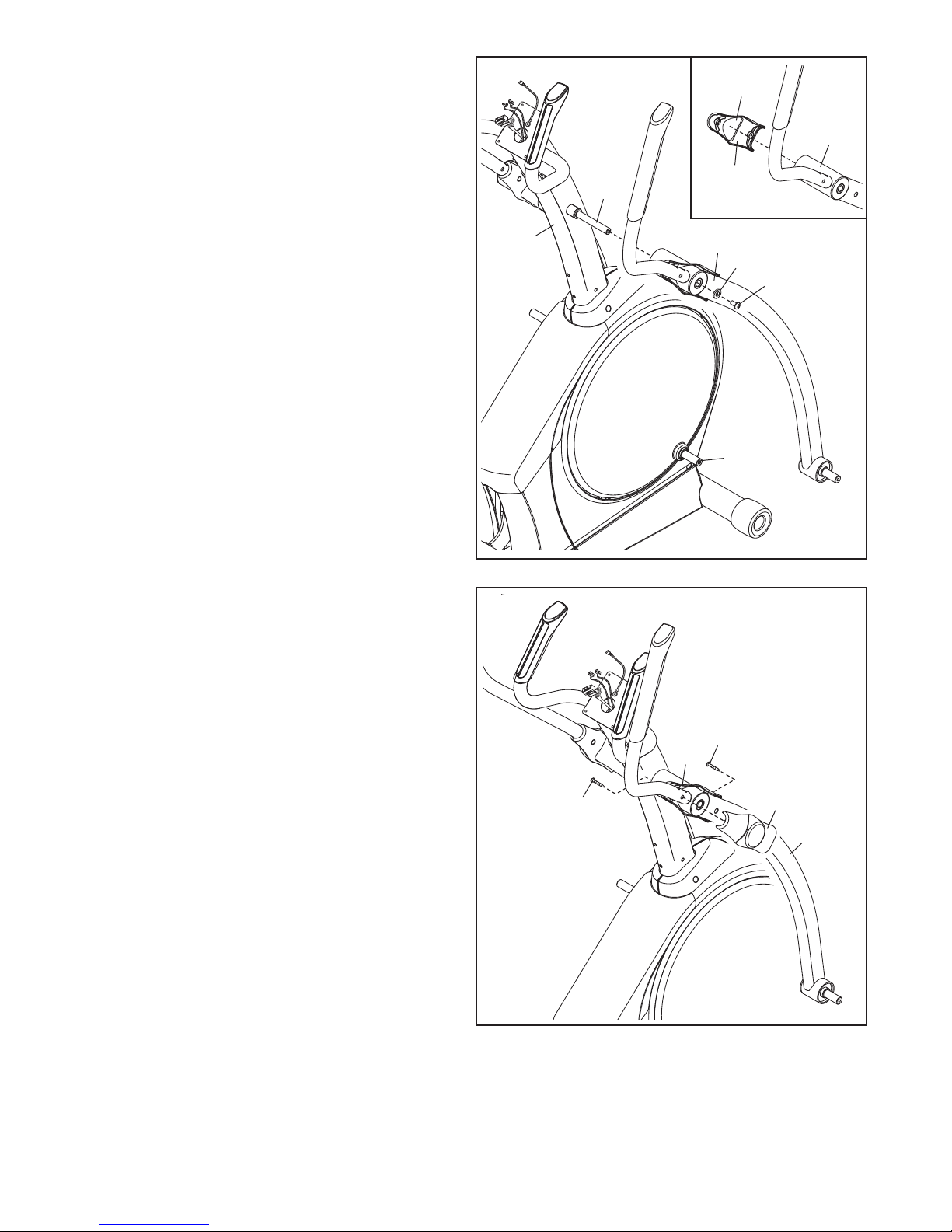

7. See the inset drawing. Slide an Inner Cover

(68) onto the Right Upper Body Leg (60).

Next, slide the Right Upper Body Leg (60) onto

the right end of the Pivot Axle (35); make sure

that the Right Upper Body Leg is in front of

the right Crank Arm (20).

Attach the Right Upper Body Leg (60) with an

M8 x 19mm Patch Screw (82) and an M8 x

25mm Washer (98).

Repeat this step on the other side of the

elliptical.

Opening

10. Orient the Rear Upright Cover (80) as shown.

Attach the Rear Upright Cover (80) to the

Upright (4) with two M4 x 16mm Screws (104).

104

9. Have a second person hold the Console (7)

near the Upright (4).

Connect the wires on the Console (7) to the

Ground Wire (120), to the Pulse Wires (63, 69),

and to the Upper Wire Harness (110).

Insert the excess wires up into the Console (7)

or down into the Upright (4).

Tip: Avoid pinching the wires. Attach the

Console (7) to the Upright (4) with four M4 x

16mm Screws (104).

104

63 120

Avoid pinching

the wires

11. Orient the Front Upright Cover (91) as shown.

Attach the Front Upright Cover (91) around the

Upright (4) by pressing the tabs on the Front

Upright Cover into the Rear Upright Cover (80).

110

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Pro-Form Ellittica

Pro-Form

Pro-Form CARBON E7 Manuale utente

Pro-Form

Pro-Form ENDURANCE 320 E Manuale utente

Pro-Form

Pro-Form 1200 E Elliptical Guida utente

Pro-Form

Pro-Form 380 Razor Elliptical Manuale operativo e di manutenzione

Pro-Form

Pro-Form 10.0 Ce Elliptical Manuale utente

Pro-Form

Pro-Form 810 E Elliptical Manuale utente

Pro-Form

Pro-Form PFCCEL87078 Manuale utente

Pro-Form

Pro-Form 831.297470 Manuale utente

Pro-Form

Pro-Form 310 Ce Elliptical Manuale utente

Pro-Form

Pro-Form 831.28645.0 Manuale utente

Pro-Form

Pro-Form Space Saver B700 Manuale utente

Pro-Form

Pro-Form 500 Ekg Elliptical Manuale del sistema

Pro-Form

Pro-Form PFEL7806.1 Manuale utente

Pro-Form

Pro-Form ReflexStep Manuale utente

Pro-Form

Pro-Form 565 Ekg Elliptical Manuale utente

Pro-Form

Pro-Form 300 Zle Elliptical Manuale utente

Pro-Form

Pro-Form 1150 RXW Manuale utente

Pro-Form

Pro-Form PFEVEL48830 Manuale utente

Pro-Form

Pro-Form 20.0 Crosstrainer Elliptical Manuale utente

Pro-Form

Pro-Form fusion 2.1t Manuale utente

Pro-Form

Pro-Form 696 Elliptical Manuale utente

Pro-Form

Pro-Form XP 420 RAZOR Manuale utente

Pro-Form

Pro-Form 831.297471 Manuale utente

Pro-Form

Pro-Form PFEL29221 Manuale utente

Manuali Ellittica popolari di altre marche

Weslo

Weslo Momentum 4.0 Elliptical Manuale operativo e di manutenzione

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuale utente

Torque Fitness

Torque Fitness XPLLP Manuale utente

Octane Fitness

Octane Fitness PRO3700C Manuale utente

Xterra

Xterra FS5.8e Manuale utente

Bodyguard

Bodyguard E-40 Manuale utente

Bonn Germany

Bonn Germany Concept 2.2 Manuale utente

Precor

Precor Resolute RSL 620 Manuale utente

NordicTrack

NordicTrack E 9.2 Elliptical Manuale utente

Vision Fitness

Vision Fitness X6600iNetTV Manuale utente

Matrix

Matrix MX-A5x Manuale utente

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuale utente

Sears

Sears FREE SPIRIT C249 30737 0 Manuale utente

True

True FS-64 Manuale utente

Sport-thieme

Sport-thieme ST 310 Manuale utente

VIRTUFIT

VIRTUFIT CTR 1.1 Manuale utente

Kettler

Kettler GIRO C 1 Manuale utente

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuale utente
