Pro-Form PFEL39030 Manuale utente

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manu-

al for future reference.

Model No. PFEL39030

Serial No.

Serial

Number

Decal

QUESTIONS?

If you have questions, or if there

are missing parts, we will guar-

antee complete satisfaction

through direct assistance from

our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE.

The trained technicians on our

customer hot line will provide

immediate assistance, free of

charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

USER’S MANUAL

Patent Pending

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE ELLIPTICAL CROSSTRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

IMPORTANT PRECAUTIONS

WARNING:To reduce the risk of serious injury, read the following important precau-

tions before using the elliptical crosstrainer.

1. Read all instructions in this manual before

using the elliptical crosstrainer.

2. It is the responsibility of the owner to ensure

that all users of the elliptical crosstrainer

are adequately informed of all precautions.

3. The elliptical crosstrainer is intended for

home use only. Do not use the elliptical

crosstrainer in a commercial, rental, or insti-

tutional setting.

4. Place the elliptical crosstrainer on a level

surface, with a mat beneath it to protect the

floor or carpet. Keep the elliptical crosstrain-

er indoors, away from moisture and dust.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. Keep children under 12 and pets away from

the elliptical crosstrainer at all times.

7. The elliptical crosstrainer should not be used

by persons weighing more than 250 pounds.

8. Wear appropriate exercise clothes when

using the elliptical crosstrainer. Always wear

athletic shoes for foot protection while exer-

cising.

9. Hold the handgrip pulse sensor or the han-

dlebars when mounting, dismounting, or

using the elliptical crosstrainer.

10. The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

11. Keep your back straight when using the ellip-

tical crosstrainer; do not arch your back.

12. If you feel pain or dizziness while exercis-

ing, stop immediately and begin cooling

down.

13. When you stop exercising, allow the pedals

to slowly come to a stop.

14. The decal shown below has been placed on

the elliptical crosstrainer. If the decal is

missing, or if it is not legible, please call our

Customer Service Department toll-free at

1-800-999-3756 to order a free replacement

decal. Apply the decal in the location shown.

WARNING:Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health prob-

lems. Read all instructions before using. ICON assumes no responsibility for personal injury or

property damage sustained by or through the use of this product.

BEFORE YOU BEGIN

Congratulations for selecting the new PROFORM®

800 CARDIO CROSSTRAINER. The PROFORM®800

is an incredibly smooth exerciser that moves your feet

in a natural elliptical path, minimizing the impact on

your knees and ankles. And the unique PROFORM®

800 features adjustable resistance and a state-of-the-

art console to help you get the most from your exer-

cise. Welcome to a whole new world of natural, ellipti-

cal-motion exercise from PROFORM.

For your benefit, read this manual carefully before

you use the elliptical crosstrainer. If you have

questions after reading this manual, call our Customer

Service Department toll-free at 1-800-999-3756,

Monday through Friday, 6 a.m. until 6 p.m. Mountain

Time (excluding holidays). To help us assist you,

please note the product model number and serial

number before calling. The model number is

PFEL39030. The serial number can be found on a

decal attached to the elliptical crosstrainer (see the

front cover of this manual for the location of the decal).

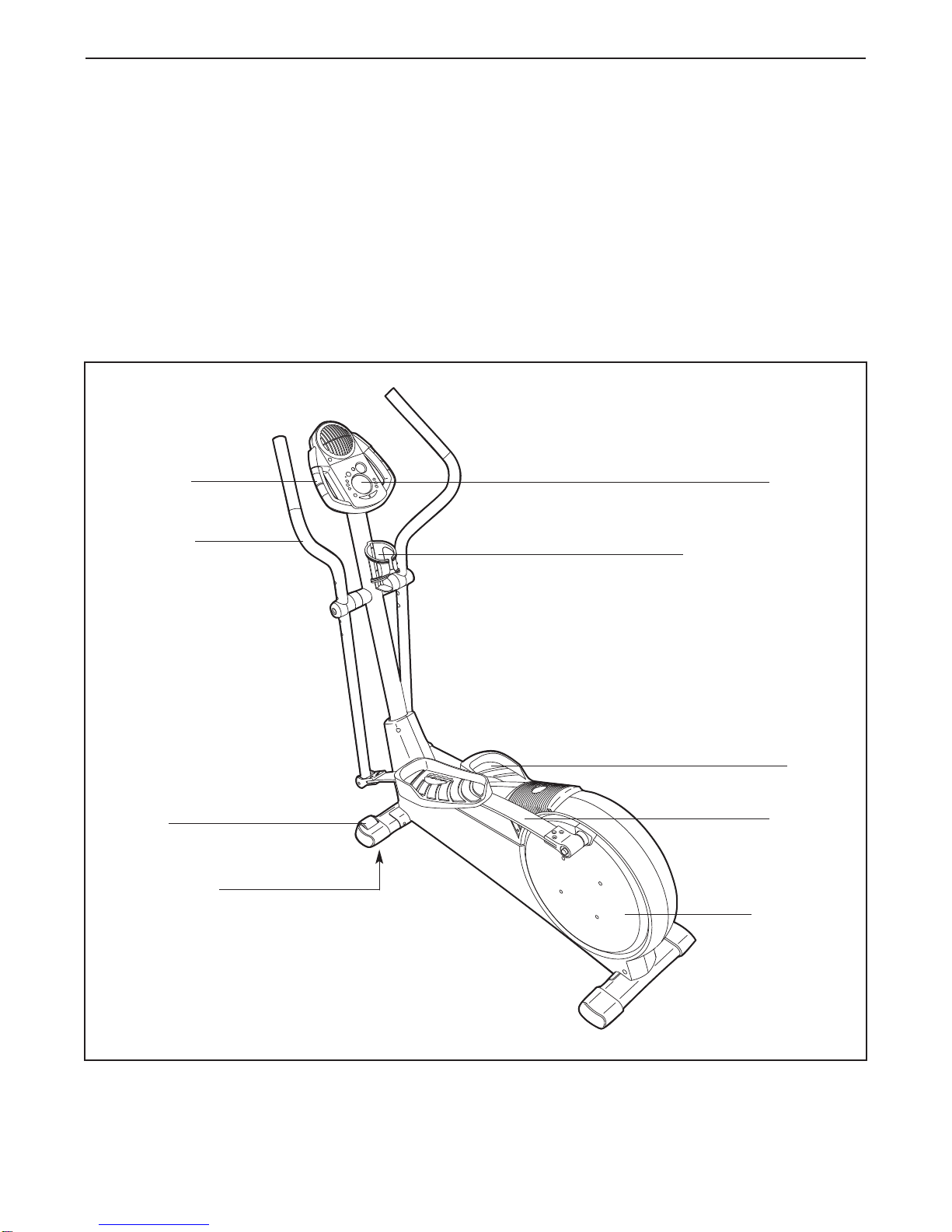

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handgrip

Pulse Sensor

Handlebar

FRONT

BACK

LEFT SIDE

Flex Bar

Pedal Disk

*No water bottle is included

Wheel

Pedal

Console

Water Bottle Holder*

Leveling Foot

ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the

included allen wrenches, assembly requires a phillips screwdriver , an adjustable

wrench , and a rubber mallet .

As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly.

The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on

page 22. The second number refers to the quantity needed for assembly. Note: Some small parts may have

been pre-assembled. If a part is not in the parts bag, check to see if it has been pre-assembled.

M10 x 112mm Carriage Bolt (34)–4

M10 x 88mm Button Screw (63)–1

M10 x 78mm Button Bolt (27)–2

M4 x 16mm

Screw (66)–4 M10 Nylon

Locknut (29)–6

M8 Nylon

Locknut (46)–4

M10 Split

Washer (70)–1

Frame Spacer (83)–1

M8 x 19mm Shoulder

Screw (22)–2

M8 x 45mm Button Bolt (50)–4 M10 x 33mm Carriage

Bolt (20)–2

M4 x 22mm

Screw (93)–2

M10.3 Black

Washer (53)–2 M10

Washer (38)–6

1. Identify the Front Stabilizer (3). While another person

lifts the front of the Frame (1), attach the Front

Stabilizer to the Frame with two M10 x 112mm

Carriage Bolts (34) and two M10 Nylon Locknuts (29).

Make sure that the Front Stabilizer is turned so the

Wheels (32) are not touching the floor.

2. While another person lifts the back of the Frame (1),

attach the Rear Stabilizer (4) to the Frame with two

M10 x 112mm Carriage Bolts (34) and two M10 Nylon

Locknuts (29).

3. While another person holds the Upright (2) in the posi-

tion shown, connect the Upper Wire Harness (86) to

the Lower Wire Harness (87). Carefully pull the

upper end of the Upper Wire Harness to remove

any slack. While holding the upper end of the

Upper Wire Harness, insert the Upright into the

Frame (1). Do not pinch the Wire Harnesses.

Slide an M10 Split Washer (70) and a Frame Spacer

(83) onto an M10 x 88mm Button Bolt (63). Insert the

Button Bolt into the Frame (1) and the Upright (2).

Make sure that the concave end of the Frame

Spacer is turned toward the Frame. Do not tighten

the Button Bolt yet.

Attach the Water Bottle Holder (91) to the Upright

(2) with two M4 x 22mm Screws (93).

Make sure the

wire harnesses

do not get

pinched and

damaged during

this step.

4. While another person holds the Console (5) in the

position shown, connect the wire harness on the

Console to the Upper Wire Harness (86). Insert the

excess wire harness into the Upright (2). Next, attach

the Console to the Upright with four M4 x 16mm

Screws (66). Be careful to avoid pinching the wire

harnesses.

Wire

Harness

Make sure the

wire harnesses

do not get

pinched and

damaged during

this step.

7. Hold the lower end of the left Handlebar Leg (79) inside

of the left Front Flex Bracket (17). Apply a small

amount of grease to an M10 x 78mm Button Bolt (27).

Attach the left Handlebar Leg to the left Front Flex

Bracket with the Button Bolt, two M10 Washers (38),

and an M10 Nylon Locknut (29). Do not overtighten

the Nylon Locknut; the left Handlebar Leg must be

able to pivot freely.

Attach the right Handlebar Leg (79) to the right Front

Flex Bracket (17) in the same way.

Refer to step 6. Tighten the M8 x 45mm Button Bolts

(50) in the Handlebar Legs (79). Refer to step 3.

Tighten the M10 x 88mm Button Bolt (63).

27 38 38

Grease

6. Identify the Left Handlebar (9), which is marked with a

sticker. Insert the Left Handlebar into one of the

Handlebar Legs (79); make sure that the Handlebar

Leg is turned so the hexagonal holes are on the

indicated side. Attach the Left Handlebar to the

Handlebar Leg with two M8 x 45mm Button Bolts (50)

and two M8 Nylon Locknuts (46). Make sure that the

Nylon Locknuts are inside of the hexagonal holes.

Do not fully tighten the Button Bolts yet.

Apply a small amount of the included grease to the left

and right axles on the Upright (2).

Carefully slide an Upright Spacer (26), a Handlebar

Spacer (25), the Left Handlebar (9), and a Handlebar

Cap (23) onto the left axle on the Upright (2) as shown.

Slide an M10.3 Black Washer (53) onto an M8 x 19mm

Shoulder Screw (22), and tighten the Shoulder Screw

into the axle.

Attach the Right Handlebar and the other Handlebar Leg

(not shown) in the same way.

Grease

22 53

Hexagonal

Holes

5. The Console (5) requires four “D” batteries (not includ-

ed); alkaline batteries are recommended. Pull the bat-

tery drawer open. Insert four batteries into the battery

drawer. Make sure that the batteries are oriented as

shown by the diagram inside the battery drawer.

Close the battery drawer. Note: When the batteries are

installed correctly, the fan will turn on for a moment.

Battery

Drawer

5Batteries

9. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware may

be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the

elliptical crosstrainer.

820

8. Identify the Left Pedal (13). Attach the Left Pedal to the

left Flex Bar (14) with an M10 x 33mm Carriage Bolt

(20), an M10 Washer (38), and a Pedal Knob (15) as

shown. Note: The Left Pedal can be attached in any of

five positions (see HOW TO ADJUST THE PEDALS on

page 9).

Attach the Right Pedal (not shown) in the same way.

Make sure that both Pedals are in the same position.

HOW TO USE THE ELLIPTICAL CROSSTRAINER

HOW TO ADJUST THE PEDALS

The motion of the

pedals is deter-

mined by their

positions on the

flex bars. There

are five positions.

To adjust each

pedal, first loosen

the knob beneath

the pedal. Next,

push the bolt

upward, slide the

pedal forward or backward to the desired position, and

then retighten the knob. Make sure that both pedals

are in the same position.

HOW TO EXERCISE ON THE ELLIPTICAL

CROSSTRAINER

To mount the elliptical crosstrainer, hold the handgrip

pulse sensor and step onto the pedal that is in the low-

est position. Then, step onto the other pedal. Push the

pedals until they begin to move with a continuous

motion. Note: The pedal disks can turn in either

direction. It is recommended that you move the

pedal disks in the direction shown by the arrow

below; however, for variety, you can turn the pedal

disks in the opposite direction.

To dismount the elliptical crosstrainer, wait until the

pedals come to a complete stop. Note: The elliptical

crosstrainer does not have a free wheel; the ped-

als will continue to move until the flywheel stops.

When the pedals are stationary, step off the highest

pedal first. Then, step off the lowest pedal.

HOW TO USE THE HANDLEBARS

The handlebars are

designed to add

upper-body exer-

cise to your work-

outs. Push and pull

the handlebars as

you exercise to

work your arms,

shoulders, and

back.

To exercise only

your lower body,

hold the handgrip

pulse sensor as

you exercise.

CAUTION:Before using the ellipti-

cal crosstrainer, read the following precau-

tions.

• Always hold the handgrip pulse sensor or the

handlebars when mounting, dismounting, or

using the elliptical crosstrainer.

• When you stop exercising, allow the pedals to

slowly come to a stop.

• The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

Pedals

Pedal Disk

Handlebars

Handgrip

Pulse Sensor

Handlebars Handgrip

Pulse

Sensor

Knob

Pedal

Bolt Flex Bar

FEATURES OF THE CONSOLE

The advanced console offers a selection of features

designed to make your workouts more enjoyable and

effective. When the manual mode of the console is

selected, the resistance of the pedals can be changed

with the touch of a button. As you pedal, the console

will provide continuous exercise feedback. You can

even measure your heart rate using the built-in hand-

grip pulse sensor.

In addition, the console offers six Smart programs. Each

program automatically changes the resistance of the

pedals and prompts you to increase or decrease your

pace as it guides you through an effective workout.

The console also features iFIT.com interactive technol-

ogy. Having iFIT.com interactive technology is like hav-

ing a personal trainer in your home. Using a stereo

audio cable (available at electronics stores), you can

connect the elliptical crosstrainer to your home stereo,

portable stereo, computer, or VCR and play special

iFIT.com CD and video programs (iFIT.com CDs and

videocassettes are available separately). iFIT.com CD

and video programs automatically control the resis-

tance of the pedals and prompt you to vary your pace

as a personal trainer coaches you through every step

of your workout. High-energy music provides added

motivation. To purchase iFIT.com CDs and video-

cassettes, call toll-free 1-800-735-0768.

With the elliptical crosstrainer connected to your com-

puter, you can also go to our Web site at

www.iFIT.com and access programs directly from the

internet. Explore www.iFIT.com for more informa-

tion.

To use the manual mode of the console, see page

11. To use a Smart program, see page 13. To use

an iFIT.com CD or videocassette, see page 17. To

use a program directly from our Web site, see page

18.

Display Buttons

Fan Button

On/Reset Button

Resistance Buttons

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Pro-Form Ellittica

Pro-Form

Pro-Form 6.0 Et Elliptical Guida utente

Pro-Form

Pro-Form 800 Hr Heart Rate Control Elliptical Manuale

Pro-Form

Pro-Form CardioCrossTrainer 820 Manuale utente

Pro-Form

Pro-Form 410 Ce Elliptical Manuale utente

Pro-Form

Pro-Form 650 Cardio Cross Trainer Elliptical Guida utente

Pro-Form

Pro-Form 465 S Manuale utente

Pro-Form

Pro-Form 6.0 Ce Elliptical Manuale utente

Pro-Form

Pro-Form 831.283521 Manuale utente

Pro-Form

Pro-Form PFEL03907.0 Manuale utente

Pro-Form

Pro-Form 510 Ex Elliptical Manuale utente

Pro-Form

Pro-Form 6.0 ZE Manuale utente

Pro-Form

Pro-Form 420 Ce Elliptical Manuale utente

Pro-Form

Pro-Form 485 P Elliptical Manuale utente

Pro-Form

Pro-Form 510 E Elliptical Manuale utente

Pro-Form

Pro-Form CardioCross Trainer PFEL29222 Manuale utente

Pro-Form

Pro-Form Cardio Crosstrainer 650 Manuale utente

Pro-Form

Pro-Form 900 CardioCrossTrainer Manuale utente

Pro-Form

Pro-Form 696 Elliptical Manuale

Pro-Form

Pro-Form 14.0 CE Manuale utente

Pro-Form

Pro-Form 590e Elliptical Manuale utente

Pro-Form

Pro-Form 790 Hr Elliptical Guida utente

Pro-Form

Pro-Form 220 Zle Elliptical Manuale utente

Pro-Form

Pro-Form 380 Razor Elliptical Manuale utente

Pro-Form

Pro-Form 1200 E Elliptical Manuale utente

Manuali Ellittica popolari di altre marche

Weslo

Weslo Momentum 4.0 Elliptical Manuale operativo e di manutenzione

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuale utente

Torque Fitness

Torque Fitness XPLLP Manuale utente

Octane Fitness

Octane Fitness PRO3700C Manuale utente

Xterra

Xterra FS5.8e Manuale utente

Bodyguard

Bodyguard E-40 Manuale utente

Bonn Germany

Bonn Germany Concept 2.2 Manuale utente

Precor

Precor Resolute RSL 620 Manuale utente

NordicTrack

NordicTrack E 9.2 Elliptical Manuale utente

Vision Fitness

Vision Fitness X6600iNetTV Manuale utente

Matrix

Matrix MX-A5x Manuale utente

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuale utente

Sears

Sears FREE SPIRIT C249 30737 0 Manuale utente

True

True FS-64 Manuale utente

Sport-thieme

Sport-thieme ST 310 Manuale utente

VIRTUFIT

VIRTUFIT CTR 1.1 Manuale utente

Kettler

Kettler GIRO C 1 Manuale utente

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuale utente
