SystemPRO Professional

Remote + Shutter Release

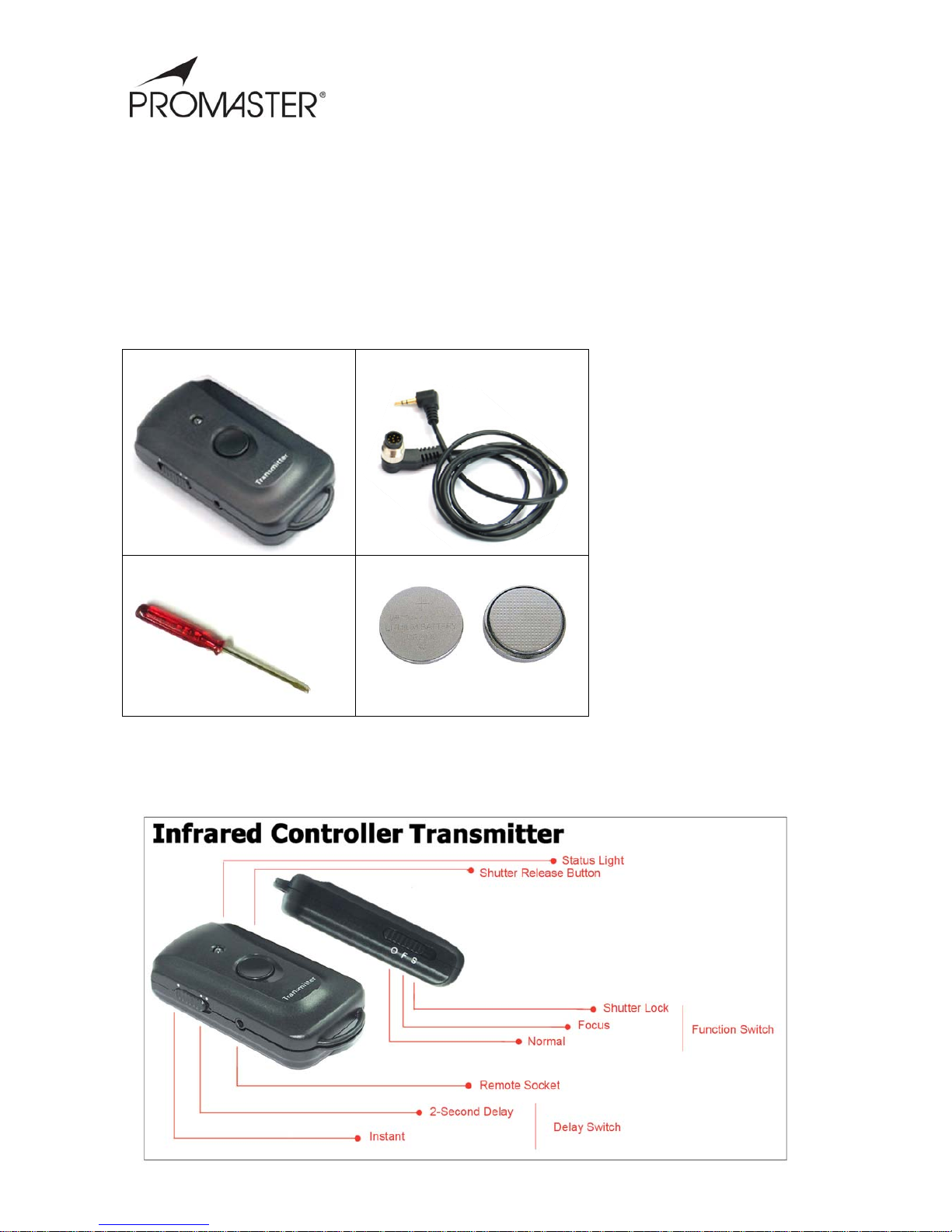

Congratulations on your purchase of a PROMASTER SystemPRO Remote + Shutter Release. This package

includes a Transmitter, Connecting Cord, Battery and Mini Screwdriver.

Transmitter

Connecting cord

Screwdriver

Battery CR-2032

Parts of the Transmitter

To replace the Battery

Transmitter

1. Both the transmitter is powered by one CR-2032 battery (included).

2. Open the battery cover at the back of remote control.

3. Insert the battery; Be sure the battery is inserted in the correct direction.

4. Close the battery cover

Wired Remote Function

For best results, mount the camera on a tripod or place the camera on a stable, level surface.

Normal Wired Operation

1. Attach the connecting cord to the remote socket of camera body and to the remote socket of the

transmitter.

2. Be sure the function switch of the transmitter is set at the “O” position.

3. Turn on the camera.

4. Press the shutter button on the transmitter partially to focus. Press the shutter button completely to

release the shutter and take a picture.

Bulb Mode

1. Select the BULB mode on your camera.

2. Attach the connecting cord to the remote socket of camera body and to the remote socket of the

transmitter.

3. Set the function switch of the transmitter to the “F” position to focus the camera.

4. Move the function switch from the “F” position to the “S” position to lock the shutter OPEN.

5. To close the shutter, move the function switch back to the “O” position

To use with cameras with BUILT-IN Infrared Receivers

1. Mount the camera on a tripod (recommended) or place the camera on a stable, level surface.

2. Turn on the remote control function of camera.

3. Make sure the function on the transmitter is set to the “O” position and the delay switch is set to the

“·“ position.

4. Aim the transmitter on the remote control at the infrared receiver on the camera (usually within +/- 20

degree of the lens axis, from the left to the right and from the top to the bottom) and press the shutter

button on the transmitter (when using the transmitter outdoors, make sure that the camera is not backlit

and that the line of site between the transmitter and the infrared receiver is not blocked by the lens or

other obstacles).

5. How the camera focuses and shoots will depend upon the options selected in your camera's custom

setting menu. For further information, refer to the manual for your camera.

6. Infrared emissions cannot be seen, so you will see no visible light from the LED on the front of the

remote control when it is in operation.

Operating range

When the transmitter is used with a cameras built-in IR receiver, the maximum operating range varies from

9.8’/3 meters to 33’/10 meters.

Specifications

Transmitter:

Battery Type: 1x CR-2032 battery.

Operating temperature: 5 °C to 40 °C (40 °F to 105 °F).

Net WeightApproximately: 25 g

Dimensions: 60 X 32 X 12 mm

Remote cord:

Length of cord: approximately 80cm

Attention:

When the infrared controller is not used over a long period of time, please remove the battery from

the transmitter and receiver.

Do not leave the remote controls in place subject to extremely high temperature.

The operating range of the infrared controller will shorten when the battery is weak.

Infrared transmitter compatible with:

CANON Cameras

Digital Rebel XSi Digital Rebel XTi EOS Digital Rebel XT EOS Digital Rebel

EOS 450D EOS 400D EOS 350D EOS 300D

EOS 10 EOS 10S EOS 100 EOS Elan

EOS 30 EOS Elan 7E EOS 7 EOS 30V

EOS Elan 7NE EOS 7s EOS 33 EOS Elan 7

EOS 33V EOS Elan 7N EOS 50 EOS Elan II

EOS 50E EOS Elan IIE EOS 55 EOS IX

Pentax Cameras

K100D K110D K200D K110D SUPER

KM K2000 Optio 20 Optio A10

K10D K20D *ist DL *ist DS

*ist D *ist DS2 *ist DL2 *ist

MZ6 MZ-L ZX-L Optio S

Optio S4 Optio S4i Optios S5i Optio S5n

Optio S6 Optio S7 Optio S7 Optio 430

Optio 450 Optio 550 Optio 750z Optio S50

Optio S40 Optio SV Optio 330

SAMSUNG Cameras

GX-1L GX-1S GX-10 GX-20

SONY Cameras

A700 A900

NIKON Cameras

D90 D80 D70S D70

D60 D50 D40x D40

F65 F75 N65 N75

COOLPIX 8800 COOPLIX 8400 Lite Touch 150ED Lite Touch 140ED

Lite Touch 130ED Lite Touch 110S Lite Touch 100W Nuvis S

OLYMPUS Cameras

E1 E3 E10 E20

E100RS E300 E330 E400

E410 E420 E510 E520

Stylus 800 Stylus 500 Stylus 410 Stylus 400

Stylus 300 D40 ZOOM C8080 Wide Zoom C770 Ultra Zoom

C755 Ultra Zoom C750 Ultra Zoom C730 Ultra Zoom C7070 Wide Zoom

C7000 Ultra Zoom C60 Zoom C5060 Wide Zoom C5050 Zoom

C5000 Zoom C50 Zoom C4040 Zoom C3040 Wide Zoom

C3030 Zoom C3000 Zoom C2500L C2100 Ultra Zoom

C2040 Zoom C2020 Zoom C2000 Zoom µ800 Digital

µ500 Digital µ410 Digital µ400 Digital µ300 Digital
