Operation Manual

FOR

ProtektTM Aire 2000

270 Washington Street,

Mount Vernon,

New York 10553

Phone# 1-855-BE-PROACTIVE (855-237-7622)

Fax# 845-205-6005

www.proactivemedical.com

TABLE OF CONTENTS

IMPORTANT SAFEGUARDS

.........................................................................................................

STATEMENTS & SYMBOLS

..........................................................................................................

INTRODUCTION

..........................................................................................................................

PRODUCT FUNCTIONS

...............................................................................................................

CONTROL UNIT

...........................................................................................................................

OVERLAY

....................................................................................................................................

ENTRAPMENT GUIDLINES

...........................................................................................................

INSTALLATION INSTRUCTIONS

...................................................................................................

OPERATING INSTRUCTIONS

.......................................................................................................

CLEANING

..................................................................................................................................

MAINTENANCE

............................................................................................................................

MAINTENANCE TROUBLE SHOOT

...............................................................................................

TECHNICAL SPECIFICATIONS

.....................................................................................................

IMPORTANT SAFEGUARDS

When using electrical products, especially when children are present, basic safety precautions should

always be followed, including the following

READ ALL INSTRUCTIONS BEFORE USING

DANGER

To reduce the risk of electrocution:

• Always unplug this product immediately after use.

• Do not use while bathing.

• Do not place or store product where it can fall or be pulled into a tub or sink.

• Do not place or drop into water or other liquids.

• Do not reach for a product that has fallen into water. Unplug immediately.

WARNING

To reduce the risk of burns, electrocution, fire or injury to persons:

• A product should never be left unattended when plugged in.

• Close supervision is necessary when this product is used by, on, or near children or invalids.

• Use this product only for it intended use as described in this manual.

Do not use attachments not recommended by the manufacturer.

• Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been

dropped or damaged, or dropped into water. Return the product to a service center for examination

and repair.

• Keep the cord away from heated surfaces.

• Never block the air openings of the product or place it on a soft surface, such as a bed or couch,

where the air openings may be blocked. Keep the air openings free of lint, hair and the like.

• Never drop or insert any object into any opening or hose.

• Do not use outdoors or operate where aerosol (spray) products are being used.

• Connect this product to a properly grounded outlet only. See Grounding Instructions.

GROUNDING

Before any connection is made, make certain that this product is connected to a protective earth

conductor via the three-wire power cord; the three-blade plug should be inserted only into a socket

outlet that provides a protective earth contact.

SAVE THESE INSTRUCTIONS

STATEMENTS & SYMBOLS

Note, caution, warning & danger statements

NOTE

Indicates some tips or some information users should be aware of.

CAUTION

Indicates correct operating or maintenance procedure in order to prevent damage to or destruction

of the equipment or other property.

WARNING/DANGER

Calls attention to a potential danger that requires correct procedures or practices in order to prevent

personal injury.

Others

Symbols on the printed label on the outside package box are as below:

Grounding Terminal

Always read the operating instructions before use.

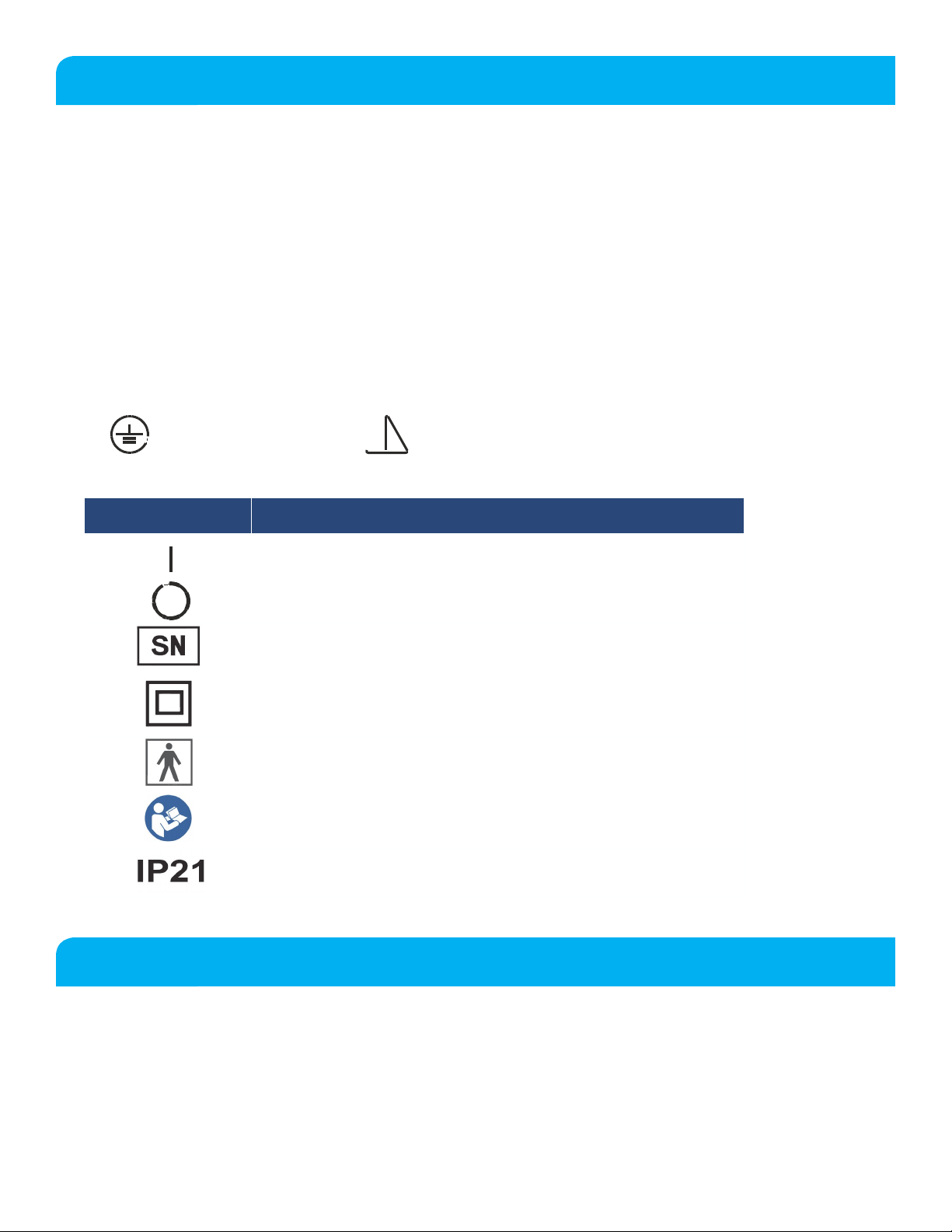

SYMBOLS

Symbol Meaning

Power ON.

Power OFF.

Series number.

Class II Medical electric equipment.

Type BF applied part.

Refer to instruction manual/ booklet.

Degree of protection against harmful ingress of water

and particulate matter.

INTRODUCTION

INDICATIONS

Protekt®Aire 2000 pump and overlay system item # 80020, is indicated for the prevention and

treatment of any and all stage pressure ulcers when used in conjunction with a comprehensive

pressure ulcer management program. It can be used in a hospital, homecare, or other healthcare

environment.

PRODUCT FUNCTIONS

CONTROL UNIT

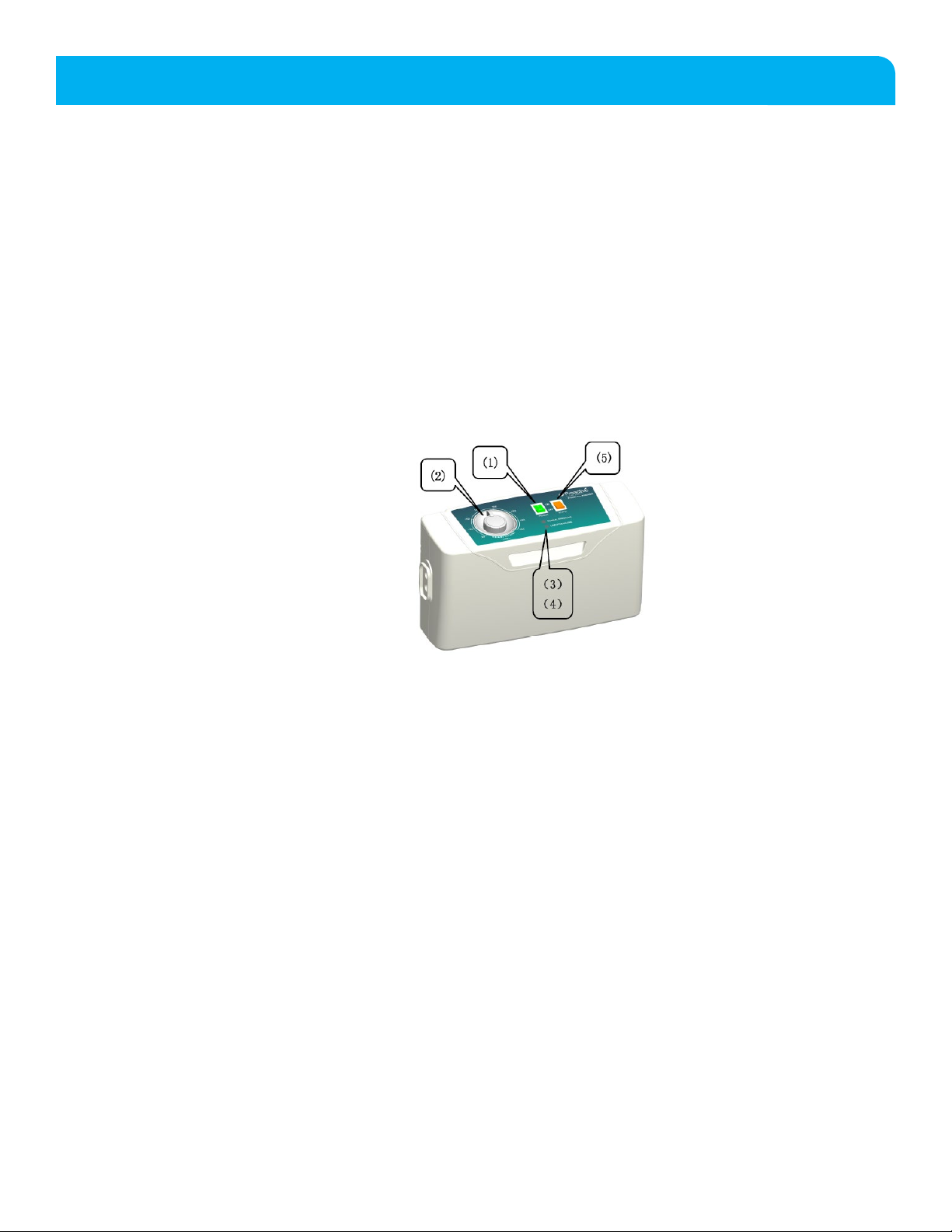

The functions of the Protekt®Aire 2000 control unit are described below. Please refer to the figures of the

Protekt®Aire 2000 control unit in Fig A.

Power Switch (1)

Turn ON/OFF the power switch, the control unit will start/stop operation.

Pressure-adjust Knob (2)

Determine the patient’s weight and set the control knob to that weight setting on the control unit.

Normal Pressure Indicator (3)

A visible indicator (green) tells the pressure has reached a preset or user-defined level.

Low Pressure Indicator (4)

A visible indicator (orange) warns the pressure is below a preset or user-defined level.

Static/Alternating control (5)

Press ON to set the air overlay to static mode or OFF to set to alternating pressure mode.

1. Power Switch

2. Pressure-adjust Knob

3. Normal Pressure Indicator

4. Low Pressure Indicator

5. Static Control

OVERLAY

The Protekt®Aire 2000 System comes with a 5” air cell overlay that provides low air loss, alternation and static

pressure redistribution therapy. It is composed of a combination of materials including Nylon PVC and PU. It

is intended to be placed over an existing mattress. Please refer to the specifications section for details.

ENTRAPMENT GUIDELINES

The use of Bed Rails is dependent on the setting as well as the facilities protocols. Proactive Medical does

not make product recommendations for any given patient. Those decisions are the responsibility of the

health care facility and/or health care professional(s) familiar with each patient’s unique requirements.

Proactive Medical support surfaces are made to fit standard hospital and health care facility beds. However,

variations in bed rail dimensions, overlay compression based on patient size and shape, conditions

such as dementia, seizure disorders, sleeping problems, incontinence, and restlessness could create an

entrapment risk. Proper patient assessment and monitoring, and equipment use and maintenance are

required to reduce entrapment risk.

INSTALLATION INSTRUCTIONS

Step 1

Place the overlay flat on mattress that is already on the bed frame. The inflation tube should be towards

the foot end so that it can be connected to the inflation nozzles on the control unit. Secure the overlay

in place.

Step 2

You may place a thin cotton sheet over the overlay top cover.

Step 3

Hang the control unit over the frame or board at the foot end of the bed using the hooks attached to

the control unit. Make sure the control unit is secured.

Step 4

Connect the inflation tubes from the overlay to the control unit’s inflating nozzles. Make sure they are

properly attached.

NOTE!

Make sure the air hoses are not kinked or tucked under the overlay. Also check to ensure the

CPR valves are properly attached.

Step 5

Plug the power cord into an electrical outlet with grounded AC power. This product should be

grounded. The power cord has a grounding wire with a grounding pin.

NOTE!

Before inserting the plug into the outlet, make sure the voltage is compatible. Also make sure

this product is well grounded.

Step 6

Turn on the power by pressing the power switch on the control unit. Proceed to the Operating

Instructions section on page 7.

OPERATING INSTRUCTIONS

Step 1

Turn on the control unit power. The indicator of the power switch will come on. The control unit will start

to blow air into the overlay.

Step 2

The Low Pressure indicator (orange) will come on as inflation is underway.

Step 3

Press the Static button for a quicker inflation.

Step 4

When the pressure reaches the preset level, within approximately 30 minutes, the Normal Pressure

indicator will come on, and the Low Pressure indicator will turn off.

Step 5

Patients can directly lie on the overlay or cover with a sheet and tuck loosely to increase the comfort of

the patient.

Step 6

Determine the patient’s weight and set the control knob to that weight setting on the control unit.

Step 7

Press the Static button to shift between Alternating mode and Static Mode. When in Static mode, and

the Static indicator will come on. The static mode will be started within approximately 6 minutes. In

Alternating Pressure mode, the air cells will alternate in 10 min cycles.

NOTE!

In static mode, the overlay provides a firm surface that makes it easier for the patient to transfer or

reposition. The static mode will help ensure the patient does not bottom out when in a sitting position.

DISCONNECT DEVICE

To fully disengage the power to the unit, disconnect the power cord from the AC inlet.

WARNING

• The control unit provided should only be used with the air overlay provided.

• Do not expose the product to lint, dust and sun light to prevent damage of the product.

• Keep the product away from the heat and moisture.

• Keep the product away from pets and children.

ENVIRONMENT REQUIREMENTS

• Operation Temperature: 50

℉

~95

℉

(10

℃

~35

℃

)

• Storage and Transport Temperature: 5

℉

~122

℉

(-15

℃

~50

℃

)

• Operation Humidity: 20%~80% non-condensing

CLEANING GUIDELINES

• Use a neutral detergent to clean surface of control unit and overlay; disinfectant products may be

used according to the manufacturer’s protocol. Do not use phenolics on this product.

• Do not immerse the control unit in water.

• Do not heat or steam in autoclave.

• Be sure to fully air dry the overlay and cover after cleaning and before use.

• After using for some time (~ 3 months), clean the air filter cotton inside the enclosure base, steps as

below:

1) Take out air filter cover and air filter cotton.

2) Wash air filter cotton with clean water, if the dirt sticks to the filter, soak the air filter cotton in the

water.

3) Dry the air filter cotton then put it back to the air filter cover.

MAINTENANCE

• Make sure the control unit is in good condition by checking if the indicators illuminate when the

power is first turned on.

• Power supply cord can be replaced by SERVICE PERSONNEL.

Power supply Information: Non-detachable cord , 18AWG/2C, Rated 300V, 105℃.

WARNING

For safety reasons, only qualified service personnel should open the equipment.

MANUFACTURER will provide circuit diagrams, component part lists, descriptions, calibration

instructions to assist to SERVICE PERSONNEL in parts repair.

LAY OPERATOR or LAY RESPONSIBLE ORGANIZATION should contact the MANUFACTURER or the

MANUFACTURER’S representative for assistance in setting up, using or maintaining the product and to

report unexpected operation or events.

MAINTENANCE TROUBLE SHOOT / TECHNICAL SPECIFICATIONS

Trouble Signal Failure Cause Fault Handling

No air output

Power indicator

is ON.

The inflation tube is not con-

nected to the control unit. Connect the air tube.

The silicone tubes inside the

control unit are disconnected. Contact Service Personnel.

Power indicator

is OFF. No power. Turn on power switch

Incomplete inflation overlay too soft.

Small hole at the air cell, or

overlay life comes to its end.

Replace the air cell or

the whole overlay.

Air knob indicate at “MIN”

location.

Turn the air tube at the

right to give max pressure .

PACKAGE CONTENT LIST

• Control Unit x 1 • Overlay Unit x 1 • User Manual x 1

TECHNICAL SPECIFICATIONS

INPUT RATING: 120VAC, 60Hz, 1A FUSE RATING: 250V, 1A

Control Unit Overlay

Item #: 80021 Item #: 80022

Power Supply: 120V/60Hz Size: 80’’L x 36’’W x 5’’H

Air output: 8 liter/min Top Cover Material: Nylon/PU

Pressure range: 30-60 mmHg Air Cells Material: Nylon/PVC

Cycle Time: 10 min Bottom cover material: Nylon/PVC

Size: 11’’ x 5.9’’ x 3.5’’ # of aircells: 20

Weight: 1.4kg (3lbs) CPR Valve? YES

LIMITED WARRANTY

Your Proactive Medical branded product is warranted to be free of defects in materials and

workmanship for 18 Months from the date of purchase for the original consumer purchaser.

This device was built to exacting standards and carefully inspected prior to shipment. This

Non-Prorated 18 Month Warranty isan expression of our confidence in the materials and

workmanship of our products and our assurance to the consumer ofyears of dependable service.

This warranty does not cover device failure due to owner misuse or negligence, or normal wear and

tear. The warranty does not extend to non-durable components, such as rubber accessories,

casters, and grips, which are subject to normal wear and need periodic replacement.

If you have any questions about your Proactive Medical device or this warranty, please contact an

authorized Proactive Medical dealer.

270 Washington Street,

Mount Vernon, New York 10553

Phone# 1-855-BE-PROACTIVE (855-237-7622)

Fax# 845-205-6005

www.proactivemedical.com

Indice

Altri manuali Proactive Attrezzature mediche

Proactive

Proactive PROTEKT 600 LIFT Manuale utente

Proactive

Proactive TheraBelt Manuale utente

Proactive

Proactive Protekt Aire 4000DX Manuale utente

Proactive

Proactive PROTEKT 600 STAND Manuale utente

Proactive

Proactive alevia Manuale utente

Proactive

Proactive alevia 715-425 Manuale utente

Proactive

Proactive PROTEKT STS COMPACT 500 Manuale utente

Proactive

Proactive Protekt Aire 94001 Manuale utente

Proactive

Proactive PROTEKT 500 LIFT Manuale utente

Proactive

Proactive Protekt Akra PMSEBHR Manuale utente

Proactive

Proactive PROTEKT 600 Manuale utente

Proactive

Proactive Protekt PMNEBRDK-BF Manuale utente

Proactive

Proactive Libera Manuale utente

Proactive

Proactive 20110 Manuale utente

Proactive

Proactive thera3+ Manuale utente

Proactive

Proactive TheraHeat 715-440 Manuale utente

Proactive

Proactive Elle 715-432 Manuale utente

Proactive

Proactive PROTEKT DASH 32500 Manuale utente

Proactive

Proactive Protekt Akra PMSEBHR Manuale utente

Proactive

Proactive PROTEKT 33350 Manuale utente

Manuali Attrezzature mediche popolari di altre marche

TekTone

TekTone Tek-CARE160 Manuale utente

NeuroMetrix

NeuroMetrix Quell 2.0 Manuale utente

AMT

AMT XLR8 Manuale utente

Medipost-Nutristoma

Medipost-Nutristoma MD300K2 Manuale utente

EDAN

EDAN SONOTRAX Pro Manuale utente

Restorative Therapies

Restorative Therapies RT300 Manuale utente

Gendex

Gendex Expert DC Manuale utente

Dexcowin

Dexcowin ADX4000W Manuale utente

Libelium

Libelium MySignals Manuale utente

Acelity

Acelity V.A.C.ULTA 4 Manuale utente

Caputron

Caputron ActivaDose II tDCS Manuale utente

FujiFilm

FujiFilm Sonart Manuale del proprietario

Plinth 2000

Plinth 2000 93CDT Manuale utente

GE SENOGRAPHE 800T Manuale utente

GE Definium 5000 Manuale utente

Kanmed

Kanmed GE-1380 Manuale utente

Huntleigh

Huntleigh FD1 Manuale utente

Stryker

Stryker SPR Plus Manuale utente
