PROAIM LV-4WAY-01 Manuale utente

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

4-Way Camera Leveller-Mitchell to Mitchell/Euro

Mount (LV-4WAY-01)

Assembly Manual

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

Proaim 4-Way Leveller

Mitchel Castle

ring

Castle Nut

Wrench Allen key 5mm

4-Way Camera Leveller with Bazooka Setup

 You can loosen an unlocking knob to rotate/

swivel the Leveller, as shown in the image.

 Mount the 4-way Leveler on top of the

bazooka (Not Included) and tighten it properly

with the knob of the leveler.

 Loosen the ratchet knob of the 4-Way Leveler

and mount it over the bazooka (Not Included).

 Mount the Mitchell mounting Fluid head

(Not Included) on the leveler.

 Loosen the Castle ring of the Mitchell

mounting Fluid head and remove it

(Not Included).

NOTE: The Leveller can lt up to the angle of 7°.

The An-Slip 4 Levelling Knobs assist in

micro-levelling of the camera setup. Possibility of

swivelling and Quick-Lock mechanism oers

quick, easy and secure assembly.

 Remove the plate by pushing the knob of the

Mitchell mounting Fluid head (Not Included)

 Attach the plate of the fluid head by matching

it with the base plate at the bottom of the

camera (Not Included) and then properly

tighten it with a screw driver.

 Remove the plate by pushing the knob of the

Mitchell mounting Fluid head (Not Included)

 Slide the camera (Not Included) on the Fluid

head and then mount it.

 Now the camera has been properly attached

to the Fluid head.

 Manually tighten the Fluid head’s knob, as

shown in the image.

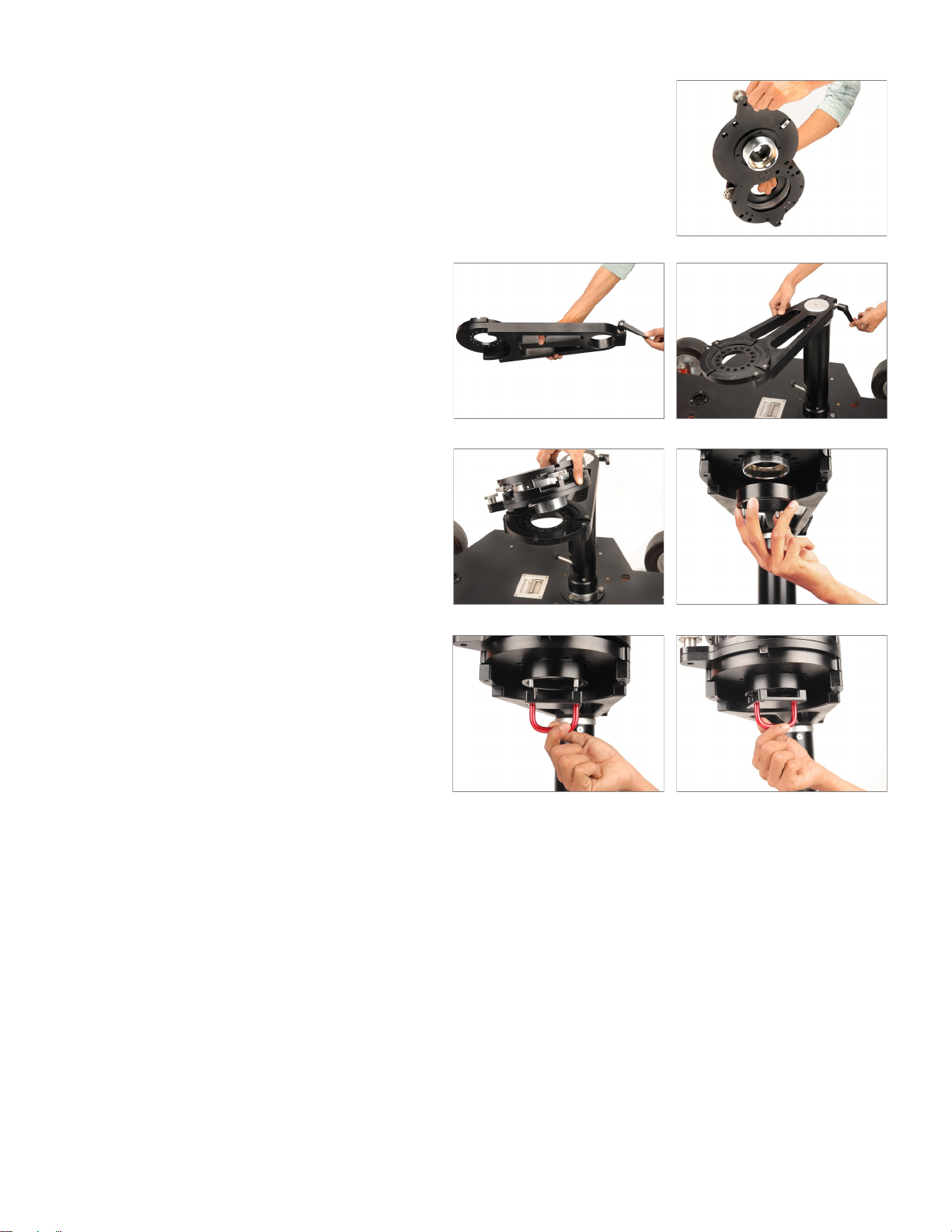

 Remove the Mitchell Castle ring by loosening

it.

 Loosen the knob of the Leveler and open it.

 Remove the bolts in the Castle nut using the

Allen key.

 Then remove the bolts of the Castle nut using

the Allen key.

 Insert the bolts and properly secure them

using the Allen key.

 Aach the Castle nut to the Leveler by

matching it with the boom thread of the

Leveler.

4-Way Camera Leveller with Oset Setup

 Loosen the ratchet knob of the offset

(Not Included) to mount it over the bazooka

and then properly tighten the ratchet knob.

 Castle Nut has been properly attached to the

Leveler.

 Manually tighten it with the Castle Nut

Wrench, as shown in the image.

NOTE: Perfectly suited with Mitchell/Euro risers,

tripods, bazooka, dollies, cranes, etc.

 Place the Leveler over the offset and then

properly tighten it using the Castle ring.

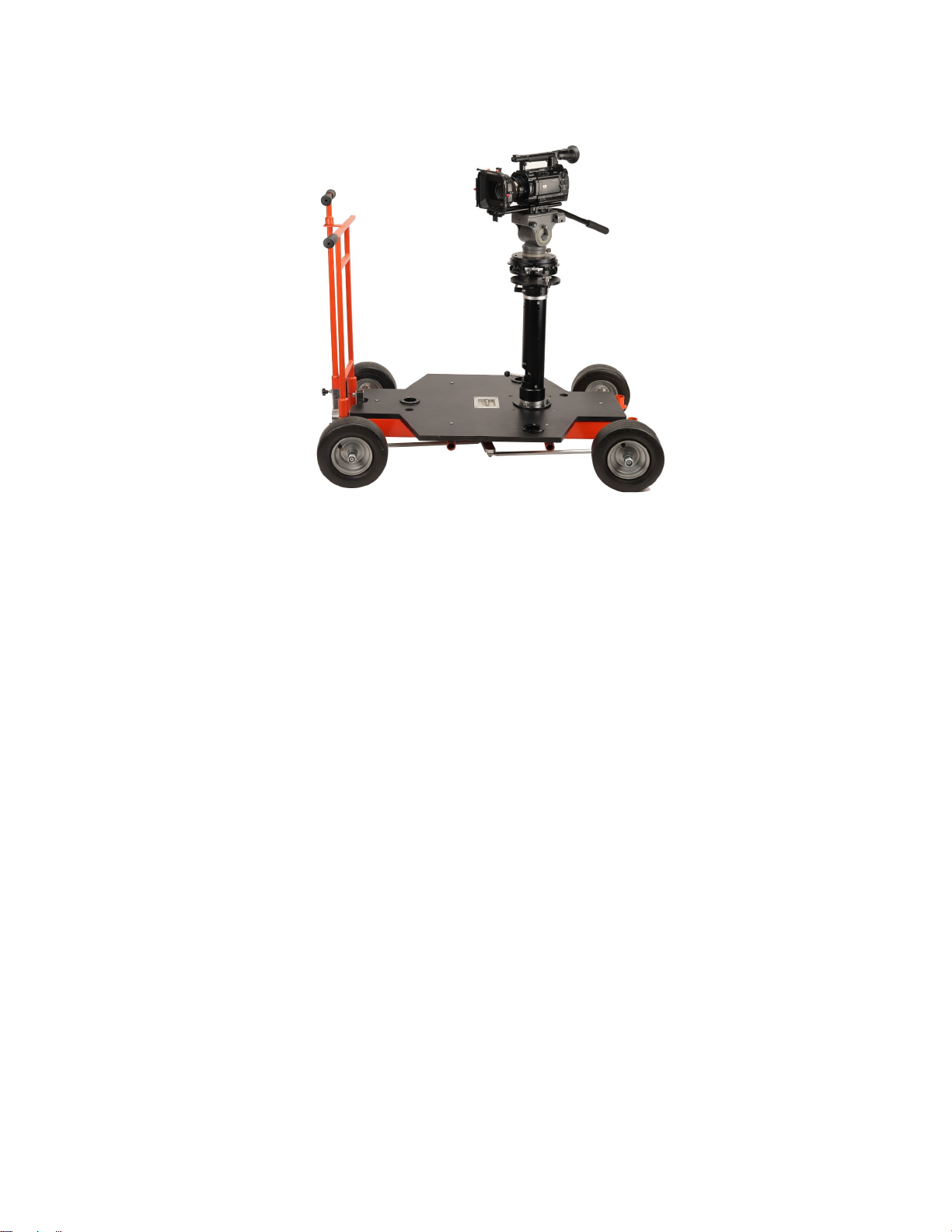

YOUR PROAIM 4-WAY CAMERA LEVELLER

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

utmost support and care unl you use our product.
