Prodex-hk PEV-165E Manuale utente

Deluxe Electronic

Body Fat Analyzer

Body Weight Scale

Instruction Manual Model No.: PEV-165E

Important:

This Body Fat Analyzer/Scale (PEV-165E) will provide body fat readings for a majority of

people, but it is not made for use by the following groups:

Pregnant women/Persons under the age of 18 years (the Body Fat Analyzer/Scale

(PEV-165E) cannot provide accurate body fat readings).

BIA (Bioelectrical Impedance Analysis) mode determines your body fat proportion by

transferring a harmless signal all the way through your body. Do not use this scale if you

have a pacemaker or other internal medial device. When in hesitation, consult with

your physician.

Error (Err) on the L.C.D. Display – You may be able to fix the Err by removing and

re-inserting the batteries. Then follow the “How to use the Body Fat + Water + Muscle

Analyzer” (page 4)..

Please see “User Personal Data programming details” (Page 10).

IMPORTANT SAFETY INSTRUCTIONS:

When using this Body Fat Analyzer/Scale PEV-165E, basic precautions should

always be observed, including the following.

1. User must read and understand this manual prior to using this product. Use as described in

this manual. Use manufacturer’s original accessories and attachments ONLY.

2. Do not use the PEV-165E on Carpet or Rug.

3. Place the PEV-165E on NON-SKID hard, dry and smooth floor/surface.

4. Do not place the PEV-165E on wet surface. Personal Injury Risk!

5. Always put the PEV-165E on the exact same smooth and hard floor/surface to ensure accuracy

of analyser and weight readings. It will ensure the consistency and precise accuracy of the

PEV-165E.

6. Be very careful!. The scale may tilt when you step on it. You should place your left foot or right

foot on the glass platform with an underneath bar supported section, at least with a distant of 1”

from the edge of the glass platform. Once the position is secured and safe, place the other foot

onto the glass section with the supporting bar underneath it..

7. For your safety. Please centre your body weight toward the mid section of the scale before

stepping on / off the scale. Otherwise, the scale may tilt. Personal Injury Risk!

8. Watch your steps and use extra care while using the PEV-165E..

9. Follow all label and marking instructions on your scale.

10. To reduce the risk of electric shock, do not use the scale outdoors.

11. Do not use in area where dangerous items are stored.

12. Do not continue to use this scale if it appears to be malfunctioned.

13. Be very careful! Do you use the Body Fat Analyzer, if the (4) metal plates on top of the glass

platform are loose or not flatly attached onto the glass platform..

14. Do not use this scale if it appears to be uneven, or quaking, while you are on the scale.

15. Do not use this scale if cracks or chips appeared on the glass platform. Personal Injury Risk!

16. If unit is not working as it should, has been damaged, dropped, left out-door, or dropped into

water, bring it to a licensed electrician or shop for service and repair.

17. Do not disassemble the scale. There are no serviceable parts inside the scale.

18. Always bring the damaged appliance to a licensed electrician or shop for service or repair.

19. Never jump on, or jump off the scale. Personal Injury Risk!

20. Observe the battery precautions and battery disposal instructions listed in this manual

21. Do not remove the batteries from the scale. Other than replacing the batteries, or storing your

scale for a long time. The batteries are small parts, and they are extremely danger for children to

swallow. Personal Injury Risk!

22. This scale is not a toy. Do not let children to operate or play with the scale. Please keep it

away from children.

23. Do not use this scale if you have a pacemaker or other internal medial device. When in

hesitation, consult with your physician.

(SAVE THESE INSTRUCTIONS)

Page: 1

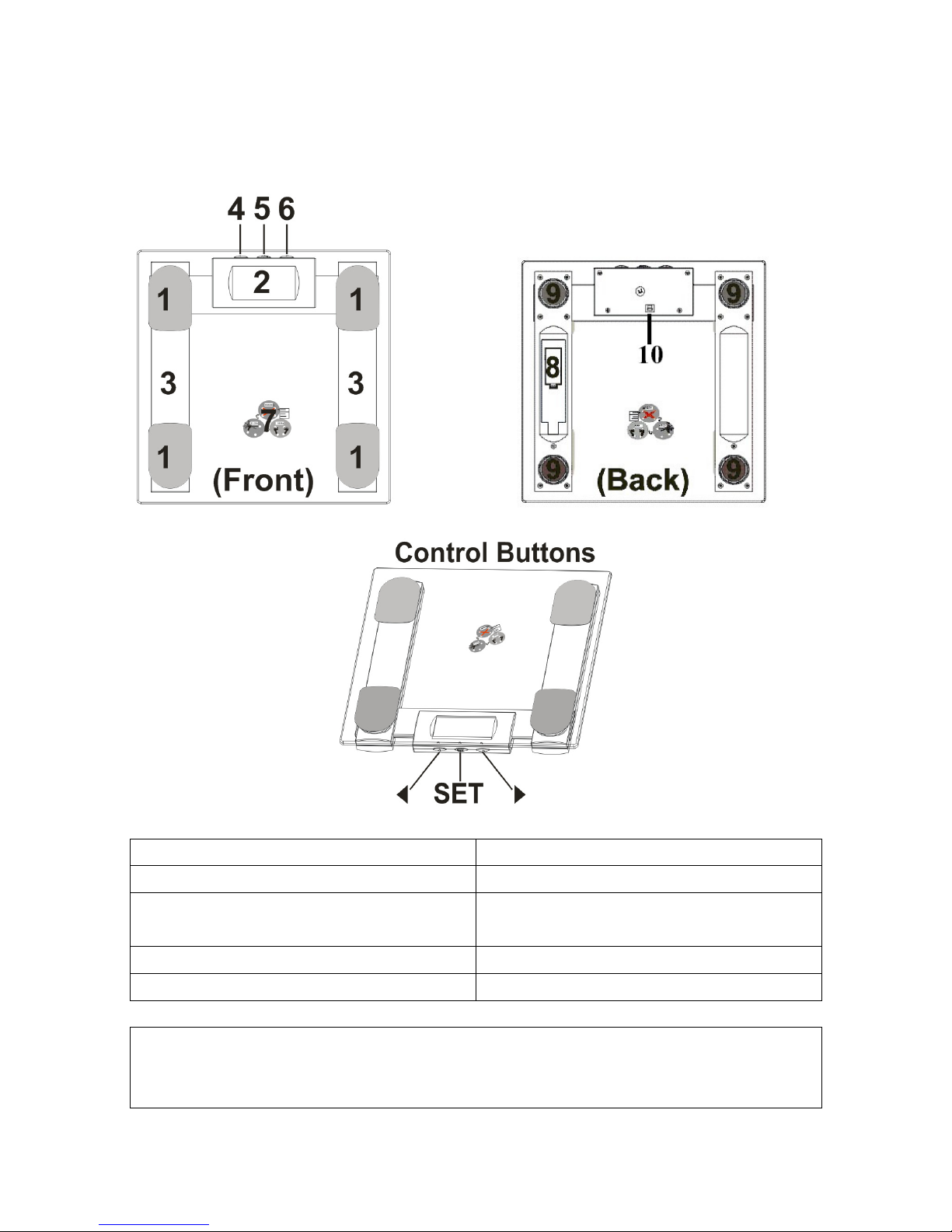

Know your Produex Body Fat analyzer / Body weight Scale

Model No.: PEV-165E Diagram (Fig. A)

1. Metal Contact Plates ( 4 plates) 6.

►

Key

2. L.C.D. Display 7. Glass Platform

3. Plastic

Bars (Left Bar & Right

Bar)

8. Battery Compartment Cover

◄

Key 9. Non Skip Stoppers (4 Stoppers)

5. Set Button 10.

KG / LB / ST Switch

Reset your Body Fat Analyzer / Scale (PEV-165E)

You can easily reset the PEV-165E by removing and re-inserting the batteries (see Fig. A – Item

# 8).

Page: 2

Be very careful! When you are stepping on or

off the glass platform. Personal Injury Risk!

Do not stand on the edge of the glass

platform. Personal Injury Risk!

Your left toes section must touch the metal

contact plate on the left side of the LCD

display.

Your right toes section must touch the metal

contact plate on the right side of the LCD

display.

How to measure your Body Weight:

It is not necessary to select user (user 01~ user 10). No programming user date

(Age, Gender and Height) into the scale is needed.

1. Select (lb / in) or (kg / cm) or (st). The Switch is located at the bottom of the scale, on the

backside of the L.C.D. Display (see Fig. A – Item #10). (Example: turn switch to lb / in)

2. Place the PEV-165E on a smooth, firm, flat surface to achieve the precise accuracy (do not

use the PEV-165E on Carpet or Rug).

3. Turn-on the PEV-165E: Use foot to tap and press (with a little pressure) the center of the

glass platform to turn on the scale (See Fig. B)

(Fig. B)

4. Remove foot from the glass platform, and within seconds the L.C.D. Display will change to

a zero reading -“ready to use mode”. (See Fig. C)

(Fig. C)

Ready to use mode

5. Step onto the glass platform carefully and stand still to measure your body weight. Once the

“H” is appeared at the top left corner of the L.C.D. Display, the weighing of your body is

completed. (See Fig. D)

(Fig. D)

Example

6. The PEV-165E shuts off by itself after each use.

Page: 3

How to use the Body Fat + Water + Muscle Analyzer (PEV-165E):

Using it for the First Time:

User must select user (user 01 ~ 10) and input user’s personal data (Age, Gender and

Height) prior using the PEV-165E.

Using it for the Second Time and After:

Please see Page 10 for User Personal Data programming details.

1. Select (lb / in) or (kg / cm) or (st). The Switch is located at the bottom of the scale, on the

backside of the L.C.D. Display (see Fig. A – Item #10). (Example: turn switch to lb / in)

2. Place the PEV-165E on a smooth, firm, flat surface to achieve the precise accuracy (do not

use the PEV-165E on Carpet or Rug).

3. Turn-on the PEV-165E: Use hand or foot to tap and press (with a little pressure) the center

of the glass platform to turn on the scale. (See Fig. 1)

(Fig. 1)

4. Remove hand or foot from the glass platform and within seconds, the L.C.D. Display will

change to a zero reading -“ready to use mode”. (See Fig. 2)

(Fig. 2)

Ready to set mode

5. Press the Set Button once ((see Fig. A – Item #10)). A blinking user 01 will appear on the

L.C.D. Display (See Fig 3.).

(Fig 3)

Blinking User 01

6. Press the

◄" or "►key

(see Fig. A – Item # 4 and # 6) to select user; choose from 01 to

user 10

7. Example: If user 01 is selected, press the Set Button (see Fig. A – Item # 5) once to stop the

Blinking of user 01 on the L.C.D. Display. User 01 is now selected.

8. The following L.C.D. Display will come on with the blink Male and Female on the left side

of the display panel (See Fig. 4).

(Fig. 4)

Blinking Male & Female

Page: 4

How to use the Body Fat Analyzer to measure your Body Fat + Body Water +

Muscle + Body Weight:

(continue)

9. Press the

◄" or "►key

(see Fig. A – Item # 4 and # 6) to select Male or Female.

10. Example: Press the

◄" or "►key

(see Fig. A – Item # 4 and # 6) to select Female. (See

Fig. 5)

(Fig. 5)

Female is selected

Using the Body Weight Function only: It is not necessary to input user

data (Age, Gender and Height) into the DJ165.

Using the Electronic Body Fat, Body Water, and Muscle Function: It is a

must for the user to select a user setting (user 01~user 10) and input user

data (Age, Gender and Height) into the scale prior using the PEV-165E.

Please see Page 10 for User Personal Data programming details

11. Press the Set Button once (see Fig. A – Item # 5) to confirm the selection of Female. The

following L.C.D. Display of blinking “Height” selection will come on. (See Fig. 6)

Pre-set (Fig. 6)

Blinking Height

12. Press the

◄" or "►key

(see Fig. A – Item # 4 and # 6) to input your Height.

Example: Input 5’9”

13. Press the Set Button once (see Fig. A – Item # 5) to confirm the input of your Height. The

following L.C.D. Display of blinking “Age” selection will come on. (See Fig. 7)

Pre-set (Fig. 7)

Blinking Age

Important: (using the body fat, body water and muscle function)

Data Input - please see Page 10 for User Personal Data programming details.

Page: 5

How to use the Body Fat Analyzer to measure your Body Fat + Body Water +

Muscle + Body Weight

: (continue)

14. Press the

◄" or "►key

(see Fig. A – Item # 4 and # 6) to input your Age.

Example: Input 38

(Fig. 8).

15. Press the Set Button once (see Fig. A – Item # 5) to confirm the input of Age. The

following L.C.D. Display will come on (See Fig. 9)

(Fig. 9).

16. Press the Set Button once (see Fig. A – Item # 5) to view the following displays to

reconfirm the input of your data (Gender, Height and Age) are programmed correctly.

17. If the numbers are right. Please be-careful and be quick to step on the scale while the LCD

Display is show 0.0 lb. (See Fig 10).

(Fig. 10)

18. Please STAND STILL once you are on the glass platform, the displays will come on as

follows: -

Your weight

(follow with 1 2 3 4 indicating that the PEV-165E is now computing your Body Fat)

19. Please keep stand still on the glass platform. The readings of Body Fat / Body Water /

Muscle

Body Fat Body Water Muscle

The Displays of Body Weight – Body Fat – Body Water- Muscle will repeat twice and then shut

off automatically to conserve the energy of the batteries (Finished).

Page: 6

Important Note:

This is a high precision electronic PEV-165E. Please handle the unit with care. Do not drop

or throw the unit on floor.

Note:

This Electronic Scale should be used in consistent manner for the precise reading of your body

fat, water, muscle and weight. The readings may very between this analyzer and other methods

of measurement.

The changing in body fat percentage shown by this Electronic Scale will be reflected precisely.

Note:

Drinking coffee, beer, wine, alcohol, and taking diuretic medications or workouts. These all

affect your level of hydration and the accuracy of this analyzer. Please wait a few hours before

taking a body fat reading

Important:

Err: Your feet are not making good contact with the four metal plates on top of the glass

platform.

Monitoring Total Body Water percentage in the body:

Water is an important component of the body. Water combines up approx. 51-69% of the total

body’s weight. It is there partly added in lean tissue compared to fat tissue. Water is a standard for

biochemical reactions that normalize body functions. Waste products are passed in water from

cells for flow in sweat and urine. Water helps to keep body temperature; provides moisture and

lubricates body.The level of water in the body changes with the hydration level of the body.

Watching the level of body water is necessary for one’s health maintenance. The likely Total

Body Water percentage may differ according to your hydration stage. The amount of water you

have drunk or how much you have sweated straight away before to the measurement will affect

the readings. It is recommended that to avoid fluctuation in hydration level before using the scale.

This Electronic Scale uses bioelectrical impedance Analysis, which is one of the most precise

ways of measuring body fat, water and muscle. It sends a harmless signal through the fat and

muscle in your body. It calculates your personal weight, body fat, body water and muscle almost

at the same time. It gives you a more precise reading of your on the whole health and fitness.

Trouble Shooting:

Read and understand this manual completely.

Clean your feet with a clean slightly dampened cloth.

Clean the glass platform and the 4 metal contact plates with a lightly dampened cloth.

Place your unit on the same hard, dry and smooth and flat surface for better performance.

Page: 7

Measure Your Body Fat:

Watching your body fat is important to your health and fitness. Healthy body levels can help

reduce your chances of developing serious health related problems. High blood pressure, high

cholesterol, heart disease, diabetes, and cancer, to name a few are no fun to deal with. Body fat is

also a main factor in athletic performance. It used to be, you would have to see a medical or

professional to obtain information of your body fat. Now, with the Produex’s body Fat Analyzer

and Scale, simply enter your personal data and step onto the scale to obtain the readings by you.

Battery Removal:

Step 1 (Remove Screw)

Step 2 (Remove Cover)

Step 3 (Remove Batteries)

Battery Installation: Reverse the above mentioned 3 steps to install (2) batteries.

Battery Installation:

See Fig. A – Item # 8 (Battery Compartment Cover)

The Electronic Scale uses 2 X 3-Volt Lithium (CR 2032) Cells.

1. Remove Battery compartment cover at the bottom of the scale (see Fig. A – Item #8 ) and

insert the 2 X 3-Volt Lithium Cells into battery snap. (Fig. 1)

2. The scale needs to be initialized before first use or after battery replacement: Press lightly on

the scale platform. The display will show “ 8888 “. Then the scale will automatically turn off.

Your scale is now ready for use.

3. Replace the battery when “ Low Battery Warning “ is displayed.

4. Remove the cells if the product is to be stored for a long time.

Battery disposal:

DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EPLODE OR LEAK”

Warning:

“Do not Mix Old and New Batteries. Do not Mix Alkaline, Standard (Carbon-

Zinc.) or

Rechargeable (Nickel Cadmium) Batteries.”

When trashing the batteries -

The batteries must be separated from the regular household

trash. Please consult with your local authorities for batteries disposal instructions.

Page: 8

Battery – First-Aid:

Battery may leaks in extreme weather and conditions. If leaks get on skin and eyes, flush area

with cold water and seek medical attention immediately.

Suggestion:

Suggestion of Body Fat Levels

Age in Years 19-28 yrs. 29-38 yrs. 39-48 yrs. 49-58 yrs 59 plus

Men 14% 15% 17% 18% 19%

Women 19% 20% 21% 22% 23%

** American College of Sports Medicine

1. The percentage total body water of an individual differs according to age and gender. The

table as follows may be used as a suggestion.

Male Female

Age Fat Water Age Fat Water

19-28 8-20% 59 19-28 19-29% 49%

29-38 10-21% 29-38 21-31%

39-48 12-22% 54 39-48 23-33% 48%

49-58 14-24% 49-58 25-35%

59-70 16-28% 49 59-70 27-37% 44%

2. Do measure body fat, body water, or weigh at the same time each day.

3. It is recommended to use the scale without clothing for accurate readings. Clothes can affect

the percentage calculation.

4. Slightly damp Feet must be bard and clean to result accurate readings.

Hydration Level:

This electronic scale computes your weight, the electrical impedance of your body, and adds

those readings with the data of your input (Age, Height, Gender,). The scale will calculate your

body fat percentage accurately. The ideal time for use of this scale is in the evening. Female will

have more difference in water content then male and require watching their reading over a longer

period of time to set up a personal average. You must decide this as a reference only before

calculating progress in a health program. The stage of hydration differs throughout the day and

affects the impedance calculating.If a person is dehydrated, there is a good chance for difference

in the body fat percentage displayed by this electronic scale than when the person is fully

hydrated.

Page: 9

Indice

Altri manuali Prodex-hk Scala

Prodex-hk

Prodex-hk PEVX-6628 Manuale utente

Manuali Scala popolari di altre marche

AWS

AWS ZEO-50 Manuale utente

Gima

Gima Glass Body Fat Analyzer Manuale elenco delle parti

Seca

Seca 374 Manuale utente

TEC

TEC TEC SL59 SERIES Manuale utente

Axis

Axis B/E Series Manuale utente

Alecto

Alecto ACW-40 Manuale utente

Rice Lake

Rice Lake MSI-4260 IS Manuale utente

IKA

IKA RCT basic safety control Manuale utente

ADE

ADE M20011 Manuale utente

Duronic

Duronic KS3000 Manuale utente

Digi

Digi SM-720 Manuale utente

Cardinal

Cardinal CS Series Manuale utente

Korona

Korona Kastella Manuale utente

A&D

A&D FC-50Ki Manuale utente

BDA

BDA CAMARGUE Manuale utente

Tanita

Tanita HD-357 Manuale utente

Leifheit

Leifheit 03173 Manuale utente

Lumme

Lumme LU-1340 Manuale utente
