PROEM CDC-2F B Series Manuale utente

CDC-2FxB

User manual: page 03

Manuel utilisateur: page 17

VIDEO PORTIERS

CDC-2FxB

English

- 2-

Introduction

Digital bus

2 wires

4 cameras

32 monitors

Vous venez de faire l’acquisition d’une caméra de vidéo-portier CDC-

2F1B or CDC-2F2B et nous vous en remercions.





 

- Haute résistance au vandalisme

- Indice de protection IP 64

- Deux relais par caméra

- Jusqu’à 4 caméras et 32 moniteurs



!"

satisfaction et saura répondre aux attentes de votre quotidien.

L’Equipe PROEM

You have just acquired a video door entry system door station CDC-2F1B or

CDC-2F2B and we thank you.

This door station is on Digital 2 wires bus technology and has been design to

provide you a great confort of use :

- Feedback for disable people

- Vandal resistante

- IP rating 64

- Two relay per door station

- Upto 4 door stations and 32 monitors.

It’s robust and waterproof conception will provide you a long term use and

satisfaction for your day to day life.

PROEM team

- 3-

PP

PP

PP

PP PP

Camera Lens

Unlock LED Indicator

Talk LED Indicator

Night View LED

Speaker

Nameplate

Call Button A

Call Button B

Microphone

BUS

S1+ S2+ S-

MIC adjustment

Lock Control Jumper

Doorstation Code DIP

Main Connect Port

1 2 3

SPK adjustment

Unlock LED Indicator

Talk LED Indicator

1. Parts and Functions

2. Terminal Descriptions

CDC-2FxB

English

- 4-

 Talk LED Indicator:

off

 Unlock LED Indicator:When release the first lock,it will be flashed one time.when release the



 Lock Control Jumper: To select the lock type: see 5.2.1 , 5.2.2

 Doorstation Code DIP: Total 4 doorstations can be supported,see 6.1

 Main Connect Port: To connect the bus line and the electronic locks.

BUS: Connect to the bus line, no polarity.

 PL: External lock power input, connect to the power positive(power +).

 S1+, S2+: Lock power(+) output, to connect 2 locks.

 S-: Lock power(-) output, connect to the power(-) input of locks(only when using the camera to

power the locks, if using the external power supply for the locks, the S- will not be connected).

Lock Power supply: 12Vdc, 300mA(Internal Power)

Power Consumtion: 1W in standby, 12W in working

NO, COM dry contact: Max. 48V dc 1.5A

Unlocking time: 1 to 9 seconds, set by Monitor

Working temperature: -10ºC ~ 45ºC

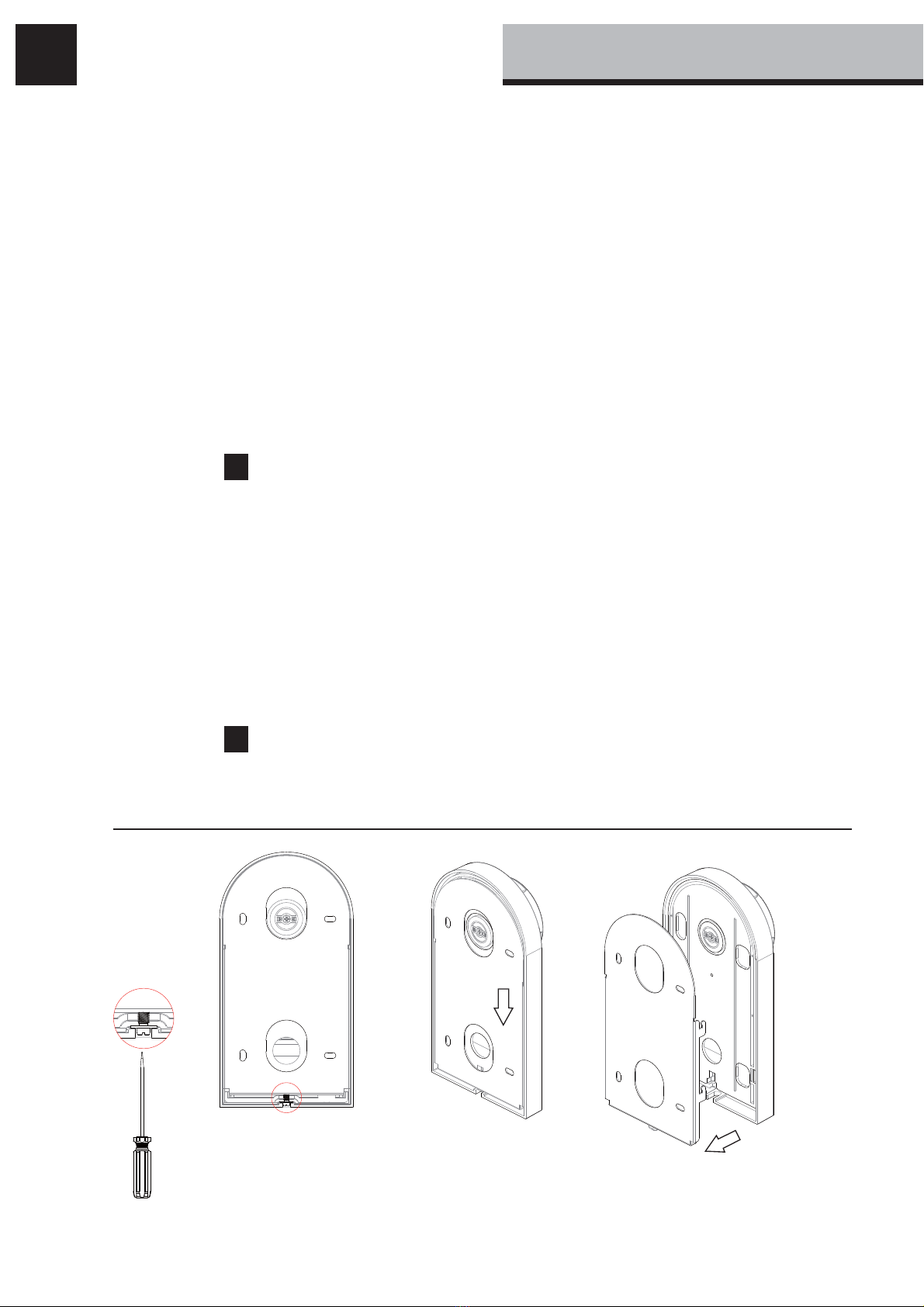

4.1 How to open the unit

slide down

take off the bracket

3. Speciﬁcations

4. Mounting and Settings

- 5-- 5-

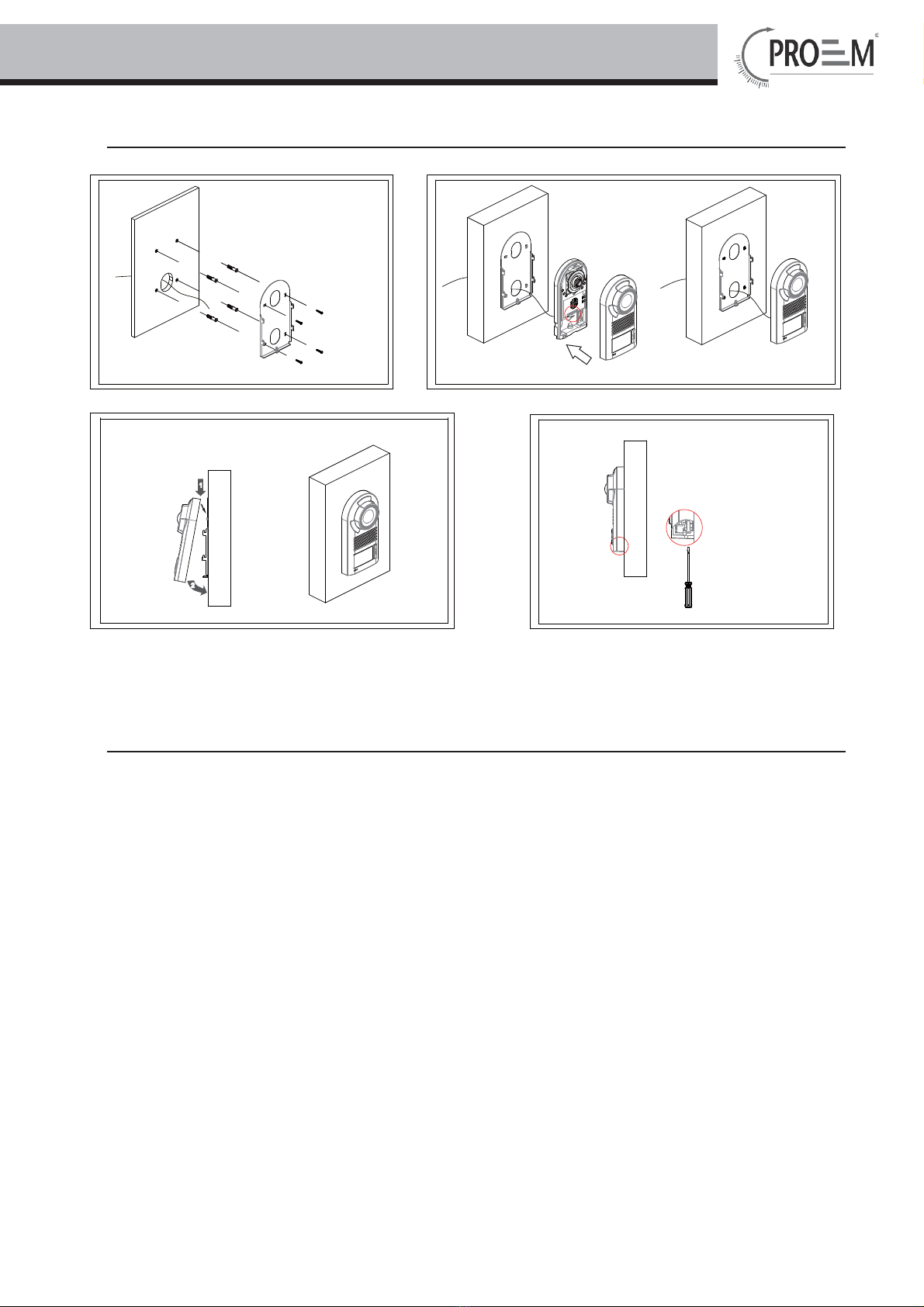

4.2 Door station Mounting

4.3 Button Mode Setting

You can set either single button mode or double button mode on door station .

Note:single button is default in restore setting.

 Single Button Mode:that means the door station only has one button,it can only call the monitor

with it's code among 00~15.please refer to 6.2.

 Double Button Mode:that means the door station has two buttons,A button can call the adress

00~15 of the monitor,and B button can call the adress 16~31 of the monitor.please refer to 6.2.

How to set the button mode

1. Single Button Setting:set the code of door station on 10(refer to 6.1),press the two buttons at the

same time,and then power on for 3s,the unit will ring "bi...",that means single button is perform.

2. Double Button Setting:set the code of door station on 01(refer to 6.1),press the two buttons at

the same time,and then power on for 3s,the unit will ring "bi...bi...",that means double button is

perform.

CDC-2FxB

English

- 6-

4.5 Adjusting Camera Angle

use one hand to press the camera and

another hand with a screwdriver to loosen

the screw and then adjust the angle of the



4.4 Placing Name Label

Move the plastic cover away to open the transparent name label cover, insert a name paper, then put

the plastic cover back to the panel.

name label

- 7-

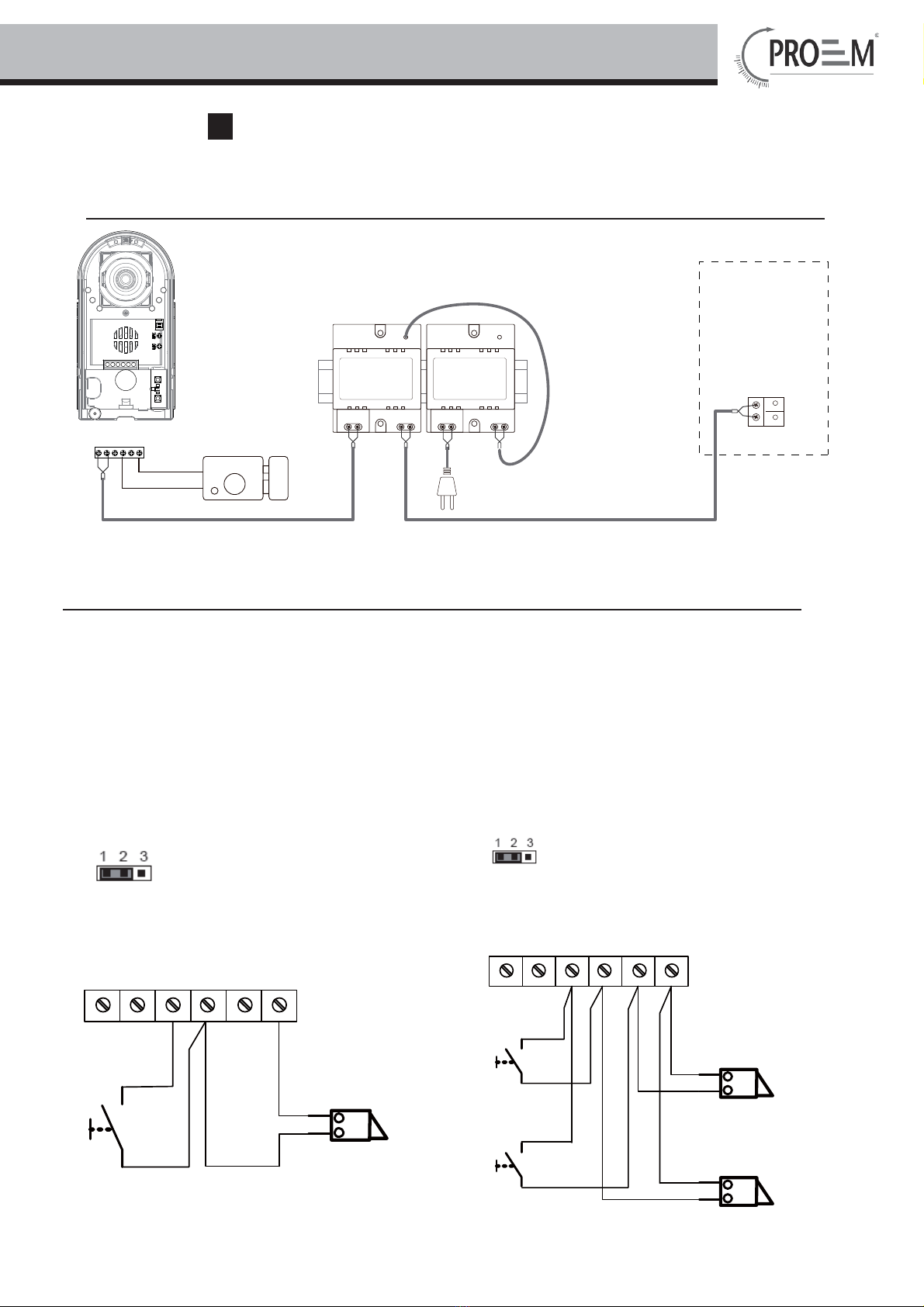

5.1 Basic Connection

AC~

monitor

MD-DPS PS24-1

L1 L2 PL S1+ S2+ S-

5.2 Electric Lock Connection

Door Lock Controlled with Internal Power

Note:

1. Electronic lock of Power-on-to-unlock type should be used.

2. The door lock is limited to 12V, and holding current must be less than 250mA.

3. The door lock control is not timed from Exit Button(EB).

4. The

Unlock Mode Parameter of Monitor must be set to 0 (by default).

LOCK

BUS PL S1+ S2 + S -

LOCK

2nd

1ST

2nd

*1ST

Jumper position in

Connect two locks

1-2

LOCK

BUS PL S1

+S-

Jumper position in

Connect one lock

1-2

5 . Wiring and Connections

CDC-2FxB

English

- 8-

5.3 Electromagnetic Lock Connection

Door Lock Controlled with Internal Power

Note:

1. Electromagnetic lock of Power-off-to-unlock type should be used.

2. The door lock is limited to 12V, and holding current must be less than 250mA.

3. The door lock control is not timed from Exit Button(EB).

4. The

Unlock Mode Parameter of Monitor must be set to 1 (by default).

5.4 Door Lock Controlled with Dry Contact

Note:

1. The external power supply must be used according to the lock.

2. The inside relay contact is restricted to AC or DC 24V/3A.

3. The jumper must be taken off before connecting.

4. Setup the

Unlock Mode of Monitor for different lock types.

 Power-on-to-unlock type:Unlock Mode=0 (by default)

 Power-off-to-unlock type:Unlock Mode=1

LOCK

BUS PL S1

+S-

Jumper position in

Connect one lock

2-3

1 2 3

LOCK

BUS PL S1+ S2+ S -

LOCK

2nd

1ST

2nd

*1ST

Jumper position in

Connect two locks

2-3

1 2 3

- 9-

LOCK

BUS PL S1

+S-

Take off the Jumper

POWER

SUPPLY

LOCK

BUS PL S1

+S-

Take off the Jumper

POWER

SUPPLY

connect one lock connect two locks

5.5 How to setup the unlock parameter in Monitor

monitor

intercom

setup

exit

Outdoor Tone -- 01

Intercom Tone -- 05

Monitor Time -- 1min

Advanced Set...

Auto Record -- OFF

Exit

***

Password:

Slave Addr Set -- 0

Guard Unit Set -- 0

Date/Time Set...

Other Settings...

Information...

Exit

Hardware ver 0302

Software ver 0168

Voltage 22.4V

Manufacture 00.0T

Restore to default

Exit

Unlock Time 1

Unlock Mode 0

Exit

1.Press MENU button twice

to enter the MAIN MENU

page,then press setup item.

2.Select Advanced Set...item

and press MENU button to

enter,a password will be

asked.

4.Select Information...item

and press MENU button to

enter next page.

Note:

1.must connect DT599 correctly before setting.

2.the parameter will be saved in DT599 automatically,so you need only set on one monitor.

5.Press UNLOCK button

and hold for 2s.

6.Use / to select the

item, use / to change

the value of the item.select Exit

item,press MENU button to save

the settings automatically.

3.The default password is

2008. press / button to

change the value,Press /

button to select the location,after

finishing,press MENU button to

enter next step.

CDC-2FxB

English

- 10 -

5.6 Multi Doorstations Connection

85~260VAC

MD-DPS

PS24-5

monitors

L1 L2 PL S1+ S2+ S- L1 L2 PL S1+ S2+ S-L1 L2 PL S1+ S2+ S-L1 L2 PL S1+ S2+ S-

1# Camera

ID=00

ID=10

ID=01ID=11

2# Camera3# Camera4# Camera

DBC4

A B C D

BUS
