PULL-DOWN
KITCHEN FAUCET
MODEL #FP4AF261CP
#FP4AF261NP
2

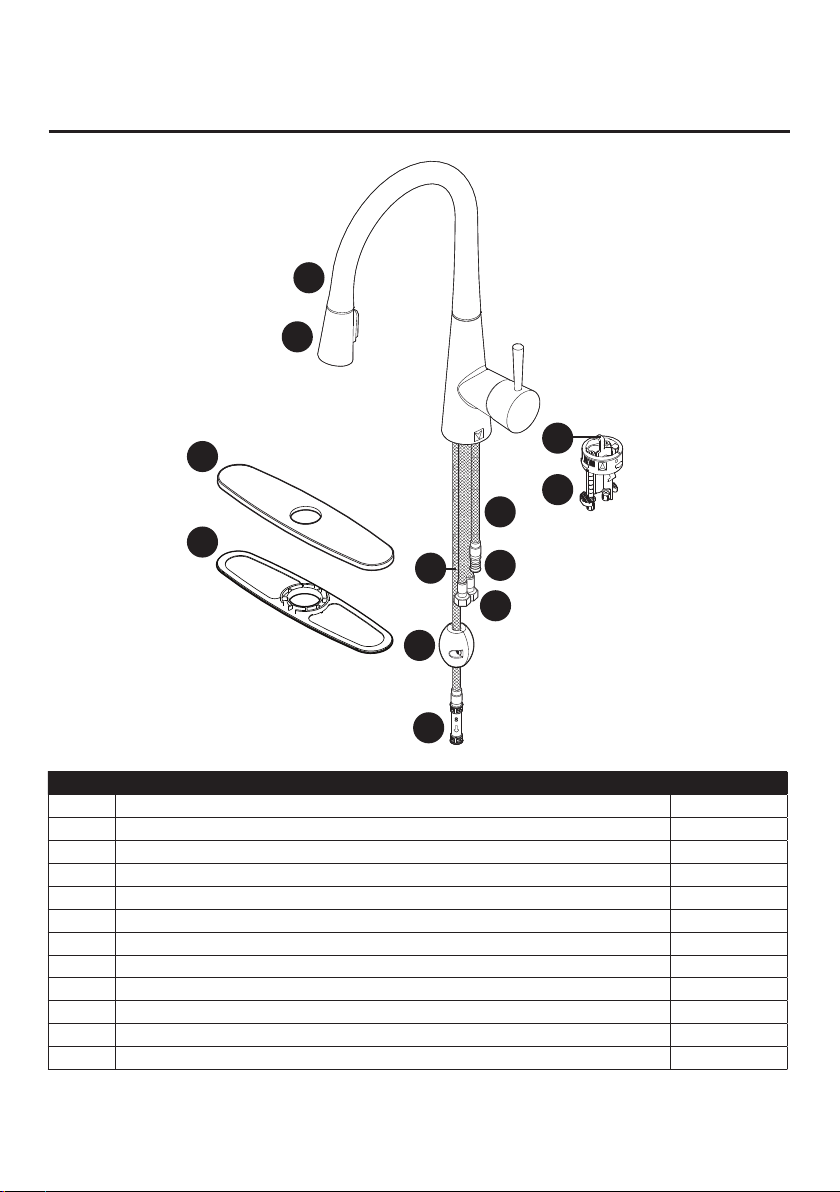

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Faucet body 1
B Spray head 1
C Cap 1
D Quick connect tube 1
E Putty plate 1
F Water supply line 2
G Quick connector 1
H Base insert 1
I Base 1
J Deck plate 1
K Spray hose 1
L Rubber weight 1
B
A
H
J
C
F
D
L
G
I
E
K
3
AA BB
HARDWARE CONTENTS
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 12 minutes
Tools Required for Assembly (not included): Adjustable wrench, silicone sealant, Phillips screwdriver.
• Prior to beginning installation, turn off the cold and hot water lines and turn on the old faucet to
release build-up pressure.
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
WARNING
• Please do not use plumber’s putty on plastic components. Use silicone caulk if sealant is required.
• When installing the exible hose, please note there should be no torsion or deformation.
Do not fold it into a V or L shape, and do not use it if there is any cracks or damage.
Hex Wrench
(4mm H x 70mm L)
x1
Hex Wrench
(2.5mm H x 53mm L)
x1
4
ASSEMBLY INSTRUCTIONS
1. Turn off water supply. Remove existing faucet
if necessary.
2. Check for the proper thickness of the sink.
3a. Without deck plate:
Insert the base (I) into sink. “FR
£
NT” on the
base (I) must face the front of the sink. Rotate
the two half-moon locking nuts inward before
inserting the base (I) into the sink.
1
2
3a
1
2
3a
I
3a
Without deck plate
With deck plate
1/16” (1mm) min.
1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
5
ASSEMBLY INSTRUCTIONS
5. Remove the quick connector (G) from the
hose (K).
3b. With deck plate:
Place a bead of silicone sealant (not included)
around the base of the deck plate (J). Place
the putty plate (E) and the deck plate (J) on
the sink and insert the base (I). “FR
£
NT” must
face the front of the sink. Rotate the two half-
moon locking nuts inward before inserting the
base (I) into the deck plate (J).
4. Turn the screws with the provided hex wrench
(AA) clockwise until the locking nuts secure
the base (I) in place. Remove the base insert
(H) from the base (I).
5
3b
4
5
3b
4
I
I
G
K
H
AA
E
J
1
5-1
2
5-2
6
ASSEMBLY INSTRUCTIONS
7
8
6
7. Insert the supply lines (F) one by one through
the large hole of the base (I).
Note: Ensure water supply line (blue) is in
front of water supply line (red).
6. Insert the hose (K) through the small hole of
the base (I).
8. Insert the quick connect tube (D) through the
large hole of the base (I).
Note: Ensure water supply lines (F) and hose (K)
are aligned in order.
7
6
8
6
8
8
K
I
I
I
F
D
K
F
Small hole
Big hole
Big hole
7
ASSEMBLY INSTRUCTIONS
10
10
9
BB
10. Secure the faucet body (A) by tightening the
set screw with the provided hex wrench (BB).
9. Align the arrow on the faucet body (A) with the
arrow on the base (I). Attach the faucet body
(A) to the base (I) and turn counterclockwise
until it locks. After installation, arrow sticker
should be removed.
10
9
A
A
I
9
1
11
11. Reattach the quick connector (G) to the hose (K). 11
G
K
3
12-2
2
12-1
8
ASSEMBLY INSTRUCTIONS
1
1
14
1
12
13
F
13. Connect and tighten the water supply line nuts by
using two wrenches.
Note: Ensure the supply lines are not being
kinked during installation and note the red line is
for hot and blue line is for cold. When attaching
the flexible hoses, ensure there is no significant
twisting or deformation. Do not bend into a V or L
shape. Do not use if there are any visible signs of
damages.
12. Remove the cap (C) from the quick connect tube
(D). Attach the quick connector (G) to the quick
connect tube (D). Pull down the quick connector
(G) to ensure it is secure.
NOTE: For removal, see “Quick Connector
Removal page 9.”
14. Attach the weight (L) to cover the weight locator
label on the spray hose (K). Use a Phillips
screwdriver to secure.
12
13
14
D
C
D
G
K
L
3
13-2
2
13-1
2
15
14
9
ASSEMBLY INSTRUCTIONS
15
15. Turn on water supply. 15
2
*2
QUICK CONNECTOR REMOVAL
To remove the quick connector (G) from hose (K),
push the housing of quick connector (G) upward.
Hold clip and housing together and pull downward.
WARNING: Be careful so as not to cut hands.
1
*2
G
K
10

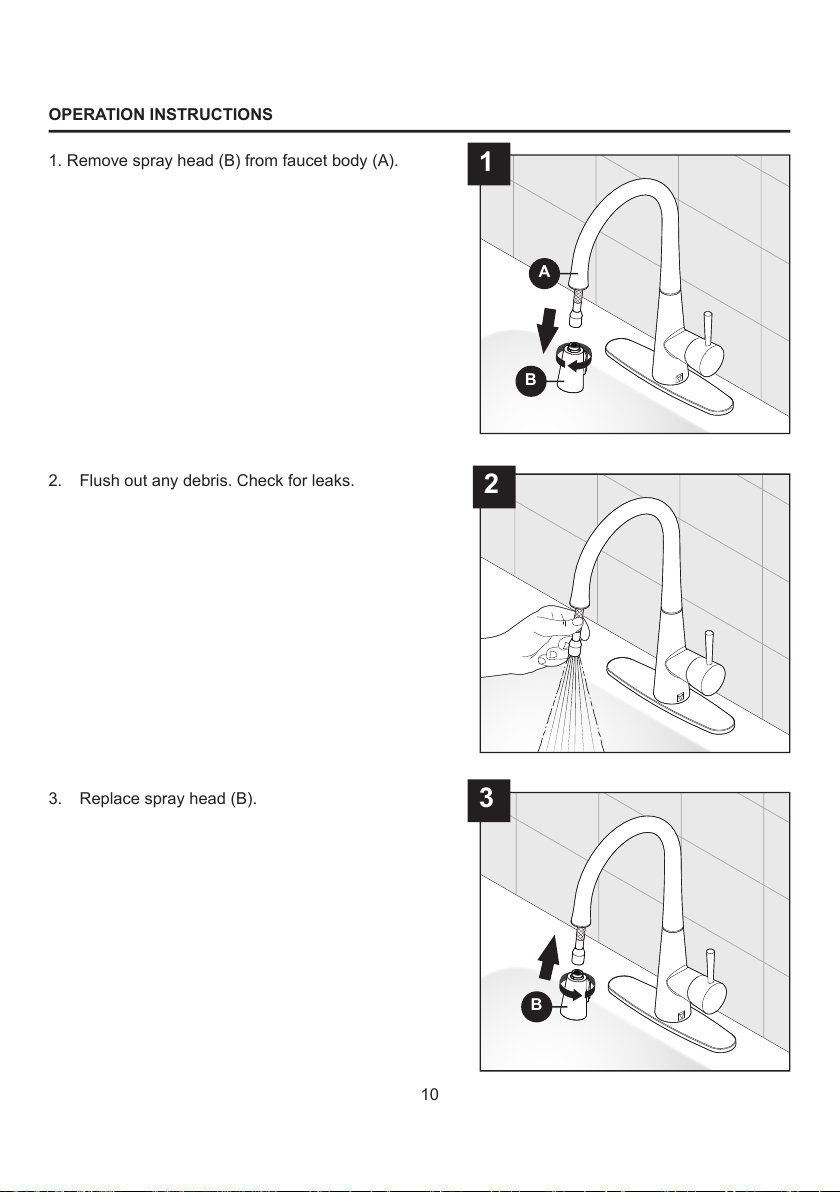

OPERATION INSTRUCTIONS
3
2
3
2
3. Replace spray head (B).
2. Flush out any debris. Check for leaks.
1
1
1. Remove spray head (B) from faucet body (A).
A
B
B
