PROJECT X X Series Manuale utente
INSTRUCTIONS & SPECIFICATIONS
Model No. AL538805 Combo
• Remove negative battery cable before installation.
• Ensure lights are fitted using the appropriate wiring harness or
an equivalent auxilary wiring system.
• Ensure the lights are mounted securly to a solid surface on
the vehicle.
• Cables connected to the light must not be subjected
to wear or other damage.
• Do not operate device in proximity to flammable or combustable objects
info@projectxoffroad.com | (866) 294-9244 | Mon-Sat 8am-5pm PST
IMportant safety Information
Voltage: 9-33V
LEDs: 33 x 5 Watt Osram® L.E.Ds
Housing & Bracket: Pressure die-cast aluminum housing and bracket
Beam Type: Combo Beam Pattern
Lenses: Polycarbonate
Color Temperature: 5700°K
Current Draw: 14.4A at 12V per light
This PROJECT X product carries a Limited Lifetime warranty against defects in workmanship and
materials subject to the conditions and additional warranty information available at:
www.projectxoffroad.com/pages/returns-warranty
DISCLAIMER OF WARRANTIES, INCLUDING WARRANTY OF MERCHANTABILITY AND WARRANTY
OF FITNESS FOR PARTICULAR PURPOSE: EXCEPT AS SPECIFICALLY SET FORTH HEREIN, NO
WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, IS MADE AS TO THE LED CEILING
LIGHT. PROJECT X AND/OR ITS AFFILIATES EXPRESSLY DISCLAIMS, WITHOUT LIMITATION, ANY
STATUTORY WARRANTIES AND ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Every Install is unique and we
provide simple installation
information but professional
installation is highly
recommended.
Warranty
Technical Specifications

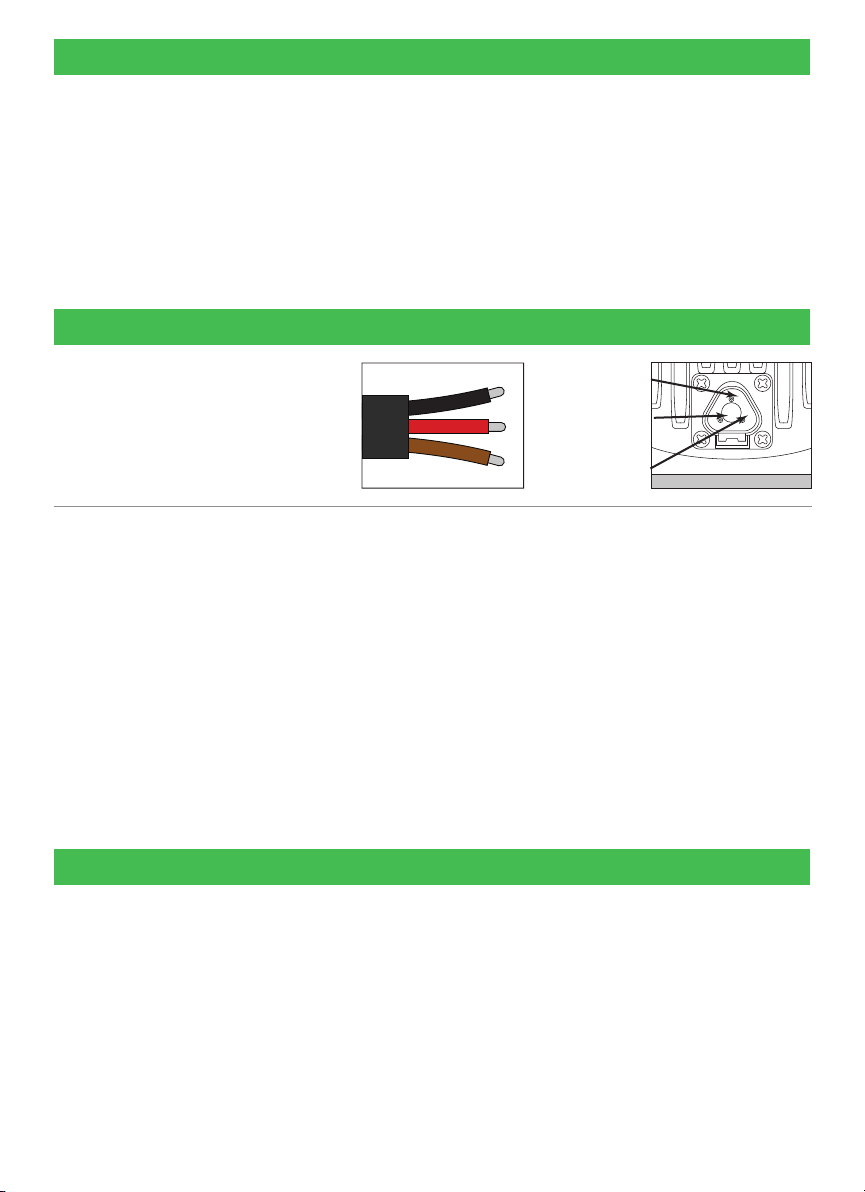

Wiring
Ground (-)
Black Wire
Driving Beam (+)
Red Wire
Positonal (+)
Brown Wire
A Horizon Brands Company
2975 Red Hill Ave, Ste. 100, Costa Mesa, CA 92626
Copyright © 2021 ADC Solutions Auto, LLC. All rights reserved.
Follow manufacturer’s instructions to ensure the product is properly & safely installed.
The manufacturer and seller are not responsible or liable for consequential, incidental, or indirect damages,
whether to person or property, resulting from the installation or improper use of this product.
Before installing, please make sure the Driving Lights are free from damage, fracture and no impurities.
• Considering the high intensity of light, DO NOT stare at the light when it is switched on.
• The surface of the LED will reach very high temperature when it is turned on.
DO NOT touch the surface directly to avoid severe burns.
• Do not install or use product if it, in any way, impairs the safe operation of your vehicle.
⚠ WARNING: This product can expose you to chemicals including DEHP and DINP, which are known to the State of
California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.
30°
20.00
69.28
16.0
10.5
8.50
80.00

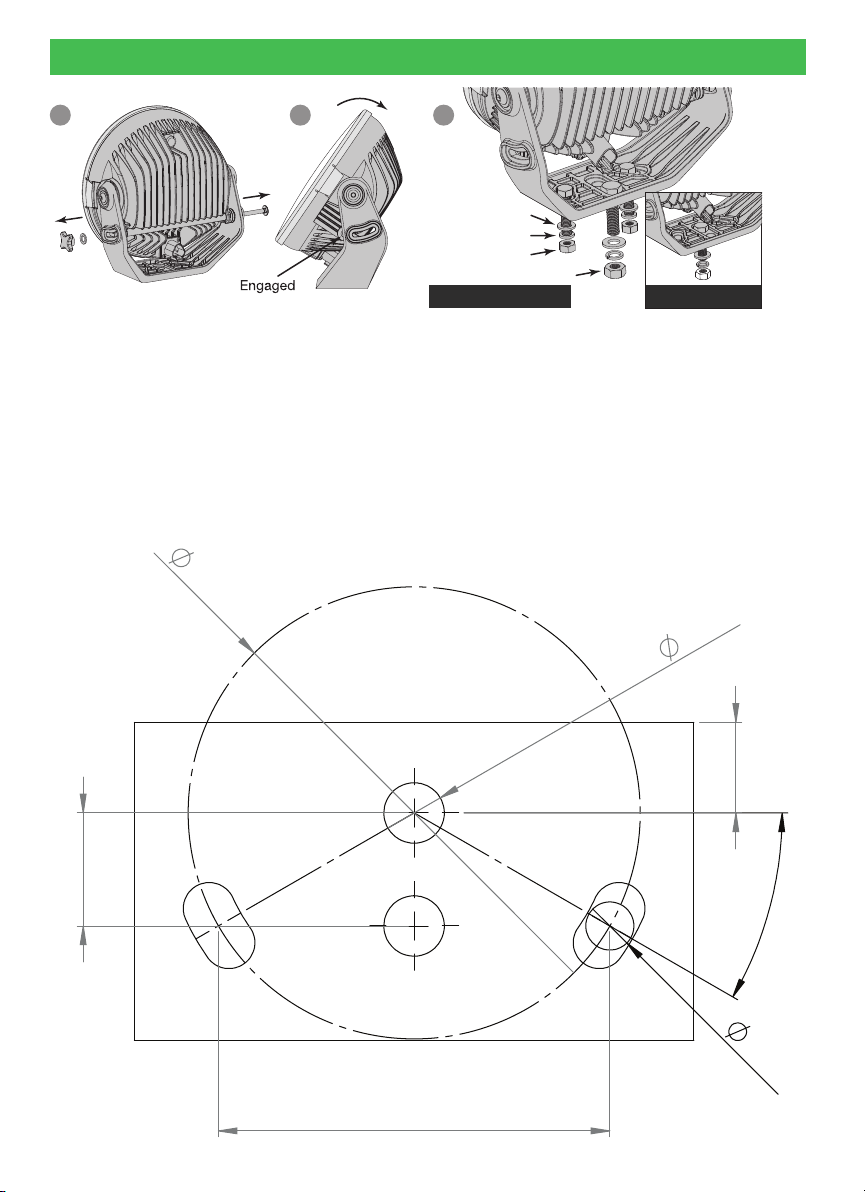

Mounting
1 Remove Adjuster Knob, Flat Washer
and Long Bolt.
2 Tilt lamp backwards to allow access to
insert the mounting bolts (Ensure the light
pivots are still engaged with the bracket).
3 Place the mounting bolts through the holes
in bracket. Note, 3 Bolts are advised, if single
bolt only, mount in center hole.
Not to scale
4 Re-assemble the Adjuster Knob, Flat
Washer and Long Bolt in reverse order.
5 Choose a solid surface on the vehicle to
mount the driving lights and secure the
lamp by using flat washers, spring
washers with M10 & M8 nuts.
5 Ensure the Adjuster Knob is
done up tight.
1 2 3
Flat Washers
Spring Washers
M8 Nuts
M10 Nuts
TRIPLE BOLT SINGLE BOLT
Components
Components
A
B
C
D
E
F
G
H
I
J
K
L
M
N
ADJUSTER KNOB
Adjuster Knob can be reversed from left
hand to right hand side.
LENS COVER REMOVAL
Remove lens protector by unclipping
the side wings.
TRIM PIECE COLOR CHANGE
To change the color of the plastic trim
ring, remove 5 x screws and metal
bezel. Re-assemble in reverse order
RUBBER BUSHING COLOR CHANGE
Remove the side M8 bolts, washers and
blue rubber bushings. Replace with black
rubber bushings. Re-assemble in reverse
order.
Long Bolt
Adjuster
Knob
Black Rubber
Bushings
Plastic Trim Ring
Description
M6 CUSTOM CARRIAGE BOLT
M6 CUSTOM KNOB
M6 X 14 X 2mm FLAT WASHER
M8 X 25mm BHCS
M8 X 17 X 1.6mm FLAT WASHER
M4 X 18mm BHCS
M8 X 1.25 X 40mm HEX
M10 X 1.5 X 40mm HEX
M8 X 24 X 2mm FLAT WASHER
M10 X 30 X 2.5mm FLAT WASHER
M8 SPRING LOCK WASHER
M10 SPRING LOCK WASHER
M8 FLANGE NUT
M10 FLANGE NUT
Torque (ft/lb)
-
-
-
3.7
-
1.5
-
-
-
-
-
-
11.0
22.0
Item
A
B
C
D
E
F
G
H
I
J
K
L
M
N
Customization
