WARNINGS.
Refer to BS 4275 1997 for guidance in
the selection of appropriate respiratory
devices. Do not use when
concentrations or contaminants are
unknown.
THIS RESPIRATOR DOES NOT
SUPPLY OXYGEN Do not use in an
oxygen deficient atmosphere
containing less than 19% by volume
under normal atmospheric pressure.
Do not use in an explosive atmosphere,
where the explosion hazard requires
the use of Intrinsically Safe respiratory
protective equipment.
The wearing of beards, sideburns,
moustaches or spectacles may
adversely affect sealing of the mask to
the wearers face or the operation of the
exhalation valve.
At very high work rates, pressure
inside the facemask may become
negative at peak inhalation.
Altering or modifying this respirator
invalidates all approvals and may
reduce wearer protection.
In the unlikely event of power failure
while in use, do not remove respirator,
breathe normally. The respirator will
continue to provide a high degree of
protection, acting as a standard
negative pressure filter equipment.
Exit the hazardous area immediately
and report the fault.
1. IMPORTANT POINTS TO NOTE
Please read carefully. Should you require clarification
of the instructions given in this manual, please contact
Protector or an approved Protector distributor.
The instructions for pre-use, donning, after use cleaning
service and maintenance given in this manual must be
fully understood and followed carefully to ensure wearer
protection. Special attention must be given to the notes,
important notes, cautions, warnings and labels on the
respirator before use. Failure to do so may reduce
respirator effectiveness and result in serious injury, or
death.
Notified Body
Inspec Certification Ltd (Number 0194),
Upper Wingbury Courtyard, Wingrave, Aylesbury,
Buckinghamshire, HP22 SLO, UK
1.1 GENERAL PRECAUTIONS TO BE
OBSERVED DURING SERVICING AND
MAINTENANCE.
1. All assemblies must be serviced and maintained
strictly in accordance with the instructions given in
this manual.
2. Use only Protector spare parts when servicing
and maintaining this respirator.
3. Use only the correct tools, as specified, taking
care to avoid damage to components.
4. Keep service and maintenance area clean. Make
certain that all components are clean before
reassembly.
5. Carefully examine each component for signs of
wear or damage, and replace where necessary.
6. Use only recommended lubricant where specified
and apply sparingly, wiping off all surplus.
7. For identification of items numbered in

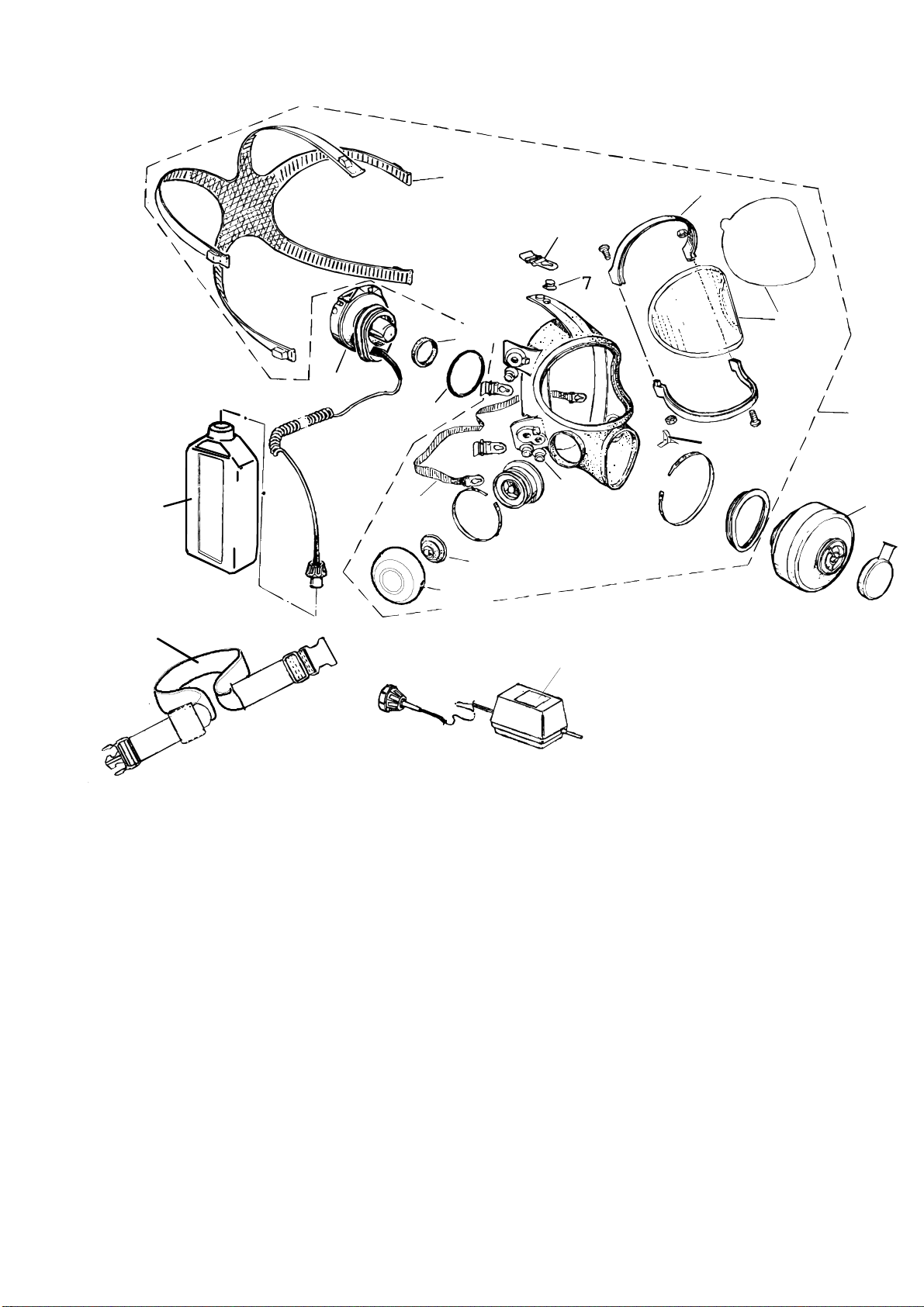

instructions, refer to exploded views and parts list.

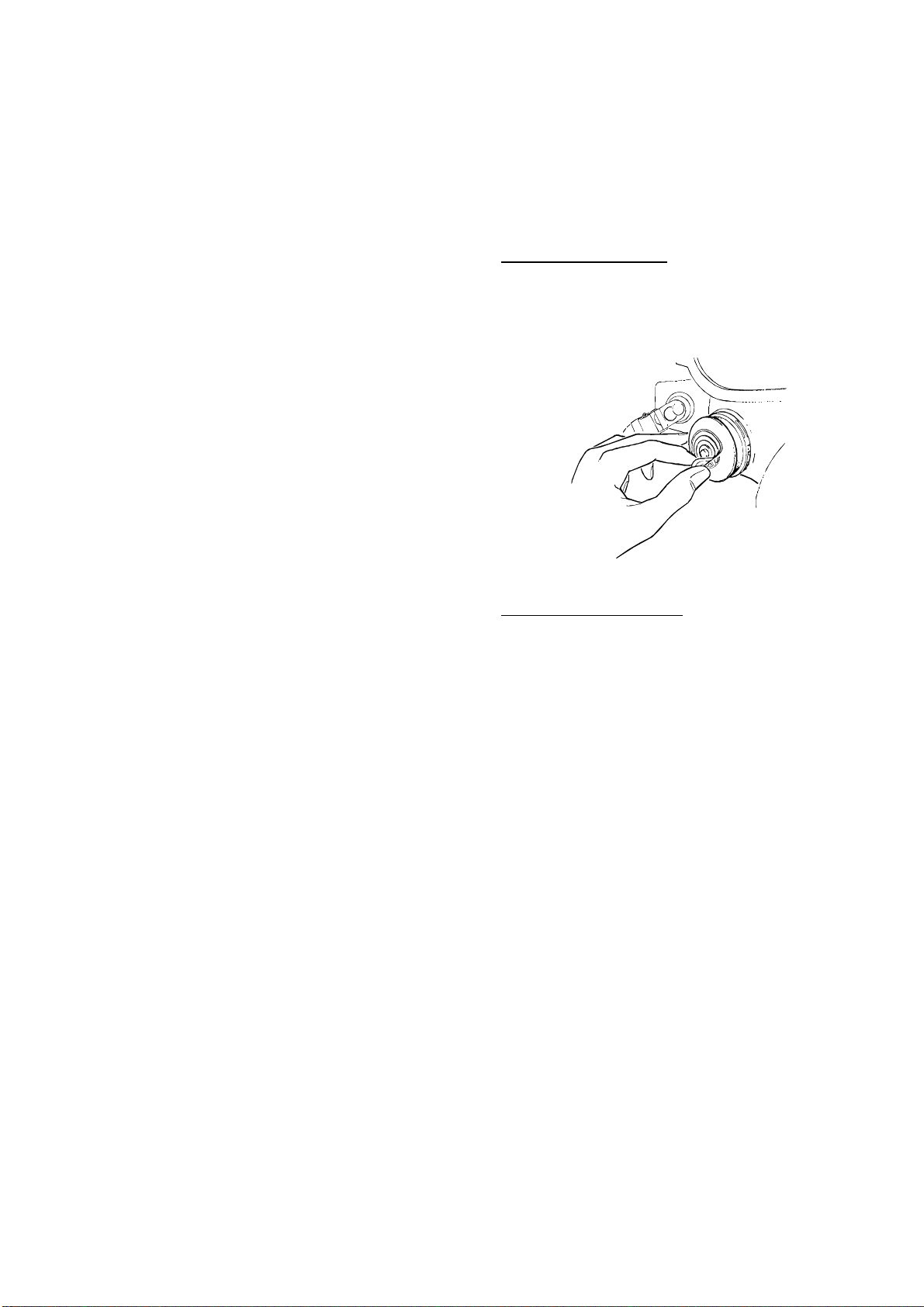

8. This respirator with filter (4) is only for protection
against solid and liquid aerosols of negligible
volatility and decomposition.
1.2 TRAINING AND SERVICING.
a) This manual is not suitable for the purpose
of training respirator wearers or
maintenance personnel who have no
previous practical experience of respiratory
protective equipment.
b) Training and servicing programmes are
available upon request. Please contact
Protector or your approved distributor for
further details.
2. GENERAL DESCRIPTION
Phantom is a TM3 power assisted respirator conforming
to prEN 147 Rev 1995 with a nominal protection factor
of 2000. It has been Type Approved by lnspec
Certification CE 0194. Certificate No. 069.

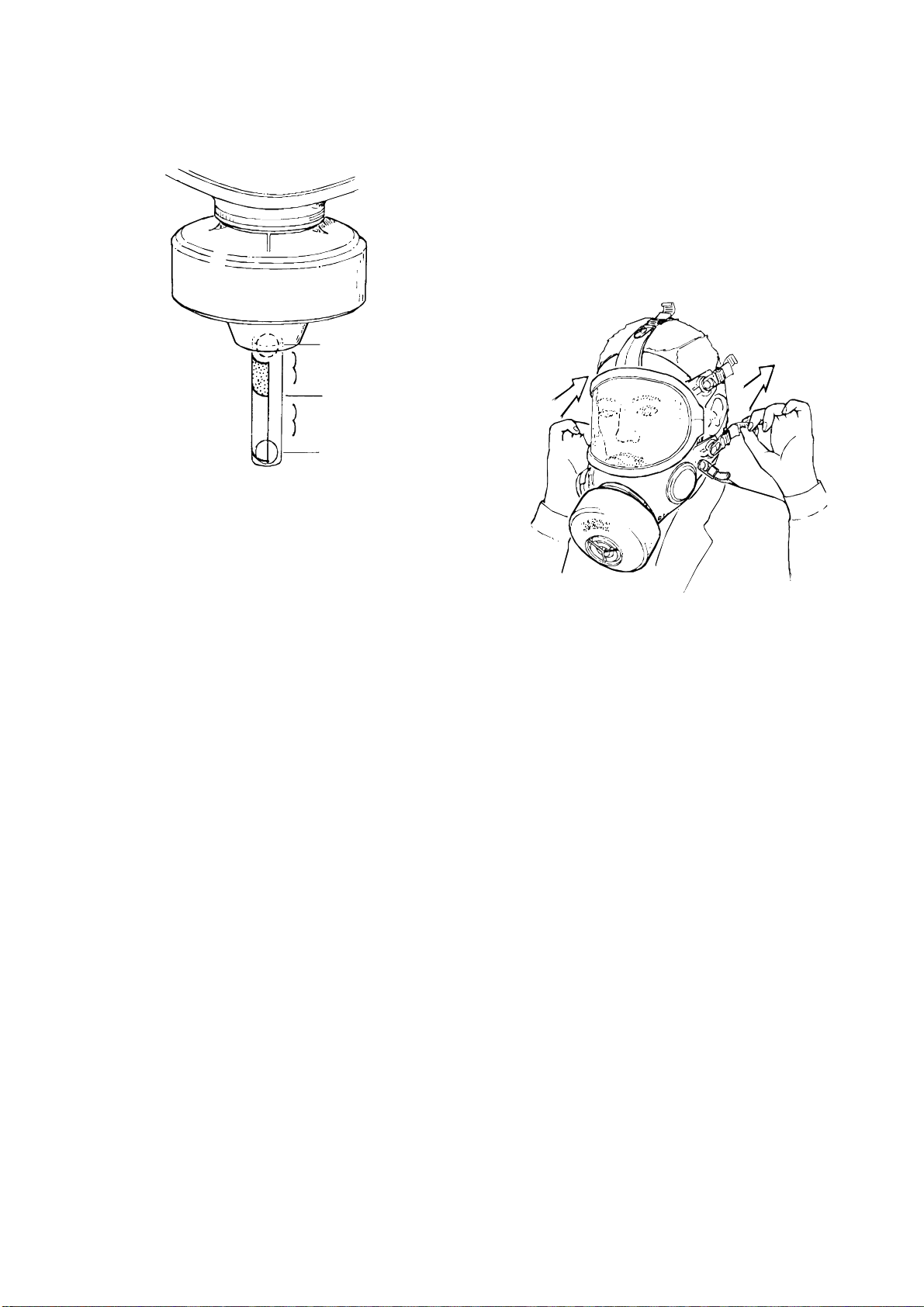

The respirator comprises: a full facemask with an
integral blower, a mask mounted filter and waist belt
mounted battery.

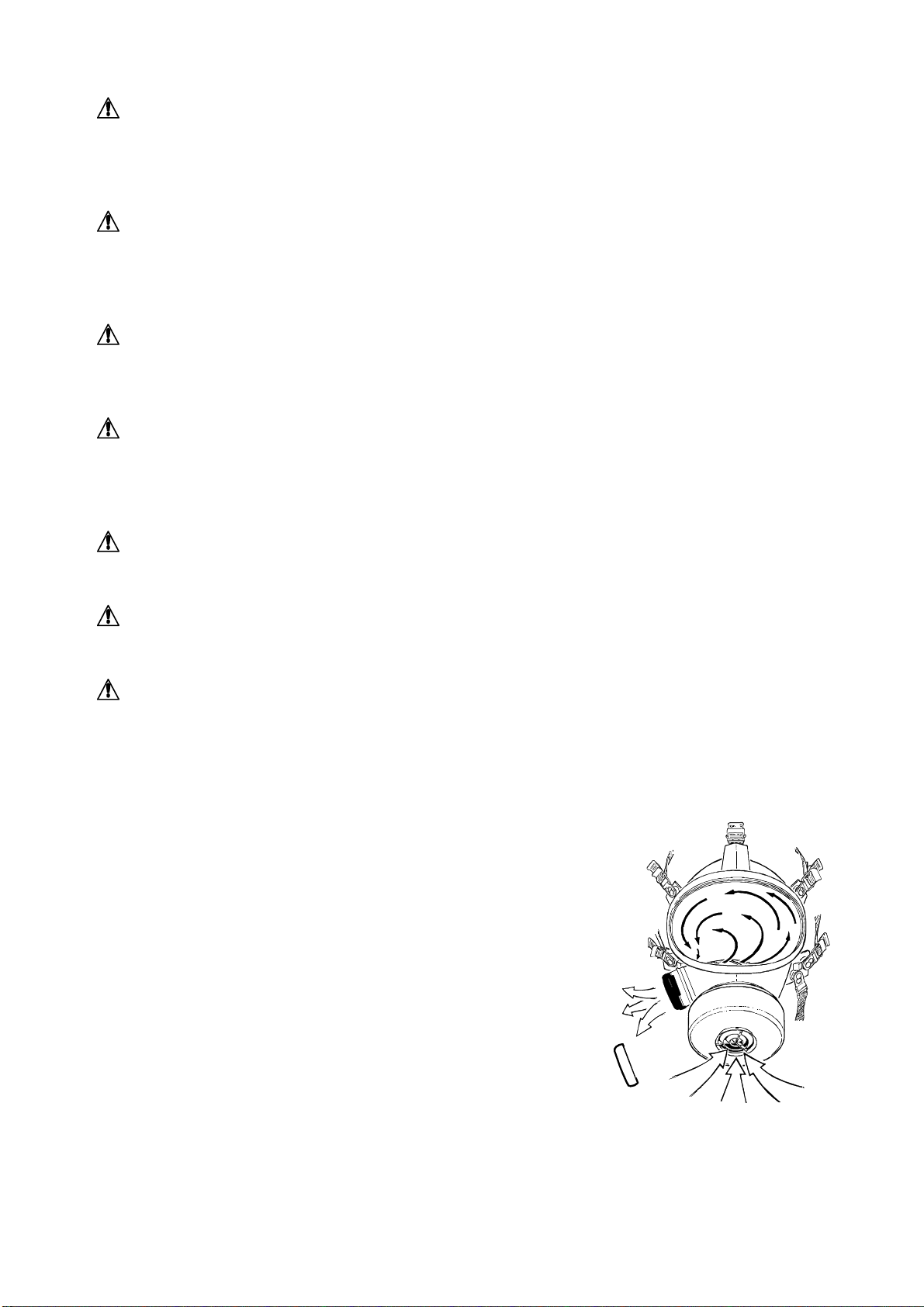

The blower draws air into the facemask through the filter
and directs the filtered air up to the left side of the visor.
