Performance in aluminium
Multi Purpose truss instructions
Prolyte truss X40D
Prolyte X-truss can be recognized by the
CCS 6 ® couplers with the Prolyte-logo at the ends
of the truss and it has one ring below the pin-holes.
The X40D truss is of triangular type:
339mm (w) x 294mm (h) (centre to centre)
390mm (w) x 345mm (h) (connection outside).
Chords: tubes 51x2 mm
Lattice and bracers: 20x2mm
See figure 6
Prolyte truss X40V
Prolyte X-truss can be recognized by the
CCS 6 ® couplers with the Prolyte-logo at the ends
of the truss and it has one ring below the pin-holes.
The X40V has a triangular cross-section with chords:
339mm (w) x 339mm (h) (centre to centre)
390mm (w) x 390mm (h) (connection outside).
Chords: tubes 51x2 mm
Lattice and bracers: 20x2mm
See figure 7
Prolyte truss H40D
Prolyte H-truss can be recognized by the
CCS 6 ® couplers with the Prolyte-logo at the ends
of the truss and it has two rings below the pin-holes.
The H40D truss is of triangular type:
339mm (w) x 294mm (h) (centre to centre)
387mm (w) x 342mm (h) (connection outside).
Chords: tubes 48.3x3 mm
Lattice and bracers: 20x2mm
See figure 8
Prolyte truss H40V
Prolyte H-truss can be recognized by the
CCS 6 ® couplers with the Prolyte-logo at the ends
of the truss and it has two rings below the pin-holes.
The H40V has a triangular cross-section with chords:
339mm (w) x 339mm (h) (centre to centre)
387mm (w) x 387mm (h) (connection outside).
Chords: tubes 48.3x3 mm
Lattice and bracers: 20x2mm
See figure 9

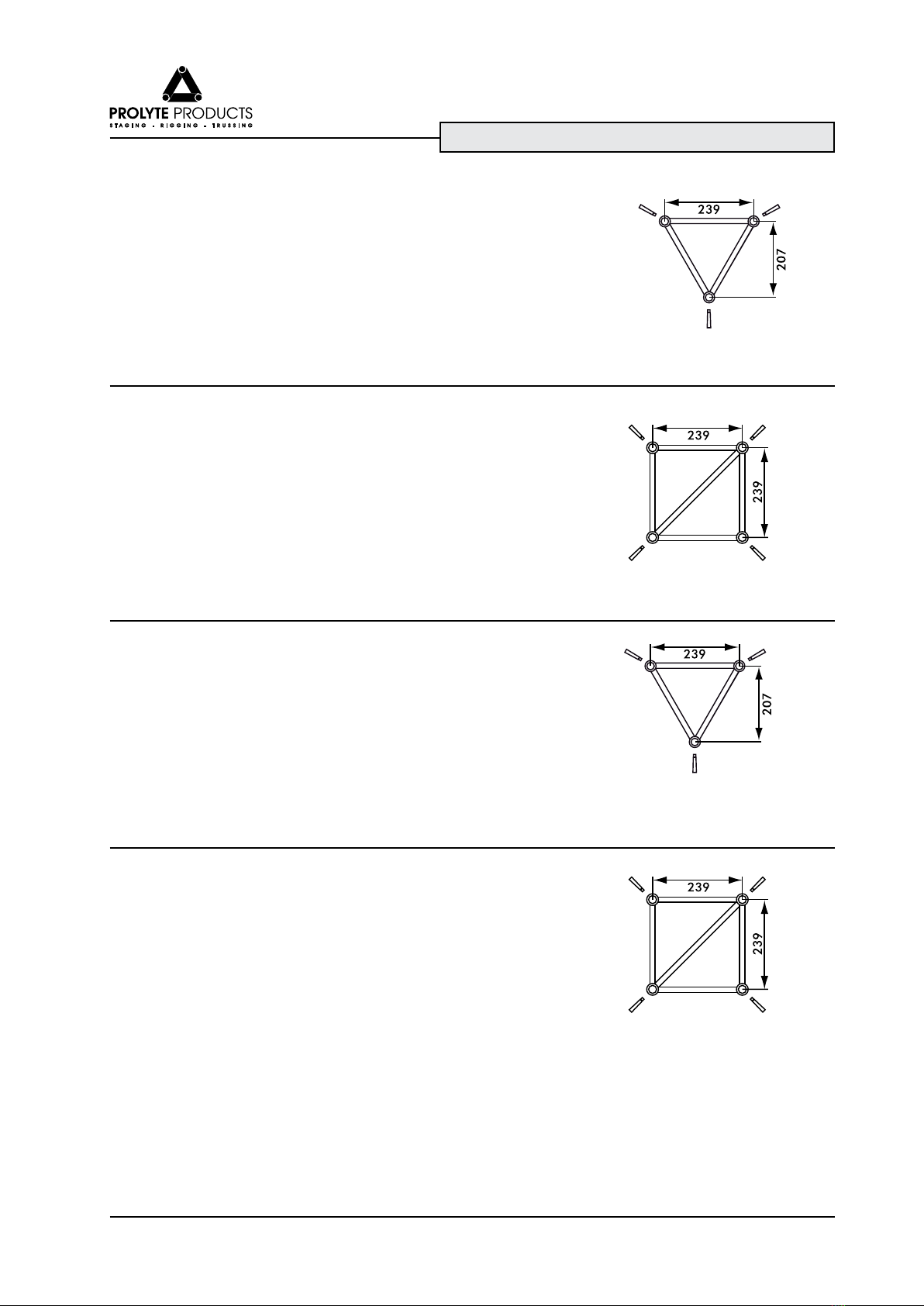

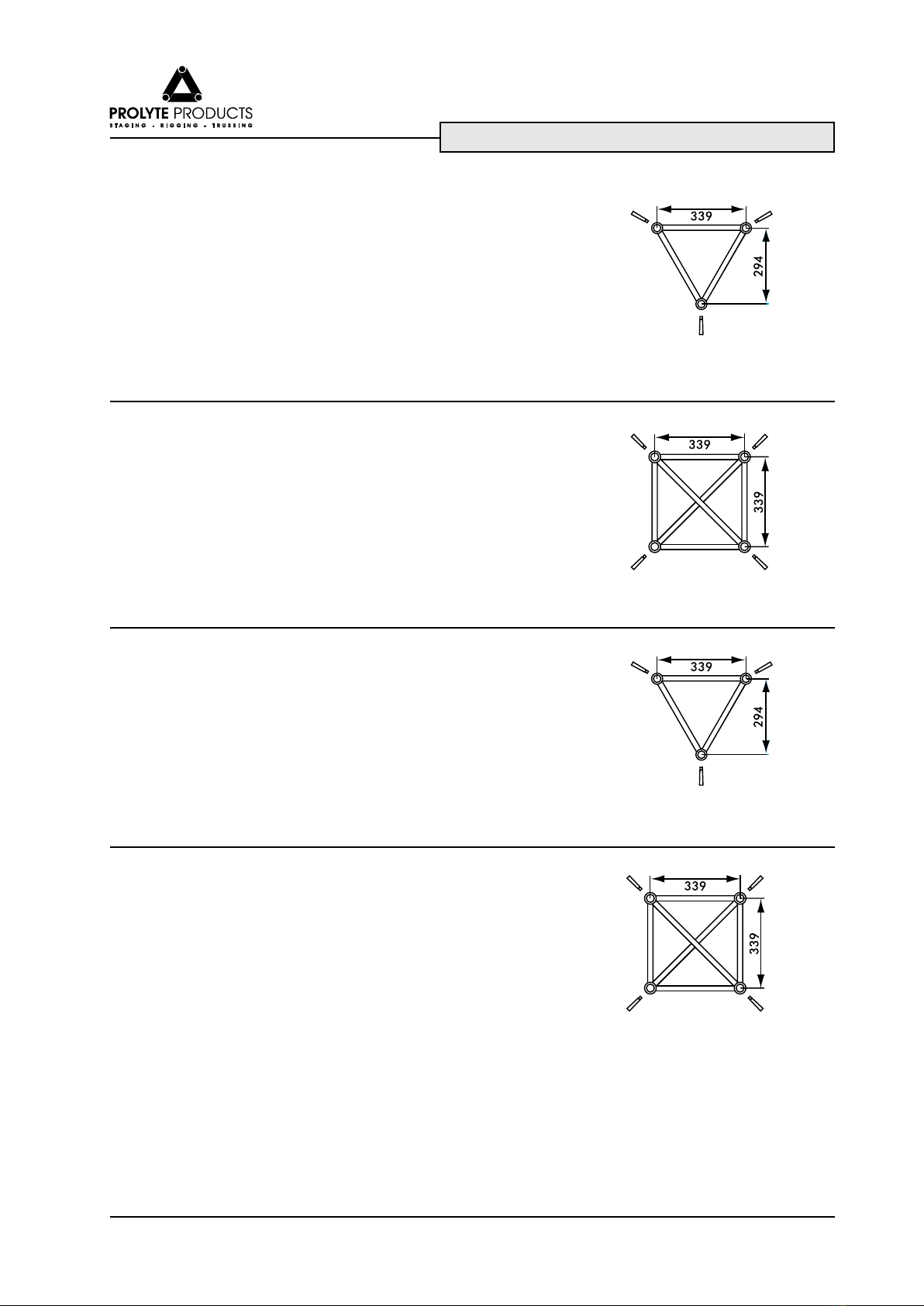

Figure 6 X40D dimensions
Figure 7 X40V dimensions
Figure 8 H40D dimensions
Figure 9 H40V dimensions
