ZF01-D Wireless Module

Operation Manual

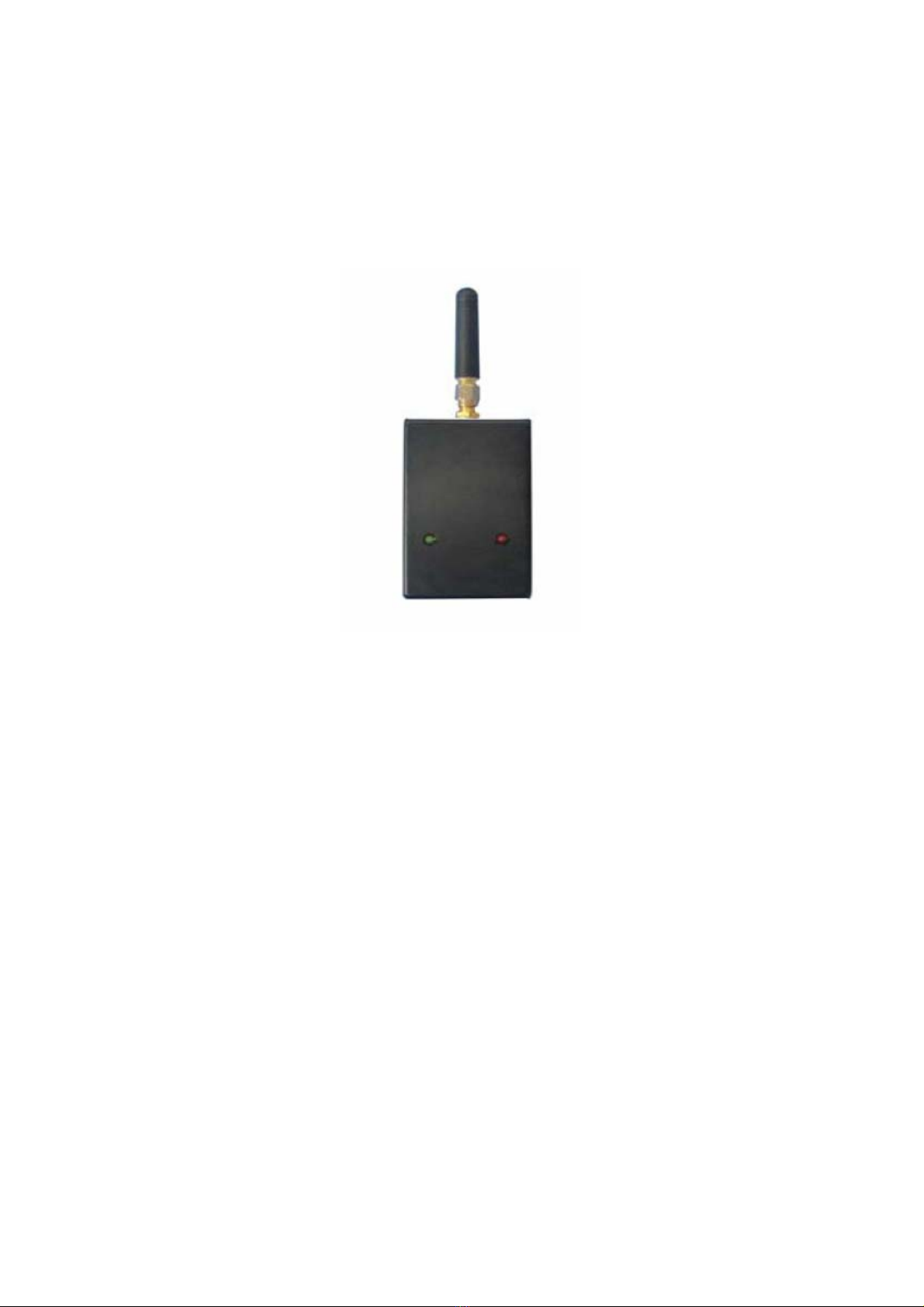

Figure 1. ZF01-D wireless module

zFeatures：

1．Providing RS-422/USB/RS-232/TTL interface，highly integrated，can connect with

t ransceiver equipment directly.

2. Low power RF transmission：Maximum transmit power 10mW

3. GFSK/FSK modulation mode

4. Crystal frequency stabilization.

5. High-efficiency forward error correction channel encoding technology is used.

zMain Application Areas：

1. AMR – Automatic Meter Reading

2. Wireless alarm and security systems

3. Wireless POS, PDA

4. Long-distance non-contact RF smart cards, RFID tags.

5. Wireless Field Bus、wireless conference voting system

zMain Technical Specifications：

RF channels(MHz) 433.050, 433.640, 434.410,434.910

modulation mode GFSK

baud rate 9600bps

output power 10mW

Interface data

format UART ,8E1/8N1 data format

Power supply DC 3.6V---5V

overall dimensions 70 X 45 X 17 mm

Channel

Figure2. interface and sizes

zInterface Description：

ZF01-D wireless module can be directly connected to equipment by Interface port,shown as

Figure3. wireless communication application diagram shown as Figure4

Figure3. ZF01-D Interface connect

Table1.Interface connect

USB connect D+ to D D- to C VCC to G GND to E (orF)

RS-422 connect +TX to A -TX to B -RX to C +RX to D

RS-232 RXD to 6 TXD to 7 GND to 5

TTL RXD to 4 TXD to 3 GND to 5

Figure4. ZF01-D wireless communication application diagram

zChannel setting

There is a channel setting switch as shown in Figure 2, defined as A,B,C respectively，so

there are 8 channels can be set .

Channel A1 A0 Freq.

0 OFF OFF 433.050MHz

1 OFF ON 433.640MHz

2 ON OFF 434.410MHz

3 ON ON 434.910MHz

Canada/FCC Statement:

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates

and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

zThe interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help

zThis device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause

undesired operation.

Note:“Changes or modifications to this unit not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.”
