Prolycht Orion 300FS Manuale utente

User Manual
© 2021 PROLYCHT Lighting Co., Ltd. All rights reserved.


Preface
Thank you for choosing Prolycht's Orion 300 FS color spot light. Orion 300 FS is by far the
most versatile spot light. It combines new semiconductor technology, innovative six-channel
color mixing technology and latest camera research achievements. It is powerful, portable
and reliable, made to be a brand-new weapon you can use for various film and video
production applications.
Safety Instructions
The light fixture is used for professional lighting. The lighting system and accessories must be
used by professional or trained personnel. All operations must follow the relevant safety
instructions:
1.All instructions must be read and understood before use, including the transport,
installation and operation of the equipment;
2. The weight of the lamp head and light accessories must be taken into account when
handling and lifting;
3. Check all cable connections before using. Make sure all cables are appropriately
labeled to prevent tripping;
4. In case the wire is damaged, it must be replaced with the same kind of wire;
5. In case the light source is damaged, it can only be replaced by Prolycht’s certified service
agent or Prolycht’s licensed full-time personnel;
6. The lamp head may reach high temperature when operating. To prevent from burns, staff
must operate carefully when touching the lamp body. it is recommended to wear
appropriate protective devices;
7. Be alert to fire and burn hazards and do not place flammable materials and objects in front
of the lamp;
8. Make full inspection lamp head electrical connection, safety isolation and insulation
protection before using;
9. Do not block and cover the light head vents with objects to prevent overheating;
10. Do not operate the lamp head when the light shield is closed, which may cause
overheating;
11. Before each usage, make visual inspection. Ensure regular electrical inspection at least
every 6 months. Record and form an archive;
12. Operating in explosive environment is prohibited;
13. Do not use the equipment in a humid or dusty environment, which may cause short circuits
and the risk of electric shock;
14. Do not operate the damaged equipment until a professional maintenance personnel
checked;
15. The lamp head and accessories must be safely connected to prevent falling;
16. Before cleaning maintenance or repair, the product must be shut down and the power
cable must be removed from the power outlet. Do not operate when the product is charged;
17. Do not immerse the lamp head in water or other liquids to prevent damage to equipment
and risk of electric shock;
18. When repairing is required, do not remove the lamp head on your own. The product must
be handed over to a designated qualified maintenance personnel. Incorrect removal may
damage the equipment or even cause electric shock when re-using;
- 1 -

CE Compliance Statement
The Orion products comply with the following EU-specified specifications:
1. Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014
on the harmonization of the laws of the Member States relating to electromagnetic
compatibility;
2.Safety requirement of the European Union LVD 2014/35/EU directive and its latest
amended version;
3. Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on the
restriction of the use of certain hazardous substances in electrical and electronic equipment.
EU uniform standards implemented:
EN 55015:2013+A1:2015
EN 61547:2009
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 60598-2-17:2018
EN 60598-1:2015
19. Do not place cables, plugs and contact parts in water to prevent the risk of electric shock;
20. Radiation and glare from the head of the lamp can cause damage to people and animals
(e.g. sunburn, impaired vision). Within the minimum distance (2.5m) specified in the
equipment and operating instructions, exposure to the beam for more than 8 hours per day
will cause injury;
21. Do not use non-recommended batteries, cables and other accessories, which may
damage the equipment, or even cause fire and electric shock;
22. When maintenance is required, must contact the designated authorized maintenance
personnel. Any malfunction caused by unauthorized self-removal is not within the scope of the
repair;
23. The lamp heads and all components that do not have the necessary protection must be
protected by other appropriate protective measures, make sure they are placed in
weatherproof positions, under protective roofs, and ensured that air flow around the
headlights was unrestricted;
24. Check and make sure that the weight of the lamp head, accessories and cables is lower
than the maximum safety load of the bracket;
25. When the lamp head is fixed on the bracket, the screws must be tightened and make sure
the bracket itself is balanced to prevent falls which may damage the equipment and threaten
personal safety;
26. This product is certified by RoHS, CE and FCC. Please strictly refer to the relevant
national standards for operation and use. Incorrect use causes damage to the equipment and
is not covered by the product warranty;
- 2 -

1.Packing List
- 3 -
Control Box Standard Reflector
Carrying Bag
AC Power Cable Connecting Cable
Quick Release
Clamp
User Manual Warranty Card
Lamp Head
Velcro Strap Velcro Strap
PROLYCHT
TM

Clamp Handle
Heat Outlet
Lamp Head Input Port
Product Label
Product ID
Yoke
Clamp Handle
Tripod
Standard
Reflector
Light – Emitting Surface
Mount Lock
Bowens Mount
2.Product Details
Lamp Head
- 4 -

- 5 -
(reserved)
AC Power Port
Control Interface
USB Port
Power Switch
Control Box Output Port
DMX In
DMX Out
LAN Port
Data com. Port
Battery Plate
Quick Shoe
Bluetooth Antenna
Controller Box

- 6 -
Quick Release Clamp
V Slot
(use to fix control box)
Spring Flake
(press to uninstall)
Claw Handler
(rotate to fix the claw
onto the tripod)

3.Installation
a) Turn On the Power b) Clip the Control Box
①Use the power cable to connect the
controller box and AC 100V~240V
Turn to lock
③When disassembling, press the spring
flake and remove the control box up.
③Press the power button on the controller
box
②Use the connecting cable to connect
lamp head and the controller box
②Insert the control box from top to
bottom into the fast-loading Clamp’s
card piece.
①Install the quick release clamp on the
control box
- 7 -
Turn to lock
Slide down to lock
spring
flake

- 8 -

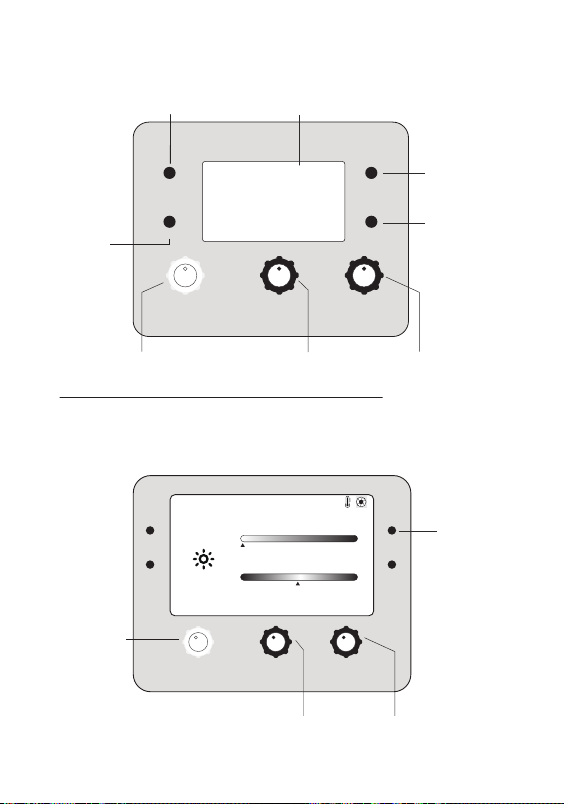

4.Operations
MENU
BACK
MODE
PRESET
INTENSITY / SELECTOR
a) CCT Mode
MENU
BACK
MODE
PRESET
INTENSITY / SELECTOR
BACK
MENU LCD Full Color Screen
MODE
PRESET
Right Knob Central Knob
INTENSITY/SELECTOR Knob*
*This is a multi-function knob, which can be turned or pressed
Adjust CCT Adjust Green/Magenta Deviation
Adjust Intensity
Switch to Next
Lighting Mode
CCT
100%
long press PRESET to save
2000K
G/M:+0.00
A
