PROmedilux PMX2A Manuale utente

PROmedilux

USER MANUAL

Air Purifier PMX2A

KEY FEATURES:

 Destro s microorganisms such as bacteria, fungi, easts and

viruses, including the CORONAVIRUS!

 Closed-t pe device suitable for public places with frequent

movement of persons.

 Safet pin that automaticall turns off the device when the cover

is opened.

 Incredibl low noise due to its special fans.

 2x filter prevents from UV discharge lamp soiling, provides

additional air purification, and prevents from UV radiation leakage.

 LED status and the need of UV discharge lamp replacement

notification.



Multi-functional mounting: wall-mount or desktop use.

IMPORTANT WARNING!

Read the safety features and this user manual carefully before

installing and connecting the device to power.

SAFETY FEATURES

The following safety features must be observed during device’s

use, operation and maintenance. Failure to comply with the safety

features in this manual may cause serious damage of the device,

its parts or accessories.

Do not use the device in explosive environment

Do not power up the device in the environment with flammable

gases and smokes. Do not use any electronic devices in such

environment due to the possible danger of explosion.

Water, humidit and heat

Do not use the device near water or in a high humidity

atmosphere, where condensation of water may occur inside the

device. Do not expose the device to rain. It can cause an electric

shock or a fire! Never install the device near a source of heat or

hot air. During installation, ensure that there is an access of air to

the device and the ventilation openings are not covered.

Powering up the device

To power up the device, use the original power cable. Wait for at

least 10 minutes after unpacking until the device’s temperature

adjusts to the temperature of the environment. The purifier is

protected with safety class 1 with IP20 protection. Operating

personnel must be informed about the characteristics and the

impact of the UV C ultraviolet radiation on the human being.

1. Air disinfection - use

The Air Purifier is designed for disinfection of interiors such as

hospitals, doctors’ and vets’ practices, cleaning rooms, offices

with or without AC units, food processing factories, storage rooms

and public places with frequent movement of persons. The

disinfection is achieved by forced air circulation through the

chamber with UV discharge lamps. The device is designed the

way that the radiation does not get out of the discharge lamp

chamber. So called germicidal radiation, that is ultraviolet radiation

of the UV C spectrum with a wavelength below 320 nm, is used

for disinfection. Air disinfection is accomplished by performing of

this spectrum on microorganisms that are present in the air. It is

used everywhere, where the disinfection of the environment using

ordinary methods is not possible.

2. Air purifier installation

During air purifier installation, consider natural air circulation in a

room and place it the way that there are no barriers around, which

would block getting sufficient amount of air circulation. Air purifier

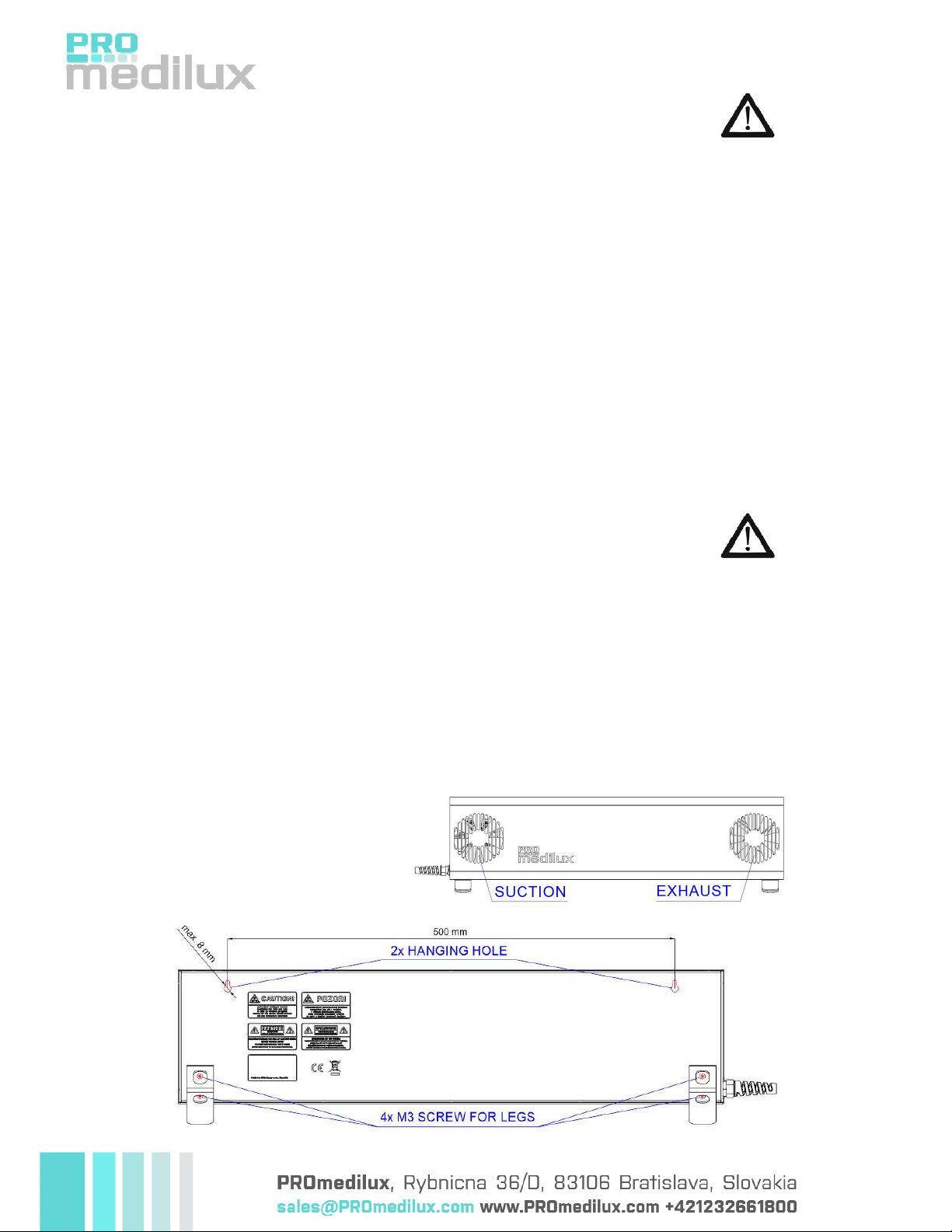

can be installed on the wall with two screws introduced through

holes on the rear side. Second option is an installation on the

stand with four supplied screws. In this case, you can easily put

air purifier on the table or other surface. For stand installation, a

PH1 screwdriver is needed.

3. Microprocessor control unit description, LED and RESET

Air purifier is equipped with a

microprocessor control unit, which

manages correct operation of the

whole device, air circulation and

calculates runtime of the discharge

lamps. On the side, there are OK and

SERVICE LED indicators, RESET

button and the main switch. After

turning on the main switch, fans will

start running and the green OK LED

indicator will light up. This means that

the device is working correctly. Red

SERVICE LED indicator will start

flashing 500 hours before the

discharge lamp lifetime ends. After

the lifetime ends, the red LED will be

on permanently.

4. Replacing UV discharge lamp

You need to replace UV discharge lamps after their lifetime has

ended. Even though they seem to light with the same, standard

color, the intensity of the ultraviolet UV C element is significantly

lower.

It is possible to open the device only when it is disconnected from

the power source. Unscrew the top cover and remove it. Eject the

discharge lamp from its base and remove it from the holder. Install

new discharge lamps in the reverse order mentioned before. We

recommend original OSRAM tubes of type HNS – see specification

in the technical specifications section. When closing the device,

ensure that the cover fits the device’s body and there is no gap

that could cause UV radiation leakage. Counter must be reset

after the replacement. Turn on the main switch and hold the reset

button pressed for at least 5 seconds using a thin object. The red

SERVICE LED will switch off. Malfunctioning or broken tubes must

be disposed as electronic waste.

5. Maintenance

Air purifier requires regular maintenance. Remove the dust or

other dirt using non aggressive cleaning aid. For correct

functioning of the emitter it is necessary to keep the tube clean

and monitor its lifetime. If the emitter is not supplied with a

programmable time switch with runtime counter, an operation log

must be provided to keep track of the UV C supply status at all

times. In case of any doubts, its efficiency must be checked by

measuring the intensity of the UV radiation.

6. Prevention from harmful effects of the UV-C radiation

UV C radiation has harmful effect on a human being depending on

the intensity and the time of exposure. When it comes to a

contact with eye, radiation can cause conjunctivitis. UV C

radiation is aggressive and harmful for humans, animals and

plants.

7. Description of PURITEC® HNS® discharge lamp

OSRAM PURITEC® HNS® are low pressure discharge lamps, which

emit short wave ultraviolet radiation. They are very environmentally

friendly, and they are a great alternative to chemical cleaners. Their

radiation effectively destroys cells and it is perfect for high

effective cleaning of water, air and surfaces while eliminating the

necessity to use chemical cleaners.

Operational principle of an UV C discharge lamp:

UV C radiation has photolytic effect on the DNA of microorganisms

like bacteria, molds, yeasts and viruses causing them to be

incapable to replicate. Cleaning effect is achieved by light of a

wavelength under 320 nm, with optimal effect at 260 nm. HNS

germicidal discharge lamps emit UV light with a wavelength of 254

nm – that is approx. 85% of the optimal effect and are ozone free.

HNS® discharge lamps do not generate ozone:

Main lines of the mercury discharge spectrum appear at 254 nm

and 185 nm. Ultraviolet light with lower wavelength below 240 nm

creates ozone. Discharge lamp housing is made of fused quartz,

which eliminates radiation below 240 nm. The discharge lamp

emits radiation, which destroys microorganisms, but does not leak

radiation that generates ozone.

8. Technical specifications:

Type: PROmedilux PMX2xx

Operation voltage: 230V/50Hz

Protection: IP20

Working environment according to IEC 60364 5 51: AB5

indoor environment with a temperature of 5 – 40 ºC

absolute humidity 1 – 25 g/m

relative humidity 5 – 85%

Airflow: 57 m

/hr

Noise level: <20 dB

Dimensions: 600 x 150 x 70 mm

Color: white RAL7035

Weight: 3.9 kg

Input power (according to the version):

PMX2A36 < 45 W

PMX2A48 < 55 W

UV C radiation supply (according to the version):

PMX2A36 OSRAM HNS L 18 W 2G11 or compatible

PMX2A48 OSRAM HNS L 24 W 2G11 or compatible

9. Icon explanation

General warning: Warns the user about the presence of

important operational and maintenance instructions in the

documentation attached to the device.

Dangerous voltage: Warns the user about the presence of

non isolated dangerous voltage inside the device, which

can cause electric shock.

Warning: UV C radiation is the strongest UV radiation – its

wavelength is below 280 nm. The UV C radiation

penetrates deeply into the fiber and it is harmful for living

organisms.

Crossed dust bin symbol means that the product or its

components cannot be disposed with domestic waste.

They must be disposed as electronic waste.

10. USER WARNING

During operation with the device, it is necessary to comply with the STN

343108 68 regulations, which contain safety regulations about handling the

electronic equipment by persons without electrotechnical qualification – see

more in the regulation No. 508/2009 of the Collection of Law of the Slovak

Republic.

Before any interference with the device or the device maintenance, it is

necessary to disconnect the device from the power supply.

The device can be plugged only to correctly installed electrical system with

correct fusing that complies with lawful regulations and norms. It is

dangerous to modify the device in any way.

Failure to compl with the listed warnings can cause electric shock or

damage of the device.

Classification of the PURITEC® HNS® discharge lamps according to IEC / EN

62471 (photo-biological hazard): hazard group 3

PURITEC® HNS® discharge lamp radiation poses a health risk. It can cause

conjunctivitis and er thema (sun burn) after a short exposure. Skin and e es

must be protected against direct discharge lamp radiation!

UV-C discharge lamps cannot be used for general lighting!
