Prorack K694 Manuale utente

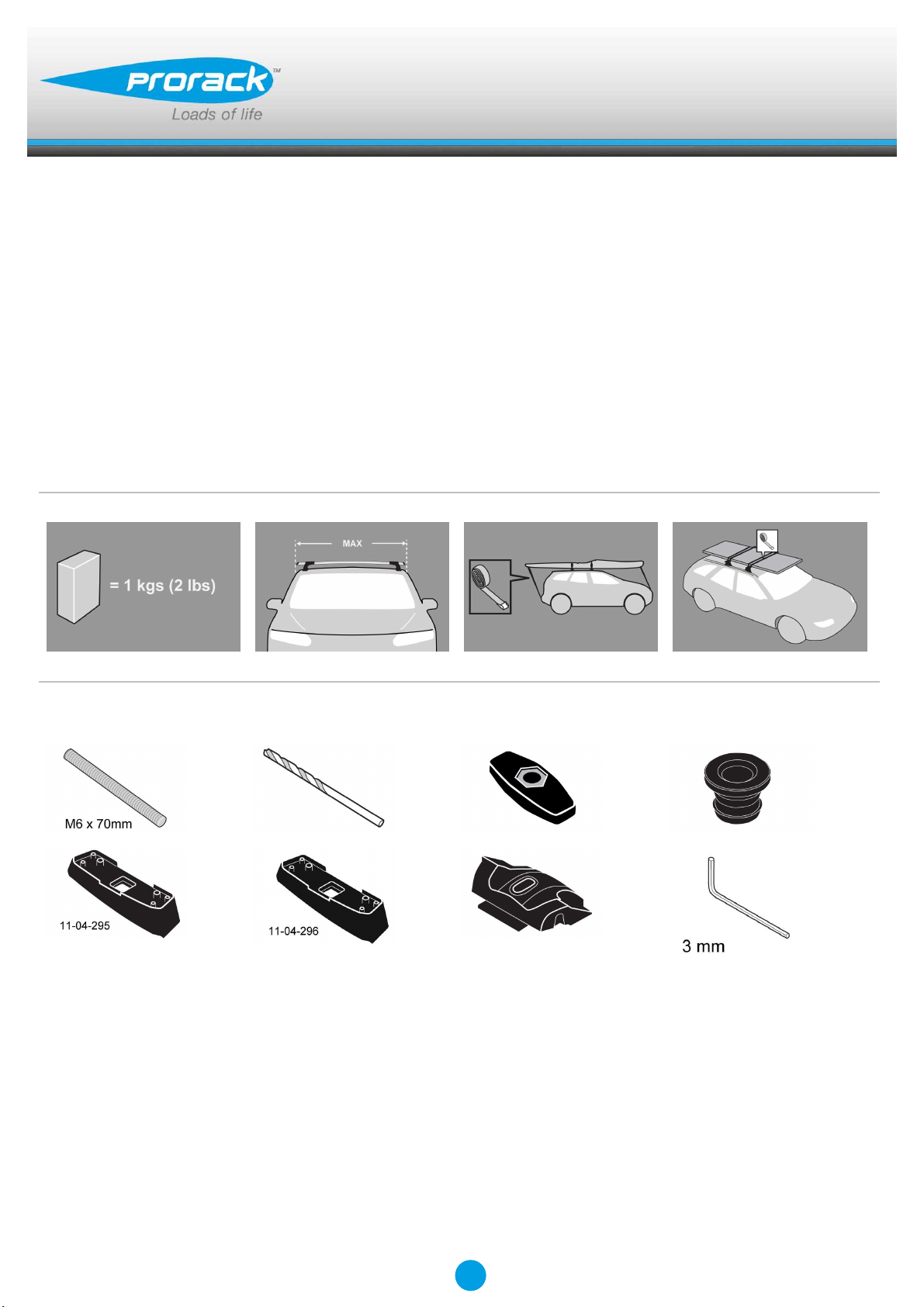

K694
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 4 x 1 x 4 x 4
x 2 x 2 x 4 x 1
Revision No: 6F 1
Fitting Kit K694
MAX kgs (lbs)
W/P WHD
Mazda
2, 5dr Hatch 15-+ NZ 50 kgs (110 lbs) 50 kgs (110 lbs)
2, 5dr Hatch 15-+ AU 50 kgs (110 lbs) 50 kgs (110 lbs)
2, 5dr Hatch 15-+ EU 50 kgs (110 lbs) 50 kgs (110 lbs)
3, 4dr Sedan 14-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
3, 4dr Sedan 14-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
3, 4dr Sedan 14-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
3, 4dr Sedan 14-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
6, 4dr Sedan 12-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
6, 4dr Sedan 12-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
6, 4dr Sedan 12-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
6, 4dr Sedan 14-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
Axela, 4dr Sedan 14-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Demio, 5dr Hatch 15-+ NZ 50 kgs (110 lbs) 50 kgs (110 lbs)
2
Fitting Kit K694
X
A B C 1 2 3
2, 5dr Hatch 15-+ (NZ) -225mm 520mm - 815mm 770mm -
-8 -7/8ths" 20 1/2ths" - 32 1/16ths" 30 5/16ths" -
2, 5dr Hatch 15-+ (AU) -225mm 520mm - 815mm 770mm -
-8 -7/8ths" 20 1/2ths" - 32 1/16ths" 30 5/16ths" -
2, 5dr Hatch 15-+ (EU) -225mm 520mm - 815mm 770mm -
-8 -7/8ths" 20 1/2ths" - 32 1/16ths" 30 5/16ths" -
3, 4dr Sedan 14-+ (NZ) -255mm 435mm - 938mm 890mm -
-10 -1/16ths" 17 1/8ths" - 36 15/16ths" 35 1/16ths" -
3, 4dr Sedan 14-+ (AU) -255mm 435mm - 938mm 890mm -
-10 -1/16ths" 17 1/8ths" - 36 15/16ths" 35 1/16ths" -
3, 4dr Sedan 14-+ (EU) -255mm 435mm - 938mm 890mm -
-10 -1/16ths" 17 1/8ths" - 36 15/16ths" 35 1/16ths" -
3, 4dr Sedan 14-+ (US) -255mm 435mm - 938mm 890mm -
-10 -1/16ths" 17 1/8ths" - 36 15/16ths" 35 1/16ths" -
6, 4dr Sedan 12-+ (NZ) -235mm 415mm - 945mm 890mm -
-9 -1/4ths" 16 5/16ths" - 37 3/16ths" 35 1/16ths" -
6, 4dr Sedan 12-+ (AU) -235mm 415mm - 945mm 890mm -
-9 -1/4ths" 16 5/16ths" - 37 3/16ths" 35 1/16ths" -
6, 4dr Sedan 12-+ (EU) -235mm 415mm - 945mm 890mm -
-9 -1/4ths" 16 5/16ths" - 37 3/16ths" 35 1/16ths" -
6, 4dr Sedan 14-+ (US) -235mm 415mm - 945mm 890mm -
-9 -1/4ths" 16 5/16ths" - 37 3/16ths" 35 1/16ths" -
Axela, 4dr Sedan 14-+ (NZ) -255mm 435mm - 938mm 890mm -
-10 -1/16ths" 17 1/8ths" - 36 15/16ths" 35 1/16ths" -
Demio, 5dr Hatch 15-+ (NZ) -225mm 520mm - 815mm 770mm -
-8 -7/8ths" 20 1/2ths" - 32 1/16ths" 30 5/16ths" -
3
Fitting Kit EN
K694
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
4
Fitting Kit EN
K694
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Attaches to factory-fitted mounting points
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
5
Fitting Kit EN
K694
●Tighten adjusting screw to 3 Nm (2.2 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
6
Fitting Kit EN
K694
Fitment

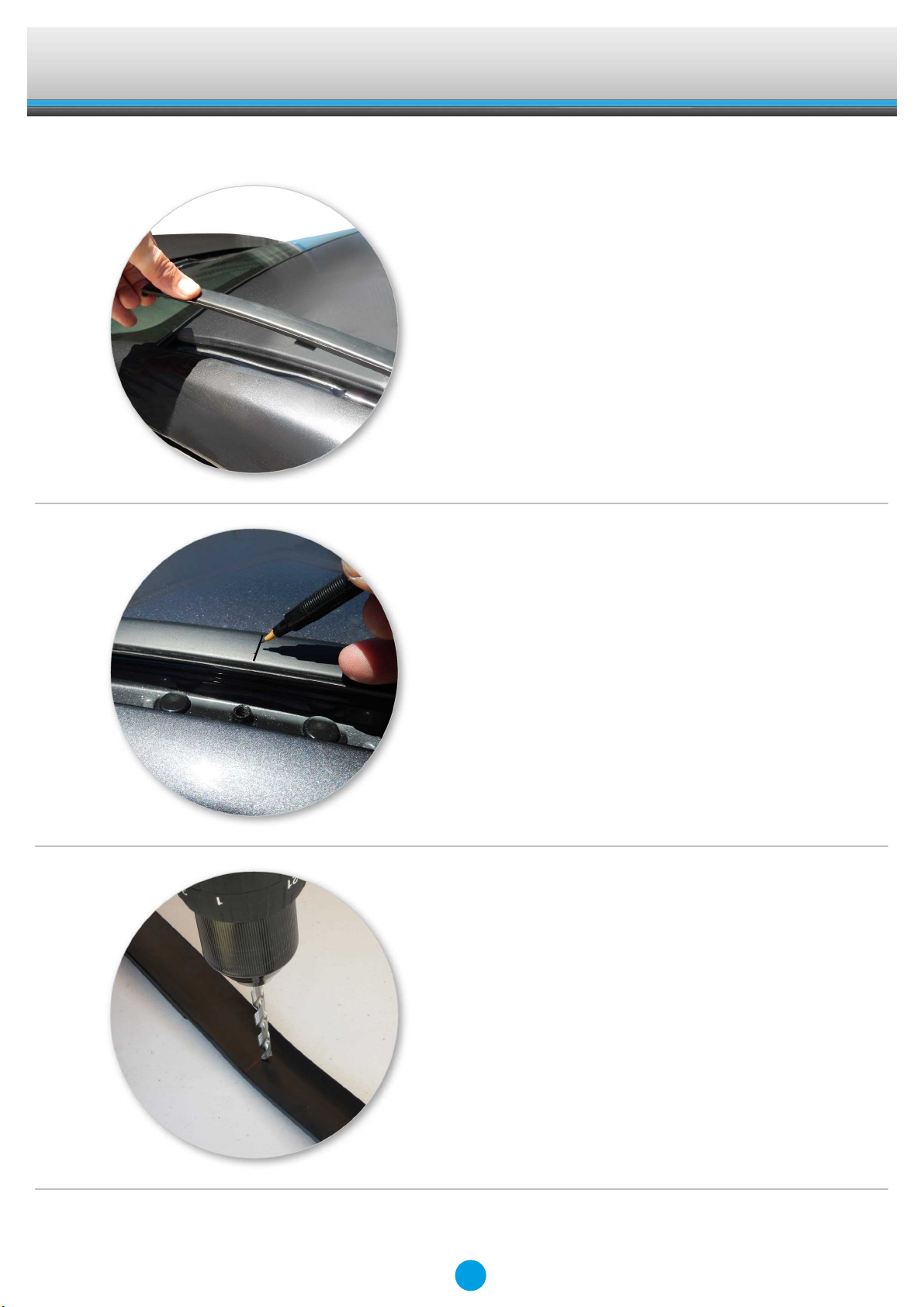

●Lift and pull ditch moulding back towards
you and remove from the vehicle.
●Mark a reference point for the front and
rear mounting points with a pen as shown.
●Use drill bit supplied, to drill holes in
marked positions.
7
Fitting Kit EN
K694

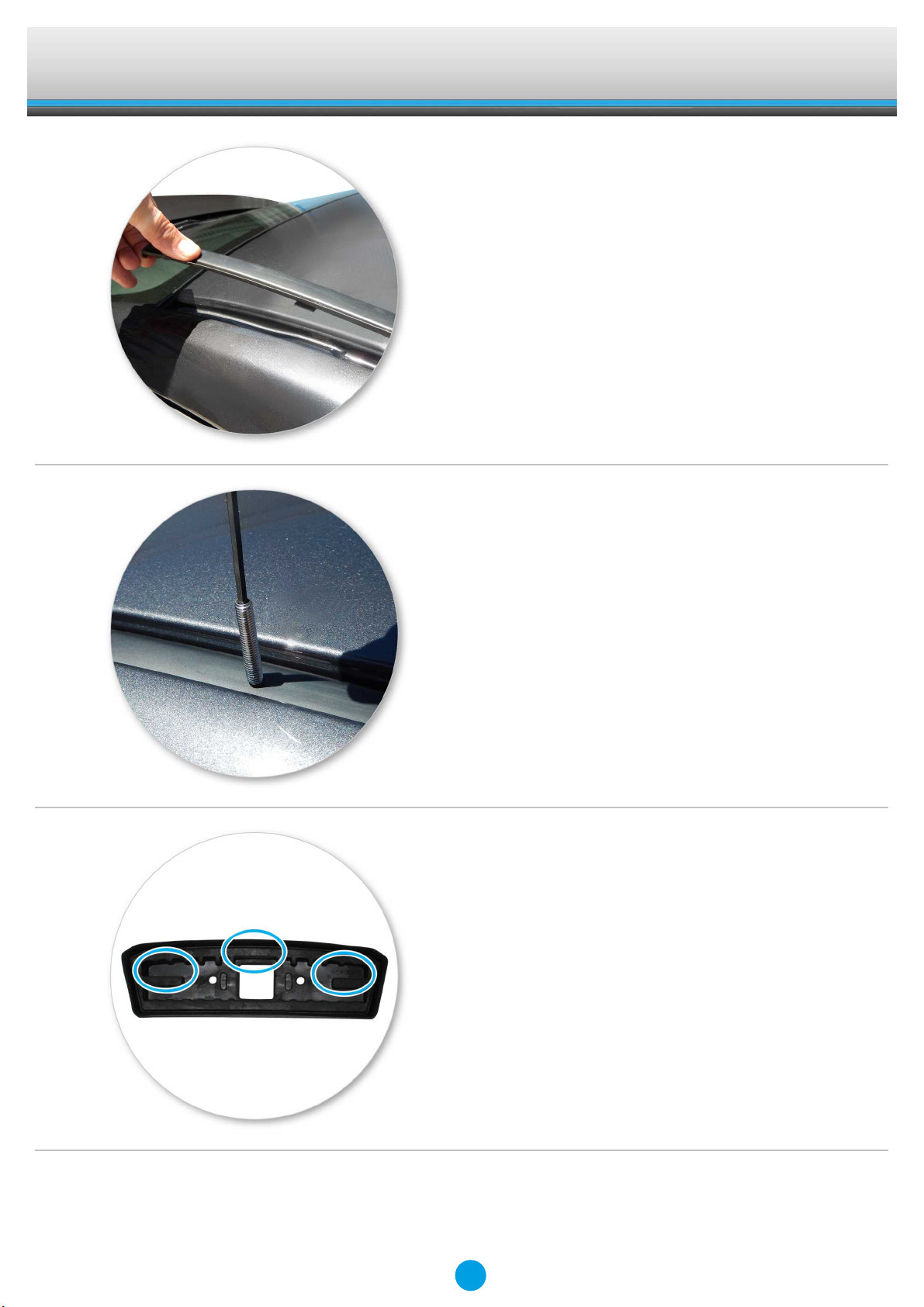

●Re-install rubber ditch mould back into roof
channel and click into place.
●Select grubscrews and screw into the
vehicle's fixed points.
●Do not over tighten.
●Repeat for all four positions.
●Refer to the underside of the pad for the
part number.
8
Fitting Kit EN
K694

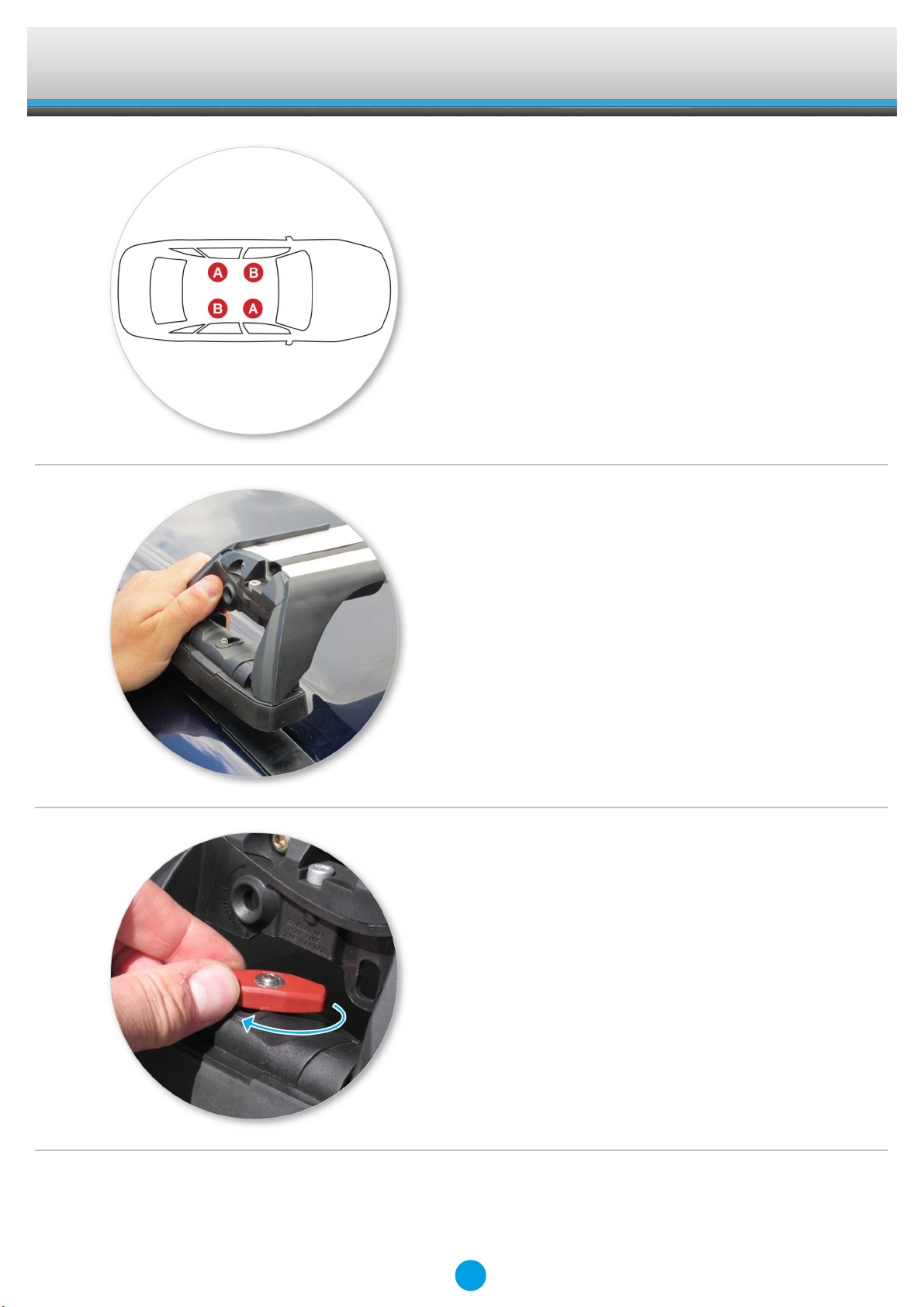

●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 295A
B = 296A
●Place crossbars on pads ensuring the pads
fit into the holes underneath the foot and
the grubscrew passes through the hole in
the foot.
●Repeat for all four positions.
●Tighten the plastic knob. The side with the
nut showing should be facing up.
9
Fitting Kit EN
K694

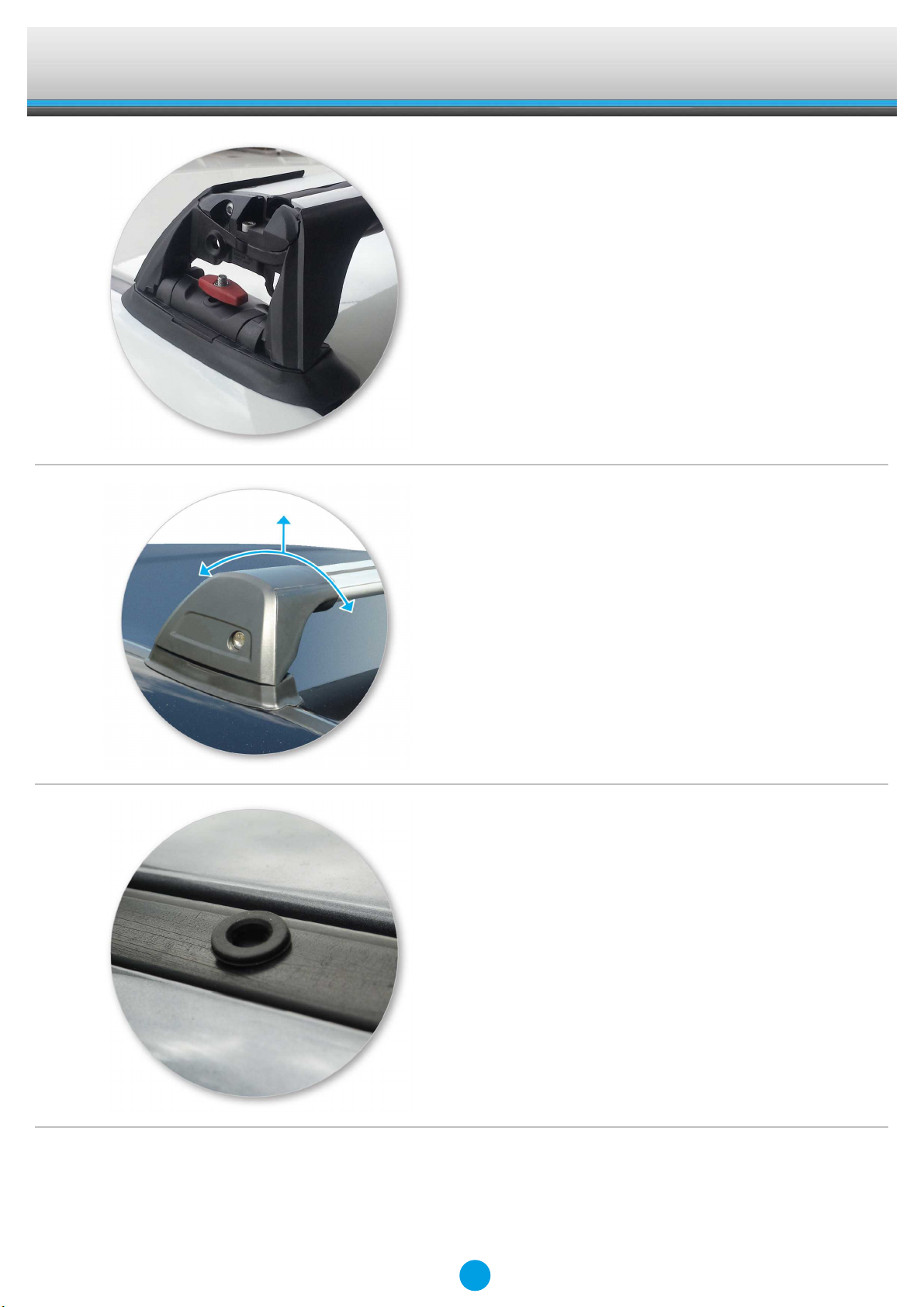

●Ensure the plastic knob is in the position
shown when fully tightened.
●Repeat for all legs.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
●If crossbars are removed, please install the
rubber plugs into the ditch moulding.
10
