Prorack S16 Manuale utente

K306

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 4

Revision No: 5E 1

Fitting Kit K306

MAX kgs (lbs)

W/P WHD

Nissan

Murano Mk1, 5dr SUV 03-08 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Murano ST, 5dr SUV Aug 05-09 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Murano ST, 5dr SUV Aug 05-09 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Murano, 5dr SUV 03-07 US 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit K306

A B C 1 2 3

Murano Mk1, 5dr SUV 03-08 (EU) -200mm 600mm - 895mm 870mm -

-7 -7/8ths" 23 5/8ths" - 35 1/4ths" 34 1/4ths" -

Murano ST, 5dr SUV Aug 05-09 (NZ) -200mm 600mm - 895mm 870mm -

-7 -7/8ths" 23 5/8ths" - 35 1/4ths" 34 1/4ths" -

Murano ST, 5dr SUV Aug 05-09 (AU) -200mm 600mm - 895mm 870mm -

-7 -7/8ths" 23 5/8ths" - 35 1/4ths" 34 1/4ths" -

Murano, 5dr SUV 03-07 (US) -200mm 600mm - 895mm 870mm -

-7 -7/8ths" 23 5/8ths" - 35 1/4ths" 34 1/4ths" -

Fitting Kit EN

K306

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K306

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K306

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

Fitting Kit EN

K306

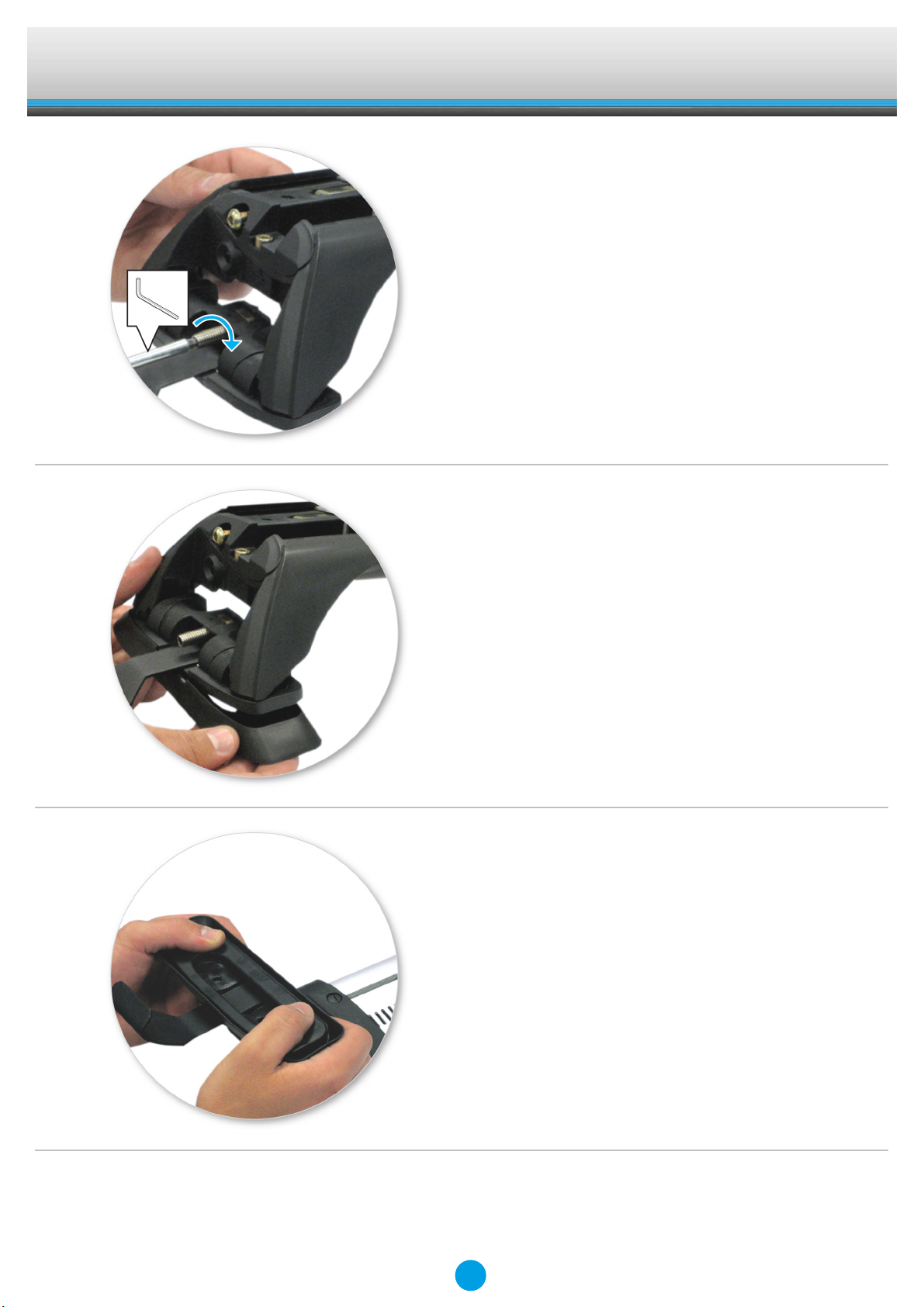

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Fit rubber pads (supplied with fitting kit) to

foot.

●Make sure the pad fits into the holes

underneath the foot.

Fitting Kit EN

K306

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

Fitting Kit EN

K306

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

Fitting Kit EN

K306

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
