ProSoft Technology RLXIC-EH Manuale utente

RLXIC-EH

Intelligent Cellular

RadioLinx Intelligent Cellular Ethernet

Gateway for HSUPA (3G GSM) Networks

May 29, 2009

USER MANUAL

Important Notice

Because of the nature of wireless communications, transmission and reception of data can never be guaranteed.

Data may be delayed, corrupted (that is, it may have errors) or be totally lost. Although significant delays or losses of

data are rare when wireless devices such as the RadioLinx Intelligent Cellular products are used in a normal manner

with a well-constructed network, the RadioLinx Intelligent Cellular products (RLXIC-EH) should not be used in

situations where failure to transmit or receive data could result in damage of any kind to the user or any other party,

including but not limited to personal injury, death, or loss of property. ProSoft Technology accepts no responsibility for

damages of any kind resulting from delays or errors in data transmitted or received using the RadioLinx Intelligent

Cellular products, or for failure of the RadioLinx Intelligent Cellular products (RLXIC-EH) to transmit or receive such

data.

Safety and Hazards

Do not operate the RadioLinx Intelligent Cellular products in areas where blasting is in progress, where explosive

atmospheres may be present, near medical equipment, near life support equipment, or any equipment which may be

susceptible to any form of radio interference. In such areas, the RadioLinx Intelligent Cellular products MUST BE

POWERED OFF. The RadioLinx Intelligent Cellular products can transmit signals that could interfere with this

equipment.

Do not operate the RadioLinx Intelligent Cellular products in any aircraft, whether the aircraft is on the ground or in

flight. In aircraft, the RadioLinx Intelligent Cellular products MUST BE POWERED OFF. When operating, the

RadioLinx Intelligent Cellular products can transmit signals that could interfere with various onboard systems.

Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open.

RadioLinx Intelligent Cellular RLXIC-EH may be used at this time.

The driver or operator of any vehicle should not operate the RadioLinx Intelligent Cellular products while in control of

a vehicle. Doing so will detract from the driver or operator's control and operation of that vehicle. In some states and

provinces, operating such communications devices while in control of a vehicle is an offence.

Limitation of Liability

The information in this manual is subject to change without notice, and does not represent a commitment on the part

of ProSoft Technology.

PROSOFT TECHNOLOGY, INC AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL

DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY

DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS

OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY PROSOFT TECHNOLOGY PRODUCT,

EVEN IF PROSOFT TECHNOLOGY AND/OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY.

Notwithstanding the foregoing, in no event shall ProSoft Technology and/or its affiliates aggregate liability arising

under or in connection with the ProSoft Technology product, regardless of the number of events, occurrences, or

claims giving rise to liability, be in excess of the price paid by the purchaser for the ProSoft Technology product.

Patents

Portions of this product may be covered by some or all of the following US patents:

5,515,013 5,629,960 5,845,216 5,847,553 5,878,234

5,890,057 5,929,815 6,169,884 6,191,741 6,199,168

6,339,405 6,359,591 6,400,336 6,516,204 6,561,851

6,643,501 6,653,979 6,697,030 6,785,830 6,845,249

6,847,830 6,876,697 6,879,585 6,886,049 6,968,171

6,985,757 7,023,878 7,053,843 7,106,569 7,145,267

7,200,512 D442,170 D459,303

and other patents pending.

Licensed under the following Nortel Networks Limited patents:

United States patent numbers: 5128925, 5398247

France patent numbers: 2665993, 2653959, 2659812, 2745091

Your Feedback Please

We always want you to feel that you made the right decision to use our products. If you have suggestions, comments,

compliments or complaints about the product, documentation or support, please write or call us.

ProSoft Technology

5201 Truxtun Ave., 3rd Floor

Bakersfield, CA 93309

+1 (661) 716-5100

+1 (661) 716-5101 (Fax)

www.prosoft-technology.com

RLXIC-EH User Manual

May 29, 2009

ProSoft Technology ®, ProLinx ®, inRAx ®, ProTalk®, and RadioLinx ® are Registered Trademarks of ProSoft

Technology, Inc. All other brand or product names are or may be trademarks of, and are used to identify products

and services of, their respective owners.

ProSoft Technology® Product Documentation

In an effort to conserve paper, ProSoft Technology no longer includes printed manuals with our product shipments.

User Manuals, Datasheets, Sample Ladder Files, and Configuration Files are provided on the enclosed CD, and are

available at no charge from our web site: www.prosoft-technology.com

Printed documentation is available for purchase. Contact ProSoft Technology for pricing and availability.

Asia Pacific: +603.7724.2080

Europe, Middle East, Africa: +33 (0) 5.3436.87.20

Latin America: +1.281.298.9109

North America: +1.661.716.5100

Contents RLXIC-EH ♦Intelligent Cellular

User Manual RadioLinx Intelligent Cellular Ethernet Gateway for HSUPA (3G GSM) Networks

ProSoft Technology, Inc. Page 5 of 111

May 29, 2009

Contents

Important Notice..................................................................................................................................2

Safety and Hazards ............................................................................................................................2

Limitation of Liability............................................................................................................................2

Patents................................................................................................................................................3

Your Feedback Please........................................................................................................................3

ProSoft Technology® Product Documentation...................................................................................3

1Introduction to the RLXIC-EH 7

1.1 ALEOS™...................................................................................................................8

1.2 AceWare™................................................................................................................8

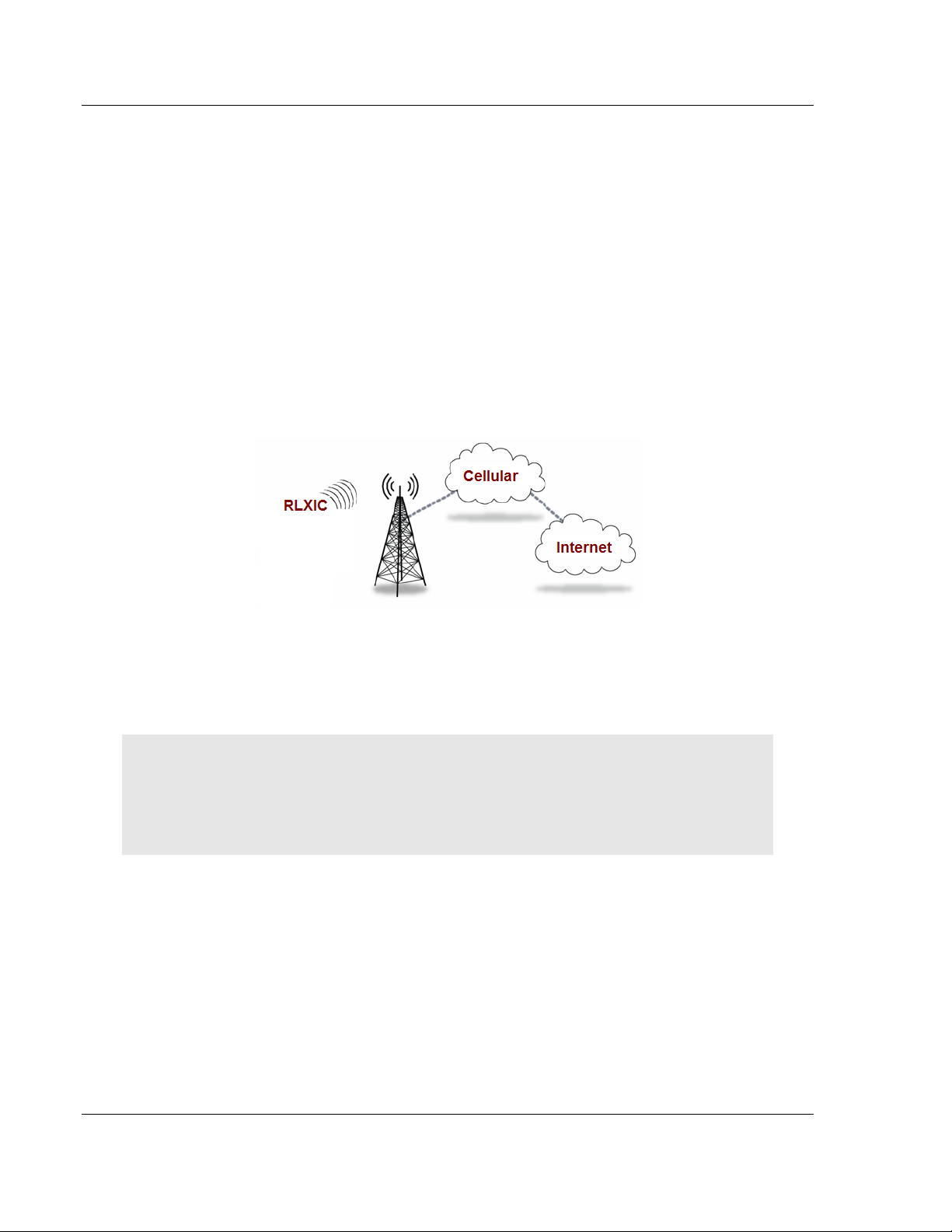

1.3 Connecting to your cellular provider........................................................................10

1.4 GSM Communication..............................................................................................11

2Specifications 13

2.2 Power Connector.....................................................................................................15

3Activating RLXIC-EH on your cellular provider 17

3.1 Installing the SIM.....................................................................................................17

3.2 Configuring the APN................................................................................................19

4Hardware Installation of the RLXIC-EH 21

4.1 Connecting to Power...............................................................................................22

4.2 Connecting to a Computer or other Device.............................................................23

4.3 Indicator Lights........................................................................................................23

4.4 Mounting..................................................................................................................24

4.5 Connecting Antennas..............................................................................................26

5Configuring your RLXIC-EH 27

5.1 Using AceManager..................................................................................................28

5.2 Using Templates .....................................................................................................30

5.3 Using a Terminal Application with AT Commands..................................................34

6Universal Serial Bus (USB) 37

6.1 Changing the USB port communication..................................................................37

6.2 Installing the USB driver..........................................................................................38

6.3 Using the Virtual Ethernet Port................................................................................45

6.4 Using the Virtual Serial Port....................................................................................46

7Data Communication and Host Modes 47

7.2 Basic Modes............................................................................................................48

RLXIC-EH ♦Intelligent Cellular Contents

RadioLinx Intelligent Cellular Ethernet Gateway for HSUPA (3G GSM) Networks User Manual

Page 6 of 111 ProSoft Technology, Inc.

May 29, 2009

7.3 Serial Modes........................................................................................................... 49

7.4 Data Communication.............................................................................................. 53

7.5 Keepalive................................................................................................................ 58

8IP Manager 61

8.2 Understanding Domain Names............................................................................... 62

8.3 Dynamic Names ..................................................................................................... 63

8.4 Using IP Manager with your RLXIC-EH.................................................................. 63

8.5 Understanding DNS................................................................................................ 65

9SNMP : Simple Network Management Protocol 67

9.2 SNMP Configuration............................................................................................... 68

9.3 SNMP MIB Definition Sample................................................................................. 70

10 Configuration Commands 75

10.1 Info (Information) .................................................................................................... 75

10.2 Status...................................................................................................................... 77

10.3 Common ................................................................................................................. 79

10.4 Logging................................................................................................................... 97

10.5 Cellular.................................................................................................................... 99

11 Support, Service & Warranty 101

11.1 How to Contact Us: Technical Support................................................................. 101

11.2 Return Material Authorization (RMA) Policies and Conditions............................. 102

11.3 LIMITED WARRANTY.......................................................................................... 103

Index 109

Introduction to the RLXIC-EH RLXIC-EH ♦Intelligent Cellular

User Manual RadioLinx Intelligent Cellular Ethernet Gateway for HSUPA (3G GSM) Networks

ProSoft Technology, Inc. Page 7 of 111

May 29, 2009

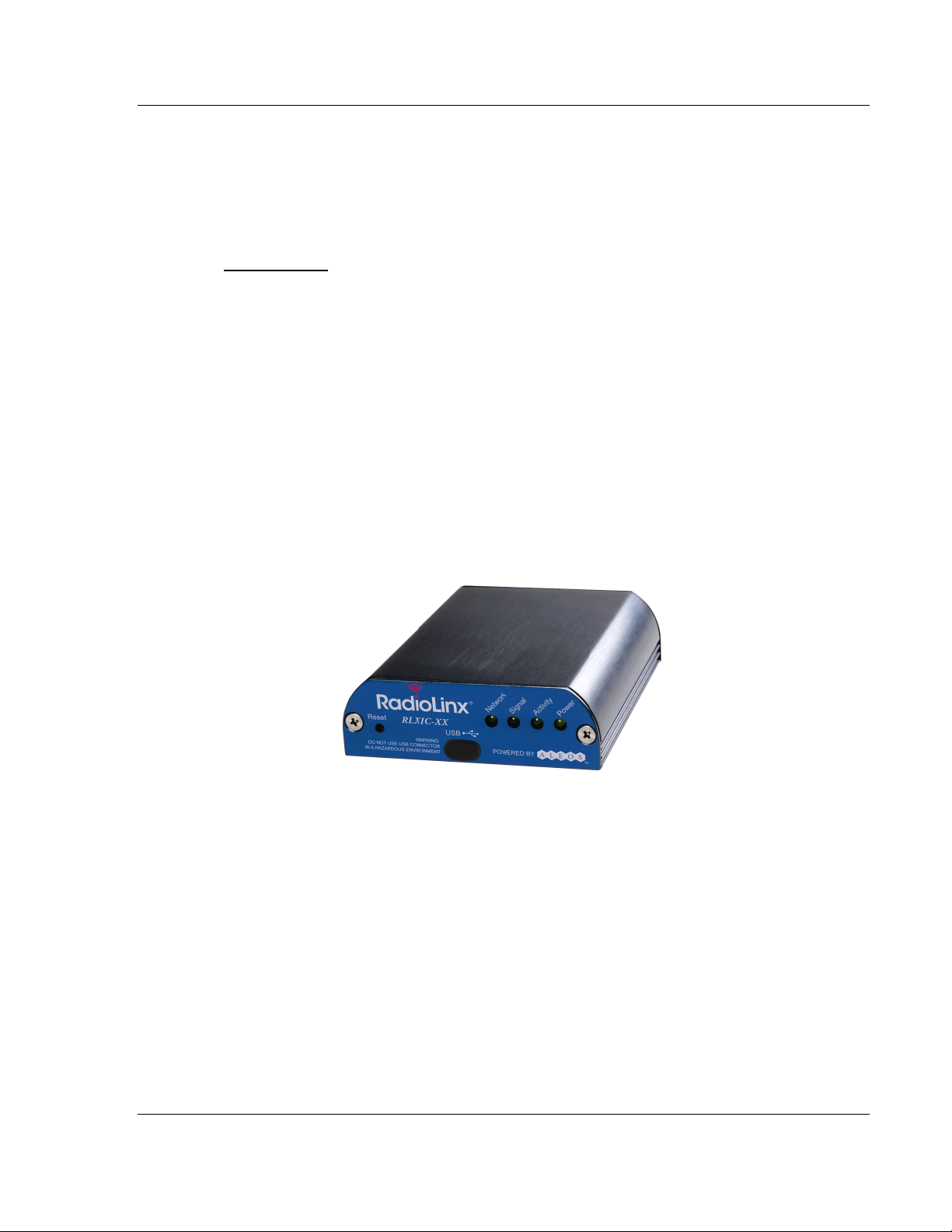

1 Introduction to the RLXIC-EH

In This Chapter

ALEOS™.................................................................................................8

AceWare™..............................................................................................8

Connecting to your cellular provider......................................................10

GSM Communication ............................................................................11

consistent network connection. With a serial interface and a vast library of

machine protocols, the RLXIC-EH is a workhorse for industrial and mission

critical applications. Class I Division 2 certified as nonincendive equipment, the

RLXIC Series is ideally suited for use in hazardous environments.

Key applications include utilities, manufacturing, automation, oil and gas,

SCADA, telemetry, Homeland Security, and asset monitoring.

RLXIC-EH ♦Intelligent Cellular Introduction to the RLXIC-EH

RadioLinx Intelligent Cellular Ethernet Gateway for HSUPA (3G GSM) Networks User Manual

Page 8 of 111 ProSoft Technology, Inc.

May 29, 2009

1.1 ALEOS™

ALEOS, the embedded core technology of the RadioLinx Intelligent Cellular

products, simplifies installation, operation and maintenance of any solution, and

provides an always-on, always-aware intelligent connection for mission-critical

applications. ALEOS enables:

Persistent Network Connectivity

Over-The-Air (OTA) Upgrades

Wireless Optimized TCP/IP

Real-Time Notification

Extensive Machine Protocols

Packet Level Diagnostics

Device Management & Control

Protocol Spoofing

1.2 AceWare™

A wireless solution is not complete until you have software tools to manage the

devices monitoring your valuable equipment. AceWare™ is the device

management and monitoring application suite for RadioLinx Intelligent Cellular

products powered by ALEOS.

These modem utilities, except AceNet, are free of charge to those who own

Intelligent Cellular modems. You can download the applications and their user

guides from the ProSoft Solutions web site: www.prosoft-technology.com.

Contact your dealer or ProSoft Technology representative for information on

AceNet.

AceManager, the AceWare remote configuration and monitoring tool, simplifies

deployment, and provides extensive monitoring, control and management

capabilities. AceManager gives you the power to monitor and control your

RadioLinx communications platforms in real time.

Simplified Deployment

AceManager provides the ability to remotely set up and configure your RadioLinx

Intelligent Cellular products. Remote device setup and configuration reduces the

deployment timeline of your wireless solution, and provides a quicker path to

ROI.

Templates allow you to easily configure other devices in your fleet with identical

settings, ensuring a simple, accurate deployment.

Monitor and Control

AceManager allows an administrator to remotely monitor a modem's status,

health, and configuration settings. The user interface displays signal strength,

cell site information, byte counters, and error conditions, enabling you to locate

any issues, and troubleshoot immediately.

Introduction to the RLXIC-EH RLXIC-EH ♦Intelligent Cellular

User Manual RadioLinx Intelligent Cellular Ethernet Gateway for HSUPA (3G GSM) Networks

ProSoft Technology, Inc. Page 9 of 111

May 29, 2009

AceManager enables remote configuration and parameter settings to be changed

or reset instantly over the air, change a device's port configuration, IP address

settings, and much more. After configuring one modem, use the template feature

to copy that device configuration to other modems.

Tip: Configuration steps and examples in this guide use AceManager.

AceNet, the enterprise grade productivity enhancing tool, enables you to

efficiently deploy, and monitor RadioLinx Intelligent Cellular products on a large

scale.

Network Monitoring

AceNet allows you to efficiently deploy, monitor, and maintain wireless networks

of any size by enabling you to quickly configure an entire group of RadioLinx

modems to the same parameter settings using templates built with AceManager.

To ensure your implementation is optimal, users can easily see when modems

are out of contact, and periodically poll each device for performance statistics.

AceView is an efficient status and connection monitoring application with a low-

profile, easy to read interface.

1.2.1 Modem Doctor

Modem Doctor is a troubleshooting and diagnostics utility. This utility will allow

you to get a log file of the RLXIC-EH activity which you can then send to ProSoft

Technology support, erase the current configuration completely, and temporarily

set the RLXIC-EH to a known configuration to aid in trouble shooting (SOS

mode).

RLXIC-EH ♦Intelligent Cellular Introduction to the RLXIC-EH

RadioLinx Intelligent Cellular Ethernet Gateway for HSUPA (3G GSM) Networks User Manual

Page 10 of 111 ProSoft Technology, Inc.

May 29, 2009

1.3 Connecting to your cellular provider

The RLXIC-EH uses your cellular provider as an ISP (Internet Service Provider)

to connect you to the Internet.

1.3.1 Steps of a connection:

1 When your RLXIC-EH is powered on, it automatically searches for cellular

service using GSM/GPRS.

2 Your RLXIC-EH establishes a PPP (Point to Point Protocol or "dial" up

connection) link to the your cellular provider network, also called registering

on the network, and receives an IP address.

3 When your RLXIC-EH has received its IP address from your cellular provider,

a connection to the Internet or the cellular network is also available for a

computer or other device connected directly to the RLXIC-EH.

The RLXIC-EH will perform a one-to-one routing for all internet traffic to and

from the computer or other end device. One-to-one means that your RLXIC-EH

will provide a connection for one device to the Internet at a time. In Private Mode,

the RLXIC-EH will provide NAT (Network Address Translation) for the computer

or other end device.

Note: The RLXIC-EH does not provide advanced routing required by one-to-many (several devices

connected to one port). If you need to have more than one device connected to the Internet

through your RLXIC-EH, you will need to have a router connected to the modem. The modem

would provide the one-to-one connection to the router with the router configured to provide a

broader NAT service to the other devices connected to it.

1.3.2 Dynamic vs. Static IP Addresses

There are two types of addresses on networks: dynamic and static.

Dynamic addresses are assigned on a "need to have" basis. Your RLXIC-EH

might not always receive the same address each time it connects with your

cellular provider.

Static addresses are permanently assigned to a particular account, and will

always be used whenever your RLXIC-EH connects to the Internet. The IP

address will not be given to anyone else.

Indice

Altri manuali ProSoft Technology Portale

ProSoft Technology

ProSoft Technology PLX51-PBM Manuale utente

ProSoft Technology

ProSoft Technology PLX82-EIP-PNC Manuale utente

ProSoft Technology

ProSoft Technology ICX35-HWC Manuale utente

ProSoft Technology

ProSoft Technology PLX51-PBS Manuale utente

ProSoft Technology

ProSoft Technology ICX35-HWC Manuale utente

ProSoft Technology

ProSoft Technology PLX51-PBM Manuale utente

ProSoft Technology

ProSoft Technology ProSoft 1560 Manuale utente

ProSoft Technology

ProSoft Technology PLX3 Series Manuale utente

ProSoft Technology

ProSoft Technology ProLinx S3964R Nota di rilascio

ProSoft Technology

ProSoft Technology ProLinx DNPS Manuale utente

ProSoft Technology

ProSoft Technology ProLinx 5604-RIO-PDPMV1 Manuale utente

ProSoft Technology

ProSoft Technology ProLinx-HART Nota di rilascio

ProSoft Technology

ProSoft Technology PLX30 Series Manuale utente

ProSoft Technology

ProSoft Technology PLX3x Series Manuale utente

ProSoft Technology

ProSoft Technology ICX30-HWC Manuale utente

Manuali Portale popolari di altre marche

LST

LST M500RFE-AS Manuale utente

Kinnex

Kinnex Media Gateway Manuale utente

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuale utente

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuale utente

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuale utente

Telsey

Telsey CPVA 500 - SIP Manuale utente

RTA

RTA 460A-NNA4 Scheda tecnica

Shaw

Shaw Gateway HDPVR Manuale utente

ABB

ABB VSN900 Guida rapida

Commander

Commander Pulse Manuale utente

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuale utente

NETGEAR

NETGEAR C6300BD Manuale utente

Amit

Amit CDW531AM Manuale utente

HMS

HMS Netbiter EasyConnect EC150 Manuale utente

Huawei

Huawei EchoLife HG620 Manuale utente

AT&T

AT&T U-verse 3801 Manuale per l'uso e la cura

Logic IO

Logic IO RTCU MX2 turbo Manuale utente

Suttle

Suttle MediaMAX MXM-521 Manuale utente
