ProSoft Technology PLX51-DF1-ENI Manuale di istruzioni
PLX51-DF1-ENI
DF1 Router
RSLogix500 Programming of
SLC500/MicroLogix via PLX51-DF1-ENI
December, 2017
TECHNICAL NOTE
Preface
Page 2of 19
CONTENTS
1. Preface ...............................................................................................................................3
1.1. Purpose of this Document...........................................................................................3
1.2. Additional Information................................................................................................3
2. Application Description......................................................................................................5
3. Setup ..................................................................................................................................7
3.1. Serial Cable Wiring ......................................................................................................7
3.2. PLX51-DF1-ENI Setup ..................................................................................................8
3.3. SLC500 Setup (RSLogix 500) ........................................................................................9
3.4. RSLinx Setup ..............................................................................................................10
Uploading EDS File from Module.....................................................................................10
Manually Installing the EDS File.......................................................................................13
3.5. RSLogix 500................................................................................................................16
4. Support, Service & Warranty ...........................................................................................17
4.1. Contacting Technical Support ...................................................................................17
4.2. Warranty Information ...............................................................................................19
Preface
Page 3of 19
1. PREFACE
1.1. PURPOSE OF THIS DOCUMENT
This document assists you in the setup of the PLX51-DF1-ENI to allow remote RSLogix 500
programming of an SLC/MicroLogix PLC.
1.2. ADDITIONAL INFORMATION
The following resources contain additional information that can assist you with the module
installation and operation.
Resource
Link
PLX50 Configuration Utility Software
www.prosoft-technology.com
PLX51-DF1-ENI User Manual
PLX51-DF1-ENI Datasheet
Example Code & UDTs
www.prosoft-technology.com
Ethernet wiring standard
www.cisco.com/c/en/us/td/docs/video/cds/cde/cde205_220_42
0/installation/guide/cde205_220_420_hig/Connectors.html
CIP Routing
The CIP Networks Library, Volume 1, Appendix C:Data
Management
Map PLC/SLC messages
SLC to CompactLogix Migration Guide: Chapter 3 –Map PLC/SLC
Messages (1769-ap001_-en-p.pdf)
EtherNet/IP Network Configuration: Chapter 5 –Mapping Tags
(enet-um001_-en-p.pdf)
Page 4of 19
Application Description
Page 5of 19
2. APPLICATION DESCRIPTION
The ProSoft PLX51-DF1-ENI can be used to enable multiple modern Ethernet devices to
communicate to legacy SLC500 and MicroLogix devices via their DF1 serial ports. In the
application example below, a remote RSLogix 500 programming station can communicate
with, and program an SLC500 PLC.

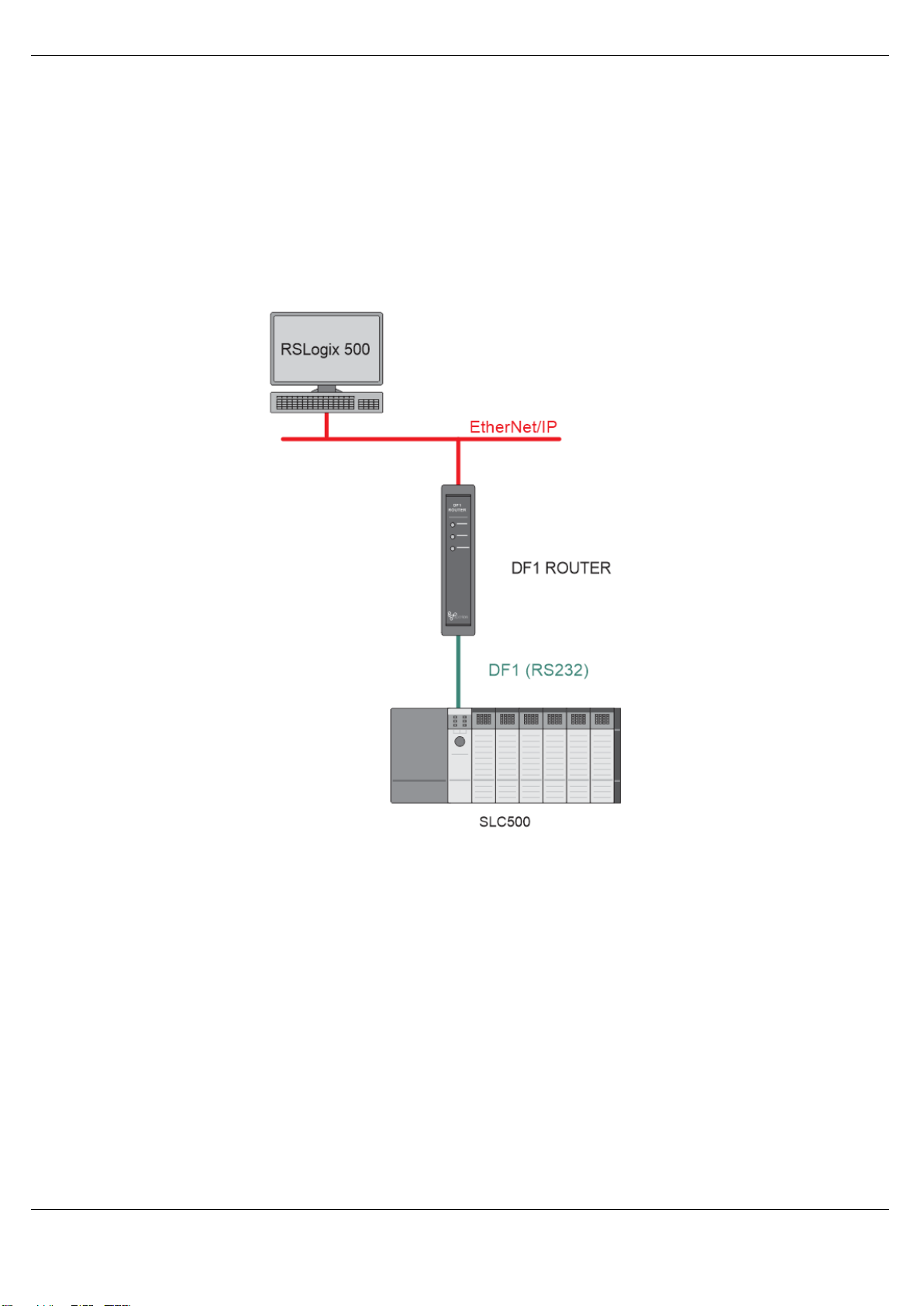

FIGURE 1-EXAMPLE OF A TYPICAL NETWORK SETUP
Page 6of 19
Setup
Page 7of 19
3. SETUP
The following sections describe the installation and configuration of the required devices in
the network.
3.1. SERIAL CABLE WIRING
The serial cable pinout is shown in the figure below:
FIGURE 2–SERIAL CABLE PINOUT
Setup
Page 8of 19
3.2. PLX51-DF1-ENI SETUP
The PLX51-DF1-ENI must be configured in Bridge mode, as shown below.
FIGURE 3–DF1 GENERAL CONFIGURATION
In the Serial-DF1 settings, the protocol must be set to Full Duplex. The BAUD Rate, Parity and
Error Detection must match that of the SLC device (as configured using RSLogix 500).
FIGURE 4–DF1 SERIAL CONFIGURATION
No Bridge mapping items are required to be configured.
Setup
Page 9of 19
3.3. SLC500 SETUP (RSLOGIX 500)
Using RSLogix500, the DF1 serial port must be configured to match that of the PLX51-DF1-
ENI’s serial port settings with respect to BAUD rate, Parity and Error Detection.
NOTE: The DF1 Full Duplex must be selected, and the Duplicate Packet Detect
option must be removed.
FIGURE 6–SLC SERIAL CHANNEL CONFIGURATION
Setup
Page 10 of 19
3.4. RSLINX SETUP
The PLX51-DF1-ENI’s EDS file must be registered on the programming PC. This can be achieved
in two ways:
Uploading the EDS file from the PLX51-DF1-ENI online, or
Downloading the EDS file from the ProSoft website and manually registering it.
NOTE: Older revisions of RSLinx may not support the uploading of the EDS file
option.
UPLOADING EDS FILE FROM MODULE

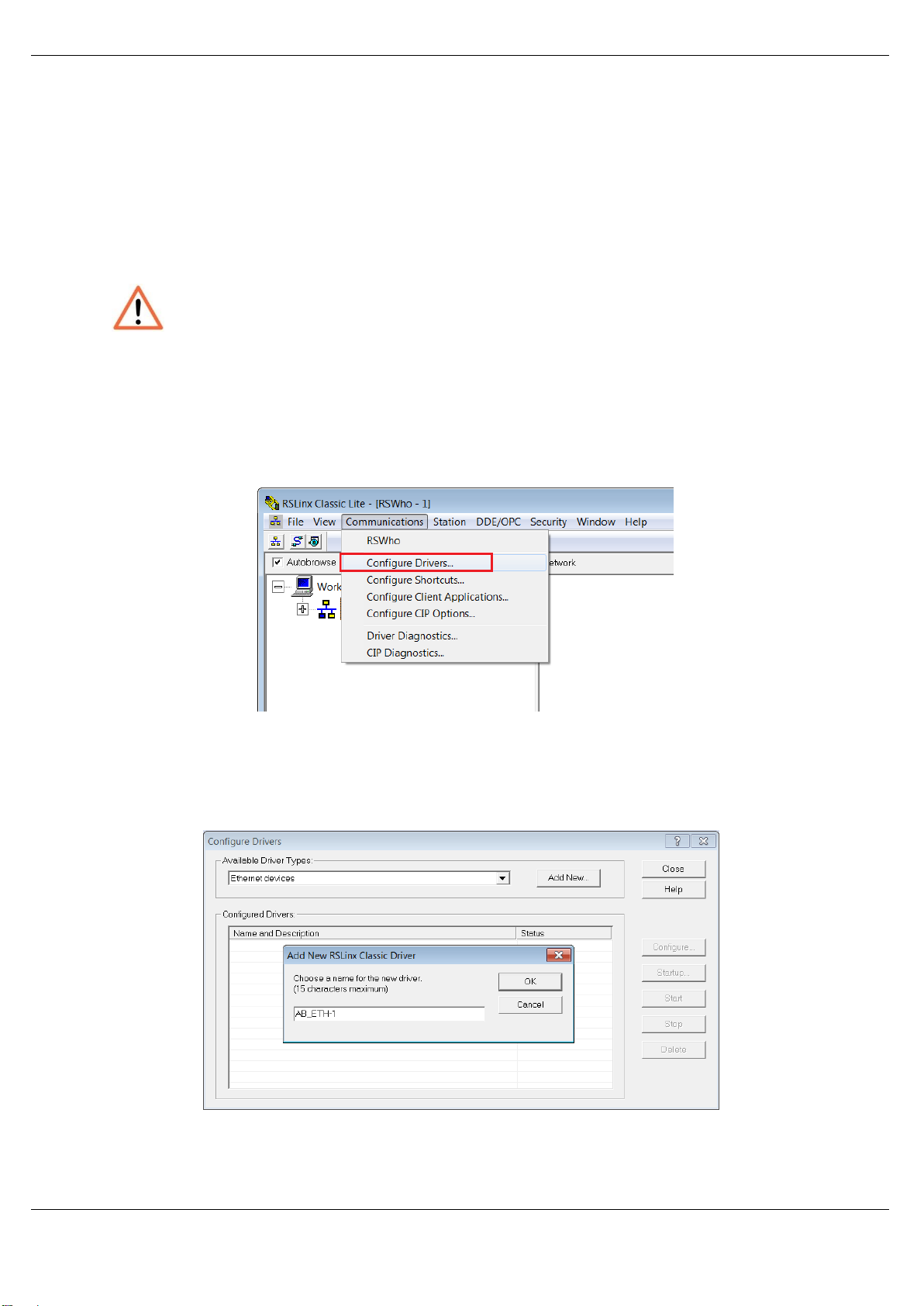

Add the PLX51-DF1-ENI module in RSLinx. Under the Communications menu, select the
Configure Drivers menu item.
FIGURE 7–RSLINX DRIVER CONFIGURATION
In the Configure Drivers window, add the Ethernet Devices driver.
FIGURE 8–RSLINX ETHERNET DEVICES DRIVER
