Proton X50 Manuale utente
* If fitted
Content
Intelligent Key 2 Push Start Button 21
Intelligent Entry * 2 Automatic Transmission 22
Adjustment of Driver Seat 4 Electric Parking Brake
(EPB) 23
A/C Control 6 AUTO HOLD 24
Instrument and Control
Device 8 Electronic Stability
Control (ESC) 24
Control Buttons at
Instrument Panel 10 Hill Descent Control
(HDC) 25
TRIP Button 11 Hill Hold Control (HHC) 25
Information Centre (Type 1) 11 Reverse Camera * 26
Information Centre (Type 2) 11 360 Camera * 26
Warning and Indicator Lights 12 Auto Park Assist (APA) * 27
Lighting Control 14 Blind Spot Information
System (BLIS) * 31
Wiper Washer Control 15 Autonomous Emergency
Braking System (AEB) * 32
Instrument Panel Switch
Block 17 Cruise Control 34
Multi-control Function
Buttons on Steering Wheel 18 Tyre Pressure Monitoring
System (TPMS) * 37
Door Mirror 20 Abbreviations 38
1
* If fitted

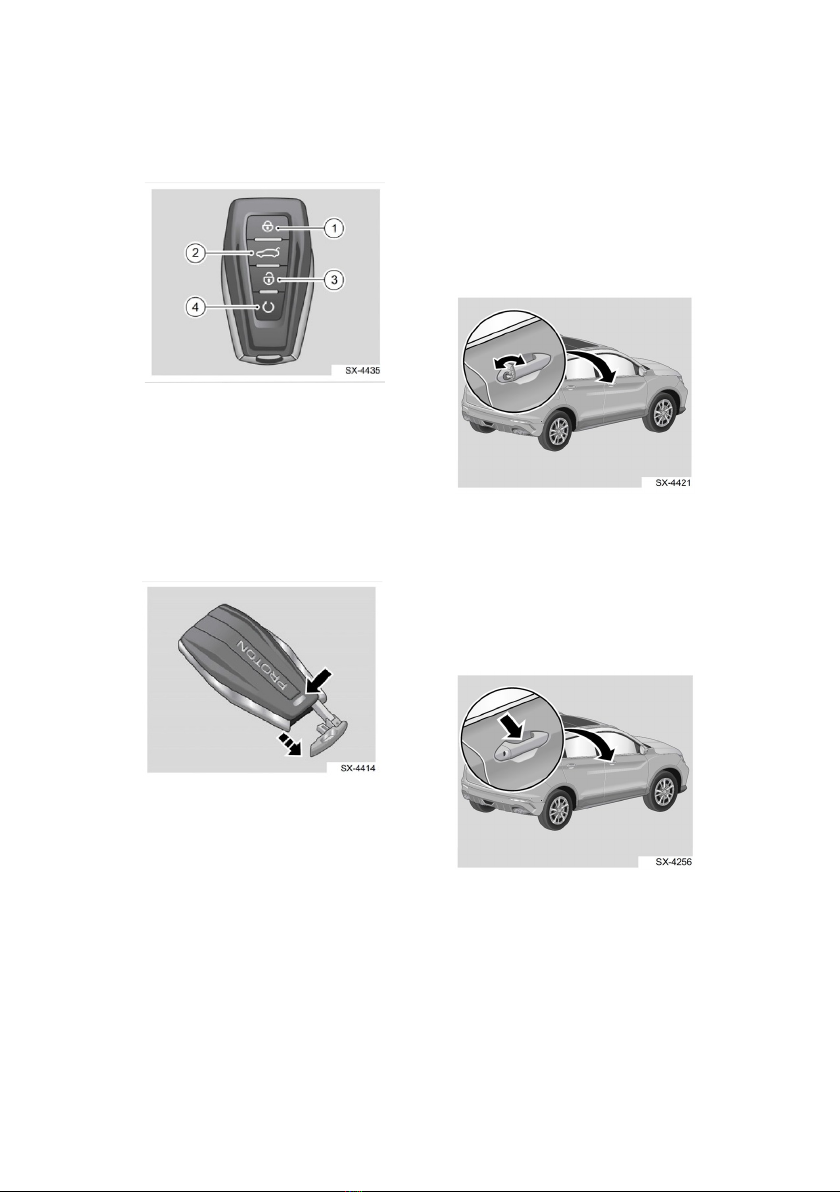

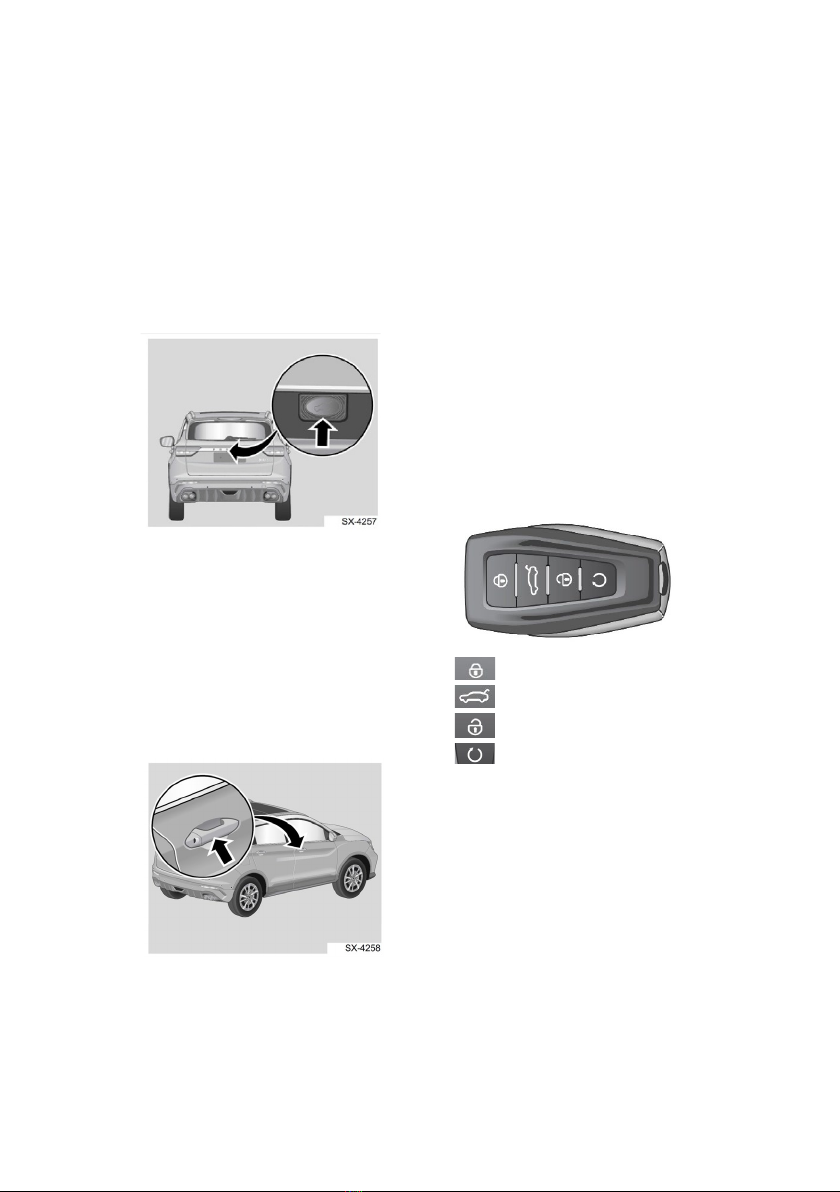

Intelligent Key
1. Lock button
2. Tailgate unlock button
3. Unlock button
4. Vehicle search / remote
start* button
Mechanical Key
Press the release button on the
back of the intelligent key, then
you can pull the mechanical key
out.
Locking / Unlocking
Doors by using the
Mechanical Key
Insert the key into the lock
cylinder of driver's side.
Turn the key:
•Clockwise - unlock door.
•Anticlockwise - lock door.
Intelligent Entry *
Unlocking the door
Unlock sensor area
As long as you carry the
approved intelligent key within
1.5 metre range of the right front
door, putting your hand in the
unlocking sensor area on the
2
* If fitted
door handle to unlock all doors
automatically. Then, pull the
door handle to open the door.
After the four doors are
unlocked successfully, the turn
signal light will flash 3 times.
Opening the tailgate
Approach the tailgate with the
intelligent key, press the tailgate
opening button to unlock it, and
then, after the turn signal light
has flashed 3 times, open the
tailgate.
Locking the door
Lock sensor area
After set the ignition switch to
OFF, and closing bonnet, four
doors and tailgate, if you put
hands in locking sensor area on
door handle of driver’s side or
front passenger’s side, four
doors and fuel filler cap will be
locked. After the doors are
locked successfully, the turn
signal light will flash once.
For detail operations, please
refer to the owner’s manual.
Using the Remote
Control
Lock button
Tailgate unlock
Unlock button
Vehicle search /
Remote start*
To unlock
Short press the unlock button on
the intelligent key. The complete
vehicle will unlock.
To lock
Short press the lock button on
the intelligent key. The complete
vehicle will lock.
3
* If fitted
To unlock and open
tailgate
Press and hold the tailgate
unlock button to unlock the
tailgate.
At the tailgate door, press the
tailgate unlock button and lift up
the tailgate door to open the
tailgate.
Vehicle Search
If the key is within the valid
range for the vehicle, when you
press and release the vehicle
search/remote start button
twice, the horn will beep three
times and the turn signal light
will flash 3 times.
Adjustment of
Driver Seat

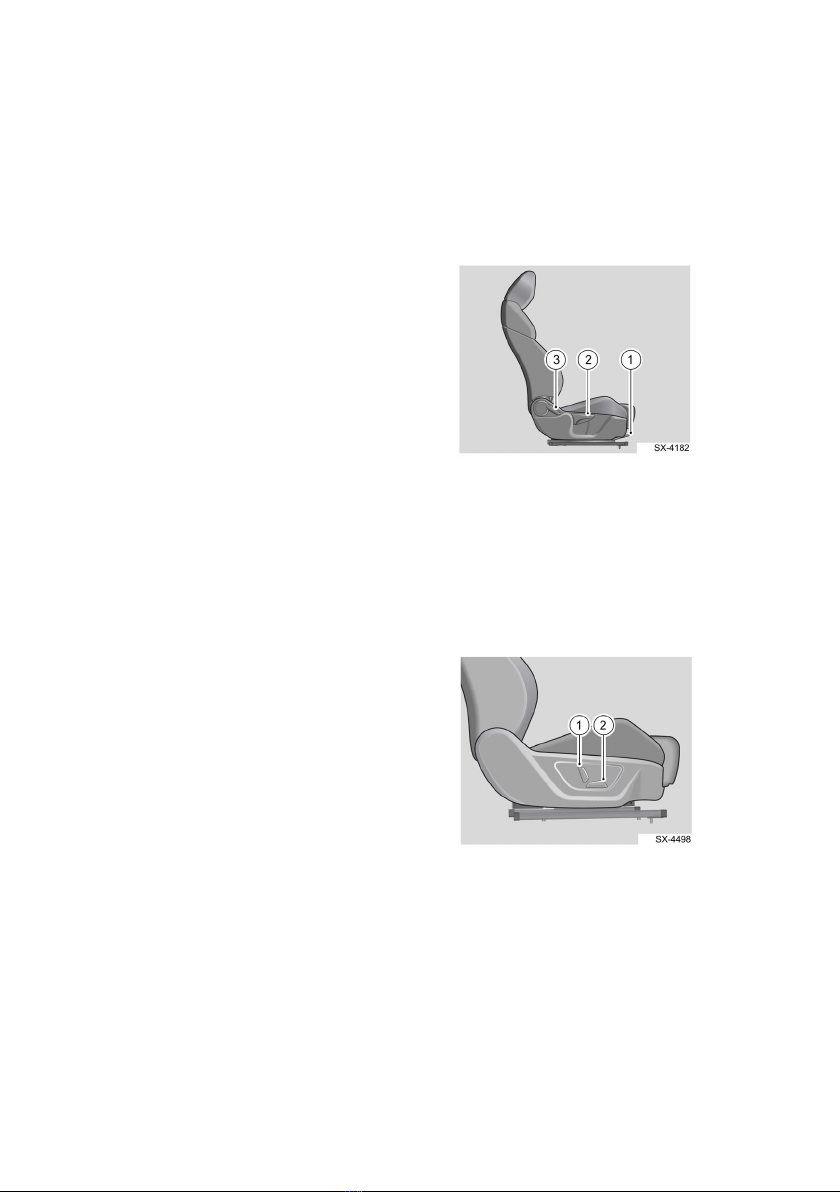

Manual Adjustment *
1. Seat forward and backward
adjusting lever
2. Cushion height adjusting
handle
3. Seatback adjusting handle
Electric Adjustment *
1. Adjustment switch for
seatback angle
2. Adjustment switch for seat
forward and backward /
seat cushion height
4
* If fitted
For detail operation, please
refer your owner’s manual.

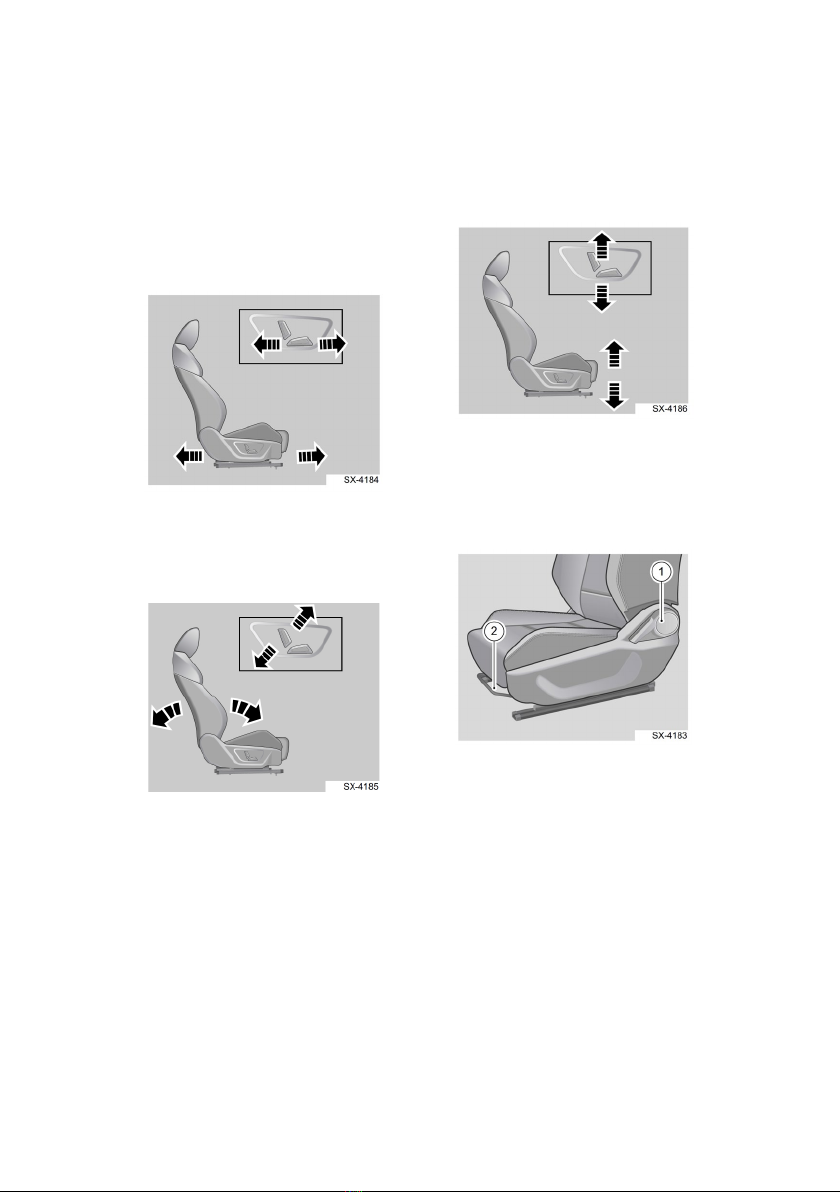

Forward and Backward
Adjustment
Adjustment of Seatback
Angle
Adjustment of Cushion
Height
Manual Adjustment of
Front Passenger Seat
1. Backrest adjusting handle
2. Seat fore-and-aft adjusting
lever
5
* If fitted

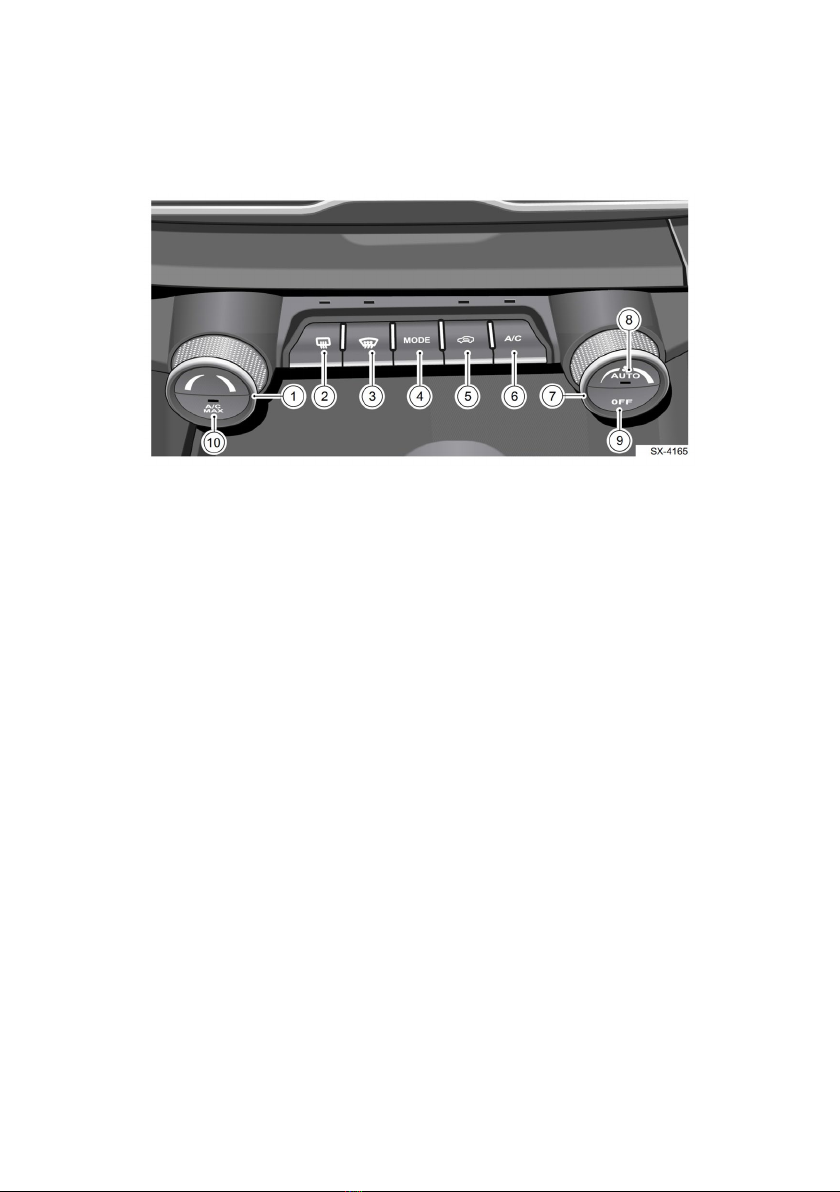

A/C Control
A/C Control System (Type I)
1. Front defrost button
2. Temperature adjustment knob
3. Feet-blowing/defrosting
4. Feet-blowing
5. Face/feet-blowing
6. Face-blowing
7. Internal / external air circulation switch button
8. Air volume adjustment knob
9. A/C button
10. OFF button
11. Rear windscreen defrost button
6
* If fitted

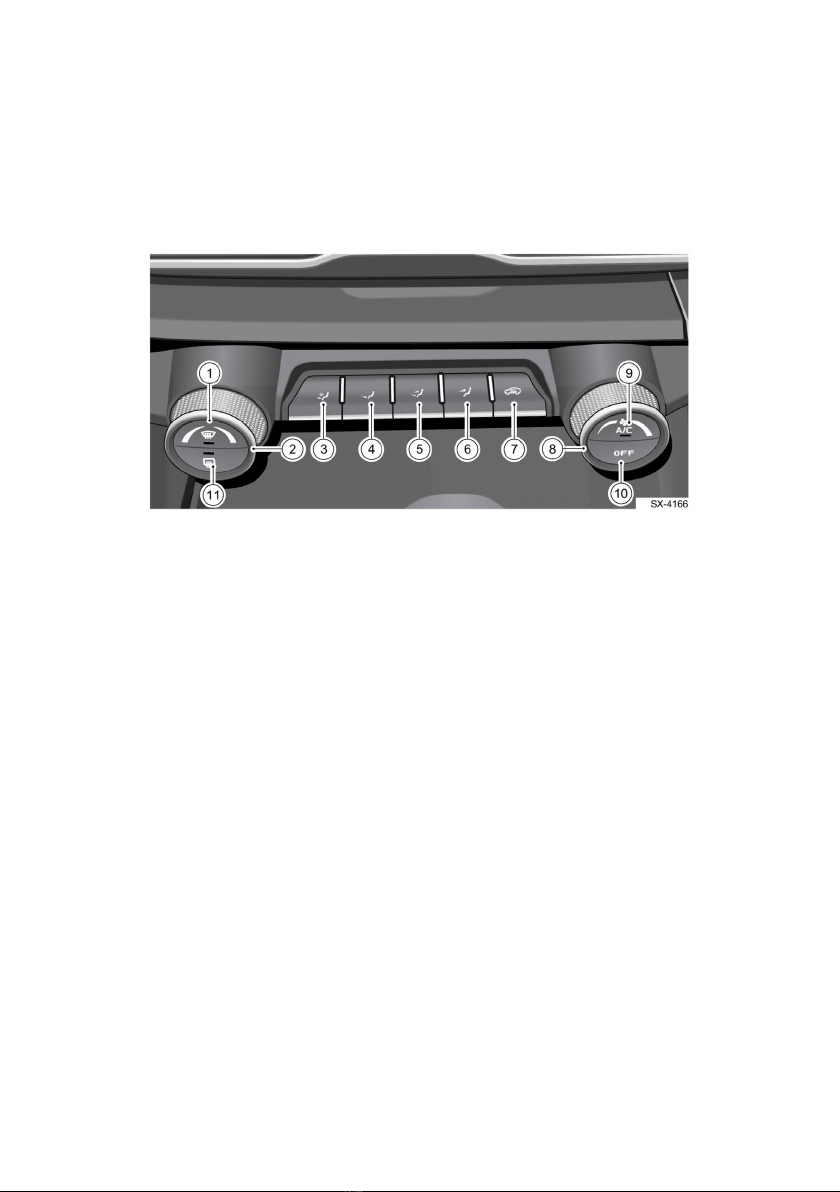

A/C Control System (Type II)
1. Temperature adjustment knob
2. Rear windscreen defrost button
3. Front defrost button
4. Mode button
5. Internal / external air circulation switch button
6. A/C button
7. Air volume adjustment knob
8. AUTO button
9. OFF button
10. A/C MAX button
7
* If fitted

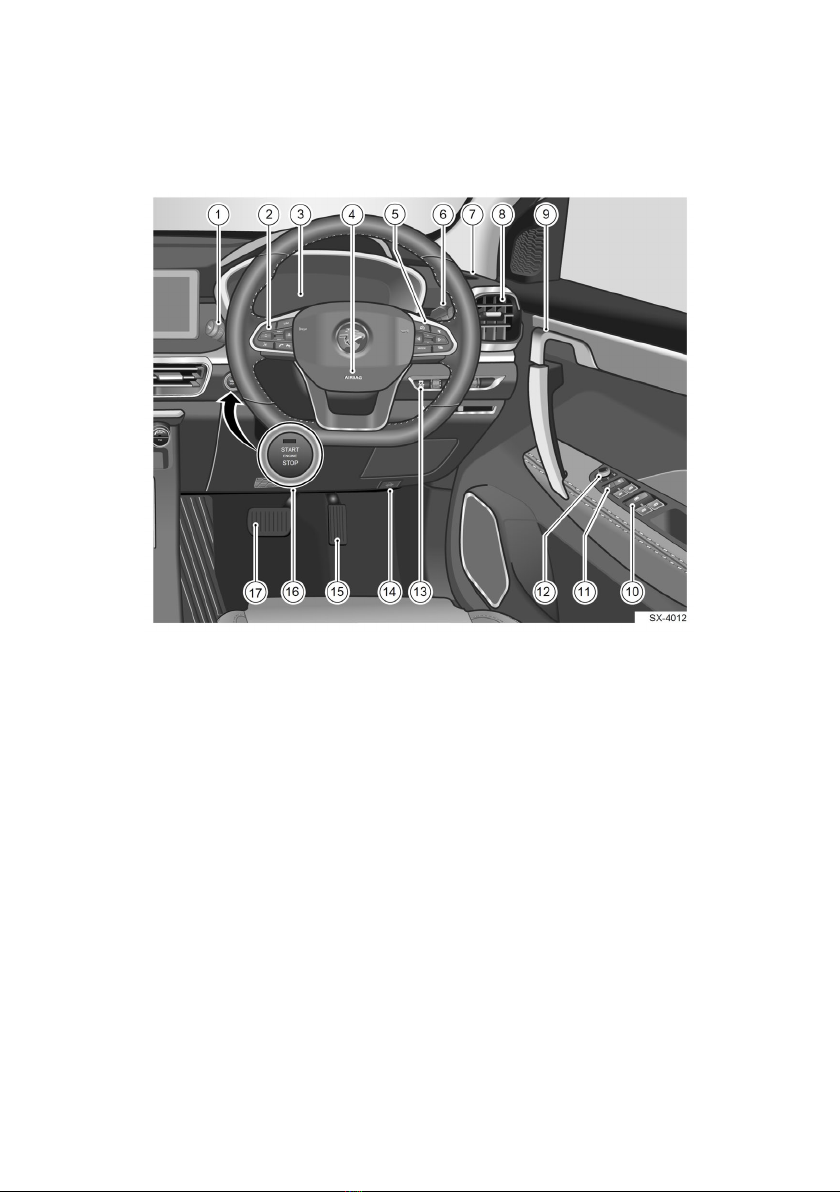

Instrument and Control Device
1. Light combination switch
2. Left control buttons on
steering wheel
3. Meter instrument
4. Driver airbag
5. Right control buttons on
steering wheel
6. Wiper combination switch
7. Right defroster air vent
8. Right air vent
9. Door inside handle
10. Power window control
switches
11. Central lock switch
12. Door mirror adjustment
switch
13. Instrument panel switch
block
14. Engine hood release lever
15. Accelerator pedal
16. Push start button
17. Brake pedal
8
* If fitted

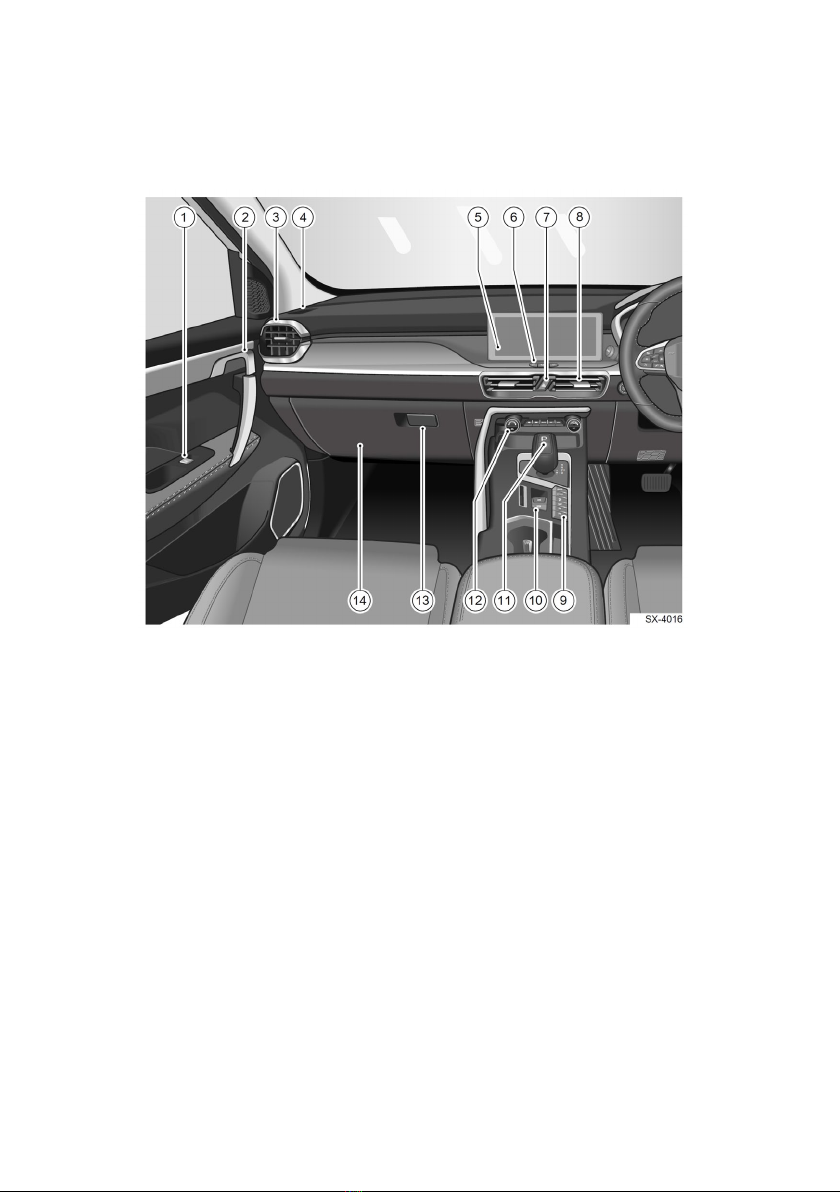

Instrument and Control Device
1. Front passenger power
window control switch
2. Door inside handle
3. Left air vent
4. Left defroster air vent
5. Display
6. Display control button
7. Hazard warning light button
8. Centre air vent
9. Switch panel at centre
console
10. EPB switch
11. Electronic gear shift lever
12. A/C control panel
13. Glove box lever
14. Glove box
9
