TCP/IP VIDEO DOOR PHONE
USER MANUAL
MODEL NO: PANAIP7M / PANAIP7MW / PANAIP7GM
2
1. Technical Specifications 4
2. Packing Contents 5
3. Name And Functions Of Each Part 6
3.1 Front And Rear Part 6
4. Connection Diagram 8
4.1 System Layout 8
4.2 Wiring Diagram 9
5. Installation 10
6. Operation Description 12
6.1 Main Page 12
6.2 Call Function 14
6.2.1 Visitor Call From Building Panel or Entrance Panel 14
6.2.2 Visitor Call From Indoor Panel 14
6.2.3 Contacts – To View & Call 14
6.2.4 Contacts – To Add 15
6.2.5 Call Records 15
6.2.6 General settings 16
6.2.7 To Call Another Intercom 16
6.3 Message Function 17
6.4 Monitor Function 19
6.5 Alarm Function 20
6.6 Picture Review 22
6.7 Main Setting Page 23
6.7.1 Engineering Setting 24
6.8 Lift Function 26
7. Setting Up WiFi Mobile App *** Only for WiFi models *** 27
7.1 Add a new device 27
7.2 Control the Monitor Through the APP 30
7.3 Call forward 30
Appendix 1: Intercom Network Addressing 31
Appendix 2: Web Client Operation 33
Appendix 2.1 Login The Client 33
Appendix 2.2 Local Configuration Page 34
Appendix 2.3 User Management Page 34
Appendix 2.4 Maintenance Page 34
TABLE OF CONTENTS
3
Please follow these instructions to prevent any personal danger or property loss.
Warning: To avoid death or serious injury
Do not disassemble, install, or repair this product on your own accord
Do not place the product near a hot or humid place
Do not forcibly bend the cord or put a heavy object on the product
Do not use water, thinner or a detergent for removing oil products when cleaning the exterior
Do not connect to other products while in use
Make sure to clean with a dry cloth to prevent any breakdown or electric shock
If the product emits a peculiar noise, odour or smoke, immediately disconnect the power, and then
contact PSA Products.
Do not insert the power plug into a 240VAC mains socket with a wet hand
Caution: To avoid personal injury or property loss
Ensure that dust or foreign substances do not collect on the product
Ensure foreign substances do not enter the product
Avoid direct rays of the sun or heating devices at a time of installation
Install the product in a flat and stable place
Unplug the product from power if it would not be used for a long time
Do not unplug the microSD card while recording, as this may cause loss of data
WARNING AND CAUTION
4
• 7” capacitive touch screen monitor.
• Resolution: 800*480 pixels
• Zone alarms (4-zones max.)
• Supports up to 19 door panels (per Building)
• Video Encoding: H.264
• Network Connection: Ethernet (POE)
• Operating Voltage: 18V (POE)
• Operating Current: 300 mA (max: 500 mA, stand-by: 180 mA)
• Operation Temperature: -10~55ºC
• Operating System: Linux
• Internal Flash Memory (Internal storage: 100 pictures)
• MicroSD-Card (in Monitors)
• Dimensions(mm): Indoor monitor: 210(W) x 140(H) x 20(D)
Guard unit: 326(W) x 206(H) x 56(D)
1. TECHNICAL SPECIFICATIONS
5
Indoor monitor (PANAIP7M excludes 4 pin wiring cable)
Main Body Wall bracket 2 pin wiring cable DC connector Quick start guide
KA M4*35mm
Mounting screw
M4*35mm plastic
expansion pipe 8 pin wiring cable 4 pin wiring cable
Guard unit
Main Body Handset DC connector Helical line
KM M3*5mm
Mounting screw Left bracket Right bracket Quick start guide

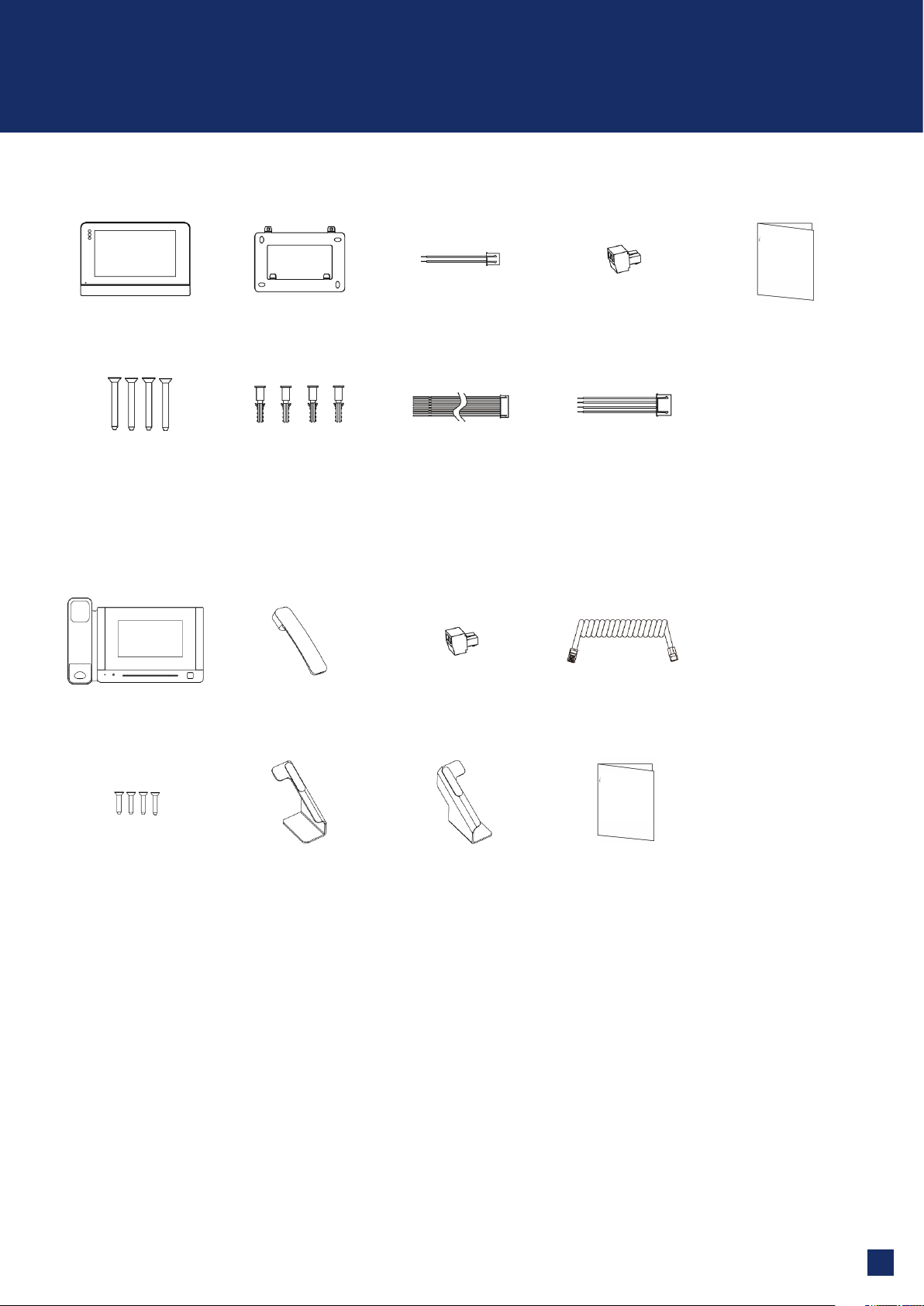

2. PACKING CONTENTS
6

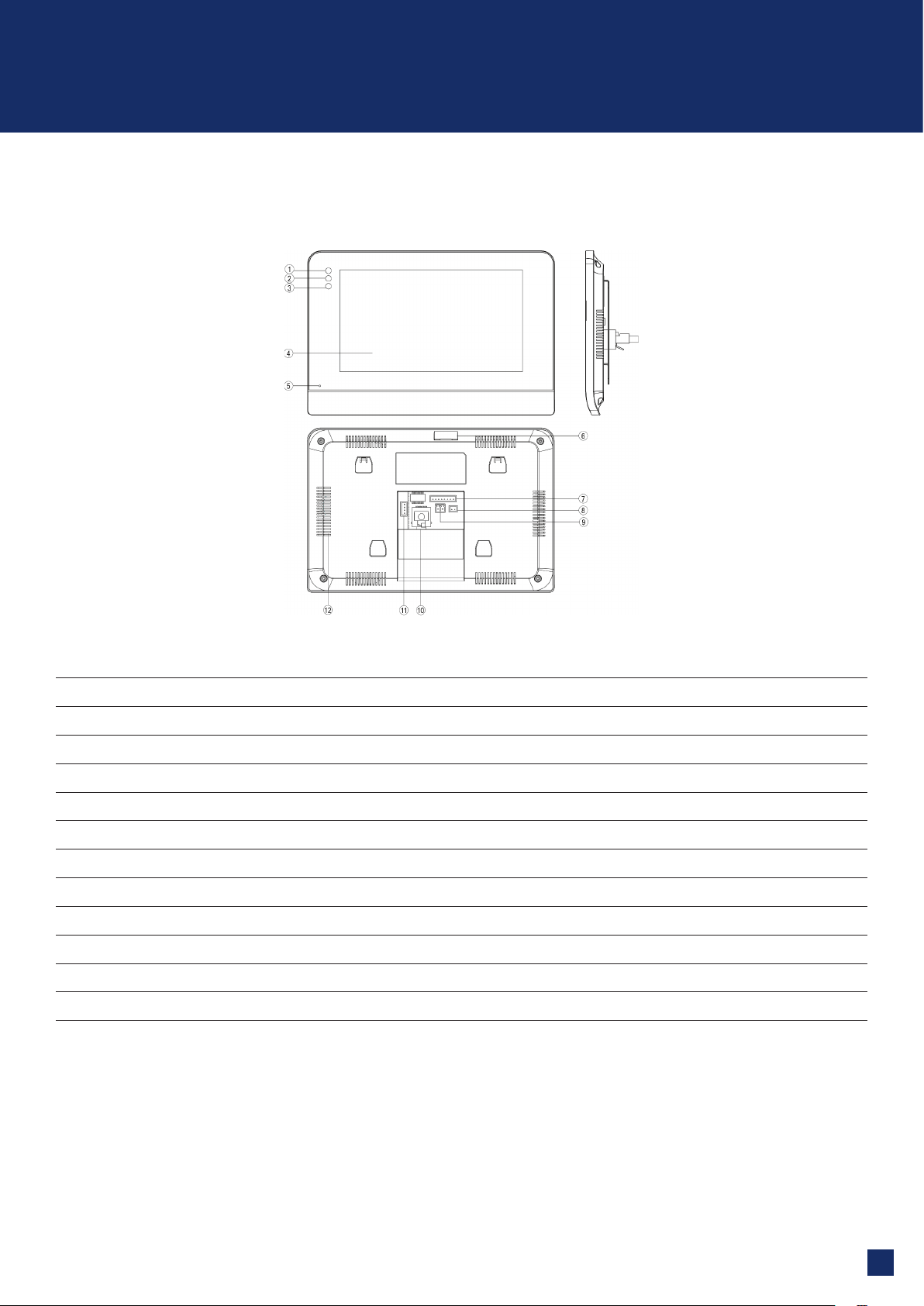

3.1 FRONT AND REAR PART
Indoor monitor (Model No: PANAIP7M & PANAIP7MW)
NO. Part Name
1Power Indicator White LED when power on
2Message Indicator White LED flashes when have unread message/call
3Alarm Indicator White LED flashes when have alarm
4Screen 7” Digital TFT LCD
5Microphone Receive voice from the user
6MicroSD Card Slot Socket for microSD card
7Connection Port Interface for sensor
8Connection Port Interface for doorbell
9DC Power 15~20 VDC (1A) power supply
10 RJ45 Connector Interface for RJ45
11 Video Input Interface for indoor panel（Not supported in PANAIPM)
12 Speaker
3. NAME AND FUNCTIONS OF EACH PART
7
Guard unit (Model No: PANAIP7GM)

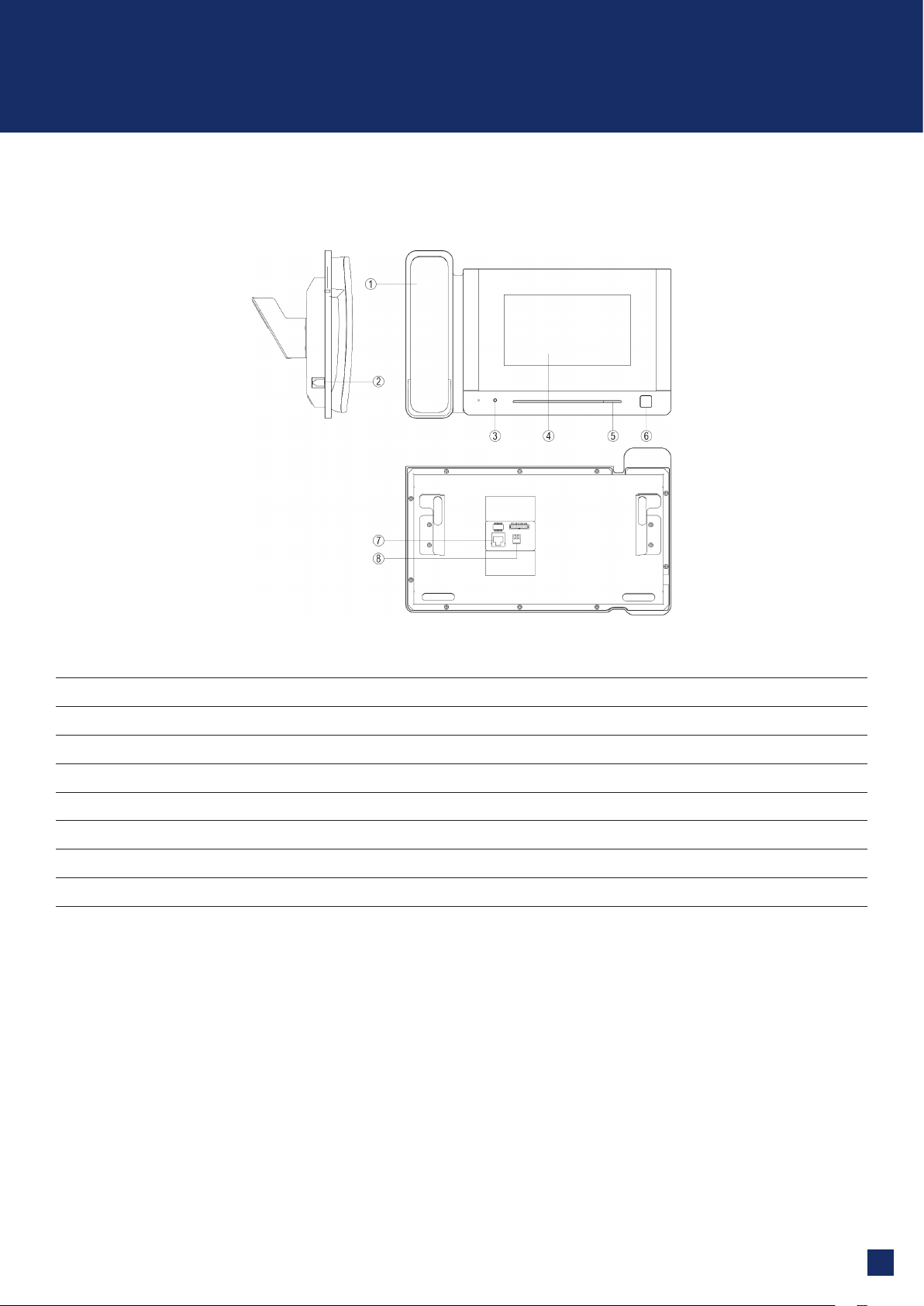

NO. Part Name
1Handset
2RJ11 Connector Connection for helical handset cable
3Power Indicator Red LED when power on
4Screen 7” Digital TFT LCD
5Speaker
6Door Release Button Press button to release door lock
7RJ45 Connector Interface for RJ45
8DC Power 12~20 VDC (1A) power supply
3. NAME AND FUNCTIONS OF EACH PART
8

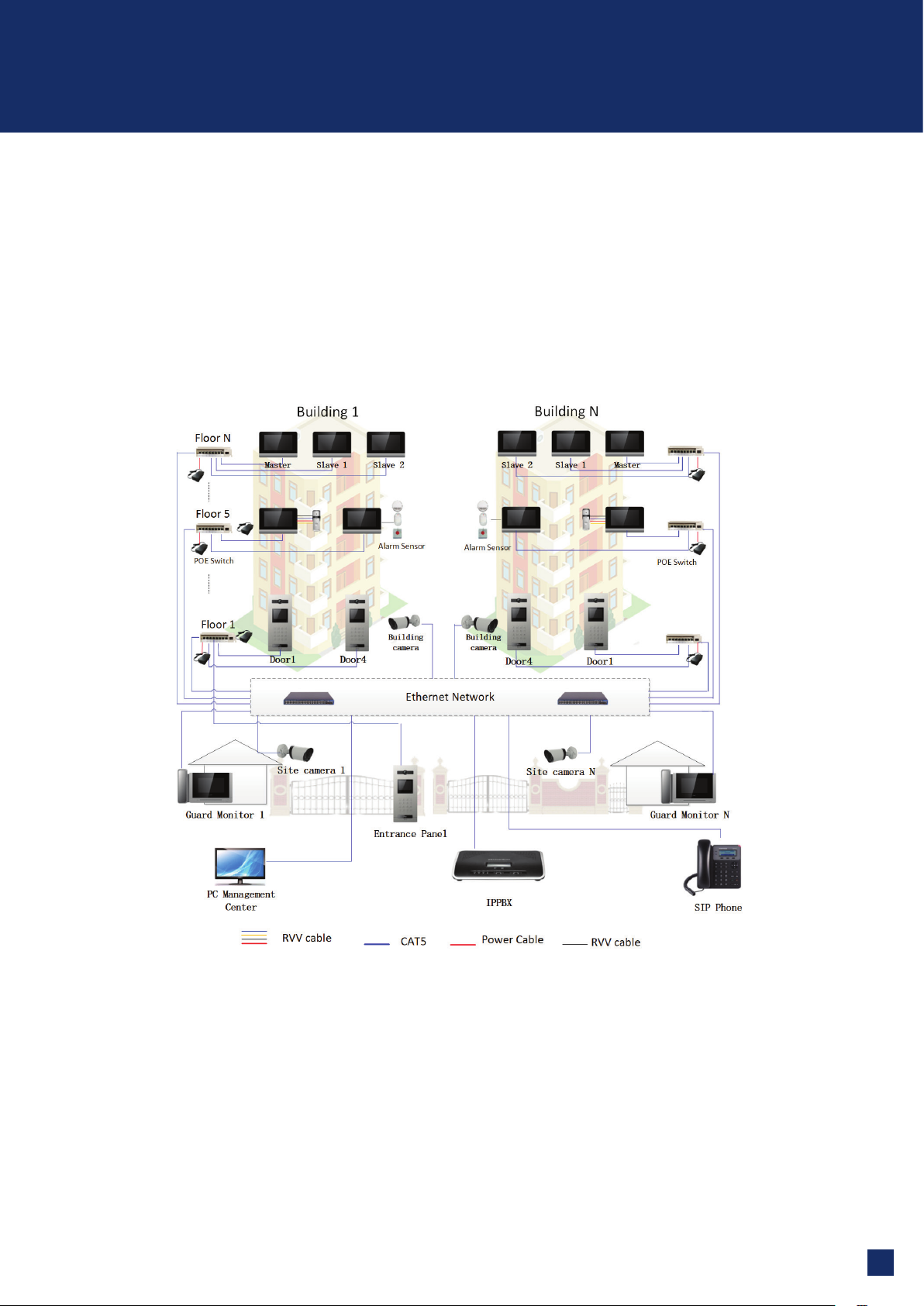

4.1 SYSTEM LAYOUT
• The distance between the PoE Switch and other devices (indoor monitor, door panel, network switch, guard unit)
must not exceed 70 meters.
• The system supports up to 98 buildings, and a maximum of 32 IP cameras.
• Each room supports up to 3 monitors.
• The address of the other devices can only be set after first configuring the address of the 1st Building Panel (to
either 5-Digit:01-801, or 6-Digit:01-9001). (See Appendix 1)
4. CONNECTION DIAGRAM
9

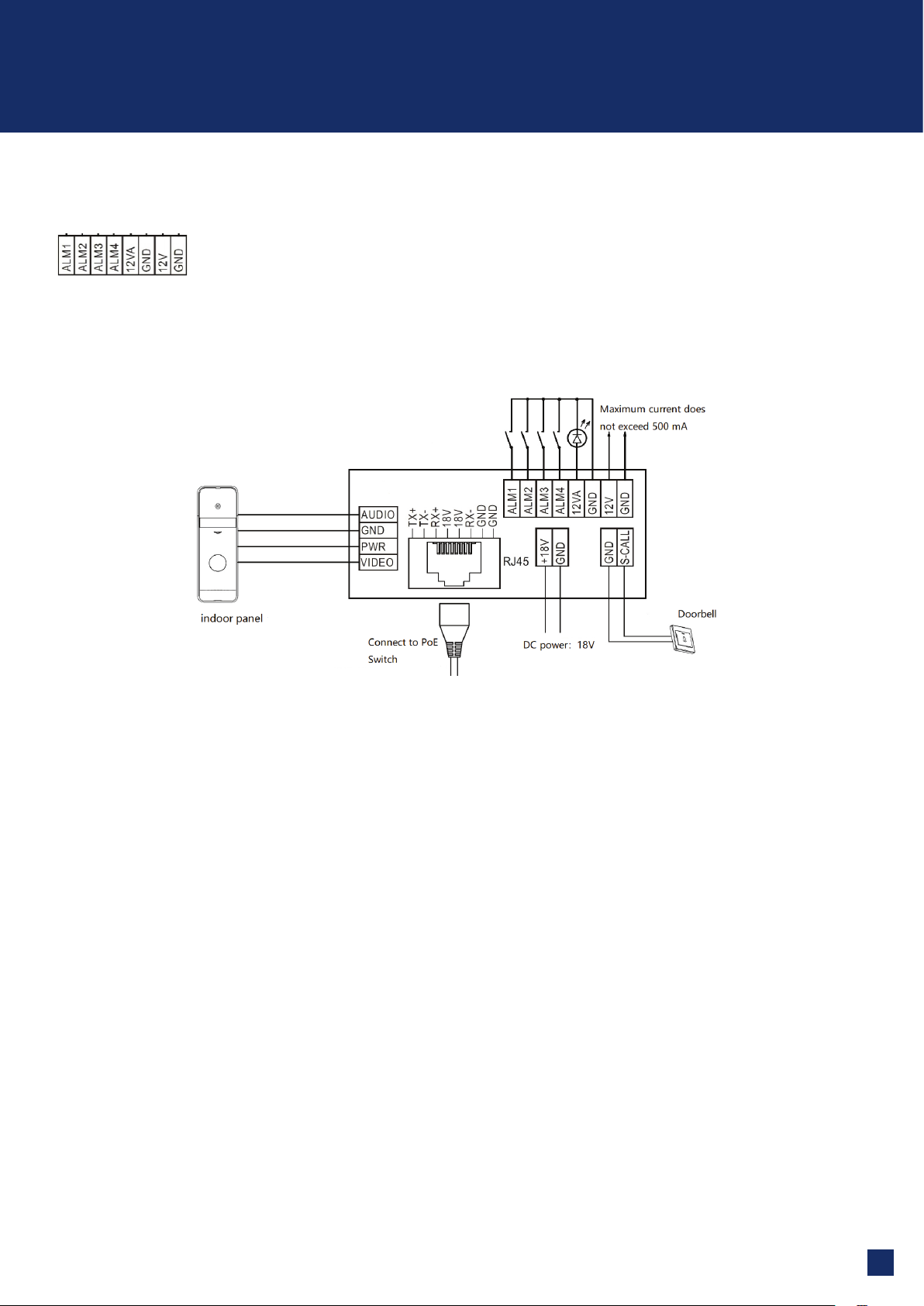

4.2 WIRING DIAGRAM
is the interface socket for alarm sensors, and is located at the back of the Monitor. Alarm sensors for four alarm
zones can be connected to these ALM1, ALM2, ALM3, and ALM4 terminals.
4. CONNECTION DIAGRAM
10
INDOOR MONITOR
Dimensions (mm) of wall bracket: 140(W) x 87(H)
1650
1540
1550
Monitor Installation Location
Install the Monitor about 1500mm from oor level so that the centre of the screen is at eye level. This means the centre of
the metal wall bracket is 1450mm from oor level.
Installing the Indoor Monitor
1) Remove mounting bracket from behind monitor and fix it onto the wall with screws.
2) Install the cable and connect the system according to the wiring diagrams in Section 4.
3) Hang the monitor onto the mounting bracket.
5. INSTALLATION
