PTZOptics PT-WC-G1 Manuale utente

PT -WC-G1

User Manual

Model:PT-WC-G1

WirelessCable

Version:1.0

CONTENTS

01 02

Contents

About the User Manual

Brief introduction

Packing list

Interface Information

Quick Start Guide

Specification

Trouble shooting

PT-WC-G1 Setup Instructions

Indicator Description

About the User Manual

- Please read this manual carefully before you use this product and

retain it properly for future reference.

- CVW reserves the authority to modify the instruction manuals.

- If there is any question or difficulty about the operation of product,

please feel free to contact us or the dealer.

Brief Introduction

With the increasing application of HD video equipment, many

problems have arisen in the wiring process, such as high wire cost and

short service life. If the on-site protection is not enough, the trampling

of the passing crowd may affect the performance of wire, and even

cause a live broadcast accident. This program provides a more

convenient and safe solution for live video scenes. Its long-distance

transmission, coupled with the high-capacity lithium battery system

and PNP configuration, can fully meet the needs of various indoor and

outdoor shooting, especially the feature of free wiring, which will

bring you a safer and more professional enjoyment.

Features

The maximum transmission rate can be up to 300Mbps

Adopt 4×4 MIM echnology at the transmitter terminal

It can support 4-channel connection at the same time, with strong

penetrating power, long transmission distance, and cascading.

03 04

Model: PT-WC-G1

Model：PT-WC-G1

DC IN

*All accessories are subject to the actual products.

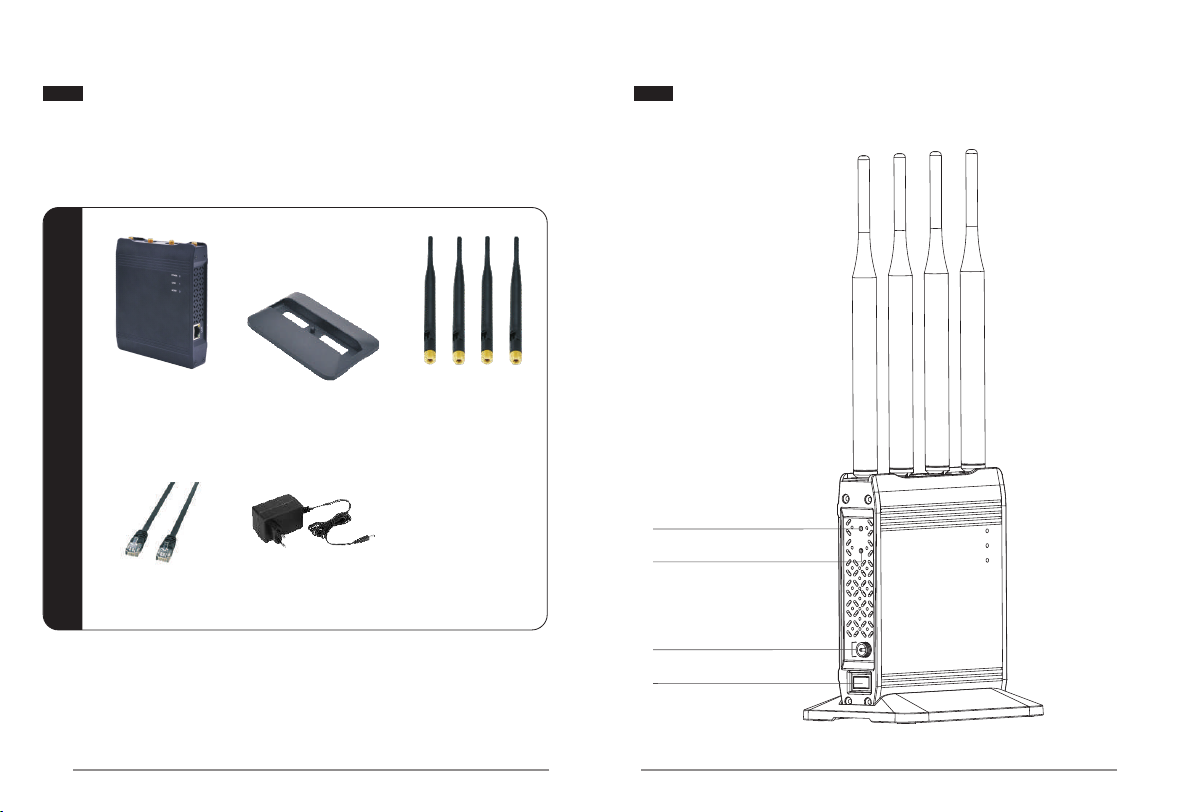

Check the packing list details after unpacking. If any parts are missing,

contact the dealer. For the parts involved in each model, refer to

the packing list below.

Wireless high-speed

data transmitter

* 1 PT-WC-G1 piece Base * 1 piece Antenna * 4 piece

Network

cable * 1 piece

Power adapter

(12V/2A) * 1 piece

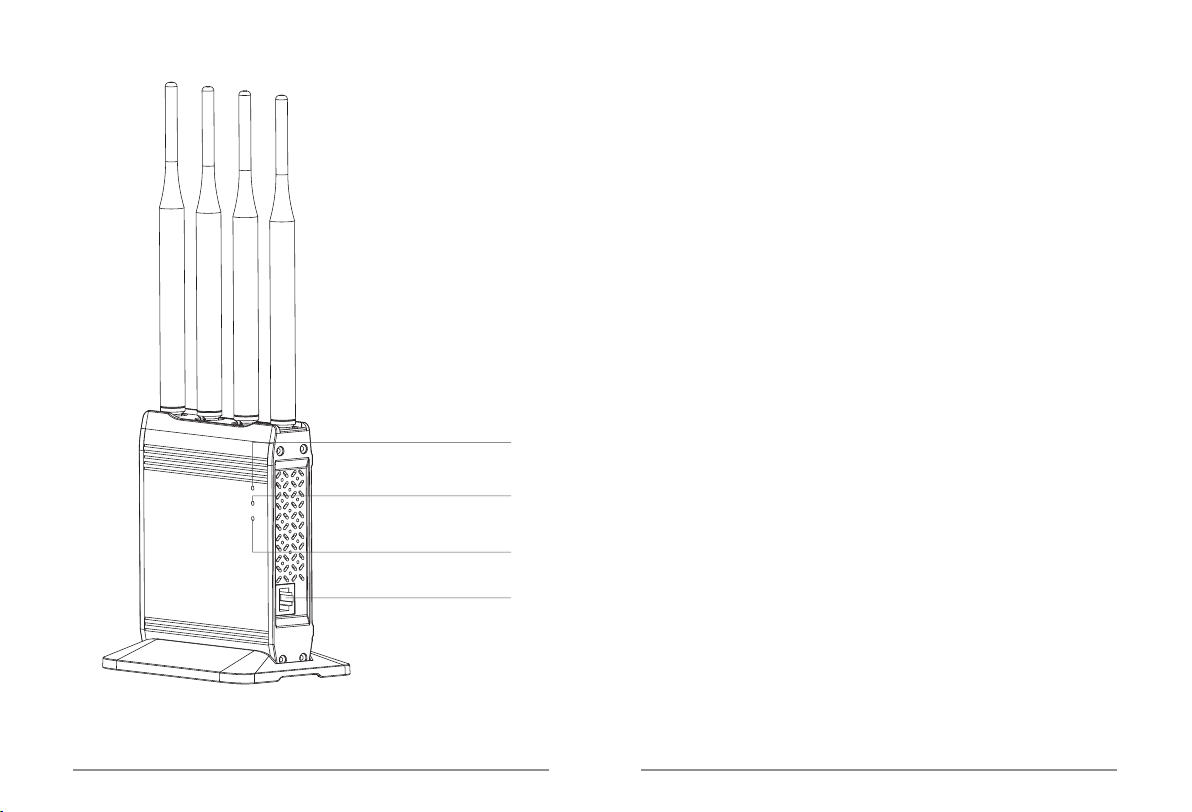

Structure & Interface

Packing List

RESET button

WPS button

Power switch

05 06

Power indicator

WiFi connection

indicator

MODE indicator

Rj45 interface

This port is connected to the power adapter (SPEC: 5.5mm;

“positive inside and negative outside icon”)

1. DC IN:

Connection supports RJ45 interface devices

2. Rj45 interface:

Rocker switch controls power on or off

3. Power switch:

Press the WPS button of both modules (set to AP/STA mode,

respectively) at the same time, and the two modules will

automatically establish a connection.

4. WPS button:

Press this button for about 5s and the module will return to the

factory mode.

5. RESET button:

Steady on: The power is normal;

6. Power indicator:

Off: The power is off or abnormal.

Blinking: WIFI does not establish a connection

Steady on: WIFI connection is successful

Display the module operating mode

7. MODE indicator:

8. WIFI connection indicator:

07 08

Product Installation

PT-WC-G1 Installation Instructions (point-to-point mode,

webcam usage example)

1. Connect the two devices with the network cable to the webcam and

the computer, respectively. Since the Wi-Fi is bidirectional, the two

ends can be exchanged arbitrarily without distinguishing between

transmitting and receiving.

Webcam

2. Turn on the power switches of the camera and this product.

3. Wait for 30~60s. After the network connection indicator

changes from blinking to steady on, the connection is

established successfully.

4. Access the webcam from the PC.

Laptop

PT-WC-G1

09 10

* The Company constantly improves product performance. Design and specifications are

subject to change without prior notice.

Standard protocol

Receiving sensitivity

Transmission data rate

Operating voltage

Operating temperature

Storage temperature

±20PPM

40MHz

≤-70dBm

4TX / 4RX

300Mbp/s（MAX）

802.11a/n

0-40°C;

-20°C-60°C

Frequency stability

bandwidth

Maximum power: 10W; DC power (7V-17V)

Video communication system MIMO

Modulation OFDM

The device is still in the process of starting

The device on the other end is not electrified

No pairing settings

Too far away

The device is not electrified (check

whether the power indicator is on) Turn on the device

Wait for 30s after booting, it takes time

to start the system.

Turn on the device

Perform pairing

Shorten the distance between two devices

The device functions abnormally Restart the device power

Video is buffering

Too far away

Interference nearby

It is recommended to shorten the

distance for verification

Shorten the distance or change the

environment for testing

The network

connection is

normal and the

video is always

on and off.

Item

STA

Indicator Description

Model indicator Mode Status

Power

indicator

Steady on

off

Wi-Fi

connection

indicator

Steady on

Blinking

MODE

indicator

off

Wi-Fi connection succeeds

Steady on

Wi-Fi connection fails

Power supply is normal

Power is abnormal

Product Specifications

Frequency

Antenna mode

Trouble Shooting

Trouble Fault cause Solutions

Wi-Fi

connection

indicator is off

Signal indicator is abnormal

Wi-Fi

connection

indicator

keeps blinking

PT-WC-G1

5.15-5.25(GHz);5.725-5.85(GHz)

11 12

Point-to-Point Connection Mode

Menu page

Set AP mode

Set station mode

PT-WC-G1 Setup Instructions

Our factory default connection is generally based on the AP+STATION connection

mode, which is the point-to-point connection mode. One end is set to AP mode,

and the other end is set to STATION mode. The SSIDs of both are set to be the

same. If you have a password, the password must also be consistent. If multiple

points need to be connected to one point, you need to configure the mode in

which multiple STATIONs access one AP. The setting method is as follows:

1. After the device is booted, connect the device to the computer with a network

cable. Open your browser on your computer. Enter the IP address of the device in

the address bar (AP default IP address is 192.168.1.100; STATION factory default IP

address is 192.168.1.200). After entering the login page, enter the username and

password (both username and password are super by default) to enter the

menu page. As shown in the figures below:

2. Select Wireless in the Config option on the menu page to modify the

corresponding options, where ESSID can be specified by itself (AP and STATION

should be consistent and case-sensitive), Encryption and Passphrase can also be

specified by themselves. In addition, ensure that the settings of the APs and

STATIONs to be connected are consistent.

13 14

Networking page

Cascade Mode

In some cases, a longer transmission distance may be required. At this time,

we can use the cascade mode based on WDS technology. In this case,

you need to set the cascaded devices to AP mode, fix Channel to be

consistent (i.e., the same channel), and configure the following information

in the WDS in the Config options:

1. Assuming that device A needs to be cascaded with device B, you need to

add the Wireless MAC address of device B in the WDS setting of device A,

and the Wireless MAC address of device A in the WDS setting of device B,

so that the two devices can be connected.

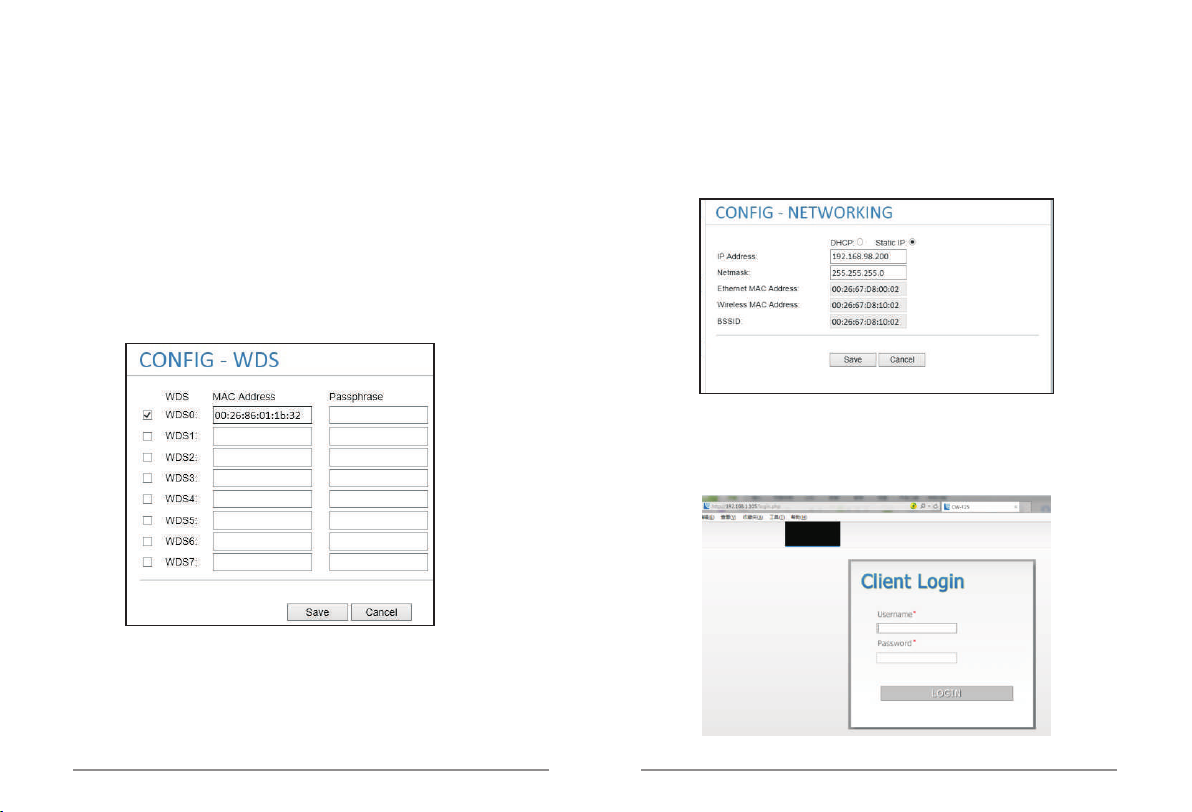

WDS Config Page

Similarly, if you want to continue adding cascaded device C, you can add the

Wireless MAC address of the device C in the WDS setting of device B,

and the Wireless MAC address of the device B in the WDS setting of device C.

1. Cascading will reduce the bandwidth of the system.

It is recommended to cascade up to Level 3.

Note:

2. The IP address and MAC address of the device can be found under

the Config-Networking page.

Changing IP Address

1. Log in via WEB according to the marked IP address.

15 16

2. Username: admin; password: admin; click LOGIN to log in.

3. Select “networking” under “config” to change the IP.

Click the “Save” button below to save the changed IP.

Mode Settings

1. The product can be set to AP or STA mode. After its IP address is

logged in through the WEB, select “wireless” under “config” and

click Device Mode to select between AP and STA modes.

2. During mode switching, the product is changed either from AP

mode to STA mode or from STA mode to AP mode through this option.

After making changes, click “Save” to save. After saving successfully,

wait for 2min, then refresh the page and log in again, you can see that

the mode change is successful.
