-Recommenda ions
1)The light source contained in this luminaire must only be replaced by the manufacturer or its assistance service or by equally qualified
personnel
2) verify that the equipment used to connect our devices to enjoy all the guarantees required under European law;
3) use the cables, connectors and quality materials for electrical wiring;
4) Products with IP66 degree make the wiring / connections with accessories provide the same degree IP of the selected product
(available in the catalog);
5) In the case of installations outside is not recommended to install the power supplies in the
formwork and / or in the junction box without adequate protection
6) Honey-comb louvre must be installed directly from the manufacturer . Please mention it during the order
7)the terminal block / connector for connecting to the power supply is not included, installation may require qualified personnel
-Choice of ins alla ion loca ion
The unit should be positioned so that when in use is not subject to direct radiation from the sun or other heat sources . High temperatures
reduce the life and efficiency of the components or the LED module .
-No e on corrosion pro ec ion
For installation and maintenance be especially careful not to damage the coating powder . Damage combined action of water could cause
corrosion.
1)In the case of damage to the external flexible cable, it must be replaced by the manufacturer, or its assistance service, or equivalent
qualified personnel in order to avoid dangers
2)In case of replacement of damaged glass, contact the manufacturer of the fixture for replacement
-Pho obiological risk: RG1 (low risk)
Use only supply cables wi h
double case Do no use wa er high
pressure cleaners

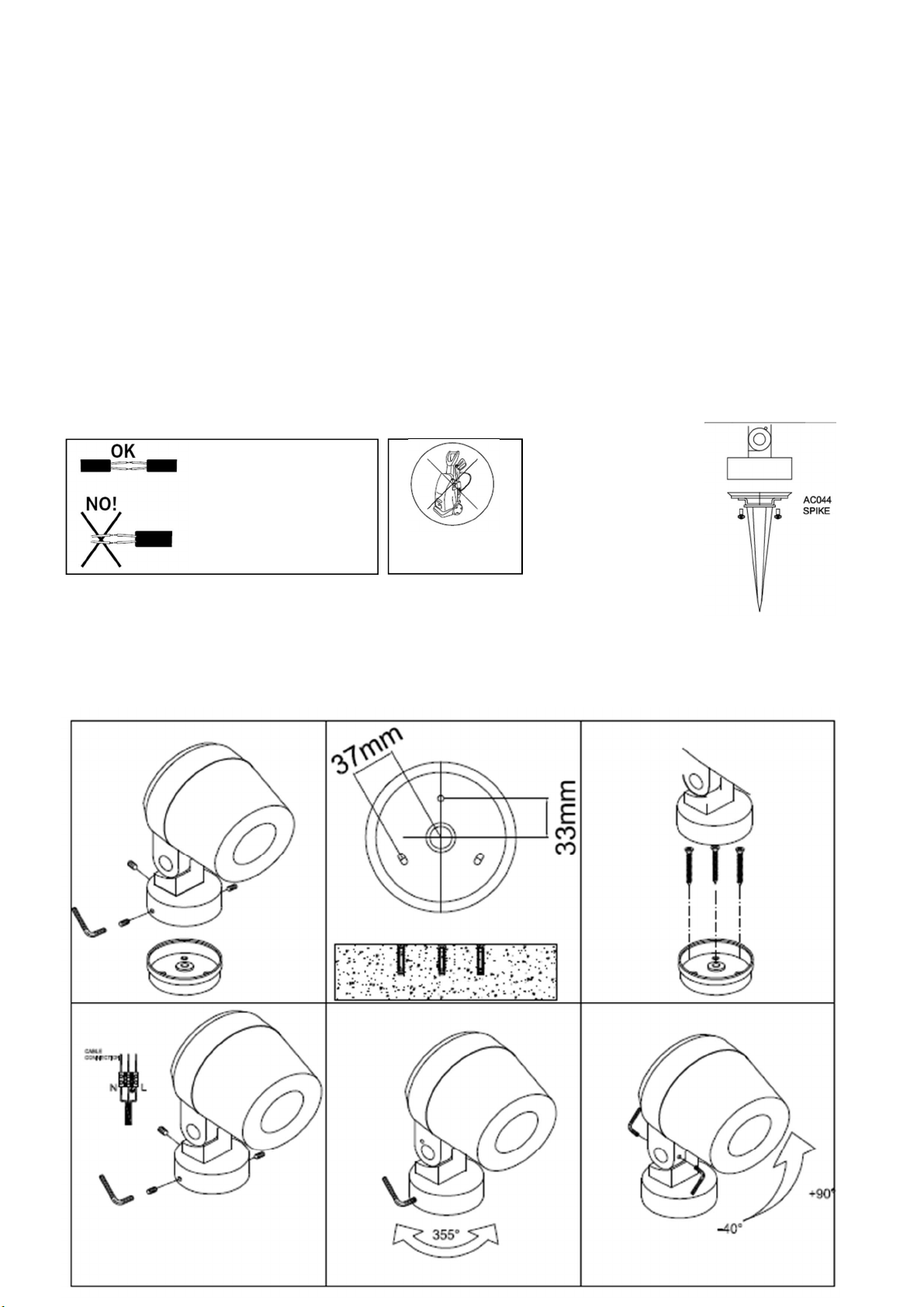

Installation:
1. Loose the three grub-screws in the base and remove the cover pic.1
2. Prepare holes in corrispondance of the feeding point pic. 2
3. Fix the base by tighten the screws of the fischer plugs insert the cable through the cable gland making the
adeguate electrical connection pic3
4. Close the luminaire by tighten the three grub-screws using the tool included in the package pic. 6
5. Make the regulation of the luminaire horizontal and vertical and then fix it by tighten the grub screws pic 5-6
