PUK Flamingo Micro Guida alla pianificazione

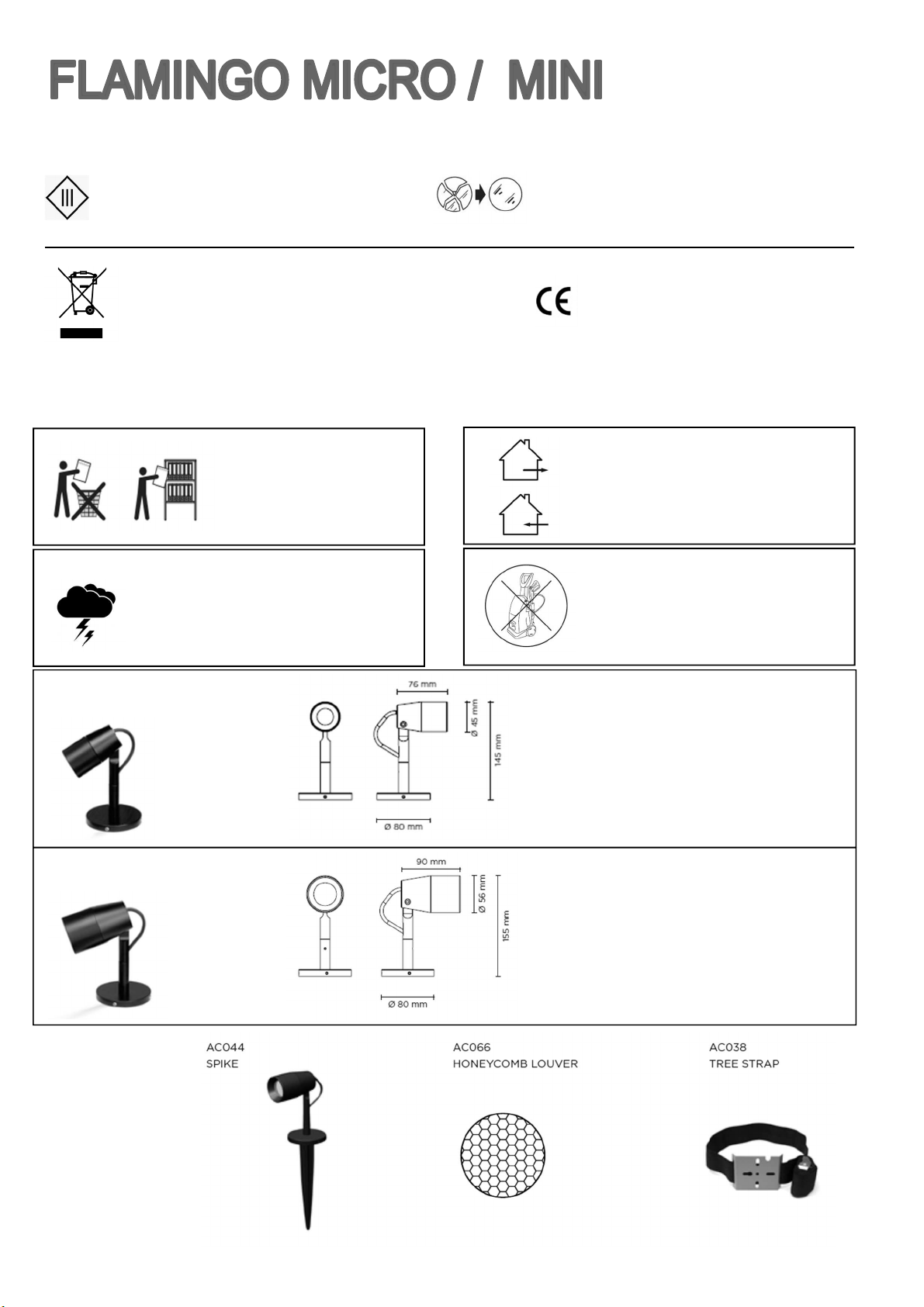

ASSEMBLY AND OPERATING INSTRUCTIONS:

FLAMINGO MICRO

-Power consumption : 2W

-Voltage : 24Vdc

-Color: 3000K 4000K

-Beam angle : 8° 20° 40°

- nsulation class:

- P protection: P66

-Gross weight: 1.7kg

Made in Italy

COD 101701

COD 101702

COD. 101701

-replace the damaged protective glass

-getting rid of as urban waste forbidden

-separate collection is mandatory when the product is at the

end of its life

IP66

NB: These assembly instructions must be given to end users for correct maintenance and so that they know how to change the LED’

The appliance must not be tampered with or transformed and it must be installed and used as supplied and in compliance with the

National Rules on Installations. Any non-compliant installations will invalidate all forms of guarantee. The company cannot be held

responsible for damage caused by incorrect assembly.

-Do not open the device !! For the replacement of the LEDs or for any maintenance inside the appliance, contact the PUK Italia Group company.

COD. 101702

protection class III

products that can only be operated with protec-

ted extra-low voltage

IK08

The article is suitable for indoor and

outdoor use

Retain the instructions

-Electronic equipment sensitive to voltage surges.

The installation of a protective device against over-

voltages on the electrical system attenuates the

phenomena protecting apparatus from the risk of

damage.

Do not use high pressure cleaners

FLAMINGO MINI

-Power consumption : 6W

-Voltage : 24Vdc

-Color: 3000K 4000K

-Beam angle : 4° 10° 28°

- nsulation class:

- P protection: P66

-Gross weight: 1.8kg

ACCESSORIES

Recommendations

1) verify that the equipment used to connect our devices to enjoy all the

guarantees required under European law;

2) use the cables, connectors and quality materials for electrical wiring;

3) Products with IP65/68 degree make the wiring / connections with accessoriesprovide the same degree IP of the selected product

(available in the catalog);

4) In the case of installations outside is not recommended to install the power supplies in theformwork and / or in the junction box

without adequate protection;

INSTALLATION

-SWITCH-OFF THE POWER SUPPLY BEFORE CARRYING OUT ANY MAINTENANCE OPERATIONS

1) Remove the fixing base from the luminaire using the tool include in the package

2) Drill holes directly to the feeding point and place plugs (fisher type) and install the fixing base

3) Make the adeguate electrical connection remembering that is a 24Vdc luminaire respecting the polarity of the cable.

4) Fix the luminaire to the base using the tool included in the package and tighten the four grub-screws

5) Make the desired regulation acting to the top head screw and then tighten the screw using a tool included in the package

6) To change the extension pipes uncrew the grub-screw on the top of the pipe and the base fixing nut

External transformer is needed

220/240V 50 60Hz @ 24Vdc

EXTENSION PIPES

WIRING DIAGRAM WITH PARALLEL CONNECTIONS

CLA III 24Vdc

BROWN WIRE + Positive

BLUE WIRE— Negative

ee the connector accesso-

ry instruction
