INSTALLATION GUIDE

ENGLISH v1.1

code: RWA964

Name: 9U RACK cabinet, wall mounted, ready-to-assemble 600x450

IM RWA964

Edition: 2 from 07.06.2019

Supersedes: 1 from 23.04.2019

1. Intended use:

The RACK 19” cabinet enables integrating CCTV, AC, I&HAS, RTV, LAN, or other systems in small companies or households.

It is intended for devices manufactured in enclosures of the 19'’ standard. Due to the RACK cabinets, the devices are aesthetically

mounted and protected against mechanical damage.

2. Specifications:

SPECIFICATIONS

Mounting dimensions:

W=19", H=9U, D=271mm

External dimensions:

W=600, H=502, D=450 [mm, +/-2]

Net/gross weight:

20 / 21,5 [kg]

Materials:

- RACK mounting rails: cold-rolled steel SPCC 1,5mm

- top and bottom panel: cold-rolled steel SPCC 1,2mm RAL 9004

- frame: cold-rolled steel SPCC 1,2mm RAL 9004

- front door: 5mm toughened glass / SPCC 1,2mm RAL 9004

- side panels: cold-rolled steel SPCC 1,2mm RAL 9004

- rear plate: cold-rolled steel SPCC 1,2mm RAL 9004

Static load:

70 kg

Use:

inside, IP20

Notes:

- adjustable distance between front and rear RACK rails (range - see point 5.1)

- ventilation holes in the top panel (2 x 105x105mm - mounting dimensions)

- cable ducts in the top and bottom panel (340x56mm)

- lockable front door –repeatable code (2 keys included)

- possibility of reverse front door –opening left/right

- side panels - lock assembly possible - RAZB16 (additional equipment)

- possibility of disassembly rear panel (518x434mm)

- ready-to-assemble

Declarations, warranty:

RoHS, 12 months from the date of purchase

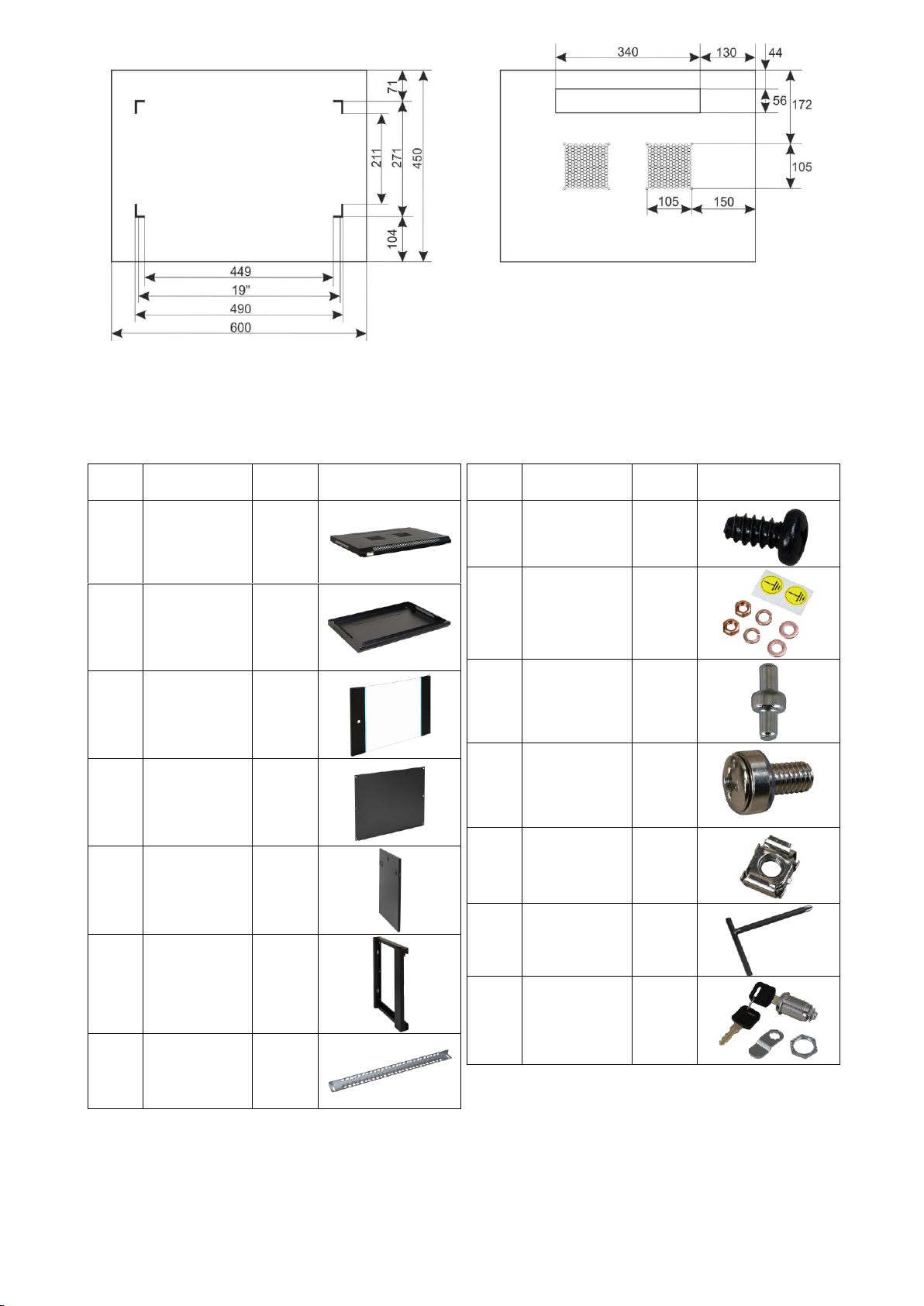

3. Structure of the cabinet.

4. Components

Num

ber

Component

Amou

Foto

Top panel

1 pcs

Bottom panel

1 pcs

Front doors

1 pcs

Rear plate

1 pcs

Side panel

2 pcs

Cabinet

frame

2 pcs

RACK 19”

6U rail

4 pcs

Num

ber

Component

Amou

Foto

10mm screw

cross (black)

18 pcs

M5 nut,

spring

washer

2 pcs

Spacer for

front doors

1 pcs

M6x12

Phillips

screw

12 pcs

M6 nut

(„cage nut”)

12 pcs

Cross and

hex

screwdriver

1 pcs

Lock

1 pcs

5. Assembling instructions:

5.1)

5.2)

5.3)

5.4)

5.5)

6. Assembly of RACK cabinet

Choose appropriate mounting pins depending on type of substrate.

MANUFACTURER

Pulsar sp. j.

Siedlec 150,

32-744 Łapczyca

Tel. 14-610-19-40, Fax. 14-610-19-50

e-mail: biur[email protected], sale[email protected]

http:// www.pulsar.pl, www.zasilacze.pl
