Pulsar PSP48005 Manuale utente

PSP48005

PSP 48V/0,5A PoE desktop power supply

Edition:1 from 03.11.2017

Supersedes edition: ------------

Features of the power supply unit:

•

power output 48VDC/0,5A

•universal input voltage range 90÷264VAC

•high efficiency 89%

•Data and Power carried over one Ethernet Cable

•

LED optical signalization

•protections:

•

overvoltage protection (AC input)

•

SCP short-circuit protection

•

overload (OLP)

•

warranty – 2 year from the production date

1. Technical description.

1.1. General description.

Stabilized DC power supply is intended for supply any LAN devices through Ethernet Cable, which require stabilized voltage

of 48V DC. The unit provide power through 4/5pins(+) and 7/8pins(-) in Ethernet cable that according to the Ethernet standard are

not used to transmit data (data communication is made using pairs: 1/2 and 3/6). The Power supply can’t be used in Gigabit

Ethernet! The unit is protected against short-circuit and overload.

1.2. Technical parameters.

Supply voltage 90 ÷ 264V AC 50/60Hz

Current consumption 0,25A/230VAC max.

Supply power 24W max.

Efficiency 89%

Output voltage 48V DC is supplied over 4/5 (+) and 7/8 (-) pairs of the PoE connector

Output current

Ripple voltage 150mV p-p max.

Short-circuit protection SCP electronic, automatic recovery

Overload protection OLP 110-150% of power supply, automatic recovery

Optical signalization PWR – presence of DC voltage

Operation conditions

temperature -10

C÷40

relative humidity 20%...90%, without condensation

Dimensions (LxWxH) 119x 61 x 38 [mm]

Net/gross weight 0,33kg / 0,38kg

Protection class EN 60950-1:2007 II (second)

Length of detachable AC cable 1m

Storage temperature -20ºC...+60ºC

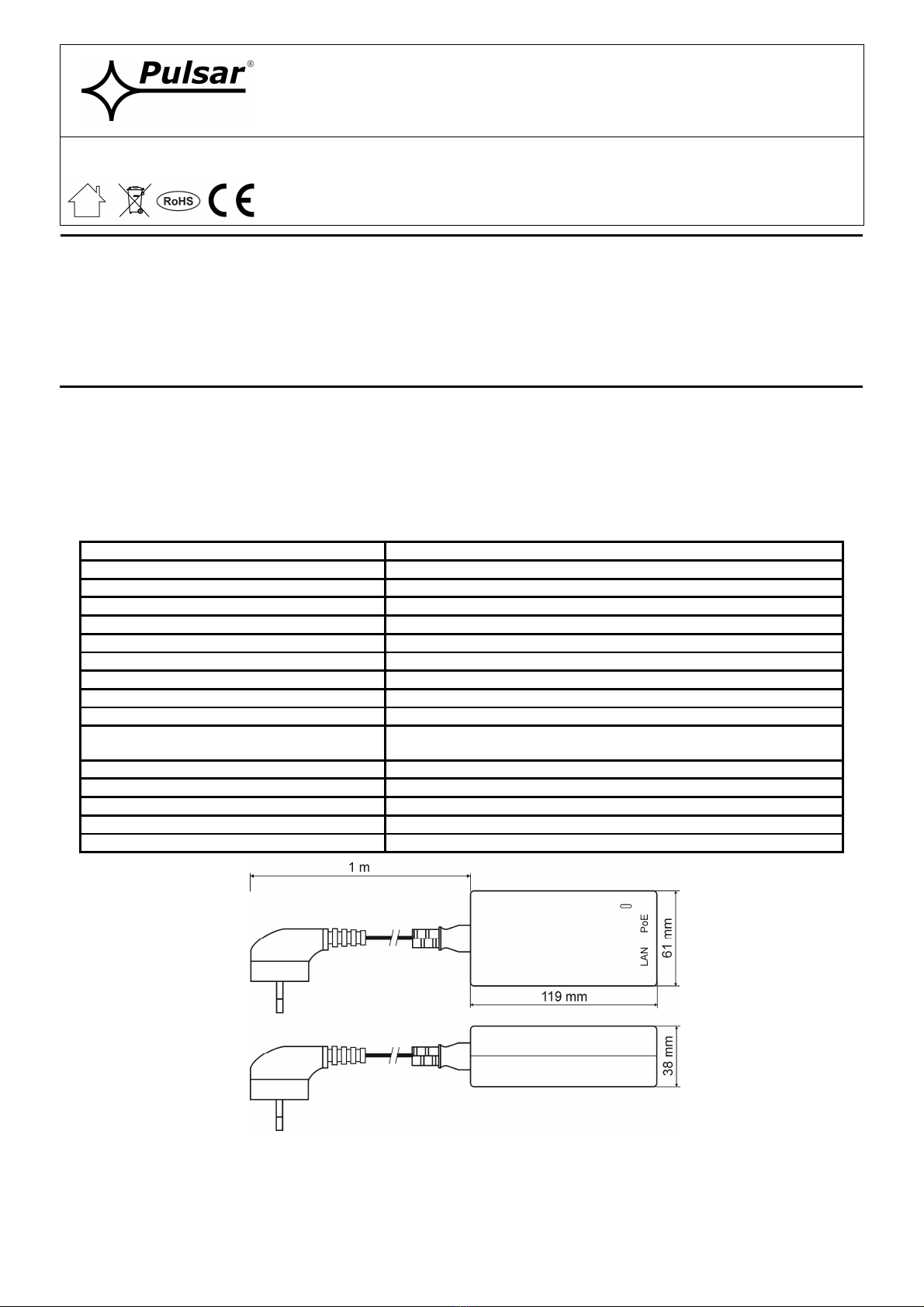

Fig.1. Dimension of power supply.

2. Installation.

2.1. Requirements.

The power supply shall be mounted by the qualified installer having appropriate (required and necessary for a given country)

permissions and qualifications for connecting (operating) low-voltage installations. The power supply shall be mounted in closed rooms,

according to the environment class II, of the normal air humidity (RH=90% max. without condensation) and the temperature within the

range from -10°C to +40°C.

The power supply shall be mounted in a close casing (a cubicle, a terminal device) and in order to fulfill LVD and EMC

requirements the rules for power supplies, encasing and shielding shall be observed according to application.

The power supply unit is intended to use in Ethernet 10Mbit/s and 100Mbit/s (Fast Ethernet) networks. It can’t be used in

Gigabit Ethernet! Connections between power supply and LAN Devices should be made using Ethernet cable Cat.3.

The power supply unit is designed for a continuous operation and is not equipped with a power-switch. Therefore, an

appropriate overload protection in the power supply circuit should be provided. Moreover, the user shall be informed about the method

of disconnecting the mains voltage (usually through assigning an appropriate fuse in the fuse-box. The electrical system shall follow

valid standards and regulations.

2.2. Installation procedure.

1. Connect the Ethernet cables to the RJ45 ports: LAN, PoE. Attach a LAN data cable patch cord from Ethernet Switch port to the

RJ45 connector on PoE unit marked LAN. Then attach a second patch cable from the “PoE” RJ45 connector on the PoE unit to the

device to be powered.

2. Connect the power supply unit to a grounded AC power source using provided three wires power cord. The power supply has to by

installed in such way to keep the air flow around the supply unit.

3. After tests and operation control are performed, the casing (cubicle) shall be closed etc.

3. Maintenance.

Any and all maintenance operations may be performed following the disconnection of the power supply from the power

network. The power supply does not require any specific maintenance procedures.

WEEE MARKING

According to the EU WEE Directive – It is required not to dispose of electric or electronic w ste s

unsorted municip l w ste nd to collect such WEEE sep r tely.

Puls r

Siedlec 150, 32-744 Łapczyca, Poland

Tel. (+48) 14-610-1 -40, Fax. (+48) 14-610-1 -50

e-mail: biuro@pulsar.pl, sale[email protected]

http:// www.pulsar.pl, www.zasilacze.pl
