Pulsar RW1264GD Manuale utente
INSTALLATION GUIDE
ENGLISH
code: RW1264GD
Name: RACK cabinet, wall mounted, fully assembled 12U/600x450
IM RW1264GD
Edition: 2 from 18.10.2013
Supersedes: 1 from 20.11.2012
EN*
1. Intended use:
The RACK 19” cabinet enables integrating CCTV, AC, I&HAS, RTV, LAN, or other systems in small companies
or households. It is intended for devices manufactured in enclosures of the 19'’ standard. Due to the RACK cabinets, the
devices are aesthetically mounted and protected against mechanical damage.
2. Specifications:

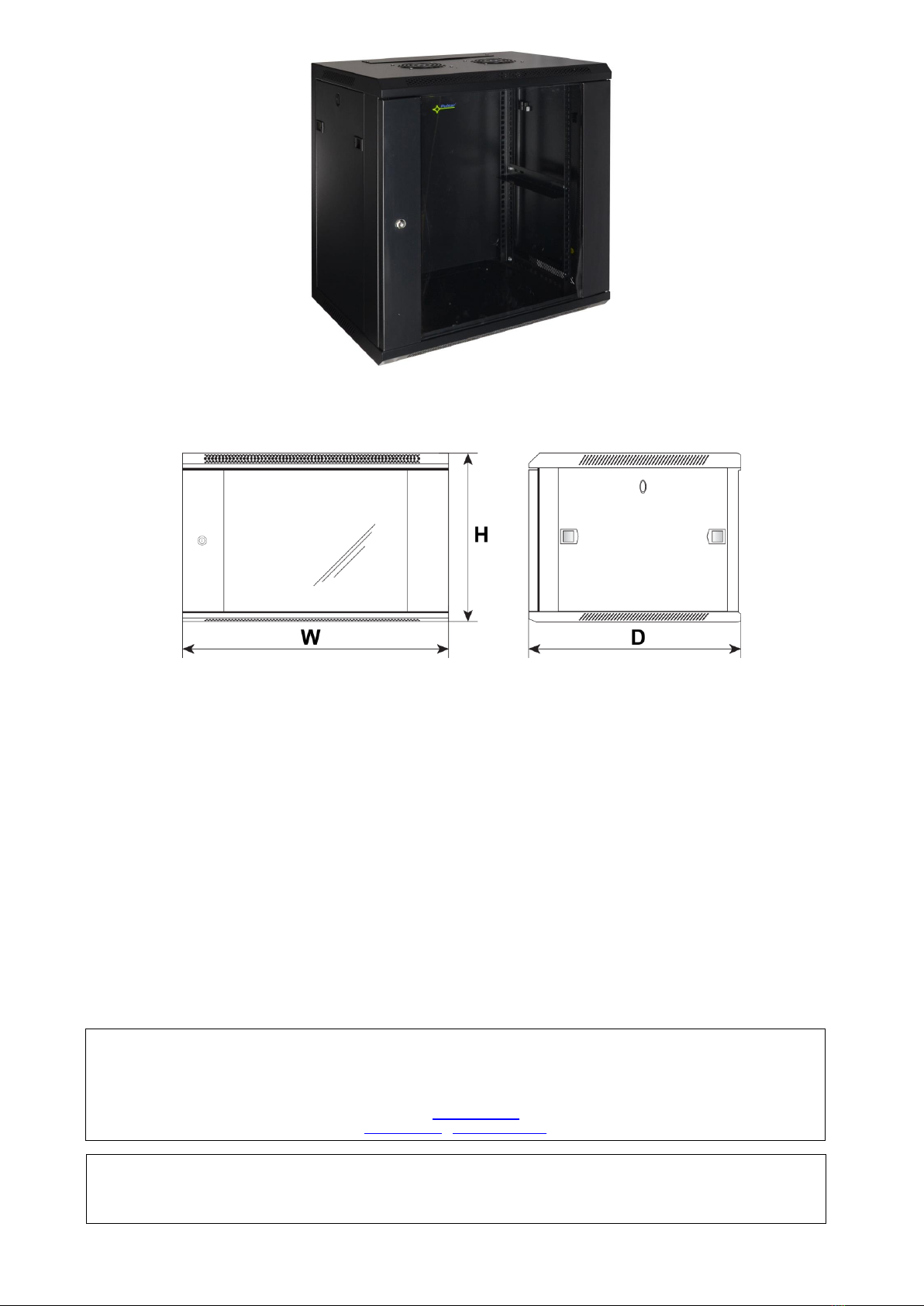

SPECIFICATIONS
Mounting dimensions:
W=19", H=12U
External dimensions:
W=600, H=635, D=450 [mm, +/-2]
Net/gross weight:
23,5 / 25 [kg]
Materials:
- RACK mounting rails: cold-rolled steel SPCC 1,5mm RAL 9004 - bolted
- frame: cold-rolled steel SPCC 1,2mm RAL 9004 - welded
- front door: 5mm toughened glass / SPCC 1,2mm RAL 9004 - hinged
- side panels: cold-rolled steel SPCC 1,2mm RAL 9004 - removable
Static load:
60 kg
Use:
inside, IP20
Notes:
- adjustable distance between front and rear RACK rails
- ventilation holes in the top and bottom panel
- possible mounting of 1 or 2 fans in the top panel - RAW1 / RAW2
- cable ducts in the rear, top and bottom panel
- wall-mounting - 4 bolts (not included)
- lockable front door (2 keys included)
- side panels - lock assembly possible - RAZB16
- the possibility of installing a set of RAPU-W grounding wires in the rack
- fully assembled
Certificates, declarations:
RoHS
3. Structure of the cabinet.
top panel
rear panel
RACK rail
side panel
front door
bottom panel
MANUFACTURER
Pulsar K.Bogusz Sp.j.
Siedlec 150,
32-744 Łapczyca
Tel. 14-610-19-40, Fax. 14-610-19-50
e-mail: biur[email protected]
www.pulsar.pl , www.zasilacze.pl
WARRANTY
12 months from the date of purchase.
THE WARRANTY IS VALID only upon presentation of the item’s proof of purchase.
