PULSEEIGHT ProAmp8 Manuale utente

INSTALLATION GUIDE

P8-PROAMP8

ProAmp8

V 1.0

SAFETY PRECAUTIONS

Please read instructions before attempting to install or operate this equipment.

Please keep the following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of re, electrical shock and injury.

• To prevent re or shock hazard, do not expose the unit to rain, moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Where possible, install the ProAmp towards the top of the rack to aid in heat dissapation.

• Use only the supplied IEC cable.

• Never push an object of any kind into this product through any openings or empty slots in the unit, as you

may damage parts inside the unit.

• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it.

• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide

ventilation and allow for sucient space for air to circulate around the unit.



CONTENTS

Safety Precautions P2

Product Description P3

Key Features & In the Box P3

Specications P4

Conguration Mode Specications P5

Front Panel P6

Rear Panel P7

Conguration Modes P8

Power Modes P9

Setup Guide P10

ProAmp Control & WebUI P15

Wiring Diagram - neo:8a, ProAudio & ProAmp P21

Wiring Diagram - neo:X & ProAmp P22

Remote Montoring Portal P23

Warranty Information P25

Pulse-Eight Limited reserves the Right To change products information and specication without notice.

The Products and its specications discussed herein are for reference purposes only. All information

discusses herein is provided on an “AS IS” basis, without warranties of any kind. This document and

all its information discussed herein remain the sole and exclusive property of Pulse-Eight Limited. No

license of any patent, copyright, mask work, trademark or any intellectual property right is granted by

one party to the other party under this document, by implication, estoppel or otherwise. Pulse-Eight

products are not intended in life-support critical care, medical safety equipment, or similar applications

where product failure could result in loss of life or personal or physical harm, or any military or deference

application, or any government procurement to which special terms or provisions may apply. All brand

names and registered trademarks belong to their respective owners.

PRODUCT DESCRIPTION

Pulse-Eight’s ProAmp8 is a powerful and versatile 8-Zone Power Amplier that delivers excellent

audio performance with robust and reliable Class D amplication in a compact form factor. The

ProAmp8 is the all-in-one ideal solution for both surround sound and distributed audio systems.

The ProAmp8 oers a wide range of feature sets such as: full audio DSP and EQ settings; Multi-

Zone Mode; and, Dolby Digital 5.1 Surround Sound Mode. This level of versatility allows for a 5.1

“home theater” alongside a multi-room whole-house distributed audio system all in one box.

The amplier is the perfect partner to Pulse-Eight’s ProAudio DSP pre-amp range and latest neo

matrices.

KEY FEATURES:

• 8-Zone Power Amplier, driven by ICEpower modules, delivering up to 100 watts of

high-quality sound per channel.

• 8 Stereo (L/R) analog inputs and 1 digital (coax/optical) input with Dolby support.

• Bridgeable outputs zones to create exible power congurations.

• Full Dolby Zone DSP and Equalizer (EQ) control.

• Fault detection and system reset protects the amplier and connected speakers

from damage.

• Low-energy consumption when the amplier is in standby and not in use.

• “Automatic sensing” and 12V Trigger options for ecient energy saving with a fast wake-up.

• Includes user-friendly WebUI control access.

• Easy integration with third-party control systems.

IN THE BOX:

• 1x ProAmp8, 8-Zone Power Amplier

• 1x IEC Power Cable (Region Specic)

• 8x Phoenix Speaker Connectors

• 1x Micro-Phoenix RS232 Connector

• 1x Rack Mounting Kit

• 1x Quick Setup Guide

SPECIFICATIONS

GENERAL

Dimensions (HxWxD) 8.9 x 43 x 30mm (2U)

Audio Inputs - 16x Analog Inputs (8x Stereo L/R Channels)

- 1x Digital S/PDIF (Coax/Optical) with Dolby 5.1 Support

Audio Outputs 8x Stereo Phoenix Connectors (congurable)

Active Subwoofer 1x Line-Level Active Output (RCA Style)

12V Trigger 1x 3.5mm (Input)

Control TCP/IP (RJ45) or RS232 (Phoenix Connector)

POWER MODES

Power Modes per Zone Always On / Standby / 12V Trigger /

Auto-Sense (Stereo multi-zone mode only)

Trigger Voltage +4.5V to +12V

Trigger Wake-Up Time (from Standby) < 1 second

Audio-sense Wake-Up Time (from

Standby)

< 1 second

RATED OUTPUT WATTAGE

Rated Power @4Ω load 100 watts per channel @1% THD+N

80 watts per channel @0.1% THD+N

Rated Power @8Ω load 50 watts per channel @1% THD+N

Rated Bridged Power @8Ω load 200 watts @1% THD+N

160 watts @0.1% THD+N

AUDIO

Frequency Response 10Hz-20kHz +/- 0.4dB (4Ω, 8Ω, Unloaded, Power=1W)

THD+N 0.003% (4Ω Unbridged, f=100Hz, Power=1W)

Sensitivity 0.4Vrms to 2.1Vrms

Analog input impedance 10KΩ

THERMALS

Operating Temperature 0°C ~ 45°C (32°F ~ 113°F)

Storage -20°C ~ 70°C (-4°F ~ 158°F)

Thermal Dissipation 2x 60mm Axial Fans

MISCELLANEOUS

AC Mains 100 - 240VAC, 50 - 60 Hz,

- 300W Nominal consumption

- 400W Max consumption (all outputs fully driven)

Fuse Rating 3.15A 250V 5mm x 20mm SLOWBLOW

CONFIGURATION MODES SPECIFICATIONS

Conguration Modes Stereo Multi-zone Mode:

• 8 Stereo Zones

Dolby Multi-channel Mode:

• 1 Dolby Digital 5.1 Audio (6-channel)

• Up to 5 Stereo Zones

STEREO ZONE DETAILS

Inputs (per zone) 2x Analog Inputs – RCA style

Volume (per zone) Range: 0 – 100. Adjustable (Full Range: -99.5dB to +24dB)

Mute (per zone) On / O

DOLBY AUDIO DETAILS

Inputs 1x S/PDIF (Coax and Optical) with Dolby Digital 5.1

Outputs Left, Right, Center, Rear-Left, Rear-Right, Subwoofer

Additional Dolby Output (Optional) Subwoofer in bridge-tied load (BTL) mode

Line level Output Line level subwoofer. (Always On in Dolby Mode)

Volume Range: 0 – 100. Adjustable (Full Range: -99.5dB to +24dB)

Mute On / O

Bass & Treble +/- 12dB

EQ Settings (per zone) +/- 12dB. Bands: 100Hz, 330Hz, 1kHz, 3.3kHz, 10kHz

Delay Settings (per zone) 0-50ms

Stereo Channel Up-mix Auto up-mixing of stereo digital audio into all speakers

Manufactured under license from Dolby Laboratories. Dolby, Dolby

Audio and the double-D symbol are trademarks of Dolby Laboratories.

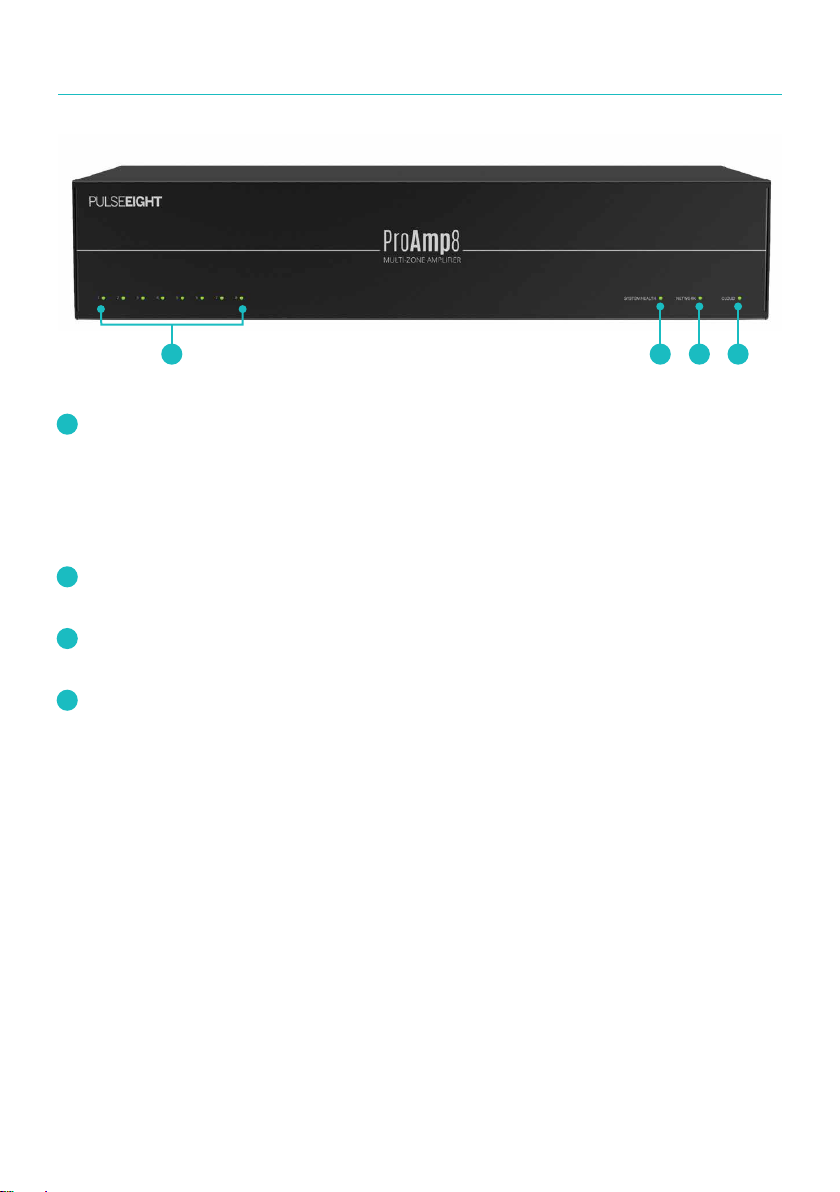

AZone Status LEDs (1-8) Indicate the state of operation for each of the output zones.

- OFF: Zone is disabled/turned O.

- GREEN: Zone is working and healthy (no audio clipping).

- YELLOW: Zone is working but audio is close to clipping.

- RED: Zone audio is clipping.

- FLASHING RED: Zone over heating

BSystem Health LED Indicates whether Unit is turned ON (green), or whether there is an

issue present (amber).

CNetwork LED Indicates the ProAmp8 is connected to the internet through its network link

(green).

DCloud LED Indicates the ProAmp8 is able to connect to Pulse-Eight’s Remote Monitoring

Portal (green).

A B C D

FRONT PANEL

EPower Connector IEC Power connector with OFF/ON switch. Use supplied power cord to

connect the power (100 - 240VAC, 50 - 60 Hz).

FTCP/IP Control Port Required for connection to WebUI, Third Party Control and Remote

Monitoring Portal.

GDolby Audio Input Optical and Coax inputs supporting multi-channel digital

audio, including Dolby Digital 5.1. The digital inputs support standard S/PDIF protocol

(IEC 60958 type II).

HAnalog Stereo Inputs Analog ports for stereo L/R line in. RCA style connectors.

IRS232 Control Port Micro phoenix connector can be utilized for API control using ASCII

commands (UART)

J12V Trigger Input Connects to a trigger output of audio matrix or another 12V trigger

device. Each of the amplier’s zones can be set to automatically power o/on according to the

12V trigger input.

KActive Subwoofer Output Line-level subwoofer active output. RCA style connector.

LSpeaker Zone Outputs Phoenix connectors for speaker wiring connections for each zone.

H LF I J KE G

BACK PANEL

CONFIGURATION MODES

STEREO MULTIZONE MODE

In this conguration, the Analog Stereo Inputs are mapped one-to-one with the Speaker Zone

Outputs. There will be 8-zone stereo inputs routed to 8-zone stereo outputs.

During installation, a range of congurations can be set, including the min/max volume range and

enabling a bridge-mode output per zone.

The Dolby Audio Input Port is disabled and not used in this mode.

DOLBY MULTICHANNEL MODE

In this mode, the Dolby Digital Port input will be active and capable of accepting Dolby Digital 5.1

which will be mapped to 6-surround sound output channels.

Note: In Dolby Multi-channel mode, stereo multi-zone inputs 1, 2 and 3 are disabled.

The Speaker Outputs zones are assigned according to the two sub-modes of operation in Dolby Multi-

channel Mode:

Dolby 3-zone (and 5 stereo zones):

- Zone 1: Front Right (FR) and Front Left (FL) channels

- Zone 2: Rear Right (RR) and Rear Left (RL) channels

- Zone 3: Center (assigned to Left output) and Passive Subwoofer (assigned to Right).

- Zone 4-8: Mapped one-to-one to Analog Stereo Inputs 4-8.

Dolby 4-zone (and 4 stereo zones):

- Zone 1: Front Right (FR) and Front Left (FL) channels

- Zone 2: Rear Right (RR) and Rear Left (RL) channels

- Zone 3: Center (assigned to Left output)

- Zone 4: Bridged Subwoofer

- Zone 5-8: Mapped one-to-one to Analog Stereo Inputs 5-8.

Dolby 4-zone setting is only required for Dolby Multi-channel Mode setups requiring a bridged output

for passive subwoofer. However, this requires an extra speaker zone output (zone 4) from the amplier.

The Active Subwoofer Output is always enabled in any of the Dolby Multi-channel Mode settings.

Enabling Stereo PCM Upmix will ensure that any 2-channel audio input on the Dolby Input will

automatically be converted to 5.1 channel so that there is an audio output on all home-theatre

surround sound outputs.

POWER MODES

The ProAmp8 can manually congure each of its output zones to be turned on/o individually. Also,

it is possible to set an automatic power-saving operation for each zone output, either to Auto-sense

mode or 12V trigger mode.

AUTOSENSE MODE

The ProAmp8 will detect when there is no audio signal (below an assignable dB threshold) on its

analog input within a time period, and it will automatically turn OFF the corresponding Speaker Zone.

Both the input threshold and time period can be congured within the WebUI.

Auto-sense currently is not supported on the Dolby Digital Input.

12V TRIGGER MODE

Each of the assigned Speaker Zone Outputs will only turn ON when a 12V signal is present on the 12V

Trigger Input jack.

Note: 12V Trigger is only connected via a 3.5mm termination.

Both Auto-sense and 12V Trigger Mode have an incredibly fast wake-up time from standby (under 1

second) for the audio zone to turn on; ideal for time-critical applications.

SETUP GUIDE

INSTALLING THE 8ZONE POWER AMPLIFIER IN A RACK

1. Attach the rack ears to the front sides of the amplier using the provided screws.

2. Install into rack and connect cabling according to mode of operation – as described below.

WARNING: To prevent damage, it is important to ensure adequate ventilation space on the sides

of the amplier, especially on the ventilation openings on the side of the product enclosure.

3. For Stereo Multi-zone Mode setup, go to step 4.

For Home-Theater Multi-channel Mode setup, go to step 9.

CONNECTING THE PROAMP8 ANALOG AUDIO INPUTS

4. Connect audio cables to the Analog Stereo Inputs (1-8) RCA inputs. See diagram.

Note: In Stereo Multi-Zone Mode, the ProAmp8 Amplier accepts stereo line-level audio

connections to all its 8-zone analog audio inputs jacks (Analog Stereo Inputs). Each zone input will

pass amplied audio to the respective Speaker Zone Outputs.

CONNECTING THE PROAMP8 OUTPUTS TO SPEAKERS

5. Remove the speaker connectors.

Note: The ProAmp8 can power eight stereo zones of audio and has phoenix-style terminal blocks

for speaker connections.

6. For non-bridged outputs: Connect speakers to the speaker connector and insert into the ProAmp8

respective Speaker Zone Outputs. See diagram

Indice

Altri manuali PULSEEIGHT Amplificatore

PULSEEIGHT

PULSEEIGHT ProApm8 Manuale utente

Manuali Amplificatore popolari di altre marche

ASTRO

ASTRO HVO V40 P Manuale utente

Marantz

Marantz SUPERSCOPE BLA-545 Istruzioni per il montaggio

NAD

NAD CI980 Manuale utente

Technics

Technics SE-CH770 Manuale utente

Harman Kardon

Harman Kardon HK6300 Manuale utente

NAD

NAD T975 Manuale utente

McIntosh

McIntosh MA6850 Manuale utente

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuale utente

Viatron

Viatron Autrix Manuale utente

GME

GME GA9800 Manuale utente

Atlas

Atlas CP700 Manuale utente

Roland

Roland KC-1000 Manuale utente

Pyle

Pyle PFMRA350BW Manuale utente

Advantage

Advantage S-250 Manuale utente

IRT Electronics

IRT Electronics DVA-3007 Manuale utente

Dimavery

Dimavery BA-100 Series Manuale utente

Sony

Sony XM-S400D Manuale utente

Schertler

Schertler ROY X Manuale utente
