Purmo ULOW-E2V Manuale utente
6 bar max.
max. 60°
230VAC
50Hz
Operating Instructions
ULOW-E2V
Vertical Low-Temperature Radiator
GB
DE
NL
FR
Ulow E2V • 2022-04-01
GB
DE
NL
FR
1
2
TOUCHPAD CONTROL
Function and Control Elements
Electronic actuator with
connecting cable
UP key
DOWN key
Heating/Cooling/
recirculating
air key
Main switch ON/OFF
LED on actuator*
Ventilators
Heating symbol, RED Temperature scale
TOUCHPAD
Cooling symbol, BLUE Boost key
* The LED on the actuator indicates the position of the step motor.
Red: Motor closed • Green: Motor open • Flashing green: Middle position
1 5 9
6 10
7
8 11
2
3
4
4 9 6
537 810
11
Ulow E2V • 2022-04-01
GB
DE
NL
FR
You‘ve made a Good Choice.
Operating Conditions
The low-temperature radiator with E2 technology is a high-
quality product made for you. It meets the latest standards in
terms of energy-efficient low-temperature radiator technology.
In order to avoid malfunctions or damage, it is important to read
and follow these operating instructions carefully. If you have
any questions, please contact your specialised local dealer or
the manufacturer directly.
Enjoy your new low-temperature radiator.
6 bar max.
max. 60°
230VAC
50Hz
Ulow E2V • 2022-04-01
GB
DE
NL
FR
Important Notes
The device may only be mounted by a qualified
expert.
The device must not be mounted directly
in front of a socket outlet.
The electrical installation must comply with the
local or national wiring regulations. In bathrooms or shower
rooms, the device must be installed in a way that switches
and other control elements cannot be touched by any person
using the bathtub or shower.
If the connecting pipe or the electrical supply cord of
the device is damaged, it may only be replaced by the
manufacturer or service agent.
Caution! In order to prevent overheating,
the radiator must not be covered
completely for technical safety
reasons.
After mounting the device, the socket must remain
accessible.
For ULOW E2, a fused (3A) electrical spur with a
switch having 3 mm separation on all poles must
be provided in an easily accessible position
adjacent to the unit.
Type: ULOW E2
max. 15 W ~230 V
ÖVE
Ulow E2V • 2022-04-01
GB
DE
NL
FR
Important Notes
Caution! Some parts of the product may get
very hot and cause burns! Special caution is advised, if children
and persons in need of protection are present.
Children below the age of 3 must be kept away from the
product, unless they are constantly supervised.
Children from the age of 3 and below 8 may only
switch the device on/off if supervised or
instructed on the safe use of the device and if
they are aware of the resulting danger, given
that the device is placed and installed in its
normal position of use.
Children from the age of 3 and below 8 must not
put the plug into the socket, control the device,
clean the device and/or perform any maintenance
work.
This device may be used by children from the
age of 8 and persons with reduced physical,
sensory or mental capabilities or lack of
experience and knowledge, if supervised or instructed
and fully aware of the safe use of the
device and the resulting risks. Children must not
play with the device. Cleaning and maintenance
work must not be performed by children without
supervision.
Ulow E2V • 2022-04-01
GB
DE
NL
FR
Number of ventilators:
Length 450 mm = 2x3 = 6 ventilators
Length 600 mm = 2x4 = 8 ventilators
Length 750 mm = 2x6 = 12 ventilators
Do not use any scouring detergents or paint thinning!
To ensure the efficiency of the device, regular maintenance
of the ventilators and the radiator by the specialist trade is
recommended.
The following standards must be observed when installing
radiators:
- DIN 55900: Spray area in wet rooms.
- VDI 2035: Avoiding damage in hot water heating systems
- DIN 18017 Part 3: Ventilation of bathrooms and toilets
without windows
- EN 14336: Heating systems in buildings, installation and
acceptance of hot water heating systems
- VDE, ÖVE
The electric actuator must be mounted on the LEFT side of
the valve body, which is centrally located on the lower edge
of the radiator:
1. Mounting the electric actuator
2. Connecting the ribbon cable of the power box to the ribbon
cable of the touchpad
3. Connecting the Ulow E2 V to the mains supply
Important Notes
Ulow E2V • 2022-04-01
GB
DE
NL
FR
Connecting the Flat Cable
1. Connect the ribbon cable from the right side panel with the
touchpad to the ribbon cable coming out of the radiator on
the right. Be VERY CAREFUL when doing this!
2. Then click the side panel into the radiator.
Ulow E2V • 2022-04-01
GB
DE
NL
FR
Mounting the Electric Actuator
The electric actuator must
be mounted on the LEFT side
of the valve body, which is
centrally located on the lower
edge of the radiator. First
connect the cable and then
mount the electric actuator
on the valve body.
Make sure that the cable
always is located BEHIND
the pipe.
Then connect the cable to the
electric actuator.
Then turn the union nut (M
30 x 1.5 mm) onto the valve
by hand.
Attention: The flat side of the
electric actuator must face
backwards or upwards. If you
turn the flat side downwards,
the cable will come loose.
Ulow E2V • 2022-04-01
GB
DE
NL
FR
Connecting to the Power Network
Example:
Classic power
connection with plug
connection.
Example:
Direct power
connection
with or
without
on/off
switch.
Then connect the E2 to the
mains with a Euro plug or ...
... direct power connection with
open cable ends.
Ulow E2V • 2022-04-01
GB
DE
NL
FR

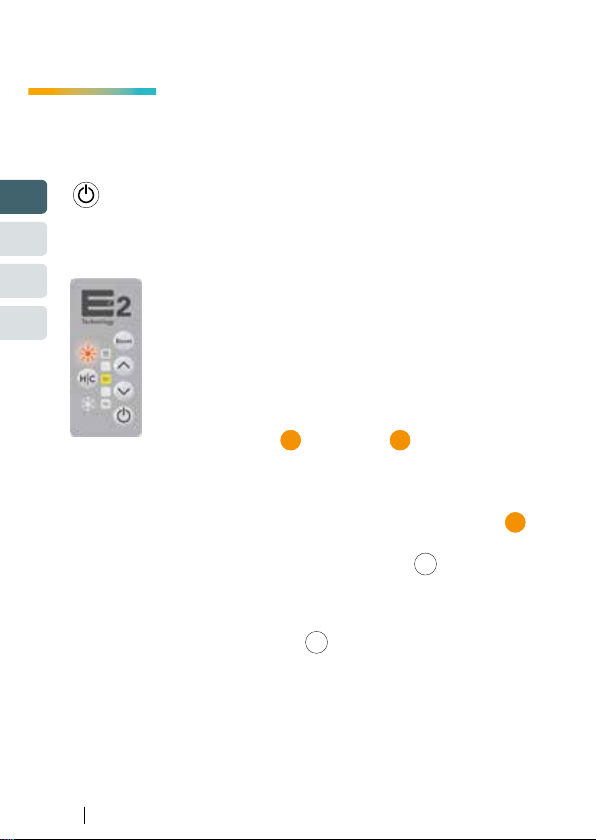

Turning on the Radiator Control
The radiator control of the E2 low-temperature radiator is
turned on by pressing the ON/OFF key.
Important in case of first start-up:
During the first start-up, please note that the
radiator control will be in heating mode with a
pre-set target room temperature of 22°C.
Changes in heating operation:
The red heating symbol is lighted. The desired room
temperature can be set from 18°C to 26°C in steps of
0.5°C. Use the UP
6
and DOWN
7
key.
Boost Mode:
In this operating mode, the yellow temperature symbol flashes
8
.
In order to achieve the required room temperature as quickly as
possible, activate the boost mode by pressing the
Boost
key. This will
activate the maximum heating output for a maximum of 120 min. As
soon as the desired room temperature has been achieved, comfort
mode will automatically be re-activated. Boost mode can be
stopped any time by pressing the
Boost
key.
Boost
!
