USER MANUAL
Tips: Please read this manual carefully before use and keep it properly.
Do not ride until you know the performance of this product.
Welcome
Thank you for choosing PXID Mantis P6 electric bike (hereinafter referred to as Mantis P6 ). This bicycle is a safe and fashionable transpor-
tation tool. Enjoy free riding and speed control from now on!
In order to ensure the safety, please read this manual carefully before riding to meet the relevant conditions.
Join PXID Cycling Club and we look forward to meeting you on social media!
Contact us
Company: Huaian PX Intelligent Manufacturing Co.,Ltd.
Add: No.18, Shenzhen East Road, Qingjiangpu District, HuaiAn, JiangSu
Email: [email protected]
Website: www.pxid.com
Tag us! @PXID #PXID
Bike Pxid
pxid_bike
Pxid Bike
@PxidBike
Content
1. Must read before assembling and riding............................................................................................................. 1
2. Unboxing and checklist ........................................................................................................................................ 3
3. Installation instructions ........................................................................................................................................ 5
4. Operating instructions .......................................................................................................................................... 7
5. Moving and storage instructions ....................................................................................................................... 11
6. User Maintenance Instructions .......................................................................................................................... 17
7. Frame code & motor code .................................................................................................................................. 21
8. Warranty service ................................................................................................................................................. 22
9. Safety instructions ............................................................................................................................................. 24
10. Legal statements ................................................................................................................................................ 27
1. Must read before assembling and riding
1. Please read this manual throughout before assembling this e-bike or the rider’s first time riding it.
2. Before unboxing, please check the shipping damages on the box and take the photo(s) to record it.
3. You may need a friend’s assistance to avoid hurting yourself or damaging the bike when unboxing.
4. The serial number is on the front side of the head tube. Please take a photo of it and back it up. It’s required for
：
• warranty;
• insurance;
• lost & found;
• report a stolen bike.
5. Seriously check
：
• the brake system (both front and rear) works fine;
• the handlebar steers smoothly;
• the frame & other construction components are intact;
• all bolts and screws have been tightened properly before your first ride.
6. Know and obey the local traffic regulations.
7. Do necessary tests (brake, steer, shift, etc.) and wear a helmet before every ride.
8. DO NOT pursue high speed, haul overload, or carry a passenger.
9. The owner is responsible for using and maintaining it according to our instructions and suggestions.
10.The battery and bike can be dangerous with improper operation and maintenance. Please keep the “Safety instructions” in mind and take
care.
11.DO NOT modify the original components or use a third-party aftermarket replacement part before confirming with us.
1
E-bike specifications
Model Mantis P6
Battery 46.8V 20.4Ah Removable battery
Charger info 54.6Vdc American charger
Motor 750W
Range 32 ~ 38 miles with throttle only,
38 ~ 44 miles with pedal assist ( load is about 198 lb)
Top speed 28 Mph
Tire 20*4.0 Inch
Brakes Front and rear disc brakes, 180mm rotors
Payload capacity 310Lbs
IP rating IPX4
Temperature limit -10~40°
Net weight 88.2Lbs
Size 1753*720*976mm
Minimum age/height for use 16 years old
You can choose the appropriate version according to your own needs, and in the future Mantis P6 will launch various optional upgrade
accessories and color style kits, please consult your dealer for details.
2
2. Unboxing and checklist
1. Take the bike and all items on the Checklist out of the box.
2. Remove all wrapping materials and put them back into the box.
3. Recycle the box and wrapping materials after 15 days or when you decide to keep the bike.
3
User manual * 1
Accessories
User manual
If there are missing parts or shipping damages to be found, please contact us within 15 days from receipt of the bike.
Headlight*1Key*3 Gasket*2 Pedal*2 Front fender*1 Press block assembly*1
Bike body*1
Handlebar assembly*1
Hexagon wrench * 3
4# 5# 6#
13-15#
wrench * 1
M8*25
Screw*2 Charger*1
4
3. Installation instructions (INSTRUCTIONS D'INSTALLATION)
5
1.As shown in the figure, the four screws on the
press block assembly are twisted.
2. Place the press assembly, handlebar assembly,
and screws as shown in the picture, align the holes
and tighten them with 5
Allen wrench.
4.Align the handlebar kit with the mounting slot of
the upper link plate, and then put the correspond-
ing screws into the corresponding position from
top to bottom.
5. Tighten with a hexagon screwdriver. The inst-
allation is complete, as shown in the figure above.
3. As shown in the figure, use the 5
Allen wrench to
unscrew the four screws from the press .
6. As shown in the figure, aglin the front fender
with the scew hole, and install M5 screws.
#
#
6
L
11.Install the pedals, first distinguish between
the left and right pedals, and screw the left pedal
counterclockwise.
9. Place the M8*25 screws in the holes on both
sides of the headlight.
10.Use the 6 Allen wrench to tighten the screws,
and the headlight installation is complete.
8. Place the gasket inside of the bracket.
R
12.Turn the pedal in clockwise slowly with your
hand, and then tighten it with the 15 open wrench
after confirming it.
7. Tighten the screws with the 4 Allen wrench, and
the front fender installation is complete.
#
#
#
4. Operating instructions (INSTRUCTIONS D'UTILISATION)

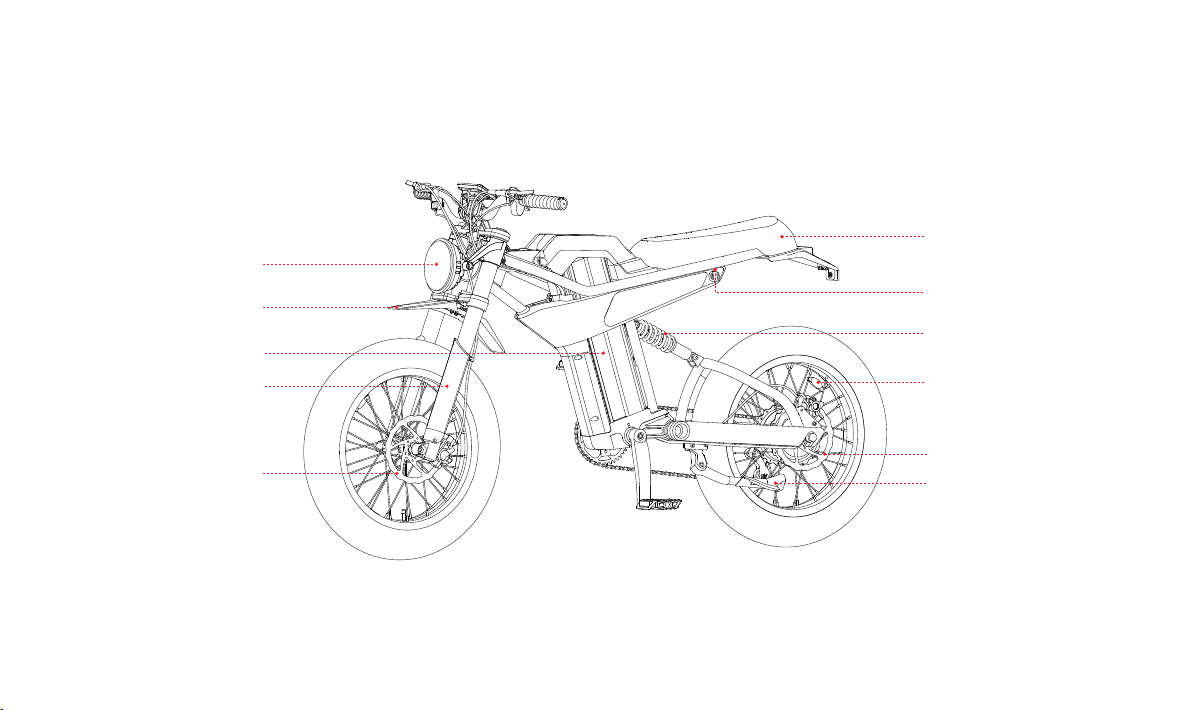

Front fender
Battery pack
Reflector
Battery lock
Shock absorber
Front fork
Rear disc brake
Cushion
Front disc brake
LED light
Kickstand
7
