SP1-MOD, SP2-MOD
Installation Instructions
SP1-MOD SP2-MOD
x8x2
x4
x2
x2
x1
x2
x12
5/16” x 2¾”
x8
¼-20 x 1”

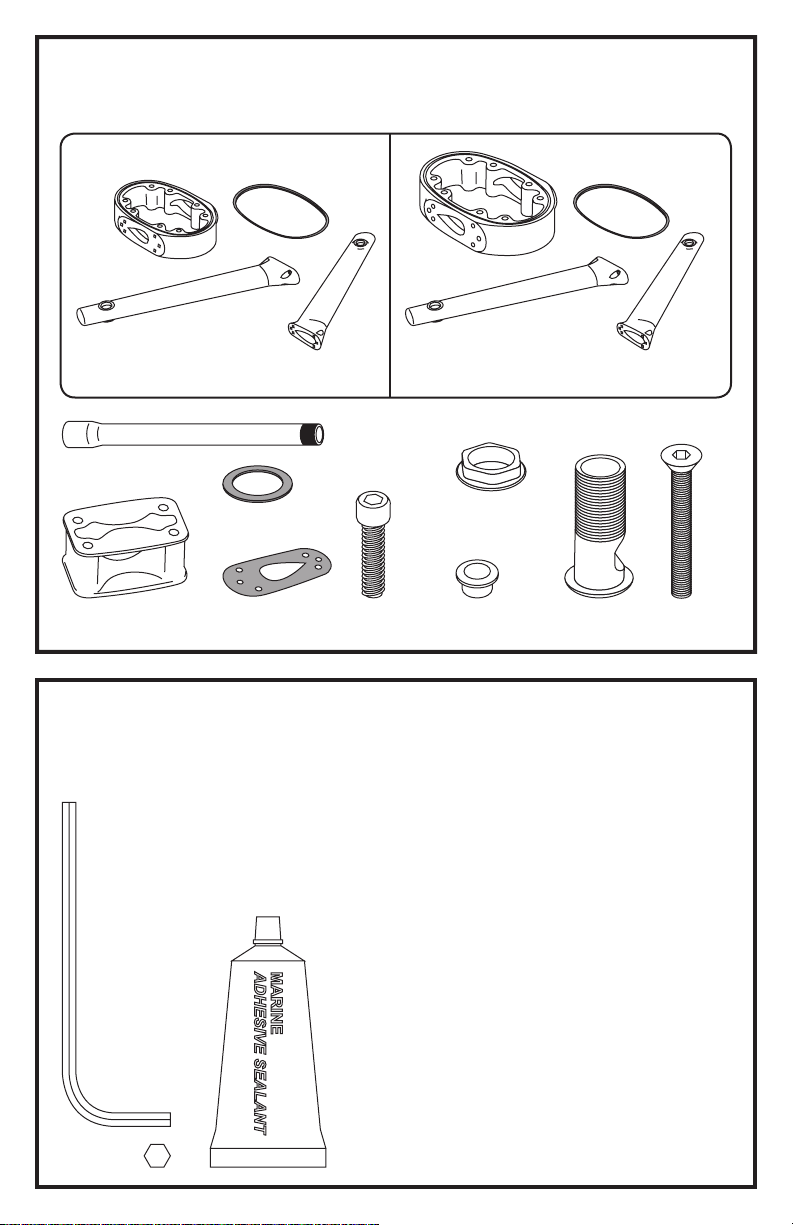

Tools Needed
Parts Included
11”
1Apply the rubber grommet onto
the threaded adapter and then
insert through the spreader.
Apply another rubber grommet
and plastic nut on the threaded
adapter.
If you are using a satellite dome
the plastic extension rod is not
needed. Apply marine adhesive
sealant to the threads of the
adapter and screw on the GPS
unit.
Route the cables through the
spreader.
If you are using a closed dome
radar use the provided plastic
extion rods. Apply marine
adhesive sealant to the threads of
the adapter and screw on the GPS
unit.
Route the cables through the
spreader.
2A
2B
4’
Less than 4’
3A If your fiberglass antenna is less
then 4’ tall then you are ok.
Do NOT use 4’ or taller fiberglass
antennas with Seaview Spreader
Kits. Please call 800-523-7558.
Place the rubber gaskets onto the
sides of the center spreader body.
Make sure that the six mounting
holes line up.
3B
4
5Route the cables through the
center spreader body.
Insert the eight black plastic
shoulder washers into the
spreader bolt holes.
Using the eight ⁄-20 x 1” bolts
tighten the spreaders with an
allen wrench.
Place the rubber gasket in the
groove on the top of the Seaview
mount.
Then place the Spreader Kit ontop
of the assembly.a
6
7
x8
¼-20 x 1”
x8
5/16 x 2¾”
Place the rubber gasket that
comes with the Seaview Top Plate
Kit into the groove on the top of
the Spreader Kit center body.
Bolt the assembly togther using
the eight ⁄x2⁄” bolts.
8
If you are using an optional
Seaview Lightbar wrap the rubber
bushing around the end of the
lightbar.
Place the white plastic adapter
piece ontop of the rubber
bushing.
Place the stainless steel bracket
onto the bottom of the rubber
bushing.
9
10
Place the white plastic spacer
ontop of the adapter.
Insert the lightbar into the back of
the Seaview mount.
Bolt the assembly together with
four ⁄ x 2⁄” bolts.
11
12
13
x4
5/16 x 2¾”
6-62917
North American Office
12532 Beverly Park Road,
Lynnwood, WA 98087
Tel: 800-523-7558
Fax: 425-355-3661
www.seaviewglobal.com
European Office
Tel: +33 4 94 53 27 70
Fax: +33 4 94 53 26 62
Zl Du Capitou, 85 Rue Louis
Lepine, Frejus 83600 - France
www.seaviewprogress.com
