Please read instructions carefully before installation and use. Installation
should be performed by a professional installer. To ensure your safety, the
driver should not watch videos or operate features on the monitor while
driving. There are no serviceable parts in this unit, do not disassemble or
try to repair this unit. If the unit malfunctions please return to your vendor
or send to a Pyle repair facility. Please observe and obey the local laws and
regulations when installing the unit.

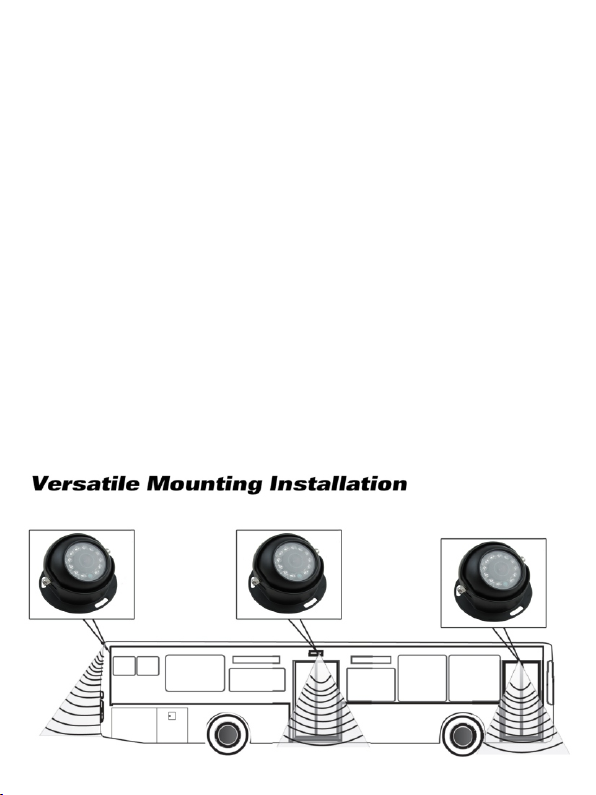

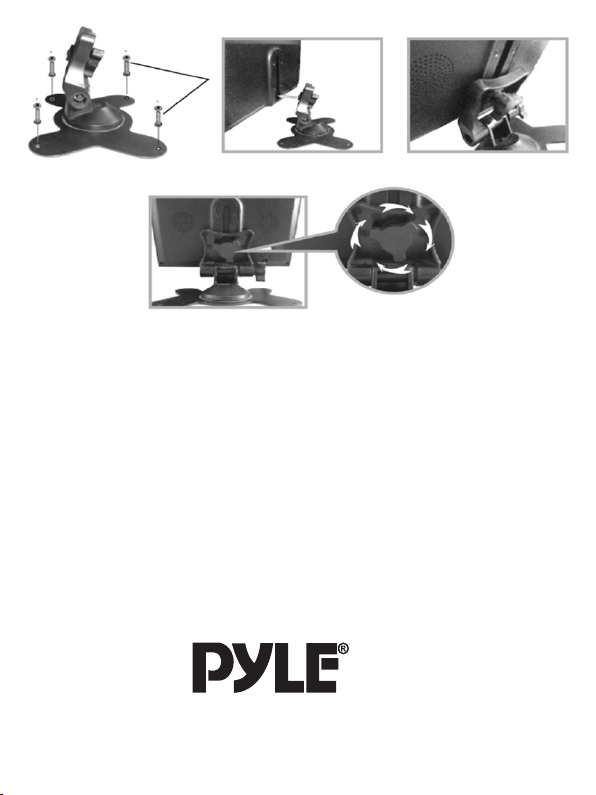

Upon Installation, please make sure as to not to interfere with any of the
vehicle's safety features, wiring, components, etc. We are not responsible
for any damages, injury, malfunctions or otherwise noted due to faulty or
non-professional installation.
Connection

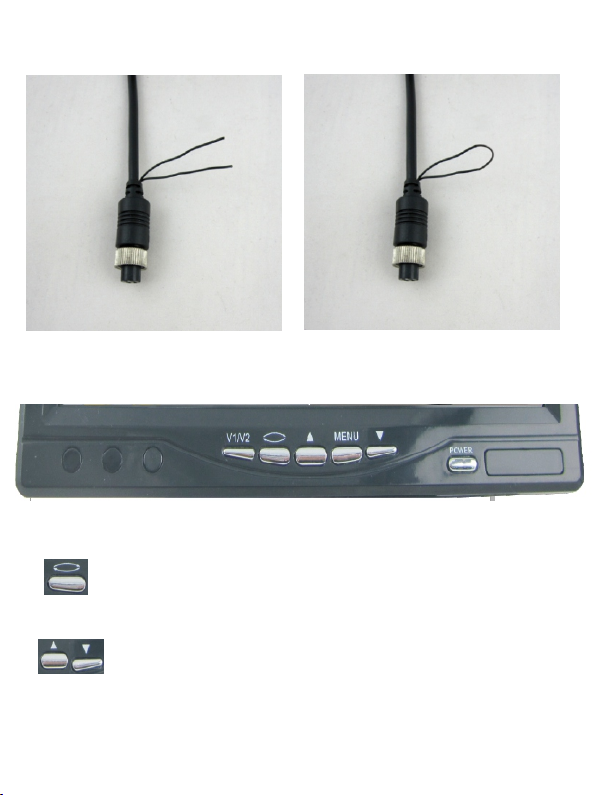

Connect the camera's threaded locking 4-pin cable connectors into the female
receiving connection of the included 4-pin extension cables. The extension
cables then connect to your compatible video monitors with 4-pin receiving
connectors. The threaded locking cable connectors of the camera serve to
provide power and video for all cameras.
Please remember to disconnect your vehicle's battery prior to any connection /
installation. Use the included wiring harness to provide power and video signals
to your monitor. There are colored wires to assist in the video camera system setup.

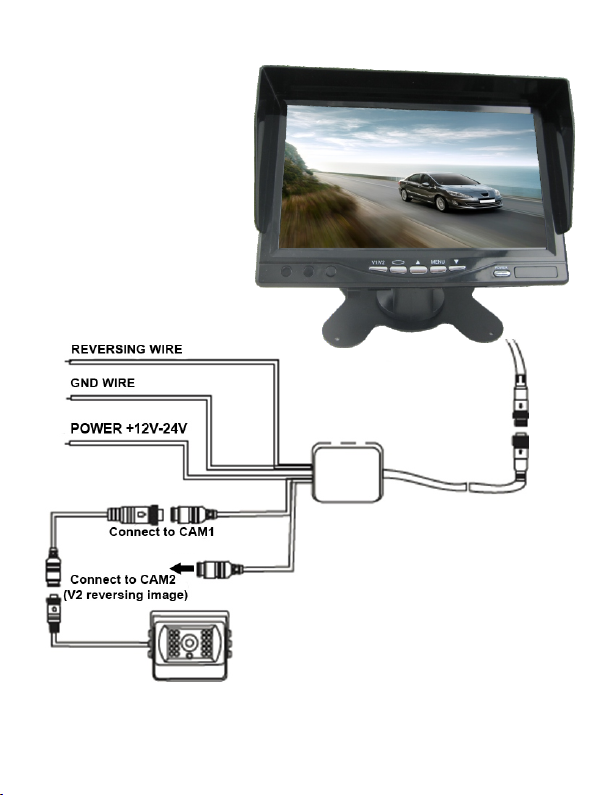

See the wiring diagram for connections between cameras, monitor and your vehicle.
