Pyle Pro PCAU11 Manuale utente

www.pyleaudio.com

PCAU11

2x15W Max Stereo Power Amplifier

with USB Input

1 - Pyle Pro PCAU11 Manual

FEATURES AND CONTROLS

Pyle Pro PCAU11 Manual - 2

Your new Pyle Pro PCAU11 Stereo Power Amplifier

gives you the power and versatility you need in a professional sound system.

Its wide frequency response make it suitable for amplifying music or vocal

program material.

The front located USB 2.0 interface allows you to connect the input of your

MP3 devices conveniently. It can be used for meeting halls, house,

restaurant, school, stores, live bands, or office.

3 - Pyle Pro PCAU11 Manual

FEATURES AND CONTROLS

(1)Power On/Off and LED Indicator

Main power switch, the indicator lights when the amplifier is turned on.

(2)USB 2.0 Input Interface with LED Indicator

Press to play the last song backward, press to play the next song forward,

and press to play and/or pause the song. When the song is ceased from playing,

it will be memorized to resume once the amplifier is reactivated and/or the USB

input is selected again.

(3)USB/LINE Input Selector

Press in to select the USB input and press up for the LINE input. When it is switched

to LINE input while the USB is still on playing, the playing signal of USB continues,

just it is not sent to the amplifier's output.

(4)MASTER Volume Control

Lets you control the overall volume level.

(5)LINE RCA Cable Input

Lets you connect most high level audio sources such as CD player, tape deck, tuner,

camcorder, or VCR.

It is compatible with the computerized devices (MP3) via 3.5mm to RCA Converter.

(6)Push Type Speaker Terminal

Lets you easily connect speaker wires directly to the amplifier. The speaker

impedance can be ranged from 4 to 8 Ohms for the general stereo output. The total

speaker impedance must be at least 4-Ohm per channel at stereo mode.

(7)110/220 Voltage Selector

This amplifier has selectable input voltage from 110V/60Hz (the standard in USA

and CANADA) to 220V/50Hz (for EUROPEAN operation). Please make sure the

switch is in the proper position before operating, otherwise, the severe damage

will be incurred and not covered by the warranty.

(8)Replaceable Power Fuse

The amplifier uses a fuse for protection against surges and short circuit. If the

amplifier suddenly turns off and will not turn on, check the fuse and if necessary

replace it with a 1 amp, 250-volt, fast-acting, 5x20mm fuse (not supplied).

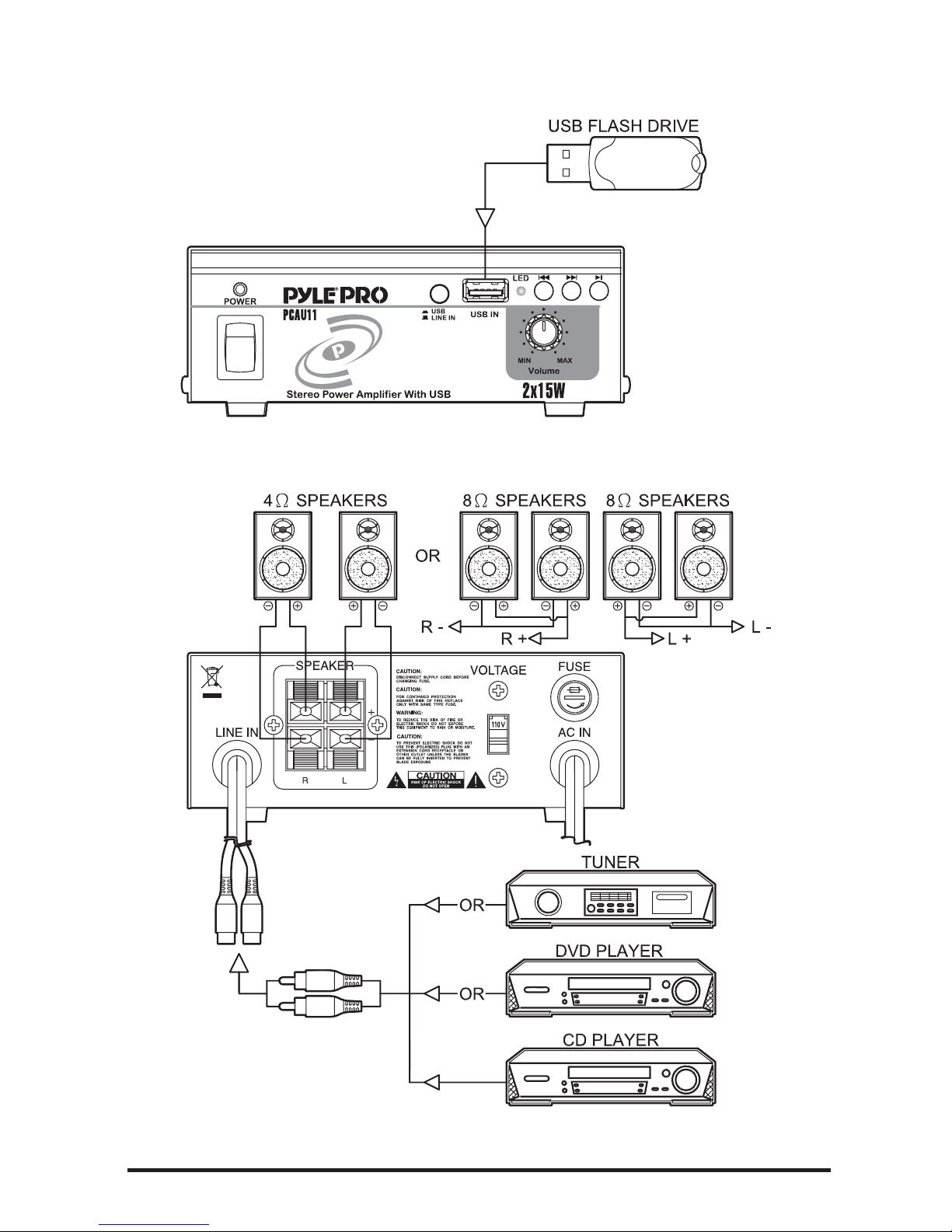

CONNECTION DIAGRAM

Pyle Pro PCAU11 Manual - 4

Specifications are typical; individual units might vary.

Specifications are subject to change and improvement without notice.

Specifications

5 - Pyle Pro PCAU11 Manual

Output Power, 2 channels driven

4-Ohm, 1 kHz, 1% THD ................................................................................ 3Wx2

4-Ohm, 1 kHz, 10% THD ............................................................................... 4Wx2

Max Power ................................................................................................... 15Wx2

Total Harmonic Distortion, 1 kHz Rated Power ................................................ 0.3%

Input Sensitivity, 1 kHz, 4-Ohm Rated Power

LINE ....................................................

........................................................

150mV

USB ....................................................

........................................................

150mV

Frequency Response ............................................................

...............

20Hz-20kHz

Signal to Noise Ratio, 1 kHz, 4-Ohm Rated Power

LINE .....................................................

..........................................................

80dB

USB .....................................................

..........................................................

80dB

Power Requirement ................................................. 120V AC 60Hz/230V AC 50Hz

Power Fuse ............................................................. 1A, 250V fast-acting, 5x20mm

Dimensions, inches (mm) WxHxD .................. 5.61 x 2.17 x 4.21 (142.6 x 55 x 107)

Weight, lbs (kg) ....................................................................................... 2.38 (1.08)

Pyle Pro PCAU11 Manual - 6

PYLE PRO AMPLIFIER

7 - Pyle Pro PCAU11 Manual

Your Pyle Pro Amplifier is an example of superior design and craftsmanship.

The following suggestions will help you care for your amplifier so you can

enjoy years of use:

Keep the amplifier dry. If it gets wet, wipe immediately.

Use the amplifier only in well-ventilated installations.

Handle the amplifier gently and carefully - do nto drop!

Keep the amplifier away from dust adn dirt.

Wipe occasionally with a damp cloth to keep it looking new.

Do not use harsh chemicals, solvents or detergents!
