Pyle Pro PTA3 Manuale utente

PTA3

2X75 Watt Stereo Power Amplifier

www.pyleaudio.com

Your New Pyle Pro Amplifier gives you the power and

versatility you need in a professional sound system. The

amplifier's wide frequency response makes it suitable for

amplifying music or vocal program material. It can be used

in meeting halls, house, restaurant, schools, stores, or for

paging systems.

PTA3 features a PAGER-MIXING function that offers the

flexibility of using it at paging or musical events.

Please read this manual thoroughly before you attempt to

set up and use the amplifier. It contains a range of

installation suggestions as well as instructions to ensure

safe usage.

Installed properly, you can expect years of trouble-free

service from this product.

TABLE OF CONTENTS

1. Features and Controls

3. Caring for your Pyle Pro Amplifier

5. Limited warranty

6. Specifications

RED

HE RISK OF ELECTRIC SHOCK, DO NO

REM

THE COVER OR BACK. NO USER-SERICEABLE P

S INSIDE. REFER

SER

VICING T

UALIFIED PER

NNEL

ng sym

nten

to a

ert you to t

presence o

uninsulated, dangerous voltage within this

pro

senclosure that might be of suffi

ent

to constitute a risk of electric shock. Do not o

en the

produc

scase

The exclamation symbol is intended to inform you that

important operatin

and maintenace instructions are

n t

terature accompan

ng t

s pro

uct

ARNING:

o reduce the

isk o

re or shock hazard,

o not expose t

s pro

uct

to rain or moisture

CAUTION

F ELECTRIC

DO NOT OPEN

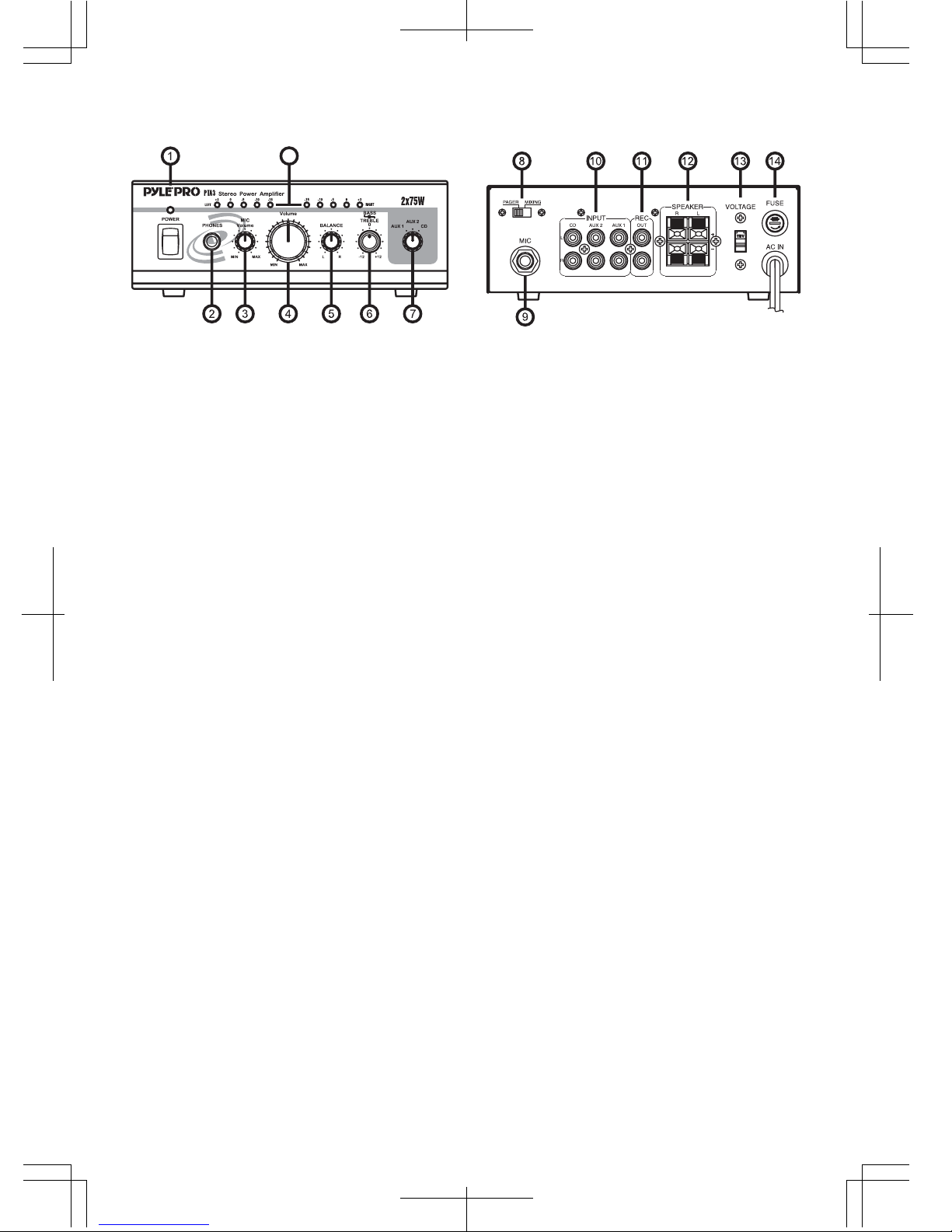

Features and controls

1. Power ON LED Indicator

-Lights to indicate power is turned on.

2. 1/4"PHONE JACK

-Accepts headphones with 1/4" plug.

3. MIC VOLUME CONTROL

-Lets you adjust the volume of connected MIC to the

proper setting.

4. MUSIC VOLUME CONTROL

-Lets you adjust the volume of music output from the

sources of AUX 1, AUX 2, OR CD. It doesn't affect the

volume from MIC.

5. BALANCE CONTROL

-Lets you adjust the sound balance between the left and

right amplifier output.

6.BASS AND TREBLE TONE CONTROL

-Lets you boost or attenuate bass and treble, for the

desired sound.

7.AUXI/AUX2/CD INPUT SELECTOR

-Lets you select the desired input music source.

8. SWITCHABLE MIC PAGER AND MIXING MODES

-Set to PAGER, allows a voice to be heard clearly through

the microphone by attenuating automatically all the

audio input sources. This is good to use when paging the

person in office, store, or restaurant.

-Set to MIXING, both of the voices from microphone and

music will be existed at the same time. It is similar like

playing at KARAOKE events.

9. 1/4" MIC INPUT JACK

-Lets you connect a microphone with a 1/4" plug.

10. AUX1/AUX2/CD RCA INPUT

-Lets you connect most high-level audio sources such as

CD player, tape deck, tuner, camcorder or VCR.

11. REC RCA OUTPUT

-Lets you connect the amplifier to a tape deck for

recording.

12. SPEAKER L/R TERMINALS

-Lets you easily connect speaker wires directly to the

amplifier.Speaker impedance can range from 8 to 4 ohms

for the general stereo output. please see the next

instruction of using four 8-ohm speskers for stereo mode

connection.

13. VOLTAGE SELECTOR

-Lets you select the voltage of AC power input source. The

amplifier has selectable input voltage from 110v/60Hz

which is the standard in USA and CANADA. You can also

switch the input voltage to 230V/50Hz for EUROPEAN

opeation. Please make sure the switch is in the proper

position before operating, otherwise severe damage will

result not cover by the warranty. Please also replace the

fuse with proper rating in this situation (see the next

instruction for the fuse rating).

14. FUSE

-The amplifier uses a fuse for protection against surges

and short circuit. If the amplifier suddenly turns off and

will not turn on, check the fuse, If necessary, replace it with

a 1.5-amp, 250-volt, fast-acting, 5 x20mm fuse (not supplied).

15. Blue LED output level display

FUSE

CARING FOR YOUR PYLE PRO AMPLIFIER

Your Pyle Pro Amplifier is an example of superior design

and craftsmanship. The following suggestions will help you

care for your amplifier so you can enjoy years of use :

*Keep the amplifier dry. If it gets wet, wipe immediately.

*Use the amplifier only in well-ventilated installations.

*Handle the amplifier away from dust and dirt.

*Wipe occasionally with a damp cloth to keep it looking

new.

Do not use harsh chemical, solvents or detergents!

IMPORTANT

Replacing a fuse

This amplifier requires a fuse with the proper rating for

protection from power surges and short circuits. If the

amplifier suddenly turns off or will not turn on. the fuse is

properly blown.

*Let the amplifier cool down and see if it start again before

you assume a fuse needs to be replaced.

*Unplug the amplifier from the AC outlet.

*Turn the fuse holder cap and pull out the cap.

*Remove the old fuse and replace it with an identical one.

CAUTION : Never use a fuse with a higher rating.

The fuse might be blown.

Sound source or speakers

not connected properly.

MUSIC volume control set

to minimum.

The speaker's wire might be

the wrong impedance.

The amplifier might has

shut down.

Microphone or speakers are

too close together.

Check the amplifier's fuse

and replace it if necessary.

Check all connections.

Adjust the volume control

to desired setting.

Make sure all connected

speakers have the same

impedance rating.

Turn the amplifier off and

let it cool. Make sure the

amplifier is properly

ventilated, and then turn it

back on.

Reposition the microphones

and speakers.

No power

No sound

Feedback

Connecting two 4-8 ohm speakers in stereo mode. Connecting four 8 ohm speakers in stereo mode.

TROUBLE SHOOTING

Limited warranty

All PYLE PRO products are carefully constructed and tested before shipment.

Units purchased in the USA are warranted to be free of defects in material and

workmanship for one (1) year from the date of purchase.This warranty is limited

to the original retall purchaser of the amplifier.

Should the unitfall due to factory defects in material or workmanship,your unit

well be repaired or replaced at the sole discretion of PYLE.

To obtain warranty service, you must first call our Consumer Return Hotline at

(718) 236-6948 to obtain a Return Authorization Number.

This R.A # must appear on the outside of your package and on all paperwork

relating to your return.

When returning the unit to us for warranty service, it must be carefully

packed and shipped, prepaid, to:

You must also include the following items with your return:

● A copy of your sales receipt or other proof of purchase

● A brief letter, indicating the problem you are experiencing with the product

● Include in your return address, daytime phone number and R.A. number

● Also include a check or money order for $20.00 for return

shipping, handling and insurance, or provide your Visa/ MC

number with expiration date.

Our obligation under this warranty is limited to the repair or replacement

of the defective unit when it is returned to us prepaid.This warranty

will be considered void if the unit was tampered with, improperly

serviced or subject to misuse, neglect or accidental damage.-

R.A.#:

PYLE PRO Service Center

1600 63rd Street

Brooklyn, NY 11204

SPECIFICATIONS

Output power, 2 channels driven

4-OHM, 1 KHz, 1% THD.

4-OHM, 1 KHz, 10% THD.

Peak Power

Total Harmonic Distortion, 1 KHz Rated Power

Input Sensitivity, 1 KHz ,4-ohm Rated Power

AUX 1

AUX 2

MIC

Signal to Noise Ratio, 1 KHz, 4-ohm Rated Power

AUX 1

AUX 2

MIC

BASS 100Hz

TREBLE 10KHz

Frequency Response, 1KHz 1W, +/-3dB (8-OHM)

Power Requirement

Dimensions

15Wx2

23Wx2

75Wx2

0.3%

200mV

2. 5mV

75dB

65dB

+/-10dB

20Hz - 20KHz

120V AC 60Hz

or 230V AC 50Hz

190x73x137mm (WxHxD)
