OWNER S MANUAL

CAR AUDIO SYSTEM

AM/FM TUNER CD/MP3 PLAYER

PLCDUSMP74

Power

Volume

Eject

Release

Mode

Loud

Clock

Volume setting

Bass setting

Treble settting

Balance setting

Fader setting

Seek

Play/Pause

Scan

Repeat

Shuffle

Band

Loc

Tune

Radio wiring

Speaker wiring

Install the unit

Removing the unit USB PLAYER

AUX IN

Loading and Replacing the battery

Basic operation

To prevent injury or fire,take the

following precautions:

To prevent damage to the machine,

take the following precautions:

Insert the unit until it is firmly locked to the

main unit, otherwise it may

fall out of place when jolted

When extending the ignition, memory

back up or ground cable, use diameter of

0.75mm(AWG18) or

more automotive grade cable to avoid wire

deterioration or damage

to the wire coating.

To prevent short circuit, never put or leave

any metallic object into the unit.

If you smell or see smoke, turn off the

power immediately and consult your dealer.

Be careful not to drop or shock the unit

strongly, it may break or crack because it

contain glass parts.

Be sure the unit is connected to a 12V

DC power with a Negative Ground

The unit is only designed for use with 4

speakers. Do not combine output for use

with 2 speakers. Do not ground negative

speaker leads to the chassis ground

Do not open the top cover and do not install

theunitin

place where it is exposed to direct sunlight

(including the faceplate),in order to avoid high

heat or humidity, water splash over it or dust.

Do not touch the terminals of the units.

Attaching panel

Attach the front panel by fixing

the right side of it into this unit as1

showing.Then push the left side

of panel towards into connecting

plug as 2 showing.

If you have difficulty in installing this unit

in your vehicle. Please contact your dealer.

If the unit seems not work in properly press

the reset button to reset the memory of the

unit.

Attaching panel

Follow this easy wiring diagram in order to enable you to install

the new or existing RADIO and SPEAKER wring system.

Be sure the unit is connected to a 12 volts battery with negative ground.

Good ground connections eliminate most electrical noise problem and

require tight with the metal vehicle chassis.remove plastic, paint or dust

for good electrical contact.

SPEAKER WIRING

Theunitisonlydesignedfortheusewith4speakerssystem,itcan

only be connected with speakers rated in the load impedance range

from 4 to 8 ohms. Load impedance less than 4 ohms could damage

the unit.

Never combine (BRIDGE) the outputs for use with 2 speakers, and

Never ground any Negative speaker to the chassis ground.

CAR ANTENNACAR ANTENNA

ORANGE

RED

WHITE

YELLOW

BLACK

RED

LEFT FRONT

RIGHT FRONTRIGHT FRONT

LEFT REARLEFT REAR

RIGHT REARRIGHT REAR

Connect to control for antenna or remote control for amplifier.

Connect to battery or +12 volts of power source that is always live.

Connect to lgnition key switch.

Memory+

Ground-

12V+

GREEN

GREEN/BLACK

GREY

GREY/BLACK

BROWN

BROWN/BLACK

BLUE

BLUE/BLACK

RCA LINE OUTRCA LINE OUT

FUSE

Before installing the receiver permanently, fit it in the approximate place in your car Connect the

equipment according to the speakers and electrical connections. When

your system is operated properly,(preferably with the

car engine running), follow the instructions

for permanent installation

of your system.

1) Adapter

(not supplied)

2)Bend over tabs

of half sleeve

(supplied)

3)Support strap

(supplied)

Half sleeve

(supplied)

4) Two wrenches for release

the unit (supplied)

INSTALL THE UNIT

1)Install half sleeve, can be with or

without adapter. It will fit better

with adapter.

2)Bend over some tabs where possible

tosecure the half sleeve inside of dash.

3) Support strap to bestrutted under

dash, secure this strip to avoid skipp

ing of disc.

Insert removal wrench into the small

gap on the right side of the unit and pull

the unit slightly out on the same side,

then release the wrench. Repeat the

same action for the left side. By now,

you can remove the unit and unplug

the wires connector.

REMOVING THE UNIT

Power

Turning ON the power

Press the [PWR]button.

Volume/Push sel

Increasing volume

Decreasing

Rotate the [VOL+]button

Press [power] button to turn on/off the unit.

Rotate the [VOL-]button

VOL+

VOL-

LOUDPOWER

SEL/VOL

CLOCK

23456

SEEK

LOC

EJECT

SCAN

REPEAT

SHUFFLE

VOL

AUX IN

EQ CLOCK

POWER

PUSH

SEL

BAND

MODE

LOUD

LOC

LOUD

LCD display

EJECT

VOL

PUSH

SEL

EJECT

Eject

Out

Press the [EJECT]button to eject the disc out of the unit .

Release

press the " " button to release faceplate.To install it again,

please do it left side first, then right.

10- 10+

Clock

Short press CLK can display time even when in power

off mode.

Long Press CLK for 3 seconds will enter set mode.

DSP

Press EQ button once to enter ROCK volume,LCD shows

EQ and ROCK on.

Press twice to enter POP volume ,LCD shows EQ and

POP on.

Press third to enter CLASSIC volume ,LCD shows EQ and

CLASSIC on.

Press fourth to enter FLAT volume ,LCD only shows EQ on.

Press the button again to resume the normal listening.

Rotate [VOL+/-]button to adjust the hour.

Hour

If there is no operation in 5 seconds, it will quit clock

set mode.

Minute

Quit clock set mode

Press [SEL] then Rotate [VOL+/-] button to adjust the minute.

DSP

LOUD

press the [LOUD]button to add bass output, and press it again

to cancel it.

LOUD

EQ setup

MODE

When CD disc in unit ,press [MODE],it will switch between:

No CD disc in ,press [MODE],it will switch between:

BAND USB AUX IN BAND

BAND CD USB AUX IN BAND

Speaker mode

Press SEL button once,display shows VOL ,

then rotate the volume + button

to adjust volume level up.Rotate

the volume - button to

adjust volume

level down.

Volume set mode

Bass set mode

Press SEL button twice,display shows BAS ,

then rotate the volume + button to adjust bass

level up.Rotate the volume - button to adjust

bass level down.

Treble set mode

Press SEL button third,

display shows TRE ,then

rotate the volume + button to adjust treble

level up. Rotate the volume - button to adjust

treble level down.

Press SEL button fourth

display shows BAL ,then

rotate the volume + button

to adjust right speaks level .

Rotate the volume - button

to adjust left speaks level .

Balance set mode

Fader set mode

Press SEL button fifth,display shows FAD ,then

rotate the volume + button to adjust rear speaks

level. Rotate the volume - buttonto adjust front

speaks level.

VOLUME BASS

BALANCE

TREBLE

FADER

In press mode, VOL is sel function

VOL+

VOL-

VOL

PUSH

SEL

SEL/VOL

23456

SEEK

LOC

EJECT

SCAN

REPEAT

SHUFFLE

VOL

AUX IN

EQ CLOCK

POWER

PUSH

SEL

BAND

MODE

LOUD

SCAN REPEAT SHUFFLE

10- 10+

Scan

Press this button once for TRACK INTRODUCTION.

The first 10 seconds of each track on the disc will play. And the

track number shows on LCD.

To select a desired song, press [SCN]button while it is playing.

Press [SCN]button

Play/pause

Play

If with DISC in unit,Press the [ ]to pause music.

Pause

Press the [ ]button again ,then come back to

DISC playing.

Shuffle

Press [SHUFFLE] button to play all the track in random order.

SHF and playing song number will appear on the LCD.

Press [SHUFFLE]again will stop random playing.

Press [SHUFFLE]button

Repeat

Press [RPT]button

REPEAT

Press [REPEAT] button first to repeat the playing track

continuously.

Press second to repeat the whole disc.

Press third back to normal playing.

If CD in unit, press[ ] to select tracks, and long

press to fast advance and back.

23456

SEEK

LOC

EJECT

SCAN

REPEAT

SHUFFLE

VOL

AUX IN

EQ CLOCK

POWER

PUSH

SEL

BAND

MODE

LOUD

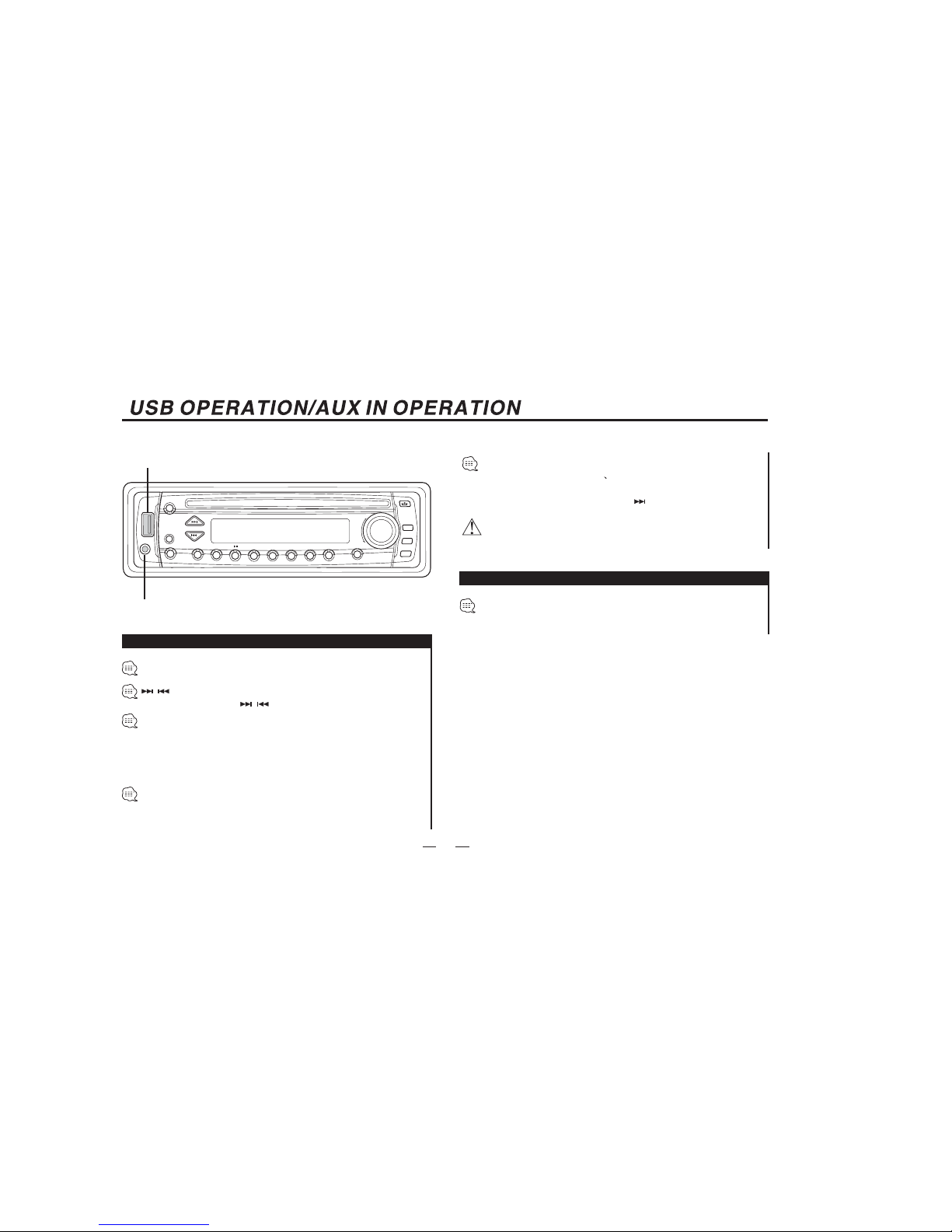

USB

AUX IN

USB player

AUX in

10- 10+

Plug USB, then press [MODE]to transfer to USB play.

,select:

Under USB play,press , can select tracks,

PLAY/PAUSE: press PLAY/PAUSE button to play or pause.

10-,10+:

under USB playing,press 10- 10+can make selection from

No.10 tracks, for example: if you want select No.15 song,press

10+to skip to No.10,and then press to select No.5 from

No.10

Note:Under USB playing station,cannot put in or out CD DISC.Note

Insert AUX in,then press[MODE] to transfer to AUX IN play.

Rotate VOL to volume adjustment.

REPEAT:

Press [REPEAT] button first to repeat the playing track

continuously.

Press second to repeat the whole disc.

Press third back to normal playing.
