Pyle PLCM6000 Manuale utente

PLCM6000

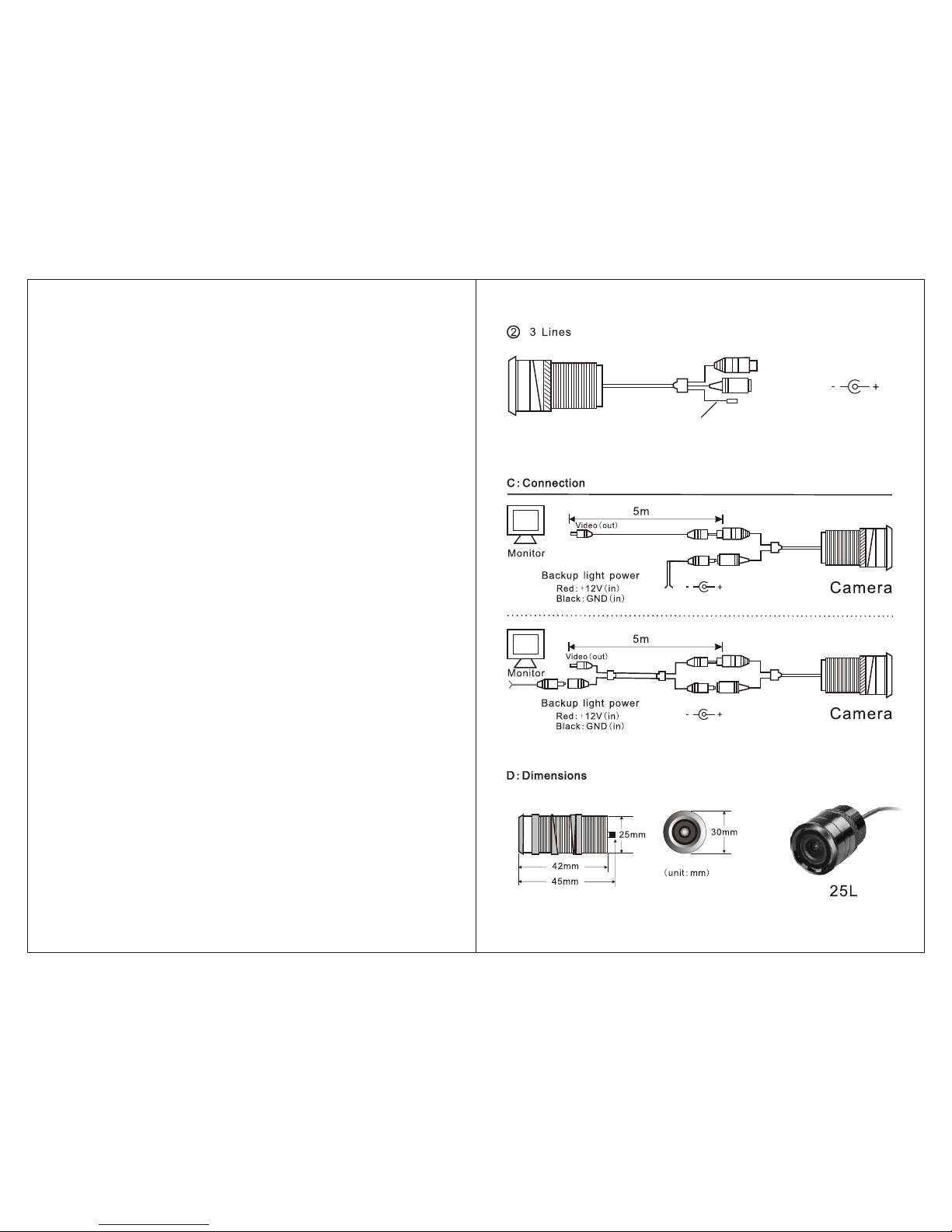

Video(out)

12V (in)

Mirror Enable

Short circuit (default)= Mirror Image

Open circuit = Inverse Image

封二空白

第5页

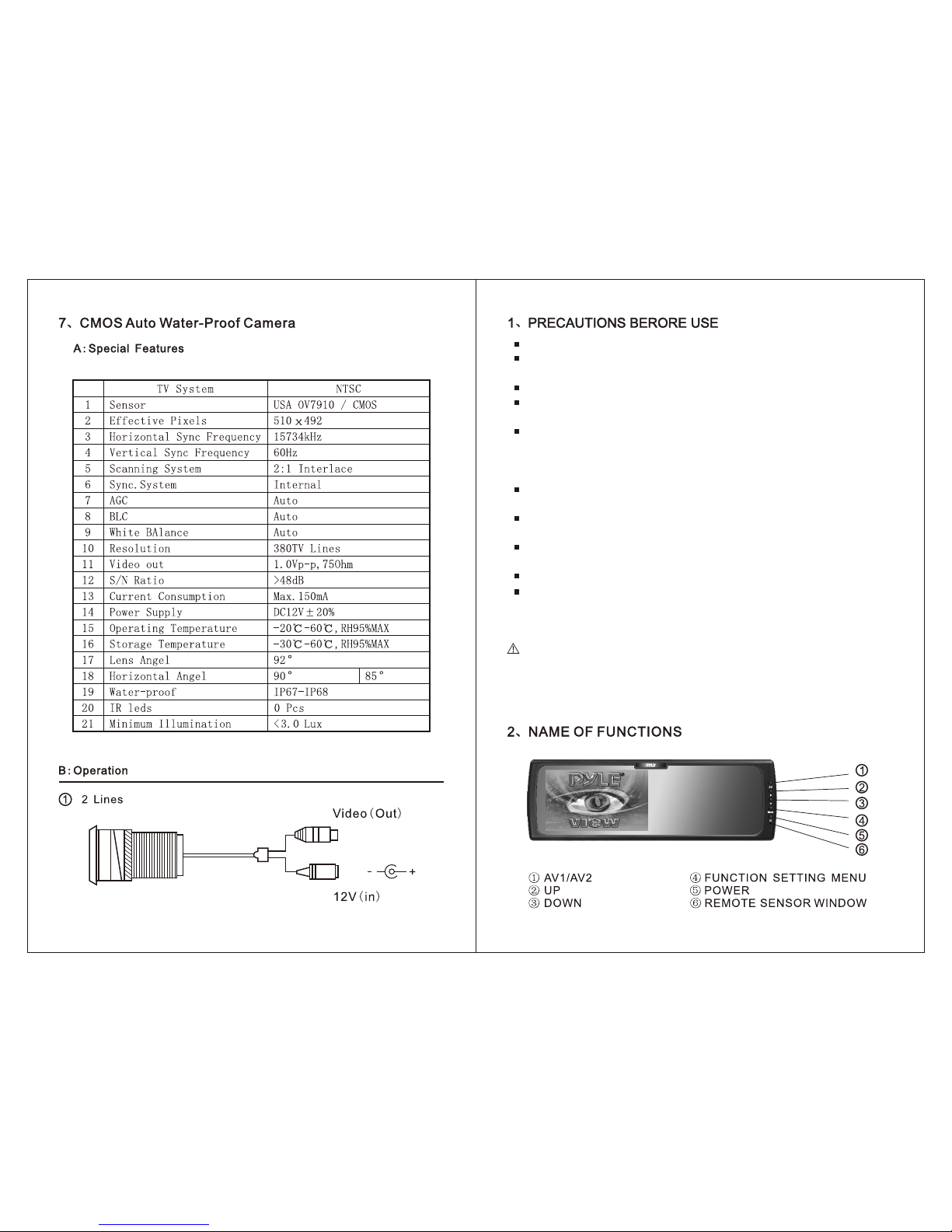

Read this manual for safety, and use the product correctly.

This product is designed for DC 12V vehicles. Make sure of the

correct power voltage.

This product works within the temperature range of 0°C~50°C.

Sometimes the picture may appear dim at the beginning of working at

lower temperature, but it turns to normal within a few minutes.

Do not disassemble or change the product. Disassembling or change

of the product may cause fire accident or electric shock. Further,

disassembling or change cannot be covered by the after service

guarantee.

Make sure of the safety of the driver and the passengers of the car in

when installing the product in the car.

Do not use the product while the engine is off. Otherwise, the battery

may be discharged.

Keep the sound volume at the normal level so that the sound may not

disturb the driver.

For safety, do not operate the product while driving the car.

The rear view may be reversed due to the type of some rear view

cameras; therefore, be careful not to rely upon the monitor picture

while driving the car. Additional special equipments are needed for

DC 24V vehicles, since.

This product is used only for DC 12V vehicle, in case of using at DC

24V vehicle, the special inverter is required.

第1页第4页

POWER ON/OFF

VIDEO SELECT

NEGATIVE ADJUSTMENT

MENU

POSITIVE ADJUSTMENT

MODE SELECT

1

2

3

4

5

6

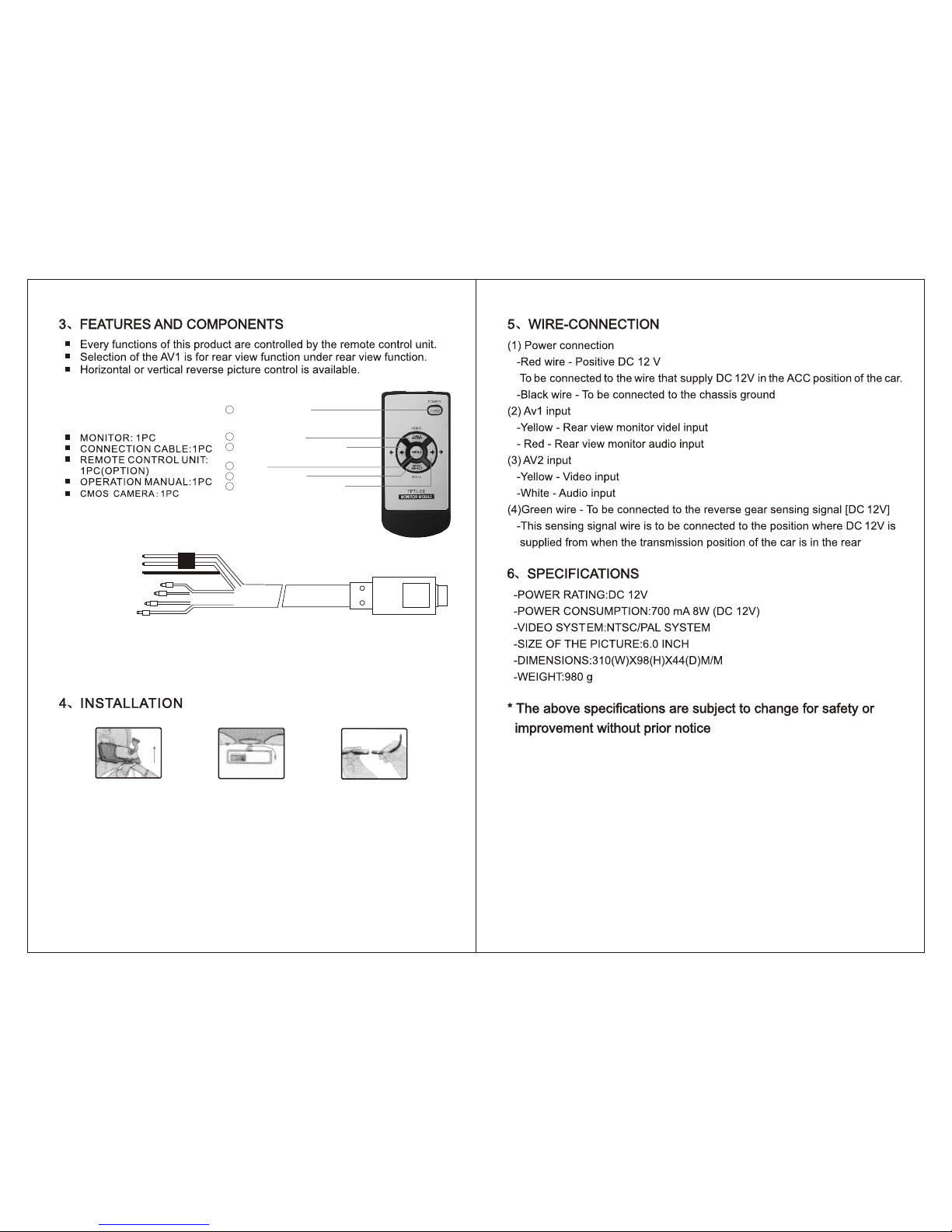

Red to battery +12V

Black to grounding

Green to Reversing line

Yellow to Video 1

Yellow to Video 2

Red to Audio 1

White to Audio 2

Fush

AV-1 INPUT

VIDEO: YELLOW

AUDIO: RED

AV-2 INPUT

VIDEO: YELLOW

AUDIO: WHITE

POWER INPUT & REAR VIEW SIGNAL INPUT

RED WIRE: ACC +12V

BLACK WIRE: CHASSIS GROUND

GREEN WIRE: REVERSING

(1) Install clips of the R.V.M to bottom of existing mirror in the vehicle. Push

R.V.M carefully upward until below clip locks on to top part of existing mirror.

(2) Adjust R.V.M for optimum viewing angle and check the clips for proper

mounting.

- Check the R.V.M position; made sure it does not impede the driver or

passenger of the vehicle.

(3) Connect cables by matching the arrows on the cable and arrange the cables

into proper place for not impeded to driver of passenger.

* R.V.M: Rear View Mirror (Monitor)

第3页第2页
