Pyle PLDINTV7 Manuale utente
Page
◆PRECAUTION 3
◆USAGE OF DISK 5
◆BEFORE YOU BEGIN 6
◆COMPATIBLE DVD DISCS 7
◆INSTALLATION IN THE CAR 8
◆VIEW OF A/V BOX & DVD (HEAD UNIT) 9
◆A/V BOX POWER CABLE LINE 10
◆USING THE KEY 11
◆REMOTE CONTROL 13
◆COMPATIBILITY OF THE UNIT 15
◆MAIN KEY 16
OSD DISPLAY MENU
- MAIN MENU
- SYSTEM MENU (PAGE 1 & PAGE 2)
- PICTURE MENU
- SCREEN MENU
- SOUND MENU (PAGE 1 & PAGE 2)
◆RADIO MODE 24
◆TV MODE 25
◆DVD MODE 27
◆BASIC DISC MENU CONTROL 28
◆MP3 DISC 29
◆FAST FORWARD / BACKWARD 31
Contents
Contents
1
Contents
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
OSD MENU (A/V, NAVI, CAMERA)
ZOOM MODE
DVD MODE(REPEATING A SPECIFIC SECTION)
DVD MODE(VCD PBC FUNCTION)
DVD (CONTROL DVD MODE ON OPERATION)
DVD MODE(AUDIO SETUP)
DVD MODE(VIDEO SETUP)
DVD MODE(DVD SETUP - PREFERENCE)
MULTI MODE PLAY 34
DVD MODE(DVD SETUP - EXIT)
DVD MODE(RANDOM PLAY)
REPEAT MODE ( A / B ) 35
36
37
38
39
CD / DVD CHANGER MODE (OPTION)
DVD MODE(GENERAL SETUP)
32
33
Page
DVD MODE ( SET UP DISPLAY & LANGUAGE )
SUBTITLE
RDS RADIO(EUROPE ONLY)
52
54
40
41
45
46
50
49
51
Contents
2
BE SURE TO READ THIS PRECAUTION
BEFORE USE TO PREVENT ACCIDENTS OF USERS.
Upon running or parking, adjust the volume so that
you can hear external sound.
Upon stop, if starting this product after switching off the ignition,
pay attention to an electric discharge.
Avoid moisture.
The function of this product is subject to change without prior notice.
This product is compatible with the NTSC/PAL system.
RESET KEY
When screen operation is not enabled or other problems occur,
press the RESET key.
Or, when this product does not operate normally, press the RESET key.
Press the key with a sharp drill or a ball-point pen.
Precaution
3
BE SURE TO READ AND UNDERSTAND THE FOLLOWING
MATTERS FOR SAFE DRIVING AND TO AVOID PRODUCT DAMAGES.
Do not install and fix the DVD or VIDEO screen at a visible position from drivers
to avoid accidents.
The rear video outlet of this product can be connected to the display unit so
that passengers at rear seats can view DVD or VIDEO CD.
This product requires(common-cathode)DC12V.
When a heavy impact is applied, there may occur a problem in product
operation.
Do not put this product near conductors.
Do not repair and alter/remodel this product for other uses.
Do not install this product at a visible position from drivers to reduce danger
of accidents and avoid violation of related laws.
Keep it in mind that, in come countries, drivers or passengers in a vehicle
are not allowed to view the screen of televisions or other monitors in law.
Precaution
4

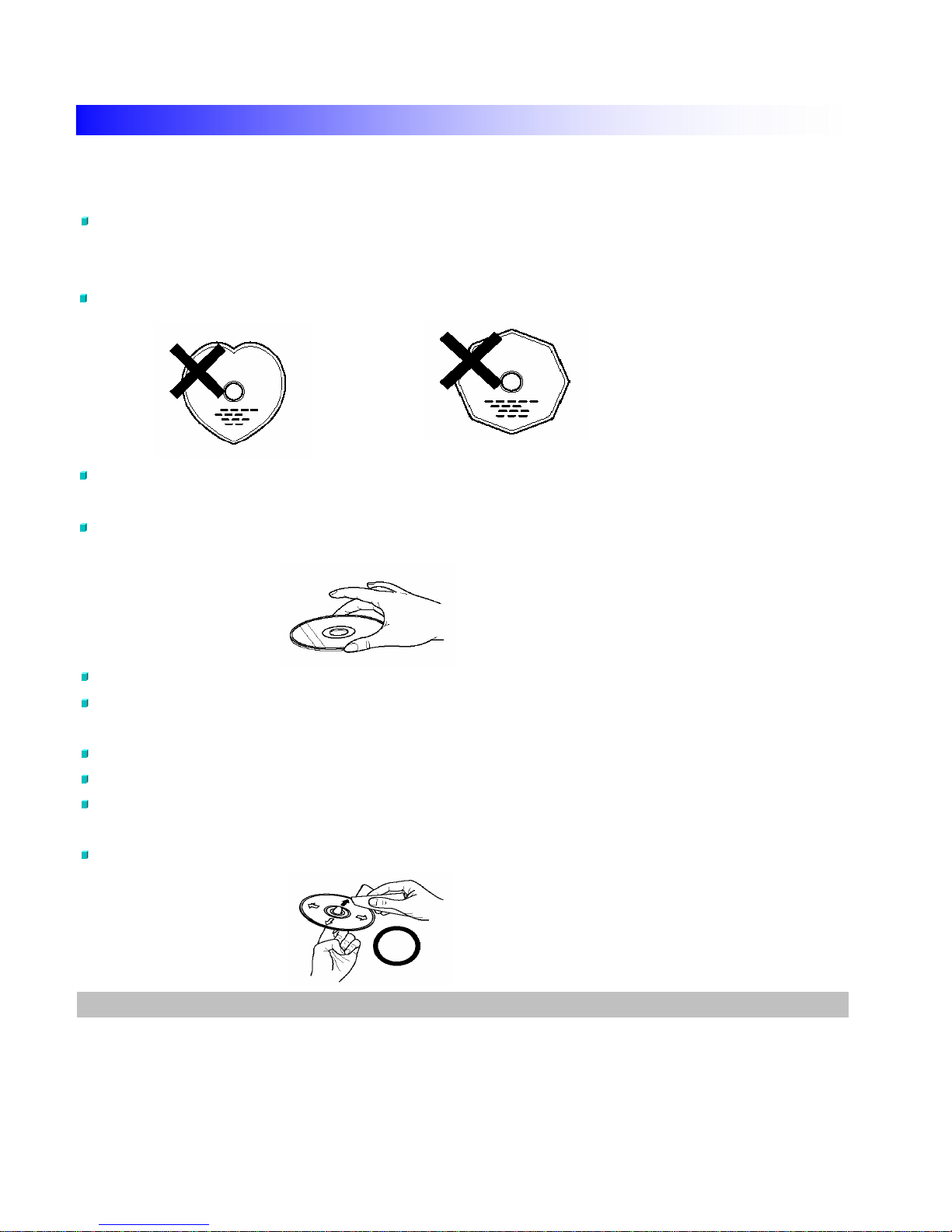

THE FOLLOWING ARE PRECAUTIONS WHEN USING A DISK.
Although playable, a disk in a peculiar form(Heart shape, a shape
other than circles, etc.) can not be played. Such disks cause player troubles.
This product requires use of 12cm circular disks only.
For all disks, check damage, scratch, and warp before use.
When handling disks, be careful so that the recording side of disks
is not touched by hands or other alien materials.
Avoid direct rays of light or high temperature.
When using a heater in a vehicle in cold winter, the product may be
condensed.
Do not forcibly insert and remove disks.
Do not clean the disk surface with thinner, benzene, and other chemicals.
If the road surface is irregular, there may occur a problem in the play of this
product.
Slowly polish contaminated disks with soft, well-dried cloth.
Usage of DISK
5
This product can be applied to DVD, TV, RADIO, CD, MP3 CD and VCD.
Since region codes differ according to countries, products with different
region codes can not be used. See the following features:
Able to support various subtitle languages.
Able to look and listen within various angles.
Able to enjoy play of screens repeatedly.
Still image and image play by frame enabled.
Able to provide such sound quality as to enable users to
enjoy DVD movies or music supporting 5.1 channel function
just like at a theater. However, this function limits only to
DVD titles enabling 5.1 channel support.
Able to enjoy movies or music supporting DTS function.
However, this function limits only to DVD titles enabling
5.1 channel support.
♣ Ref : There may be different functions on each VIDEO DISC & DVD DISC.
And some functions may not be operated.
Dolby Digital
Play of
Slow Motion
ID3 Function
for MP3 Media
limits only to video CD V2.0
Supports ID3 OSD function in MP3 format media. However,
D3 Type III JPEG information is not supported.
Multi Audio
Multi Aspect
Freely supported in a variety of audio systems recorded.
Convertible in wide screen, letter box and Pan & Scan display.
Able to play slow motion.
PBC function
Video CD
Able to use video CD supporting PBC function. However, this function
Multi Subtittle
Repeat Play
Mutil Angle
Still Image
Before you begin
6
Compatible DVD Discs
DVD VIDEO CD
Dolby Digital
VIDEO FORMATIC
AUDIO DISC
7
※ Cautions : Please separate Battery Units before setting
products to prevent from fire and electric shock.

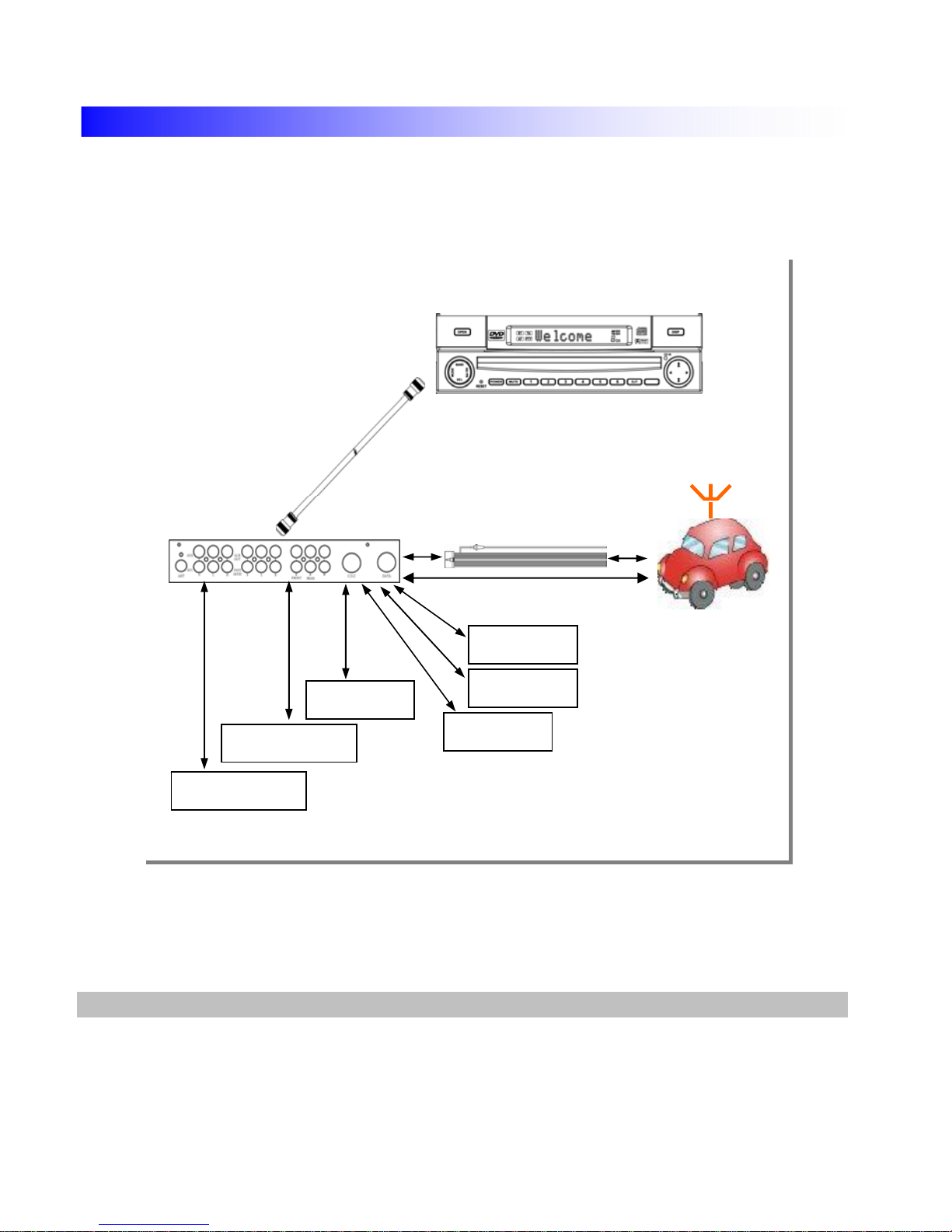

Installation In The CAR
POWER
CABLE
ANT CABLE
DATA
CABLE
CD
CHANGER
NAVIGATION
(
AV3
)
REAR CAMERA
(
AV2
)
AV1 INPUT
AUX OUT
5.1CH
LINE OUT
8

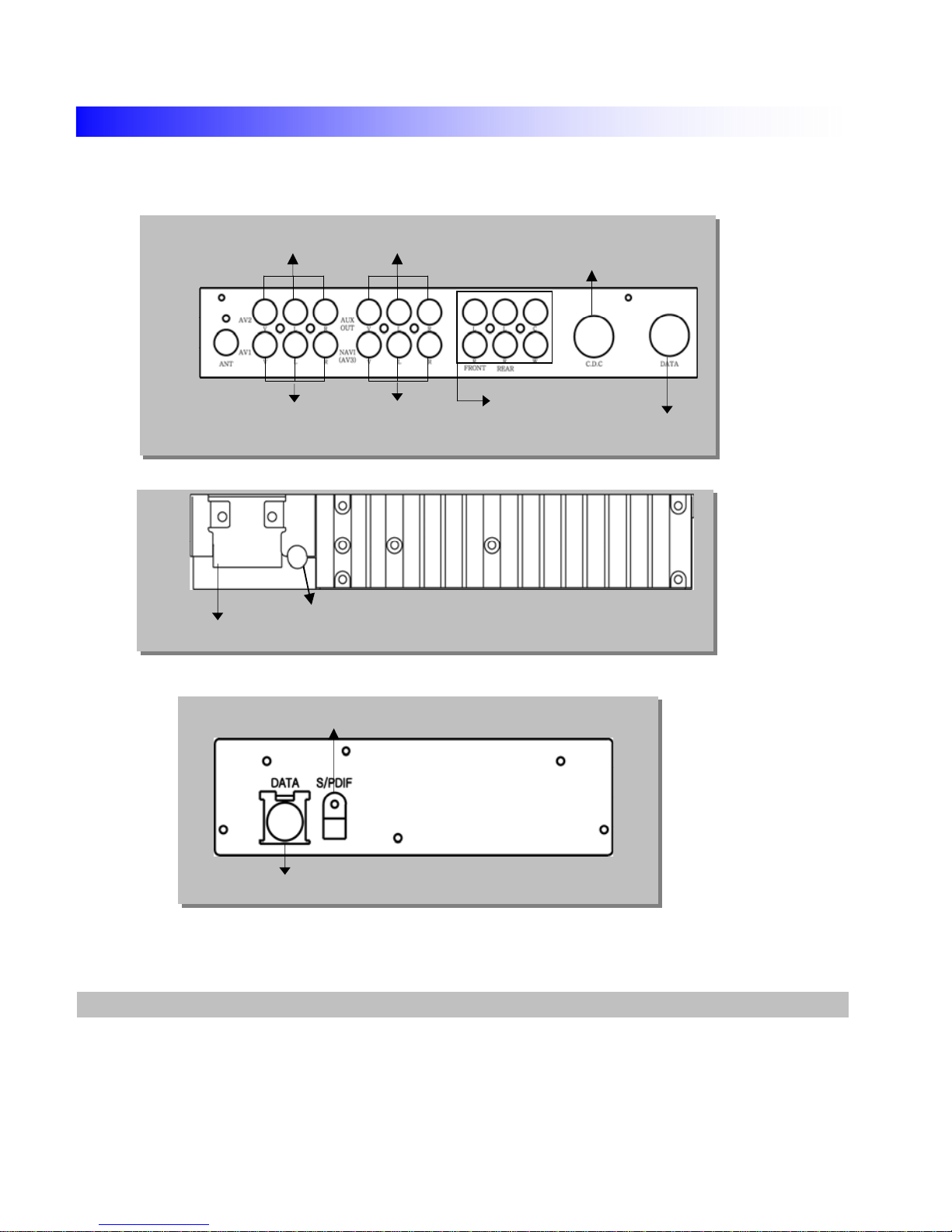

- AV BOX - FRONT
- AV BOX - REAR
- DVD (HEAD UNIT)
A/V BOX & DVD Instructions (Head Unit)
AV1 INPUT NAVIGATION
& AV3 INPUT
5.1CH AUDIO LINE OUT
AV2 & REAR CAMERA INPUT VIDEO,AUDIO L,R LINE OUT
CD CHANGER
DATA CABLE
POWER CABLE
CENTER AMP
DATA CABLE
S/PDIF DIGITAL
(Mono Headsets Available)
9
ACC
GREEN/BLACK
SIDE BRAKE
YELLOW
WHITE
REAR CAMERA
YELLOW
FRONT L-
BACK UP(+14.4V)
NO CONNECT
REAR R-
VIOLET
VIOLET/BLACK
NO CONNECT
FRONT R-
BLACK/WHITE
WHITE/BLACK
REAR L-
FRONT L+
FRONT R+GRAY
REAR R+
GRAY/BLACK
REAR L+
1
4
3
CONNECTCOLOR
GND
17
PIN NO
2
5
6
7
8
9
10
GREEN
11
19
18 BLACK
BLUE/WHITE
ORANGE
NC14
15
BLUE
16 BLACK
RED
BACK UP(+14.4V)
ORANGE/WHITE
NC12
13 ILL
GND
REMOTE
AUTO ANT20
A/V BOX Power Cable Line
19 17 15 13 11 9 7 5 3 1
20 18 16 14 12 10 8 6 4 2
WIRE VIEW
10
