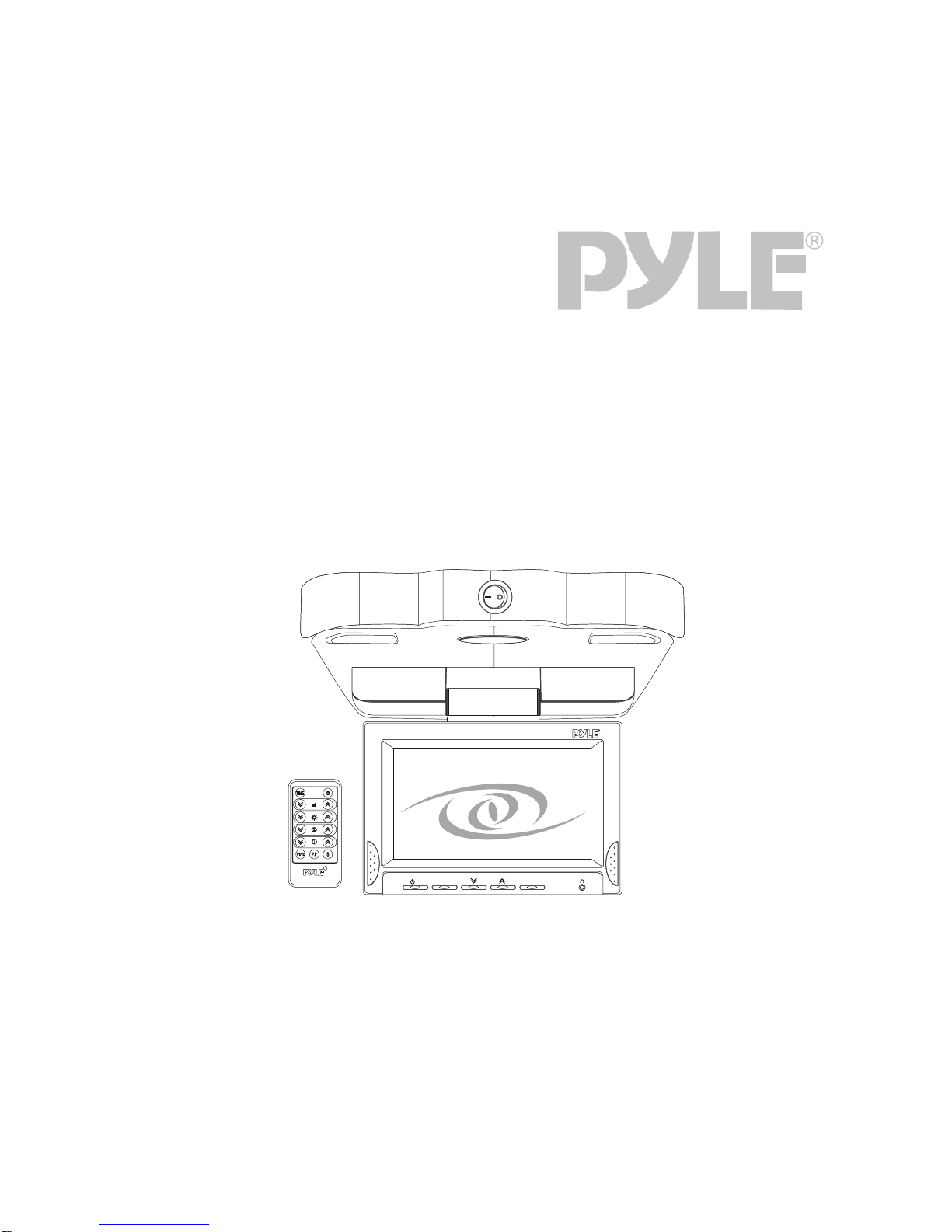

Pyle PLVWR7200 Manuale utente

V1/V2V1/V2

SELSEL

PLVWR7200PLVWR7200

COLOR LCD MONITORCOLOR LCD MONITOR

www.pyleaudio.com

PLVWR7200

Precaution:

1.To prevent short-circuiting of the electrical system and cause serious

damage to the unit or the vehicle,you are advised to follow the instructions

carefully.

2.Should there be requirement to replace blown fuse,do remember to

disconnect all power supply and switched off the unit before replacing it with

a new one.Use only correct rating fuse to avoid damage the unit.

3.During operation,if there is symptom of over-heating or system mal-function,

do switch off the unit and consult your dealer immediately. Please do not

attempt toopen up the unit since there is no serviceable parts inside.

4.Do not drop the LCD display panel of subject it to direct impact.

5.Should the LCD panel is broken,do avoid all human contact to the broken

glasses or fluid leaked out from the enclosure.If come into contact ,do flush

and clean affected areas with plenty of water.Seek medical attention

immediately.

6.Do not use any chemical solvent, cleaning agent or corrosive detergent to

clean away dirt on the surface of the screen.By doing so,you may cause

irreversible damage to the surface of the TFTscreen.To clean off dirt or finger

prints,we recommend the use of a soft damp lens cleaning cloth.

7.Do not drop the monitor or hit it with hard object.It may cause permanent damage

to the LCD panel or the back light element.

8.When operating the display unit,avoid touching or pressing the LCD glass panel.

Excessive force may cause irreparable damage to the LCD screen.

9.Ensure no metal or foreign materials are dropped in between the display screen

and enclosure. Obstacles may impact smooth running of the tray and may cause

electrical shocks.

SEL V1/V2

PLVWR7200

A.door lightswitch

Pannel

A.door lightOn/Off B.PowerOn/Off

C.active menu D.negative adjustemnet

E.Positive adjustment F.V1/V2 switch

G.earphone jack

Remote control

1.Power On/Off

2.Volume-

3.Volume+

4.Brightness -

5.Brightness +

6.Colour-

7.Colour +

8.Contrast-

9.Contrast +

10.V1/V2 switch

11.Store

12.Display mode

BCDE

10 11

Specifications:

Screen size:

System:

Power source/Consumption:

Video Input:

Operating Temperature:

Storage Temperature:

Display Method:

Resolution(HXV):

Back light:

Accessories

1Xmonitor 1XRemotecontroller

1XInstrtuction manual

7.2 Inch

PAL&NTSC

DC12V+/-10%,<700m

Composition Videosignal

0 C~+60C

-10 C~+80 C

Color LCD

640X480

Cold CathodeFllament Tube

Pyle,Inc.

1600 63rdStreet

Brooklyn,NY 11204

www.pyleaudio.com
