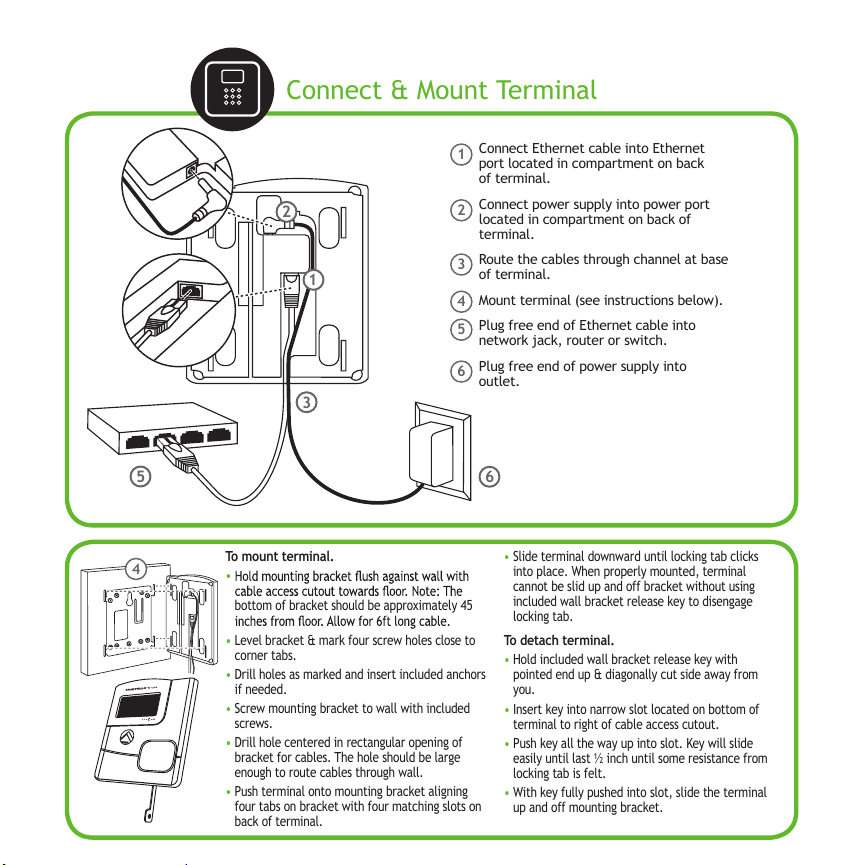

Connect & Mount Terminal
Connect Ethernet cable into Ethernet
port located in compartment on back
of terminal.
Connect power supply into power port
located in compartment on back of
terminal.
Route the cables through channel at base
of terminal.
Mount terminal (see instructions below).
Plug free end of Ethernet cable into
network jack, router or switch.
Plug free end of power supply into
outlet.
1
2
3
4
5
6
1
To mount terminal.
bottom of bracket should be approximately 45
Level bracket & mark four screw holes close to
corner tabs.
Drill holes as marked and insert included anchors
if needed.
Screw mounting bracket to wall with included
screws.
Drill hole centered in rectangular opening of
bracket for cables. The hole should be large
enough to route cables through wall.
Push terminal onto mounting bracket aligning
four tabs on bracket with four matching slots on
back of terminal.
Slide terminal downward until locking tab clicks
into place. When properly mounted, terminal
cannot be slid up and off bracket without using
included wall bracket release key to disengage
locking tab.
To detach terminal.
Hold included wall bracket release key with
pointed end up & diagonally cut side away from
you.
Insert key into narrow slot located on bottom of
terminal to right of cable access cutout.
Push key all the way up into slot. Key will slide
easily until last ½ inch until some resistance from
locking tab is felt.
With key fully pushed into slot, slide the terminal
up and off mounting bracket.
4
2
3
5 6
1
