Pyronix Enforcer 32WE Manuale utente

Wireless

Setup Guide

EN50131-3 : 2009

EN50131-6 : 2008

EN50131-5-3 : 2005

Security Grade 2

Environmental Class II RINS1348-3

Default codes:

User code:1234

Master Manager Code: 2222

Engineer Code: 1111

Contents Page

The Enforcer 4

Wireless Devices 5

Simple Learning Guide 6

Powering Up / Entering & Exiting Engineers 8

Learning Contacts and Detectors 9

Learning Bells 10

Learning Keyfobs 11

Deleting Inputs / Bells 12

Diagnostics 13

Wireless Functions 15

Fault Displays 16

MC1-WE 17

KX12DQ-WE 20

KF4-WE 23

SHOCK-WE 25

DELTABELL-WE 28

The Enforcer

SPACE 

7 8

,/+.

ABC

JKL

MNO

PQRS

TUV

WXYZ

DEF

GHI

BYP

a= Exit manager menu

b= Moves backwards to the previous menu item

c= Enables chime and displays additional information in the log

d= Moves forward in the log, scrolls between options/enters the master

manager menu/bypasses inputs

fp= Not used

[]= Directional buttons.

t= Selects items and enters menus.

x= Cancels items, resets the panel and moves to next item in Master

Manager menu

The Enforcer Control Panel

Wireless Keyfob

The keyfob may be used to set and unset

the Enforcer, as well as other operations.

Please see page 11 for programming.

Wireless Devices

SPACE 

7 8

,/+.

ABC

JKL

MNO

PQRS

TUV

WXYZ

DEF

GHI

BYP

Wireless Detectors

PIR Sensitivity

High

Low

Status LEDs

ALARM

LEARN

ALARM

 





Learn Button

Wireless Contacts

Enable contact 1

Disable contact 1

Status LEDs

Learn Button

Wireless Deltabell

Connections for power supply

Status LEDs

Learn Button

Please note: that if learning smoke/carbon sensors

only a learn button and 1 LED will be present.

LEARN

Simple Learning Guide

RADIO DEVICE

CONTROL?

Control Inputs? Learn Devices? Input 01

Available [01] Learning...

Use

and

to scroll to:

Press

tEnter Input.

Press

Learning Inputs (In Engineer’s Mode)

RADIO DEVICE

CONTROL?

Control Inputs?

Control Bells?

Learn Devices?

Input 01

Available [01]

Learning...

Learning Bells (In Engineer’s Mode)

Use

and

to scroll to:

Press

Enter Input.

Press

Enforcer

Time 8:30am c

Enter Your Code

[*****]

SET DATE & TIME?

CHANGE CODES?

Change User

Codes? User Number [02]

Enter user code

[ ]

Learning Keyfobs (In Day mode)

Use

and

to scroll to:

Press

Enter Master

Manager Code

Press

Select User

Press

Press the ‘LEARN’

button on the detector/

contact until the LEDs

cycle, then release.

Input learnt

successfully

Input Learnt The input types will then

need to be programmed.

Please see ‘Change Inputs’

in the programming manual.

Bell Learnt

Press the ‘LEARN’ button

on the bell until the LEDs

cycle, then release.

Bell learnt successfully

Enter user code

[******]

User Name

_Select Button

Lock [1]

Button Action[2]

Set Area

Press and hold

a keyfob button

until the RED and

GREEN LED flash

fast, then release.

Code learnt

successfully Enter user

name

Press

Use []

to select

button.

Press

Use [] to

select action

Press

Please note: that if learning smoke/carbon sensors

only a learn button and 1 LED will be present.

LEARN

Powering Up / Entering & Exiting Engineers

Enforcer

Time 03:21c

Please Wait...

SOFTWARE

REVISION?

SOFTWARE

REVISION?

EXIT ENGINEER

MENU?

Enforcer

Time 03:21c

Enforcer

Time 03:21c

Entering the Engineer Menu

Enter the engineer’s code

Any faults are shown. Press

Press

Engineer’s Menu

Active Faults

Battery Fault100

SET/UNSET

SYSTEM?

Enforcer

Time 03:21c

SOFTWARE

REVISION?

Enter Your Code

[**** ]

Use

and

to scroll to:

Press

Day Mode

Press

Day Mode

*Note: You can only exit engineer’s mode

if a main menu is showing (capital letters)

Day Mode

Exiting the Engineer Menu

Please note that the initial power up may take a

few minutes.

Once the time is displayed, programming can

begin.

Powering Up / Entering & Exiting Engineers

Learning Contacts & Detectors

RADIO DEVICE

CONTROL?

Control Inputs?

Learn Devices?

Learning...

Input 01

Available [01]

Input 02

Learnt [02]

Input Learnt

Already!

It is recommended that all detectors, door contacts or

smoke detectors are learnt at the Enforcer before any

installation/mounting is done. This makes learning

much quicker.

A maximum of 32 wireless inputs may be learnt.

Even though the ‘learn’ may be successful, the

position of the input in a property must be tested for

signal strength before it is actually ‘xed’ into place.

Please see page 13 when analysing the wireless

range and signal strength.

Before learning each input (detector or door contact)

check that the battery is present and inserted

correctly.

Follow the instructions on the right to start learning

the inputs.

An input that is learnt correctly will ash the GREEN

LED briey and ‘Input Learnt’ will be displayed on

the keypad. Both of these instances need to occur to

indicate a successful learn.

Once learning has completed, each input needs to be

given a type (nal exit, intruder,etc.) please see the

main programming manual (Change Inputs) for more

information.

SPACE 

7 8

,/+.

ABC

JKL

MNO

PQRS

TUV

WXYZ

DEF

GHI

BYP

SPACE 

7 8

,/+.

ABC

JKL

MNO

PQRS

TUV

WXYZ

DEF

GHI

BYP

SPACE 

7 8

,/+.

ABC

JKL

MNO

PQRS

TUV

WXYZ

DEF

GHI

BYP

Red Blue Green

Use

and

to scroll to:

Press

Enter Input.

Press

If ‘learnt’ is displayed

on an input, this will

need to be deleted

before learning can

begin. See page 12

for deleting inputs.

When ‘Learning’ is

displayed, press and

hold the ‘LEARN’

button on the device

until the LEDs cycle,

then release.

If the input device has

already been learnt to

the Enforcer system,

‘Input Learnt Already!’

will be displayed.

Press

RADIO DEVICE

CONTROL?

Control Inputs?

Control Bells?

Learn Devices?

Select Bell

Available [1]

Select Bell

Learnt [2]

It is recommended that all wireless bells are learnt at

the Enforcer before any installation/mounting is done.

This makes learning much quicker.

A maximum of 2 wireless external bells (Deltabell WE)

can be connected to the Enforcer.

Even though the ‘learn’ may be successful, the

position of the bell box on a property must be tested

for signal strength before it is actually ‘xed’ into

place. Please see page 13 when analysing the

wireless range and signal strength.

Before learning each bell check that the battery is

present and is inserted correctly.

Follow the instructions to the right to start learning the

bells.

A bell that is learnt correctly will ash the GREEN LED

briey and display ‘Bell Learnt’ on the keypad. Both of

these instances need to occur to indicate a successful

learn.

SPACE 

7 8

,/+.

ABC

JKL

MNO

PQRS

TUV

WXYZ

DEF

GHI

BYP

Green

Blue

Red

Learning...

Bell Learnt

Already!

Use

and

to scroll to:

Press

Enter Bell.

Press

If ‘learnt’ is displayed on

a bell, this will need to be

deleted before learning

can begin. See page

12 for deleting bells.

When ‘Learning’ is

displayed, press and

hold the ‘LEARN’

button on the bell until

the LEDs cycle, then

release.

If the bell device is already

learnt on the Enforcer

system, ‘Bell Learnt

Already!’ will be displayed.

Press

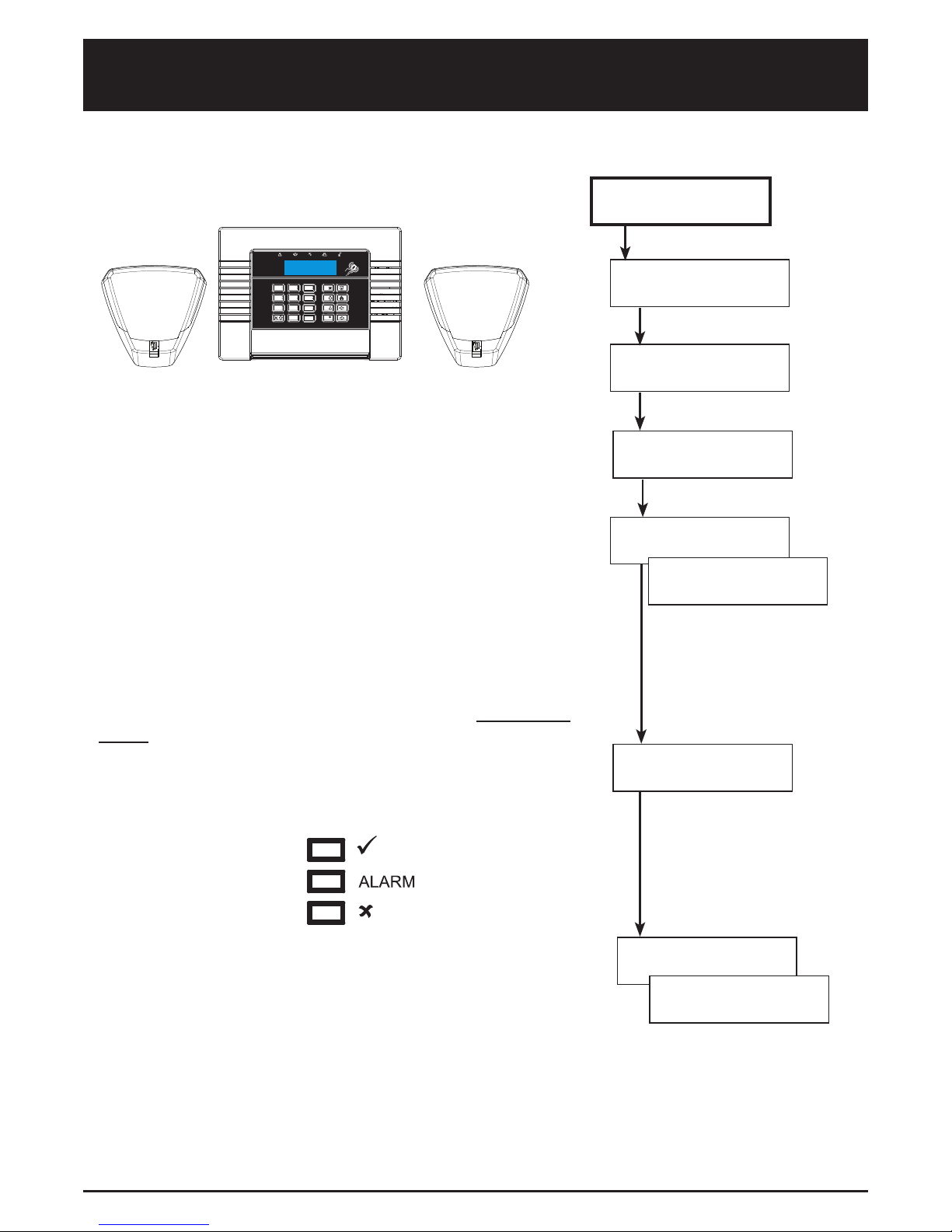

Learning Bells
