Q-See QC-SERIES Manuale utente

QSDR16RTCB

User’s Manual

Digital Peripheral Solutions, Inc.

8015 E. Crystal Drive

Anaheim, CA 92807

Website:

http://www.Q-See.com

Customer Service:

Phone: 877-998-3440 x 538

Email:cs@dpsi-usa.com

Tech Support:

Phone: 877-998-3440 x 539

Email:ts@dpsi-usa.com

Fax:

714-998-3509

Revised 11/11/2009

CONTENTS

Chapter 1: DVR Features....................................................................................................................2

Chapter 2: Layout ...............................................................................................................................3

2.1: Front Panel...................................................................................................................................................................3

2.2: Rear Panel ...................................................................................................................................................................4

2.2.1: RS485/Sensor/Alarm Port Functions: ...................................................................................................................4

2.2.2: Remote Control .....................................................................................................................................................5

2.2.3 Mouse Operation....................................................................................................................................................6

Chapter 3: DVR Installation................................................................................................................7

3.1: Hard Drive Installation..................................................................................................................................................7

3.2: Connecting Your DVR to Cameras and a Monitor .......................................................................................................7

3.3: Connecting the Power Supply......................................................................................................................................7

Chapter 4: DVR Boot up.....................................................................................................................8

4.1: System Initialization .....................................................................................................................................................8

4.2: Main Interface...............................................................................................................................................................8

4.3: Pop-Up Menu...............................................................................................................................................................8

Chapter 5: DVR Menu .........................................................................................................................9

5.1: Main Menu At-a-Glance ...............................................................................................................................................9

5.2: Main Menu..................................................................................................................................................................10

5.2.1: Camera Setup .....................................................................................................................................................10

5.2.2: Record Setup....................................................................................................................................................... 11

5.2.3: Network Setup.....................................................................................................................................................12

5.2.3.1: DHCP............................................................................................................................................................12

5.2.3.2: PPPoE ..........................................................................................................................................................12

5.2.3.3: STATIC..........................................................................................................................................................12

5.2.3.4: Port Forwarding............................................................................................................................................13

5.2.3.5: Pop-Ups & ActiveX Controls.........................................................................................................................14

5.2.4: Recording Search................................................................................................................................................16

5.2.5: Backup Recorded Files .......................................................................................................................................17

5.2.6: Multi Player..........................................................................................................................................................17

5.2.7: Device Management............................................................................................................................................19

5.2.7.1: HDD Management........................................................................................................................................19

5.2.7.2: Alarm Set......................................................................................................................................................20

5.2.7.3: PTZ Setup.....................................................................................................................................................22

5.2.7.4: Mobile Setup.................................................................................................................................................22

5.2.7.5: Mobile Phone Access ...................................................................................................................................23

5.2.7.6: Motion Detect................................................................................................................................................28

5.2.8: System Function..................................................................................................................................................28

5.2.8.1: Time Set........................................................................................................................................................28

5.2.8.2: Password......................................................................................................................................................29

5.2.8.3: Video Setup ..................................................................................................................................................29

5.2.8.4: Language......................................................................................................................................................29

5.2.8.5: Info................................................................................................................................................................29

5.2.8.6: System Maintenance....................................................................................................................................29

5.3: Menu Lock..................................................................................................................................................................30

5.4: Video Search..............................................................................................................................................................30

5.5: Multiple Channel Display............................................................................................................................................30

5.6: PTZ Control................................................................................................................................................................30

5.7: PIP Mode....................................................................................................................................................................31

5.8: Mute ...........................................................................................................................................................................31

5.9: Record........................................................................................................................................................................31

5.10: Stop Recording.........................................................................................................................................................31

5.11: Start Cruise...............................................................................................................................................................31

Chapter 6: Net-Viewer Program.......................................................................................................32

6.1: Enable Plug-Ins and Log-In to Net-Viewer.................................................................................................................32

6.2: Main Interface of Net-Viewer......................................................................................................................................32

6.2.1: Menu....................................................................................................................................................................33

6.2.1.1: Live ...............................................................................................................................................................33

6.2.1.2: Replay...........................................................................................................................................................33

6.2.1.3: Setup ............................................................................................................................................................33

6.2.1.4: Logging Out of Net-Viewer ...........................................................................................................................35

6.2.2: PTZ and Live Play Controls.................................................................................................................................35

Chapter 7: Specifications.................................................................................................................36

Chapter 8: Appendix.........................................................................................................................37

8.1: Operation Function Table...........................................................................................................................................37

8.2: Setting up Alarm Record Mode ..................................................................................................................................38

8.3: Troubleshooting..........................................................................................................................................................39

8.4: System Connections ..................................................................................................................................................40

8.5: Accessories Included .................................................................................................................................................40

Q-See Product Warranty...................................................................................................................41

Customer Information Card .............................................................................................................42

QSDR16RTCB User Manual

Safety Instructions

1. Use proper power source.

Do not use this product with a power source that applies more than specified voltage (100-240V AC).

2. Never insert anything metallic into the DVR case.

Putting something into the DVR case can be a source of dangerous electric shock.

3. Do not operate in wet & dusty area or use near water.

Avoid places like a damp basement or dusty hallway.

4. Do not expose this product to rain or use near water.

If this product accidentally gets wet, unplug it and contact an authorized dealer immediately.

5. Keep product surfaces clean and dry.

To clean the outside case of the DVR, use a cloth lightly dampened with water (no solvents).

6. Provide proper ventilation.

This DVR has a built in fan that properly ventilates the system.

7. If there are any unusual sounds or smells coming from the DVR, unplug it immediately and contact

Q-See.

Warning: You may be subjected to severe electrical shock if you remove the cover of the DVR.

8. Handle DVR box carefully.

If you accidentally drop your DVR on any hard surface, it may cause a malfunction. If the DVR doesn’t work

properly due to physical damage, contact an authorized dealer for repair or exchange.

9. Use standard lithium cell battery (preinstalled).

The standard lithium cell 3v battery located on the mother board should be replaced if the time clock resets during

a power outage. Warning! Unplug the DVR before replacing battery or you may be subjected to severe electrical

shock. Properly dispose of old batteries.

10. Make sure there is good air circulation around the unit.

This DVR system uses a hard drive for video storage which generates heat during operation. Do not block air

holes (bottom, upper, sides and back) of the DVR as they are designed to cool down the system while running.

Install or place this product in an area where there is good air circulation.

QSDR16RTCB User Manual

Chapter 1: DVR Features

Function Brief Description

Real-Time

Monitoring Double video output with monitor VGAvirtual output port; Supports net-viewer and M

ultiple

Person live surveillance, Zoom In/Out on live video, dwell time display and PIP display.

Record

H.264 video compression format; recording quality options, multiple recording modes

(Always, Scheduled, Manual, Alarm, Motion detection and remote recording).

Save

Recordings Supports SATA HDD up to 1TB and save real-time recordings to HDD.

Playback Supports DVR single CH and multiple CH playback of recorded files.

Backup

Recordings Supports DVR backup via USB flash drive, removable drive and network.

Alarm Setting Supports HDD & video input alarm management and external alarm signal inputs.

Network

Operation Supports remote surveillance by multiple users simultaneously.

Mouse

Operation Supports mouse operation for faster menu navigation.

PTZ Control Supports PTZ camera operations through RS-485.

Other Features:

•H.264 Video Compression Format; Supports D1 Resolution

•ADPCM Audio Compression Format

•Windows Graphics Interface; Built-In Real-Time Linux 2.6 Operation System

•Menu Status Notification

•Multiple Operation (Preview, Recording, Playback, Backup, Network Surveillance and Mobile Phone Monitoring

Simultaneously)

•Supports Double Encoded Bit Network Transmission

•Supports Remote Live Viewing Via 3g Mobile Networks

•Supports Zoom In/Out And Dwell Time Display

•Adjustable Video Package Time

•Multiple Alarm Record Mode

•Rear USB 2.0 Ports For Back-Up, Upgrade and Mouse Operation

•IR Remote Control Operation

•Multiple Language OSD (On Screen Display)

•Supports Auto Maintenance

QSDR16RTCB User Manual

Chapter 2: Layout

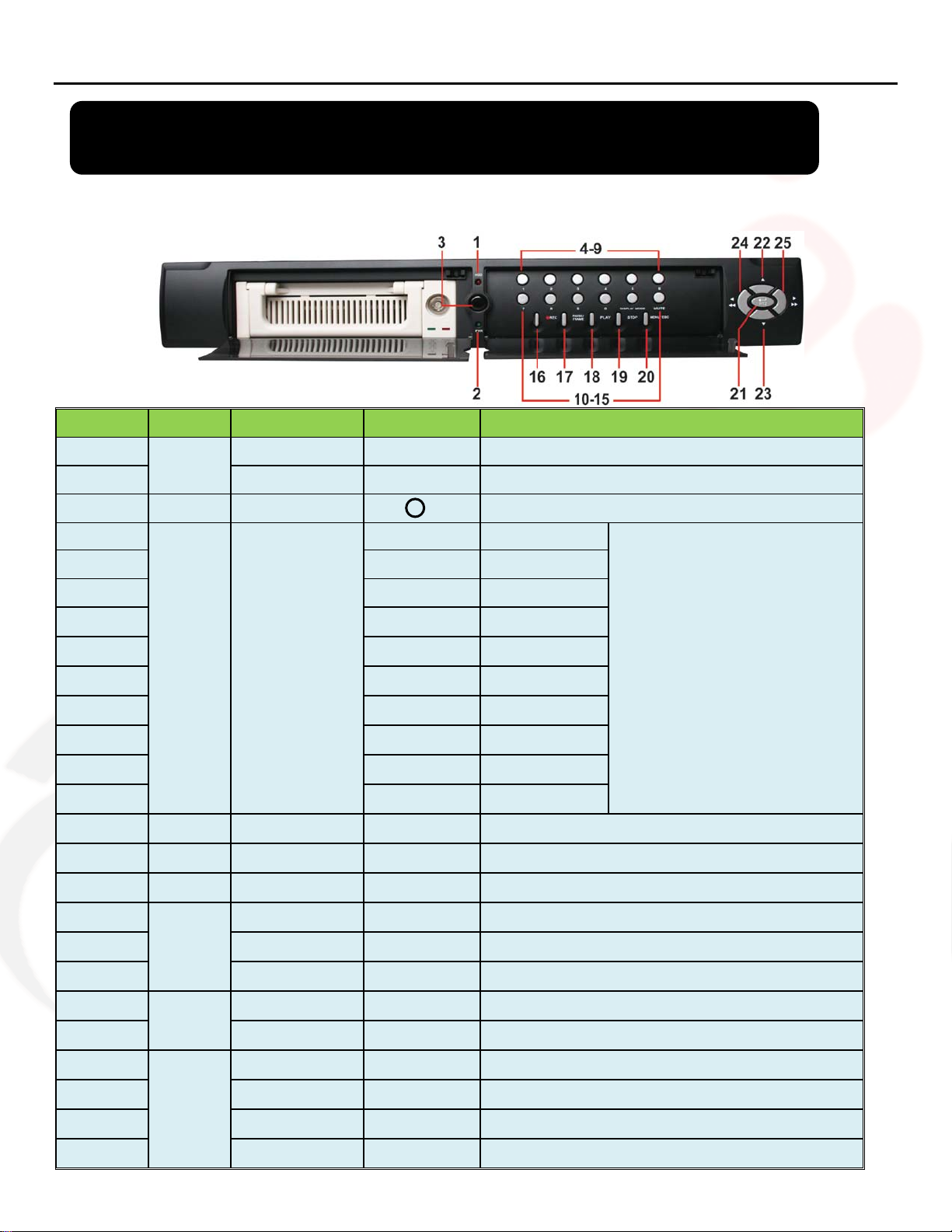

2.1: Front Panel

Item Type Key Title /Indicator Marks Function

1 Indicator HDD Indicator HDD Hard drive is being read or written to when “Red” indicator flashes.

2 Power Indicator PWR If the “Green” indicator is on the system is getting power.

3 IR Receiver Receives signal from Remote Control

Channel

Select &

Numeric Input

Single Channel Display

and Numeric Key

1 CH-1; Numeric Key 1

CH11-CH16, Select Method: Press First

Numeric Value Key + Second Numeric Value

Key (i.e., Press 1 then 6 for CH-16, etc.)

5 2 CH-2; Numeric Key 2

6 3 CH-3; Numeric Key 3

7 4 CH-4; Numeric Key 4

8 5 CH-5; Numeric Key 5

9 6 CH-6; Numeric Key 6

10 7 CH-7; Numeric Key 7

11 8 CH-8; Numeric Key 8

12 9 CH-9; Numeric Key 9

13 10 CH-10; Numeric Key 0

14 PREVIEW Multi CH Display DISPLAY MODE Quad Display; 9 CH and 16 CH Display

15 Audio Control

MUTE KEY MUTE Turn Audio Input or Output On or Off

16 REC Manual Record ●Record Manually

Play Controls

PAUSE PAUSE/FRAME

Pause Play/Play Frame by Frame

18 PLAY PLAY Play Recorded Events

19 STOP STOP Stop Playing Recorded Events

20 Complex Key MENU MENU/ESC Got to Main Menu/Exit

21 PTZ PTZ PTZ Control; Select [Enter]/[Edit]

Direction Key

UP Move Up

23 DOWN Move Down

24 LEFT /Rewind

25 RIGHT /Forward

QSDR16RTCB User Manual

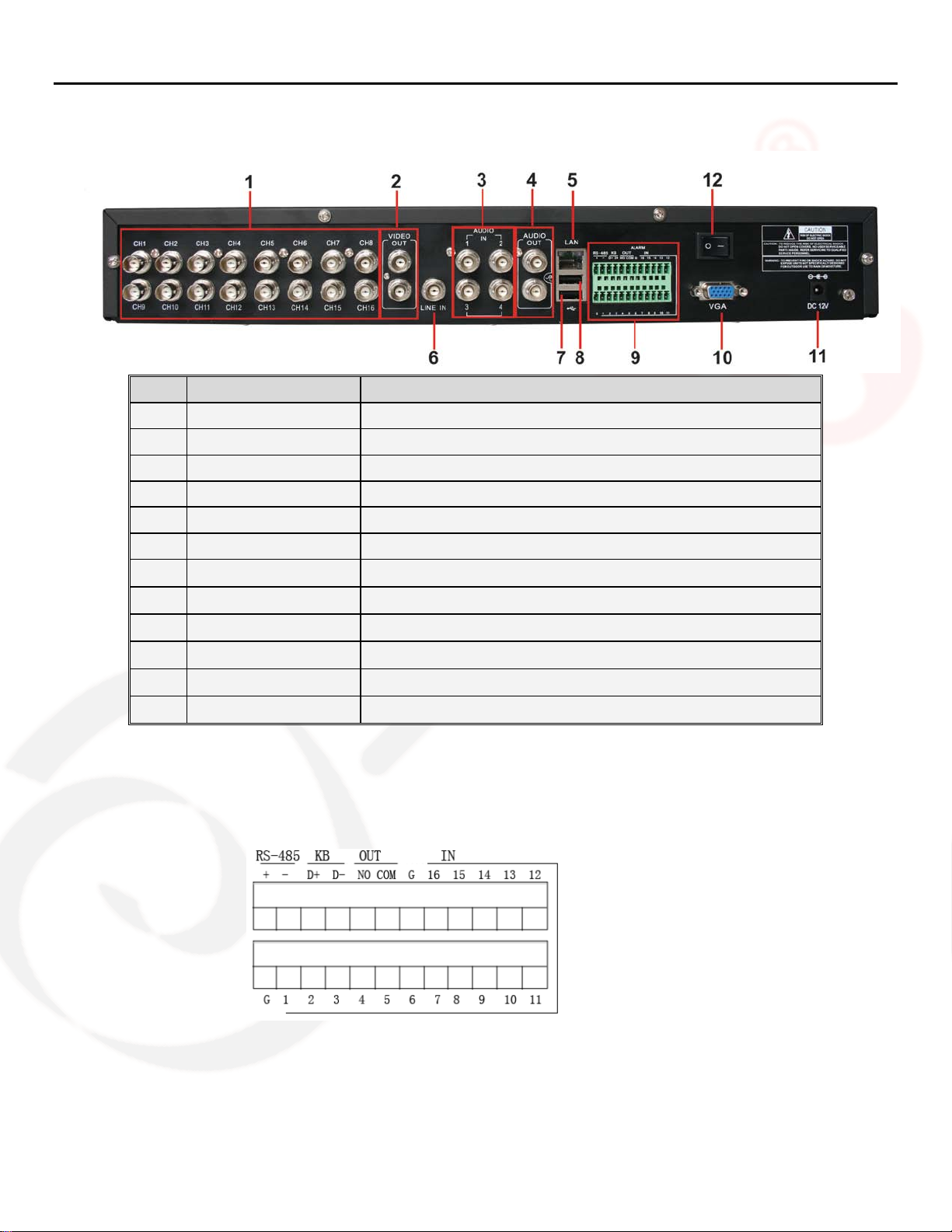

2.2: Rear Panel

Item Physical Port Connection Method

1 Video Input Connect Ch1-16 (BNC Interface)

2 Video Output Main Video Output

3 Audio Input Connect CH1-4Audio Signal Input (BNC Interface)

4 Audio Output Connect Audio Output (BNC Interface)

5 Ethernet Port Connect Intranet, Internet (RJ-45 Interface)

6 LINE IN Port Phonetic Talkback

7 USB Port Connect USB Device (Flash Drive, Hard Drive)

8 USB Port Connect USB Mouse

9 RS-485/Sensor/Alarm RS485/Sensor/Alarm Interface (See Pin Outs Below)

10 VGA Port Connect To VGA Monitor, Such As PC Monitor

11 Power Port Connect Power Supply - DC12V 8.33A

12 Power Switch Turn Power On And Off

2.2.1: RS485/Sensor/Alarm Port Functions:

Alarm Input: Connect your sensor’s [-] port to G and [+] port to the channel input of your choice.

Alarm Output: Indicated by the two ports marked “out”.

PTZ Port: PTZ camera connection using RS-485+ and RS485- Ports

QSDR16RTCB User Manual

2.2.2: Remote Control

Key Title Key Function

REC Manual Recording

SEARCH Search Mode

2×2 Quad Display

3×3 9-CH Display

4×4 16-CH Display

AUTO Dwell Time Display

0~9 Channel Select; Numeric Key

DISPLAY MODE Multiple CH Display (Quad, 9-CH, 16-CH

and Single-CH Display)

▲UP

▼DOWN

◄/►Left/Right Key

ENTER Select/Edit/Enter

Menu/ESC Main Menu/Exit

PIP PIP Display Mode

MUTE Mute

FWD Forward (x2, x4, x8)

REW Rewind (x2, x4, x8)

PLAY Search or Play Recorded Events,

STOP Stop Play

PAUSE/

FRAME Pause/Frame by Frame

SLOW Slow Play (½, ¼, 1/8)

Z+ Zoom In

Z- Zoom Out

F+ Focus In

F- Focus Out

I+ Increase PTZ Brightness

I- Decrease PTZ brightness

PTZ PTZ Control

LOCK Lock System

QSDR16RTCB User Manual

2.2.3 Mouse Operation

For your convenience, your Q-See DVR System can also be operated by a mouse in addition to the front panel

controls and remote control.

Action Function

Left Click

With your DVR in Menu Unlock mode, left clicking on your

mouse opens a pop-up dialog menu that allows you to access

your programming and configuration settings. Some of the

options available by left clicking include :

•Edit your record settings.

•Playback recorded files.

•Access a pull-down menu.

•Control color and volume settings.

•Choose your system’s language settings.

•Double clicking the left key of your mouse maximizes

the screen view.

Right Click

With your DVR in Live Display mode, right clicking will display

a pop-up menu (See Picture 3) which allows you to:

•Exit system programming and configuration mode.

•Close all configuration menu dialog boxes.

Sliding Mouse

•In Motion set mode, sliding the mouse will select the

area of motion you wish to choose.

•

In Color Set mode, sliding the mouse allows you to

access and adjust the color control bar and the

volume control bar.

Altri manuali per QC-SERIES

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Q-See Registratore digitale

Q-See

Q-See QT SERIES Manuale utente

Q-See

Q-See QSDR44KRTC-320 Manuale utente

Q-See

Q-See QSD6204 Manuale utente

Q-See

Q-See QC3016 Manuale utente

Q-See

Q-See QSC26404 QH32DVR4C Manuale utente

Q-See

Q-See QT17DVR4C Manuale utente

Q-See

Q-See QT454-403-5 Manuale utente

Q-See

Q-See QSD2308C8-250 Manuale utente

Q-See

Q-See QSD9004 series Manuale utente

Q-See

Q-See QQTT1199DD332288SSCC Manuale utente

Q-See

Q-See QSD2014 Manuale utente

Q-See

Q-See QSDR74RTS Manuale utente

Q-See

Q-See QSD42908C8 Manuale utente

Q-See

Q-See QT SERIES Manuale utente

Q-See

Q-See QS408 Manuale utente

Q-See

Q-See QC40198 Manuale utente

Q-See

Q-See QSD6204C4-250 Istruzioni operative e di manutenzione

Q-See

Q-See QSD2316L Manuale utente

Q-See

Q-See QSD2308C8 Manuale utente

Q-See

Q-See QSDR04RTC Manuale utente

Q-See

Q-See QS434 Manuale utente

Q-See

Q-See QSW1001R Manuale utente

Q-See

Q-See QSD42908 Net Manuale utente

Q-See

Q-See QSNDVR9M Manuale utente

Manuali Registratore digitale popolari di altre marche

FLIR

FLIR M3100E Series Manuale utente

VTRACKPRO

VTRACKPRO FPRO300 Manuale utente

Swann

Swann NVR-7085 models Manuale utente

XtendLan

XtendLan DVR-1670C Manuale utente

urmet domus

urmet domus 1093/004AHD Manuale utente

Holux

Holux M1 Manuale utente

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuale utente

Whistler

Whistler D16VRS Manuale utente

Defender Security

Defender Security 82-20235 Manuale utente

MISUMI

MISUMI MP-WF100M Manuale utente

Speco

Speco D8HU Manuale utente

UST

UST DDR-E04AA Istruzioni per l’uso

Consolidated

Consolidated Digital Video Recorder Manuale utente

Mace

Mace DVR0404RW Guida rapida

RCA

RCA RTD315W Manuale utente

FSM

FSM Colibri Grande PRO Manuale utente

Hauppauge

Hauppauge HD PVR 2 Manuale utente

Identivision

Identivision ICR-PH161i PIONEER Manuale utente
