IQ MOTION S-LINE INSTALLATION MANUAL

•Advanced circuit technology

resulting in ultra-low power

consumption

•40 lb. Pet immunity

•Tamper detection/reporting

•Rigid wall mounting for discreet

placement

•Easy to install batteries

•Supervisory health messaging

PRODUCT FEATURES

IQ MOTION-S

•Wireless signal range: 600 ft, open air

•Compatible control panels: Qolsys IQ Panel 2

•Code outputs: paring, tamper, tamper restore, alarm detect motion,

alarm restore, supervisory, low battery

•Transmitter frequency: 319.5MHZ +-15KHz

•Transmitter bandwidth: 24KHZ

•Modulation type: ASK-OOK

•RF output power 91.1dBuV +/- 5% at 3m

•Sensor Range 30 ft x 40 ft

•Maximum Horizontal Sensing Angle 80°

•Sensor: 3.4H x 2.4W x 1.5D in.

•Replace batteries every 5 years with AAA Alkaline (x2). Detector

intended for use with (2) Huizhou Deanda Battery Co. AAA LR03.

TECHNICAL SPECIFICATIONS

•The sensor should be permanently mounted in a corner or on a

flat wall that is free of vibrations, at a height of 6.5 feet, using the

built-in angle mount.

•Mount the sensor on an insulated exterior wall facing in.

•Position the sensor to protect an area where an intruder is most

likely to walk across the detection pattern.

•Position the sensor so it faces a solid reference point, such as a

wall.

•If possible, mount the sensor within 100 ft of the panel. While

the transmitter may have a range of 600 ft or more out in the

open, the environment at the installation site can have a

significant effect on transmitter range. Verify actual transmitter

range for each installation.

•Close all windows in an area with an armed motion sensor.

STEP

CHOOSE

INSTALLATION

LOCATION

•Aim the sensor at windows, fireplaces,

air conditioners, area heaters, forced

air heating vents or drapes.

•Place the sensor in direct sunlight as

sudden changes in temperature may

trigger a false alarm.

•Mount the sensor near duct work or

other large metallic surfaces that may

affect the RF signals.

•Set the sensor on a shelf.

•Mount outdoors or in a non-

temperature controlled environment.

•Mount at any other height than 6.5 ft.

Qolsys Inc. proprietary. Reproduction without permission is not permitted.

LOCATION MOUNTING GUIDELINES:

DO NOT:

Avoid placement

looking at ceiling

fans

✓

Outside walls

pointed away from

windows are great

locations

Avoid

HVAC

ducts &

drapes

✓

Must

install at

6.5’ high

✓

Position so that the expected motion is perpendicular to

the zones of detection. Test yearly.

Note: For UL/CUL installations use this device only in conjunction

with compatible Qolsys wireless alarm system IQ Panel 2.

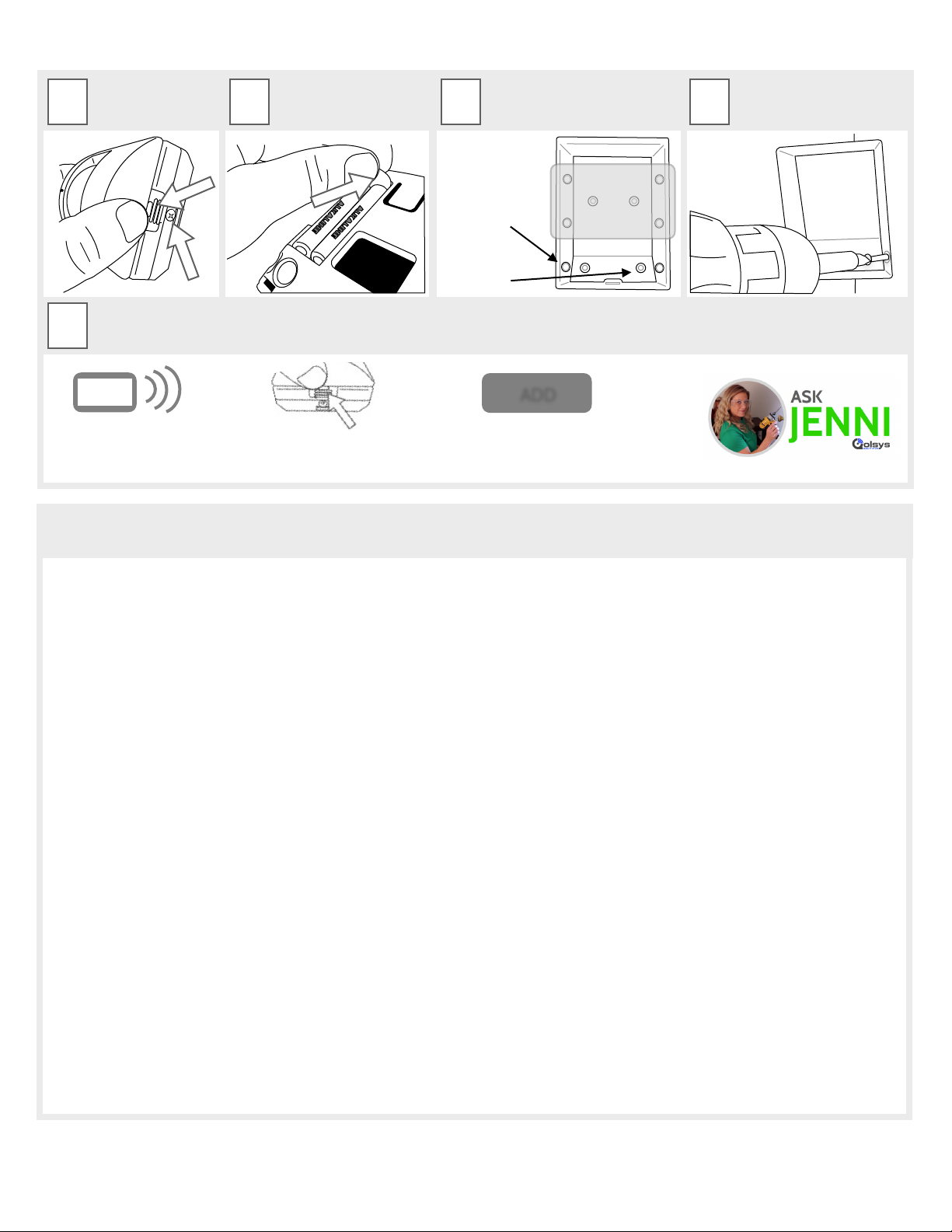

STEP

REMOVE

BATTERY

TABS

STEP

CHOOSE

MOUNTING

TYPE

SECURE

ALL

HARDWARE

LEARN

INTO

PANEL

STEP

OPEN

DEVICE

CASING

STEP

Place your panel in

“autolearn" mode

Open and close the case

to “tamper” the device

Customize name and settings

as desired and and touch “ADD”

ADD

ANGLED

FLAT

ANGLED

CORNER

MOUNT AT

6.5 FEET HIGH

DO NOT USE

THESE MOUNTING

LOCATIONS

Walk test mode is activated by opening the motion detector back plate enough to release the tamper switch, then closing it again. During walk

test mode the red LED on the front of the detector will light up every time motion is detected. Use this feature to test the coverage pattern of

the protected area. The motion detector will remain in walk test mode until there is a period of one minute of inactivity, meaning that no

motion is detected for one minute, at which time it will return to normal mode.

MODES & BEHAVIORS

NORMAL MODE:

Normal mode defines the motion detector’s behavior set in which it can detect motion. It is the default state of the sensor, given no motion has

been detected. While in normal mode, a motion detector sensor can go into both sleep mode and walk test mode, as is described below.

During any given time in normal mode, the motion detector can transmit up to TWO active events. Once the first active event is sent, the

motion detector has a 4 second timeout delay before a second active event can be transmitted. After the first active event is sent, a 5 minute

timer starts; if a second active event is sent during this 5 minute period, the motion detector will go into sleep mode for the remainder of the 5

minute period. Once this 5 minute period times out, the motion detector returns to its normal behavior where it can transmit two active events.

During normal mode, a motion detector will send a supervisory heartbeat to the panel 70 minutes after the last event transmission. If the

device has been idle for 70 minutes consecutively, it will send out a heartbeat supervisory transmission.

Qolsys Inc. proprietary.

Reproduction without permission is not permitted.

SLEEP MODE:

WALK TEST MODE:

Sleep mode defines a limited period when the motion detector does not transmit any active or idle events to the panel in order to conserve

battery life. The sleep mode timer last five minutes and starts once the first active event is sent. During this period, if a second active event is

transmitted, the motion detector will go into sleep mode until the timer finishes counting down.

PET IMMUNITY:

The IQ Motion Detector is pet immune up to 40 lbs when mounted at 6.5 feet high and angled downward. Pets must not be allowed to climb

on objects such as furniture, shelves, boxes, etc. within the field of coverage (see detection pattern on page 3 of this manual). The detector

should not be looking directly at stairs that would allow a pet to walk up them when the panel is armed.

Must replace

casting screw

for UL listed

installation

AAA Alkaline (2 per sensor)

Battery life expectancy: 5 years. (Lifetime may vary

depending on number of activations, environmental

conditions, etc.)

To replace batteries:

•Push button on bottom of sensor and remove from

backplate.

•Remove old batteries and replace with new ones.

•Re-install in reverse order.

Operating Temperature: 0˚C~49˚C

Relative Humidity: 93% Max

Storage Temperature: -40-80˚C

ENVIRONMENTAL

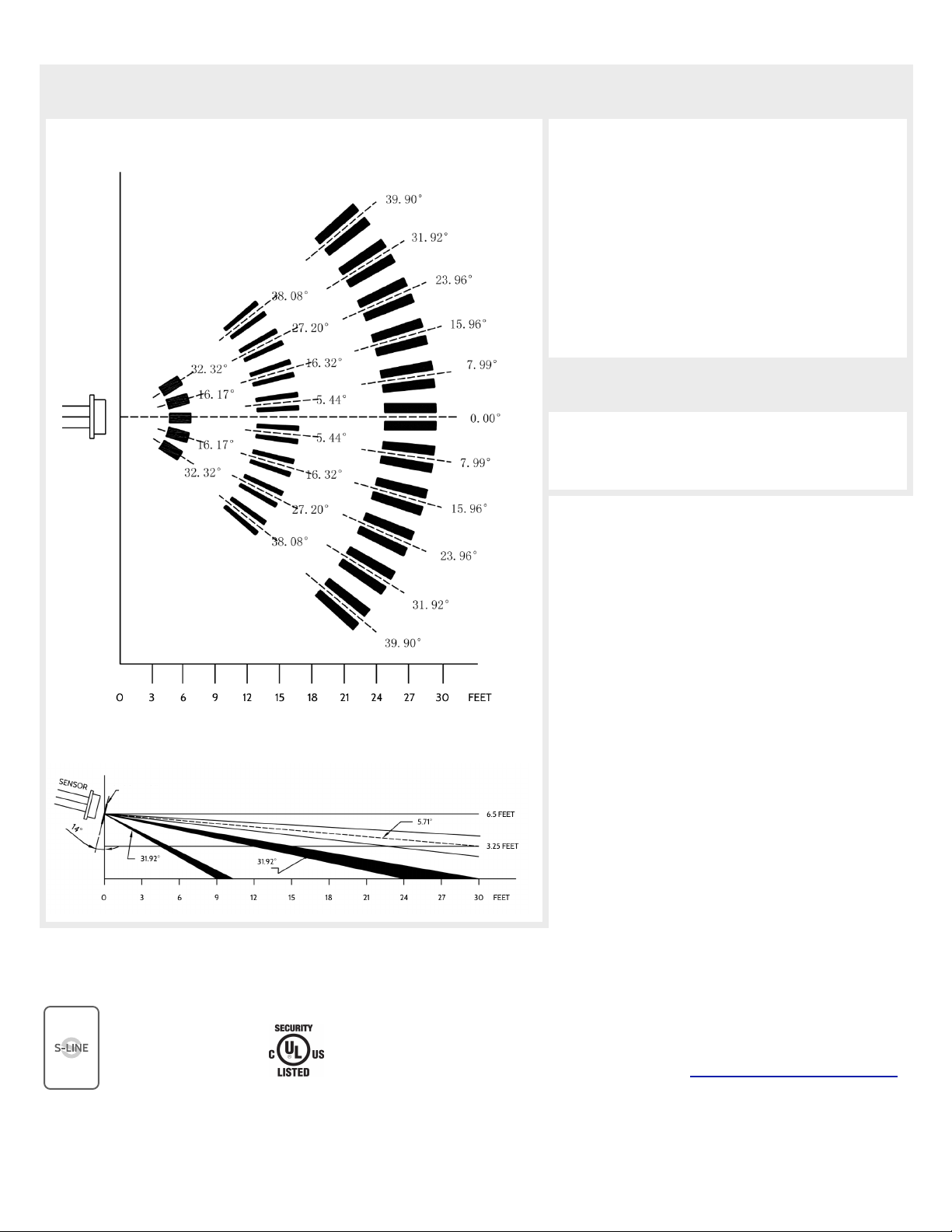

DETECTION PATTERN

BATTERY REPLACEMENT

TOP VIEW:

SIDE VIEW:

Equipment!

BP21056

Document#: IQM-SIM-02-18

Revision#: 2/14/18

Issue Date: FEB 2018

Qolsys Part #: QS1230-840

Tech[email protected]

Qolsys Inc. proprietary.

Reproduction without permission is not permitted.

FCC ID: 2AAJXQS1200

IC: 11205A-QS1200
