Qooarker W919 Guida
WiFi Wireless Remote Visible
Door Bell
Using Direction
Dear users, thanks for your choosing this product. Before using this
product, please read the instructions carefully and keep this guide for
further reference
Note: pictures of the product are based on the material object. We will
update the specification regularly according to the increase or upgrade of the
product’s functions. The contents will be printed in the new version of this
specification without further notice.

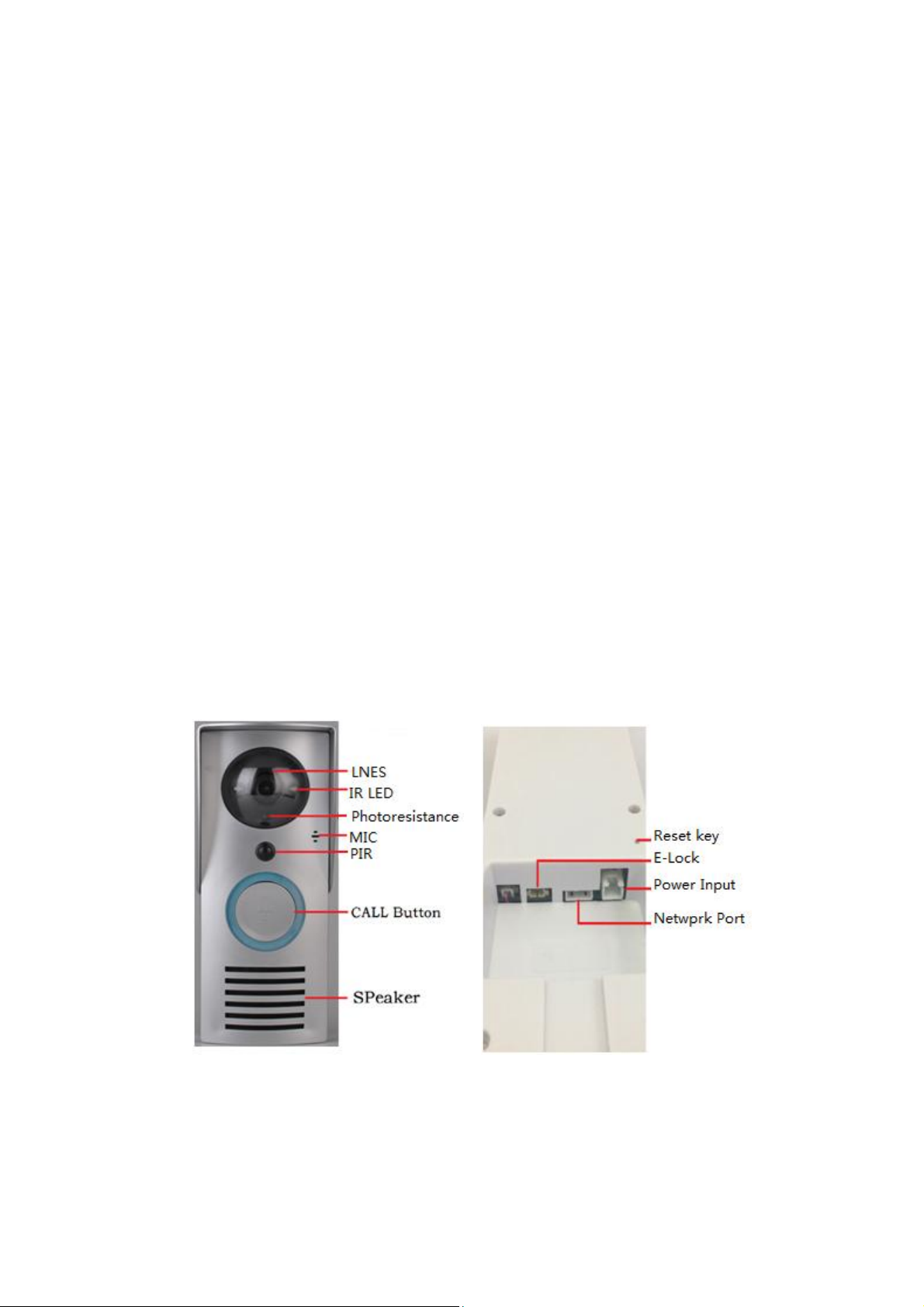

Product introduction
Hisilicon designs with compressed format, and provides high-
definition(1 million), standard definition(D1) as well as VGA for
your choice.
Support Onvif.
With the application of 3.6mm lens, of which the viewing angle
can reach at 90°, and with 2pcs intelligent infrared leds.
This product works under the agreement of 802.11b that the
standard WIFI function, which is originally created with patents.
Designing with built-in ECM Microphone & high-frequency
speaker, meanwhile, using the technology of 3D noise reduction &
echo cancellation, to achieve the real effect of mutual talkback.
Passwords could be set to administors and visitors separately
for video phones, to keep safe.
1Packing Details
When receive the new product, pleas ensure that the device is
packed in fine and with full includes, if there anything lost, please
contact the supplier as soon as possible.
Includes
Model
Power
cable
WiFi
cable
Man
ual
Screw
bag
W919
DC12V
adapter
Built
inside
√
√
2Direction of installing the device
on wall
Choose a good power supply way based on specific house
construction diagram.
Position option:
Heigh: about 1.5m
Position: choose a good place where the WiFi cover fully.
Use two back screw holes’distance as standard, drill two holes on
wall, then hang the door bell on wall.
Take out the top front stopper and screws one pcs screw into the
hole, then put the stopper back to the original position.
3Direction of using with APP
1, Download the APP
Scan below QR code for option.
Android IOS
For IOS user, download "yoosee" in APP store
For Android user, download "yoosee" in google play store
4Device connecting
Please ensure the WiFi signal can cover the device position.
Confirm power and internet connecting>open APP>create account
password>log in APP>enter APP
Reset the device before connection (Long press the reset button,
the device will indicate a successful reset, then a successful reset
is complete）
It can only smart link after the device reset within 1 min, and DI-
DI warning tone will confirm the reset process.
1.Register a new account
(1)Open APP, Clik “Register”
(2)Choose register way, mobile phone registion is suggested, and
follow register steps to finish all steps.
(3)Signin,and enter APP.
2. Smart connecting
Nickname (your nickname)
passcode(the factory default:123）
Note: The first people who adds device through the intelligent
online will be accepted as the default administrator user (a device
has only one administrator), if the administrator did not delete the
device, other users who else add device through intelligent online
will be prompted that the device has been bound by another; At
this point, if you still want to continue using, you need to break up
the default administrator account. If the user gets the device for
the first time, it will indicate that the device has been bound by
another account. Please contact the seller or the manufacturer.
3. Add non admin users
(1)Get the ID number and visitor password: admin user access
device settings interface, click the device information, you can see
the device ID and visitor password
(2)Add Bell: while the equipment is online, non administrator users
can click on the upper right corner of the "+" button in the
software interface equipment list, then according to the prompt,
click the "add networked equipment" to input device ID number
(obtained by the first step), nickname (to input), password
(obtained by the first step), click OK, then here to successfully add
the equipment.
2. Manual operation
While the equipment is online, in the software interface of
equipment list, click on the upper right corner of the "+" button,
then according to the prompt, click the "add network equipment",
input device ID number (obtained by the first step), nickname (to
input), password (obtained by the first step), finally click "OK" to
complete add.
3. cable line link：
If some routers cannot use an intelligent online connection,
you can add devices through wired online;
（1）（2）（3）
（4）（5）
Note:
1. make sure the device is plugged in and energized
2. make sure that your phone and device are connected to the
same router and you can use wired online to add devices
5Vistors call
1. Vistors press “ Call” key
2. Follow steps will be showed on the screen, answer or hang up.
3. After call, you can talk with the outside people by speaker, take
picture or open the door. Dual Tone Multi-Frequency technology,
easy to use,convenient to your life
1.To call by the calling button
2.App sends responsed message for calling, pls choose “answer” or “hang up”.
